A 7-way RV blade trailer connector uses standard pin positions: Pin 1 (White, Ground), Pin 2 (Blue, Brake Controller), Pin 3 (Green, Running Lights), Pin 4 (Black, 12V Auxiliary Power), Pin 5 (Red, Left Turn/Brake), Pin 6 (Brown, Right Turn/Brake), and Pin 7 (Yellow, Reverse). Follow this step by step ankle taping diagram standard for proper vehicle wiring.
📌 Key Takeaways
- Standard 7-way RV blade plugs utilize 10-14 AWG wiring rated for up to 30 amps continuous load.
- Pin 1 must always be grounded to the trailer frame using clean, unpainted metal contact.
- Electric brake controller output is routed through Pin 2 (Blue wire) at 12V DC impulse signal.
- Faulty ground connections cause 80% of trailer light and auxiliary power failures.
- Consult a certified auto electrician if vehicle-side wiring harness shows sign of melt damage or corrosion.
Proper wiring of towing electrical systems is vital for operating trailer electric brakes, lighting circuits, and battery charging lines safely. Modern light-to-medium utility trailers, travel trailers, and commercial haulers predominantly rely on the standard 7-way RV blade connector (SAE J2863) or the simpler 4-way flat connector. Correctly mapping each circuit prevents voltage drops, erratic brake controller responses, and blown fuses in the tow vehicle’s power distribution box. This technical manual details the pin assignments, terminal wiring methods, fault diagnostic routines, and conversion procedures needed to assemble or repair a trailer wiring harness.

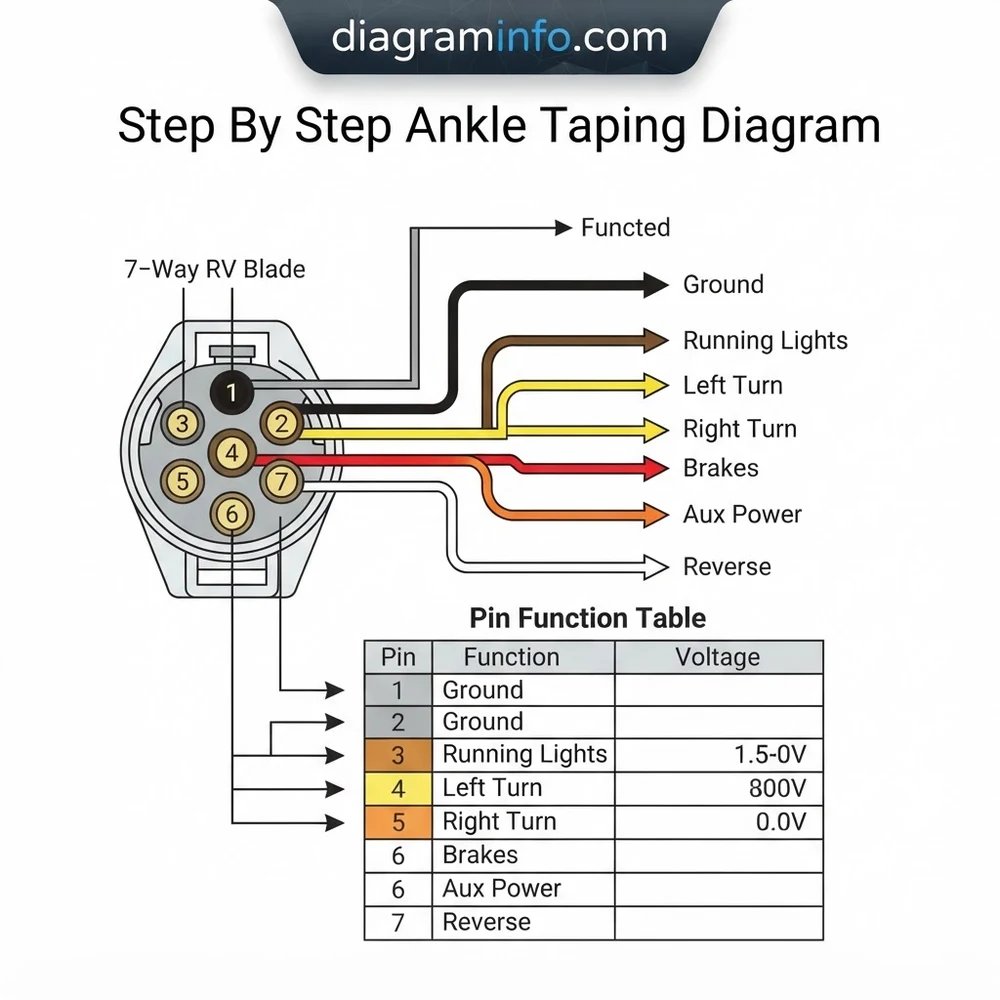

Standard Pinouts in a Step by Step Ankle Taping Diagram
The standard 7-way RV blade socket utilizes a circular configuration with a distinct index keyway positioned at the top (12 o’clock position) to ensure correct orientation during connection. Understanding the vehicle-side socket versus the trailer-side plug pinout layout is crucial before stripping insulation or crimping terminals. When looking directly into the face of the vehicle-side female socket, the pin positions run clockwise starting from the ground pin at the 7 o’clock position.
Recommended Best Deal Products
| Pin # | Wire Color | Circuit Function | Recommended Wire Gauge & Specs |
|---|---|---|---|
| 1 | White | Main System Ground Pin | 10 AWG (Minimum chassis ground return) |
| 2 | Blue | Electric Brake Output | 12 AWG – 10 AWG (From brake controller) |
| 3 | Green | Tail & Running Lights | 14 AWG (Includes clearance lights) |
| 4 | Black or Red | 12V Auxiliary Power / Charge Line | 10 AWG (Protected by 30A-40A fuse) |
| 5 | Yellow | Left Turn Signal & Stop Light | 14 AWG (Combined brake/turn circuit) |
| 6 | Brown | Right Turn Signal & Stop Light | 14 AWG (Combined brake/turn circuit) |
| 7 | Purple | Reverse / Auxiliary Back-Up Lights | 16 AWG – 14 AWG (Disengages surge brakes) |
Discrepancies often arise when comparing commercial heavy-truck 7-way round pin layouts (SAE J560) with 7-way RV blade layouts (SAE J2863). Commercial vehicles use solid round pins with yellow dedicated to left turn, green dedicated to right turn, and brown dedicated to tail lamps. In contrast, standard RV blade connectors combine the stop and turn functions on the yellow (left) and brown (right) wires while assigning green exclusively to running lights and tail lights. Always verify terminal function with a 12V test light or digital multimeter rather than relying strictly on wire jacket colors.
When installing heavy-duty trailers equipped with multi-axle electric brake assemblies, the brake output line (Blue, Pin 2) and main return ground line (White, Pin 1) must be sized to at least 10 AWG stranded copper wire. Undersized 14 AWG wire creates thermal resistance, causing significant output voltage degradation across tandem or triple axle brake magnets under emergency stopping conditions.
Wiring 7-Way RV Blade Connectors Step by Step
Achieving a durable, weather-sealed electrical connection requires systematic preparation, proper mechanical wire stripping, and ratcheting crimp tools. Follow these sequential steps to wire a male 7-way RV blade trailer plug from scratch.
Step 1: Harness Preparation and Outer Cable Stripping
Strip back approximately 2.5 inches of the outer heavy-duty PVC jacket from the main trailer harness bundle using a dedicated cable sheath stripper. Exercise extreme caution to prevent nicking or cutting into the inner conductor insulation layers. Slide the plug’s rubber weather-sealing boot and strain relief clamp assembly over the main cable bundle prior to stripping individual wire ends. Strip 3/8 inch (9.5 mm) of primary insulation from each of the seven individual conductors using a precision wire stripper calibrated to the specific AWG wire size. Lightly twist the exposed bare copper strands of each lead to eliminate loose stranding that could bridge adjacent terminal screws.
Step 2: Terminating the Ground Pin and High-Current Conductors
Begin wiring with the primary ground pin (Pin 1, White wire) located at the bottom left quadrant of the plug interior. Insert the fully twisted 10 AWG bare copper lead into the brass set-screw terminal barrel. Tighten the terminal clamping screw to 15-18 in-lbs of torque to ensure a vibration-proof mechanical bond. Next, route and secure the 10 AWG auxiliary power feed (Pin 4, Black or Red wire) to its designated terminal opposite the ground pin. Finish high-current terminations by connecting the 12 AWG electric brake control wire (Pin 2, Blue wire) to the corresponding pin on the lower right interior module.
Recommended Best Deal Products
Never swap the 12V auxiliary power wire (Pin 4) with the brake controller wire (Pin 2). Reversing these connections sends full 12-volt battery power directly to the trailer’s electric brake actuators continuously, causing immediate magnet overheating, brake shoe glazing, severe battery drain, and potential electrical fires within the hub assembly.
Step 3: Connecting Lighting Signal Circuits
Proceed with the lower-current lighting control circuits. Connect the 14 AWG green wire to Pin 3 (running lights and tail lamps). Secure the yellow wire to Pin 5 (left turn signal and brake light) and the brown wire to Pin 6 (right turn signal and brake light). If the trailer features back-up lighting or an automated reverse-actuated hydraulic surge-brake lock-out solenoid, attach the purple wire to central Pin 7. If reverse functions are unused, seal the purple wire tip with adhesive-lined heat shrink tubing to prevent accidental frame short-circuiting.
Step 4: Mechanical Assembly and Weatherproofing Routine
Apply a generous coating of dielectric grease across all open brass terminal connections to suppress moisture intrusion, chemical oxidation, and pin corrosion. Slide the outer connector housing over the internal terminal block, aligning the internal keyway tracks. Tighten the central housing retaining screws. Finally, slide the rear rubber sealing boot firmly into place and torque the external strain-relief clamp screws evenly across both sides. This mechanical clamping transfers pulling forces directly to the outer jacket rather than straining individual electrical terminals.
Step 5: Adapting 4-Way Flat Connectors to 7-Way RV Plugs
When upgrading a simple utility trailer equipped with a standard 4-way flat connector to a 7-way RV blade configuration (e.g., adding an electric brake axle kit or onboard auxiliary battery), perform a pin-by-pin bridging conversion:
- Ground Extension: Cut the original 4-way flat ground wire (White) and solder it directly to a 10 AWG ground wire attached to Pin 1. Extend this line directly to clean chassis metal using a zinc-plated ring terminal.
- Running Light Circuit: Connect the 4-way flat Brown wire to the 7-way RV blade Green wire (Pin 3).
- Left Turn / Stop Circuit: Connect the 4-way flat Yellow wire directly to the 7-way RV blade Yellow wire (Pin 5).
- Right Turn / Stop Circuit: Connect the 4-way flat Green wire directly to the 7-way RV blade Brown wire (Pin 6).
- Expanded Circuits: Run new dedicated 12 AWG or 10 AWG lines from the trailer electric brake magnets (Pin 2, Blue) and onboard 12V power distribution block (Pin 4, Black) up to the 7-way plug face.
Diagnostic Procedures for RV Blade Electrical Systems
Systematic electrical testing eliminates guesswork when isolating open circuits, ground loops, or parasitic current draws in trailer towing rigs. Ensure proper tools—such as a digital multimeter (DMM) capable of measuring 20A DC, a heavy-duty 12V circuit tester, and marine-grade heat shrink connectors—are on hand before proceeding.
Resistance targets for standard trailer electrical systems: Main chassis ground resistance must measure below 0.2 ohms between the trailer frame and vehicle frame. Standard single 7-inch or 10-inch electric brake magnets must register between 3.0 and 3.8 ohms across their terminals. Dual-axle setups (4 magnets in parallel) should read 0.75 to 1.0 ohm overall system resistance.
Evaluating Circuit Continuity and Line Voltage Drop
Voltage drop across long wiring runs is the leading cause of weak electric brake application and dim trailer running lights. To perform an under-load voltage drop test on the auxiliary power and brake controller circuits:
- Connect the trailer to the tow vehicle’s 7-way socket and start the tow vehicle engine to stabilize alternator output at ~13.8V to 14.4V DC.
- Activate full manual override on the in-cab proportional brake controller.
- Set the digital multimeter to DC Volts. Probe the positive wire entering the electric brake magnet backing plate and connect the negative meter lead to the tow vehicle’s negative battery terminal using an extension jumper.
- If the voltage measured at the brake magnet is more than 0.5V lower than the voltage output at the brake controller rear harness, the blue brake signal line or ground line is undersized, corroded, or experiencing excessive resistance.
Calibrating Proportional Brake Controller Signal Output
In-cab electronic brake controllers modulate voltage delivered to Pin 2 based on internal inertia sensors or hydraulic pressure transducers. Diagnostic verification requires checking both static voltage sweeps and dynamic current draw. With the trailer plugged in, sweep the manual override lever slowly from rest to maximum power. Output voltage measured at Pin 2 should transition smoothly from 0.0V DC to near full battery voltage (~12.5V–13.5V DC). If the brake controller displays an “NC” (Not Connected) or “OL” (Open Loop) fault code, the controller is failing to sense the required 3-ohm to 4-ohm cold load resistance provided by the trailer brake magnets via the electric brake control circuit.
Avoiding Faults in Your Step by Step Ankle Taping Diagram
Electrical failure on trailered equipment usually stems from mechanical strain, chemical corrosion, or poor grounding practices. Avoiding these standard wiring mistakes ensures long-term system reliability under heavy towing conditions.
High-Resistance Grounding and Frame Bonding Failures
The single most frequent cause of intermittent lighting, dim tail lamps, and erratic brake controller performance is relying on the trailer hitch ball as an electrical ground path. Tow balls, hitches, and coupler housings suffer from grease accumulation, rust, and mechanical play that disrupt continuity. The white ground pin (Pin 1) must be directly bonded to the tow vehicle chassis frame and the trailer main frame beam using a 10 AWG copper ground wire terminated with a star-washer ring terminal. Clean all ground landing surfaces down to bare metal before bolting terminals into place, then coat the completed joint with rubberized undercoating or marine grease.
Incorrect Signal Routing and Cross-Wired Lighting Lines
Cross-wiring the yellow and brown signal lines results in activated right turn signals flashing the left trailer lights, or running lights cycling when applying foot brakes. Another prevalent mistake occurs when connecting a vehicle with separate stop and turn signals (common on European and Asian vehicles with amber rear turn signals) directly to a standard 3-wire trailer system without an electronic tail light converter (2-to-3 wire logic converter). Without a powered converter module installed on the tow vehicle, applying the brakes will lock light circuits on or cause back-feeding into the tow vehicle’s sensitive body control module (BCM).
Inadequate Wire Sizing and Mechanical Protection
Using standard 16 AWG or 18 AWG primary wire for the main ground pin or electric brake feed lines leads to severe thermal resistance. As electrical current travels through an undersized conductor, electrical energy dissipates as heat, dropping operating voltage at the brake magnets. Additionally, routing bare primary wire through un-grommeted pass-through holes in the steel trailer frame will cut wire insulation over time due to road vibration, causing dead short circuits. Always encase exposed wiring in split-loom tubing or rubber-armored flex conduit, and secure runs every 18 inches using vinyl-coated P-clamps.
Step by Step Ankle Taping Diagram Frequently Asked Questions
Can a standard 4-way flat vehicle socket connect directly to a 7-way RV blade plug?
Yes, but only by utilizing an active adapter or a hardwired step-up adapter harness. A 4-way flat plug only carries signals for ground (white), running lights (brown), left stop/turn (yellow), and right stop/turn (green). Plugging a 4-way into a 7-way adapter leaves the electric brake line (blue), 12V auxiliary line (black), and reverse light line (purple) disconnected. If the trailer relies on electric brakes, separate 10-12 AWG power feeds must be routed from an in-cab brake controller and fused battery terminal to complete the 7-way circuit requirements.
Why do trailer electric brakes lock up or grab abruptly at low speeds?
Abrupt grabbing or locking of electric brakes usually stems from three distinct causes: an improperly adjusted gain setting on the brake controller, a short circuit bridging the 12V auxiliary charge line (Pin 4) directly to the blue brake wire (Pin 2), or contaminated/misaligned brake shoes inside the drum. Verify that the controller gain is calibrated to match the loaded weight of the trailer. Test Pin 2 with a voltmeter while the vehicle is idling; if 12 volts is constantly present on Pin 2 without pressing the brake pedal, check the socket body for internal corrosion or shorted pin wires.
What wire gauge is required for the auxiliary power charging circuit on travel trailers?
The 12V auxiliary power circuit (Pin 4) requires a minimum wire gauge of 10 AWG stranded copper. This circuit charges onboard trailer house batteries and runs 12V appliances (such as RV absorption refrigerators) while driving. Smaller wire sizes (such as 14 AWG) experience excessive voltage drop across 20-30 feet of harness run, preventing the vehicle alternator from supplying the minimum 13.6V DC needed to charge deeply discharged marine RV batteries. The circuit must be protected by a 30A or 40A auto-reset circuit breaker positioned near the tow vehicle battery.
How do commercial 7-way round connectors differ from 7-way RV blade plugs?
While both connectors utilize seven distinct conductors, they are physically and electrically incompatible without an adapter adapter harness. Commercial 7-way round plugs (SAE J560) use solid round brass pins enclosed in a heavy zinc die-cast or nylon housing, primarily designed for Class 7 and Class 8 semi-trucks operating 24V or 12V air-brake systems. RV blade plugs (SAE J2863) use flat, spring-loaded copper blade terminals designed for light/medium towing. Furthermore, signal mapping differs completely: Pin 2 on an RV blade operates electric brakes, whereas Pin 2 on a commercial plug provides power to center marker lamps or auxiliary equipment.
How do I test if a trailer ground loop is causing lighting feed-through problems?
When running lights turn off or flash unexpectedly when activating turn signals, a floating or high-resistance ground is the culprit. To test for a ground loop, turn on the tow vehicle running lights and set the digital multimeter to measure DC voltage. Place the positive meter probe on the trailer chassis frame metal (scraped bare) and the negative probe on the tow vehicle frame chassis ground point. If the meter reads higher than 0.2V DC while lights are illuminated, current is failing to return through the white ground pin (Pin 1) and is instead seeking secondary paths through lighting filaments and mechanical hitch linkages.
Step-by-Step Guide to Understanding the Step By Step Ankle Taping Diagram
Identify – Determine your connector type (7-way RV blade) and verify cable wire gauges (10 to 16 AWG).
Locate – Find the terminal pin numbers cast into the rear housing of the trailer plug body.
Reference – Match each wire function (Ground, Brake, Auxiliary, Lights) to its corresponding terminal on the step by step ankle taping diagram.
Connect/Route – Insert stripped wire ends into designated pin terminals and torque set-screws to 15 in-lbs.
Verify – Use a 12V circuit tester or multimeter to confirm correct voltage across running lights, brake controller, and turn signal pins.
Troubleshoot – Inspect frame ground points and replace burnt fuses if voltage drops below 12.0V during testing.
