The Miller Bobcat 225 parts diagram illustrates the internal engine-generator layout, detailing the rotor assembly, stator winding structure, brushes, fuel pump, and 120/240V receptacle panel switch configuration. It identifies exact part numbers for maintenance items like air filters, ignition modules, and excitation diodes to streamline component replacement.
📌 Key Takeaways
- Covers both Kohler CH730/CH23 and Subaru EH65 engine configurations powering the 11,000-watt generator welder system.
- Rotor slip ring resistance should measure between 15 and 30 ohms across brush contacts for proper field excitation.
- Safety rule: Disconnect the negative battery terminal and discharge power capacitors before inspecting internal electrical layout components.
- Worn brush assemblies and fouled slip rings cause over 60% of sudden loss-of-excitation power issues.
- Engine maintenance and receptacle replacement are DIY-friendly, but stator rewinding or rotor shaft removal requires certified service technicians.
The Miller Bobcat 225 engine-driven welder generator is a industry-standard workhorse on construction sites, remote fabrications, and agricultural operations. Combining an industrial gasoline engine—typically a Kohler Command PRO CH23/CH730 or Subaru Robin EH65—with a heavy-duty, multiprocess AC/DC welding generator, this equipment requires routine maintenance and periodic component replacement to maintain peak operating efficiency. Navigating a comprehensive Miller Bobcat 225 parts diagram enables equipment owners, field technicians, and certified mechanics to rapidly identify structural elements, trace electrical schematics, cross-reference OEM part numbers, and execute precise repairs. This article provides a technical overview of the Bobcat 225 system architecture, schematic reading methodology, and troubleshooting protocols.

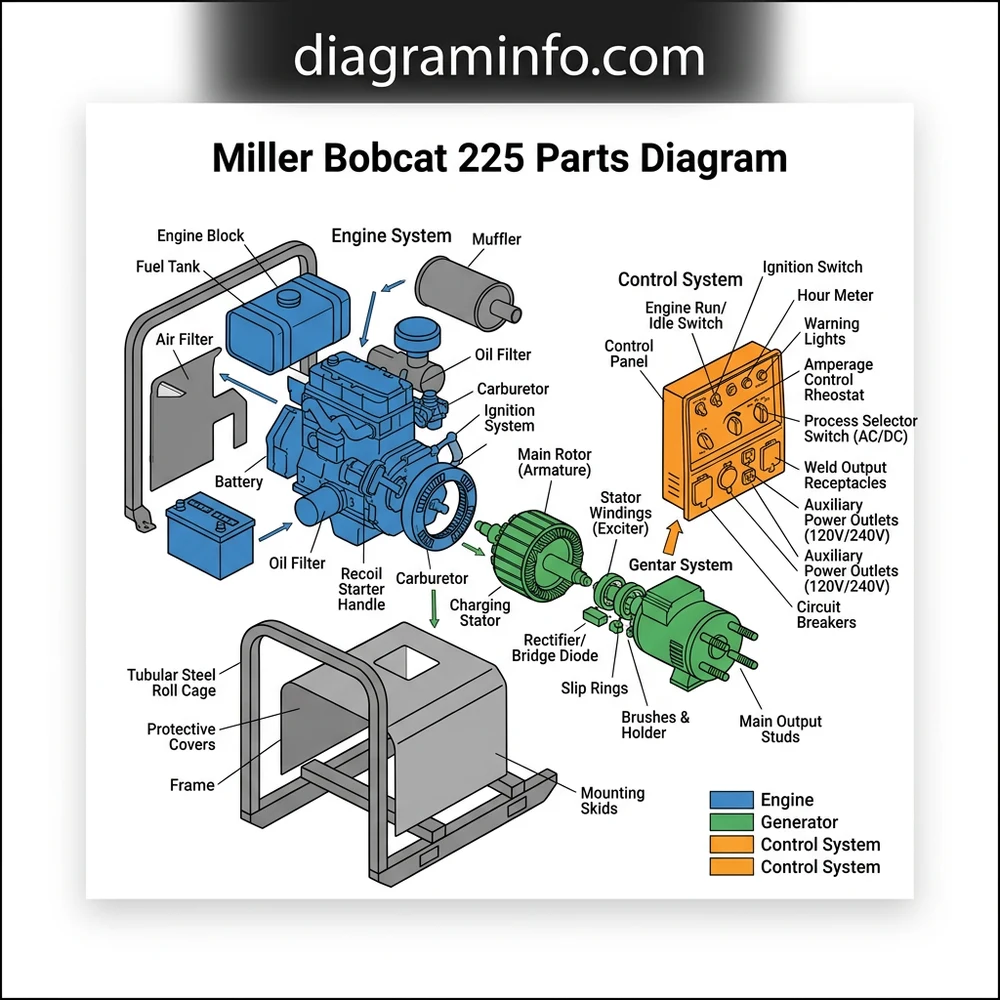

Miller Bobcat 225 Parts Diagram: System and Structural Breakdown
Understanding the internal architecture of the Miller Bobcat 225 requires breaking the machine down into three core sub-assemblies: the mechanical engine drive system, the generator/reactor assembly, and the front panel electrical interface. According to manufacturer specifications, each subsystem relies on dedicated structural mounting, vibration isolation, and precisely routed wiring harnesses.
Engine and Fuel Delivery Component Configuration
The primary power plant consists of a twin-cylinder, four-stroke engine bolted to the main base frame via heavy-duty anti-vibration rubber mounts (OEM Part #113337). Fuel is pulled from an under-mount polyethylene fuel tank through a 1/4-inch fuel line equipped with an inline fuel filter (OEM Part #149826) and a 12V pulse fuel pump. The carburetor choke linkage and engine speed governor control are managed by a dual-solenoid system tied into the automatic idle module (PC1 control board). When servicing the drive system, refer to the Kohler engine service manual for detailed internal engine tolerances and valve adjustments.
Generator Stator, Rotor, and Electrical System Layout
The generator core uses a direct-drive, four-pole revolving field layout coupled directly to the engine crankshaft via a tapered fit and rotor securing bolt (torque specification: 35–40 ft-lbs). The stationary stator assembly (OEM Part #218320) surrounds the rotor and features dedicated AC power windings, weld output windings, and auxiliary excitation windings. Excitation current travels through a heavy-duty brush holder assembly (OEM Part #161394) riding on dual copper slip rings mounted on the rotor shaft. The raw AC weld current passes into a multi-phase silicon bridge rectifier (OEM Part #035704) and a stabilizing reactor coil before reaching the output studs.
Front Control Panel Assembly and Switch Layout
The front panel acts as the user interface and houses primary current selection switches, fine tuning rheostats, circuit breakers, and output receptacles. Weld range selection is controlled by a heavy-duty, four-position rotary switch (OEM Part #207123) linked via solid copper busbars to the main reactor taps. Auxiliary power is distributed through dual 120V 20A GFCI duplex receptacles and a single 120/240V 50A full-power receptacle (NEMA 14-50R), each protected by thermal-magnetic circuit breakers.
| Component Description | OEM Part Number | Technical Specifications / Notes |
|---|---|---|
| Generator Brush Assembly (Set) | #161394 | Dual carbon brushes with tension springs; min length 5/16 in. |
| Main Power Bridge Rectifier | #035704 | 100A, 400V heat-sink mounted bridge rectifier block |
| Automatic Voltage Control PCB | #216110 | Engine idle and field excitation control module (PC1) |
| Fine Current Adjustment Rheostat | #030528 | 15 Ohm, 150 Watt wire-wound variable resistor |
| Weld Range Selector Switch | #207123 | 4-Position, high-current rotary selector switch assembly |
How to Read the Miller Bobcat 225 Schematic and Blueprint
Interpreting a Miller Bobcat 225 blueprint requires a structured approach to decoding exploded isometric views and electrical circuit schematics. Official OEM manuals present mechanical components using itemized callouts tied to a master bill of materials, while electrical systems use standardized industrial ladder diagrams.
Locating Exploded Assembly Views and Index Item Numbers
On the exploded mechanical blueprint, components are grouped by major housing enclosures: wrapper/case panels, engine mount frame, rotor/stator housing, and front panel matrix. Each physical part is assigned a numbered balloon callout. When reading these diagrams:
- Identify the parent assembly (e.g., “Figure A: Generator and Reactor Assembly”).
- Match the circled item number on the exploded diagram to the matching line item in the parts table.
- Verify the specific unit serial number prefix (e.g., LC, LE, or MA series), as minor mounting bracket configurations changed across production years.
Tracing Electrical Circuits and Wire Color Codes on the Schematic
The electrical schematic combines point-to-point wiring paths with functional circuit blocks. Miller uses a numbered and color-coded wire labeling standard stamped directly onto the wire insulation every few inches:
- Wire 1 (White): Switched 12V DC positive feed from ignition switch to engine accessories.
- Wire 21 (Red/Black): DC flash voltage feed sent to the generator field brushes during engine cranking.
- Wire 42 (Black): Fine control current loop connecting the PC1 board to the fine adjustment rheostat.
- Wire 92/93 (Green): Main chassis ground connections linking frame to stator core and panel receptacles.
Rotor Winding Resistance: 3.5 to 5.0 Ohms (measured across slip rings at 70°F/21°C). Stator Power Winding Resistance: 0.10 to 0.25 Ohms across leads. Exciter Winding Resistance: 1.2 to 1.8 Ohms. Always disconnect lead wires before taking resistance readings to prevent false continuity through parallel circuits.
Cross-Referencing Mechanical Structure with OEM Parts Lists
When replacing worn hardware or electrical switches, cross-referencing between the physical structure and part numbers prevents ordering incompatible revisions. If you are replacing a selector switch assembly, trace the terminal tags (e.g., A1, A2, B1) on the schematic to match physical busbar connections. Cross-check these against relevant multiprocess welder switch assemblies to confirm terminal lug orientations prior to installation.
Common Miller Bobcat 225 Diagram Problems and Diagnostic Solutions
Electrical and mechanical failures in engine-driven welders often manifest as loss of auxiliary generator power, absent arc voltage, or uncontrolled engine surging. Utilizing the parts diagram alongside targeted multimeter testing isolates the failed component without guessing.
Loss of Generator Auxiliary Power and Weld Current Output
If the engine runs normally but the machine produces no auxiliary AC power and zero weld arc, the primary suspect is loss of rotor excitation (field flashing) or worn carbon brushes.
During engine start, a 12V DC flash pulse is sent through Wire 21 and diode D1 to the positive brush (Brush 1). This initializes residual magnetism in the rotor. If battery voltage drops below 10.5V DC during cranking, field flashing will fail, preventing the generator from building output voltage.
To diagnose lost field excitation:
- Remove the rear generator cover and inspect brush length. Replace brushes if worn shorter than 5/16 inch.
- Clean oxidation from copper slip rings using 400-grit non-conductive sandpaper.
- Check diode D1 on the control harness with a multimeter in diode test mode; a shorted or open diode blocks field flashing.
- Measure rotor resistance across the slip rings; a reading of infinity indicates an open rotor winding requiring rotor replacement.
Engine Speed Idle Solenoid and Governor Linkage Diagnostics
The Bobcat 225 utilizes an auto-idle control board (PC1) that signals a throttle solenoid to switch the engine between weld speed (3700 RPM) and idle speed (2400 RPM). If the engine stays locked at idle or fails to step down when striking an arc:
- Inspect the mechanical governor linkage on the exploded engine diagram for bent arms, binding joints, or missing return springs (OEM Part #167489).
- Test the idle solenoid coil resistance; normal coil resistance measures between 18 and 24 Ohms.
- Verify signal voltage from PC1 to the solenoid on Wire 41; absent voltage during weld load sensing indicates a faulted PC1 control module or current sensing transformer (CT1).
Disconnect the negative (-) battery terminal and discharge high-capacity excitation capacitors prior to servicing internal generator components or touching bridge rectifier terminals. Secondary AC output circuits produce high voltage capable of causing severe electric shock or death.
Exciter Circuit Failure and Rectifier Bridge Testing
When weld current is weak or erratic while auxiliary power remains functional, focus diagnostics on the heavy-duty weld bridge rectifier (SR1) and selector switch contacts. Disconnect all AC input leads from SR1 and test each diode leg using a digital multimeter. A shorted bridge rectifier pulls down main generator output and can cause extreme stator heating. If stator rewinding or replacement is necessary, consult specialized stator replacement procedures to ensure correct air-gap alignment during reassembly.
Miller Bobcat 225 Parts Diagram Frequently Asked Questions
Where can I find the exact electrical schematic for my specific Miller Bobcat 225 serial number?
The precise wiring schematic and exploded parts view for your machine is located inside the main wrap-around sheet metal cover or inside the side access door. Additionally, Miller Electric provides downloadable manuals based on the machine’s two-letter, six-digit serial number prefix (e.g., MA123456G) on their official technical documentation portal.
How do I identify whether my Bobcat 225 uses a Kohler or Subaru Robin engine in the layout schematic?
Inspect the engine-to-frame mounting section and engine code on the model data plate. Kohler engines feature horizontal cylinder layouts with top-mounted air filter housings (CH18/CH20/CH23/CH730 series), whereas Subaru Robin models (EH65) feature distinct valve cover profiles and alternate oil filter mounting locations. The parts manual explicitly splits engine-specific parts into separate sub-diagram sections labeled “Engine Assembly: Kohler” or “Engine Assembly: Subaru”.
What are the factory brush spring tension specs and brush replacement limits?
Standard generator brush length on a new Bobcat 225 is 5/8 inch (15.8 mm). The minimum allowable brush length before mandatory replacement is 5/16 inch (7.9 mm). Spring tension must maintain constant, firm contact against the copper slip rings without binding in the plastic brush holder block (OEM Part #161394).
Why are my 120V auxiliary outlets dead while the welding arc functions normally?
This symptom usually indicates a tripped 20-amp thermal circuit breaker on the front control panel or a tripped GFCI receptacle. If the breakers are reset and functional, consult the wiring schematic to trace Wires 91, 92, and 93 from the auxiliary stator windings through the breaker assembly. An open circuit in the neutral wire or a blown excitation fuse on the PC1 board can also disable panel receptacles while maintaining basic arc capability.
How do part numbers differ between older Miller Bobcat 225 models and newer Bobcat 225 EFI models?
Older carbureted Bobcat 225 models use mechanical choke cables, standard pulse fuel pumps, and simplified PC1 control boards. Newer EFI (Electronic Fuel Injection) variants incorporate an Engine Control Unit (ECU), high-pressure electric fuel pumps (45 PSI operating threshold), oxygen sensors, and upgraded wiring harnesses containing CAN-bus communication lines. Mechanical enclosure parts and control panel switches remain similar, but internal fuel, engine management, and electrical schematic numbers are distinct and non-interchangeable.
Step-by-Step Guide to Understanding the Miller Bobcat 225 Parts Diagram
Identify – Note your machine serial number to select the precise schematic edition corresponding to your specific generator engine model.
Locate – Find the specific sub-system layout, such as the engine assembly, rotor drive shaft, or front panel wiring block.
Reference – Match the item callout number from the structural diagram to the matching OEM part number listed in the index.
Connect/Route – Follow the diagram’s wire color codes and harness path routing to place electrical terminals correctly back onto switches and rectifiers.
Verify – Check replacement component alignment and torque all mechanical fasteners to factory specifications before reassembling the cabinet shell.
Troubleshoot – Test generator output voltage at 3600 RPM using a multimeter to confirm full system functionality post-repair.
