12V 3-Port 3 Way Solenoid Valve Diagram: Troubleshooting 2026
A 3 way solenoid valve diagram illustrates the structural layout of three main fluid ports—Pressure (P), Working (A), and Exhaust (R)—and the internal magnetic coil. When energized via 12V/24V DC terminals, the plunger shifts positions, re-routing fluid flow between the normally closed and normally open configurations instantly.
📌 Key Takeaways
- Operating parameters typically require 12V or 24V DC supply voltage with pressure ranges between 0.5 to 10 bar.
- Port identification follows standard system markings: Port P (Inlet/Pressure), Port A (Outlet/Working), and Port R (Exhaust/Return).
- Tighten DIN terminal connection screws to 0.4 Nm and verify zero fluid pressure before performing electrical wiring.
- Coil burnout due to voltage spikes and plunger jamming from particulate debris represent the primary failure points.
- Replacing a faulty solenoid coil is a straightforward DIY task, while internal valve spool rebuilding requires bench testing.
3-way solenoid valves serve as critical flow-control interfaces in modern fluid power, automotive powertrain, and industrial automation systems. Whether managing turbocharged wastegate actuators, variable valve timing oil control units, or pneumatic shift circuits, these electromechanical devices switch, divert, or mix fluid media under electronic command. Interpreting a standard 3 way solenoid valve diagram is an essential skill for diagnosing shifting issues, pressure loss, or circuit actuation failures. This technical guide outlines the internal mechanics, ISO standard schematic symbols, wiring topologies, and step-by-step diagnostic routines required to service and troubleshoot these three-port control valves accurately.
3 Way Solenoid Valve Diagram: Internal Structure and Mechanical Components

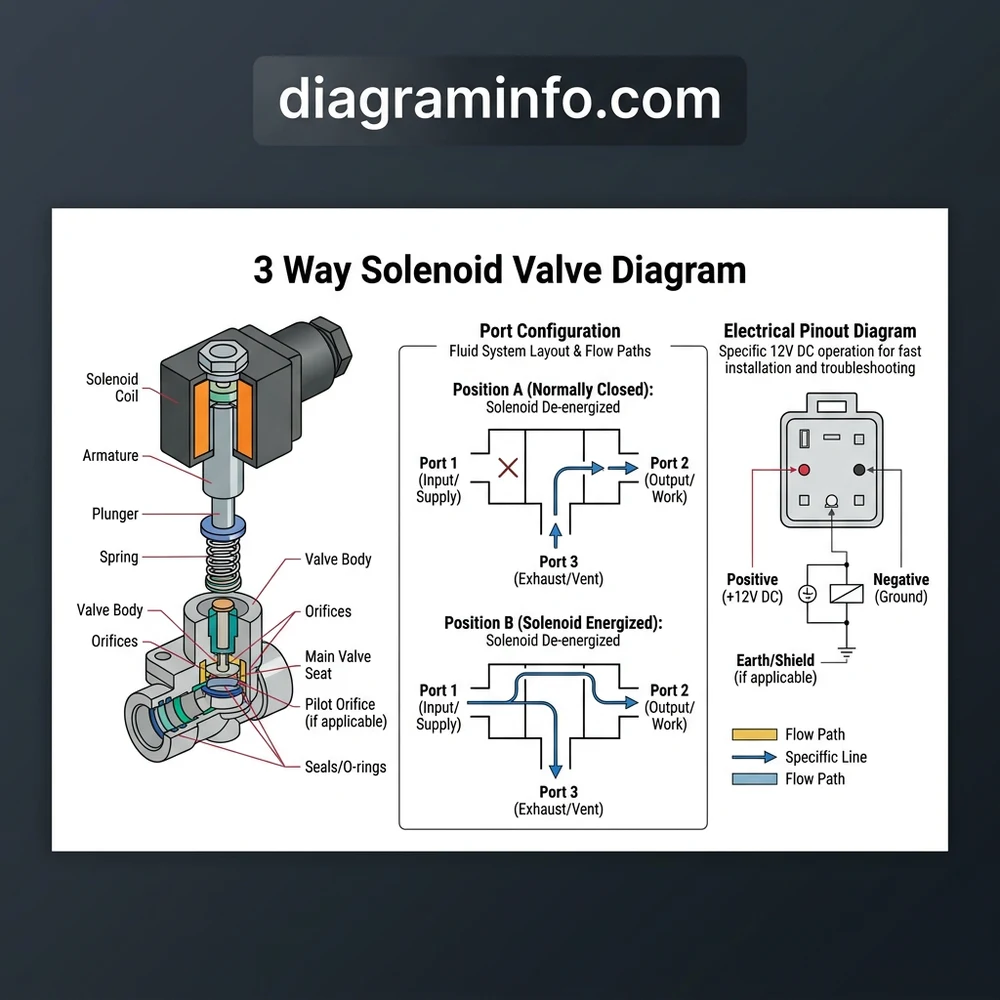

Understanding the internal structure of a 3-way solenoid valve requires examining both its mechanical housing and electromechanical actuator assembly. As illustrated in a standard functional blueprint, the component consists of three functional flow ports, a movable internal plunger (armature), a compression return spring, an electromagnetic field coil, and specialized sealing interfaces.
The valve body houses three distinct ports: Port 1 (typically designated as the pressure inlet or supply line, labeled “P”), Port 2 (the working or output port routed to an actuator/cylinder, labeled “A”), and Port 3 (the exhaust or return line, labeled “R” or “E”). Depending on whether the valve layout is designed for pneumatic media (0–150 PSI) or high-pressure hydraulic circuits (up to 3,000 PSI), fluid passage geometries are precision-machined to minimize turbulence and flow restriction.
Standard automotive and industrial 3-way solenoids operate on 12VDC or 24VDC control circuits. Typical coil resistance ranges between 10.5 Ω and 35.0 Ω at 20°C (68°F), drawing approximately 0.35 A to 1.15 A during sustained holding states. Elastomeric seals are rated for fluid compatibility using Fluorocarbon (FKM/Viton) or Nitrile (NBR) materials.
The electromagnetic assembly sits atop the fluid body. When direct current passes through the copper magnet wire coil, it generates an axial magnetic field. This field pulls the ferromagnet plunger upward against the mechanical bias of the return spring. Synthetic rubber or elastomer seals located on the upper and lower faces of the plunger open or close specific valve seats depending on the position of the armature.
| Component Part | Primary Function | Technical Material Spec |
|---|---|---|
| Solenoid Coil Assembly | Converts electrical energy into electromagnetic thrust force | Class H insulated copper magnet wire (180°C rating) |
| Plunger / Armature | Linear moving element that opens/blocks internal ports | 430F Stainless Steel / Soft Iron Core |
| Return Spring | Forces plunger to resting position upon de-energization | 302/316 Stainless Steel (music wire grade) |
| Poppet / Valve Seats | Directs fluid path between inlet, work, and exhaust ports | FKM / Viton, EPDM, or PTFE elastomeric seals |
In specialized industrial applications, full functional details can be found in technical overviews covering pneumatic directional control valves, where multi-port valve bodies handle compressed gas distribution across automated production machinery.
How to Read a 3 Way Solenoid Valve Diagram and Hydraulic Schematic
Reading a 3 way solenoid valve diagram correctly requires understanding standard ISO 1219-1 symbols and system schematics. On fluid power blueprints, directional control valves are represented by square boxes called “positions.” A 3-way valve diagram utilizes two adjacent square boxes, indicating a 3-port, 2-position (3/2) valve configuration.
To trace media movement across a schematic, evaluate the system in both de-energized and energized operating states:
- De-energized State (Resting Position): Represented by the box adjacent to the return spring symbol. For a Normally Closed (NC) configuration, Port 1 (Pressure) is blocked by the plunger seal. Port 2 (Work Port) is open directly to Port 3 (Exhaust/Return), allowing fluid from an actuator to bleed back into the reservoir or vent to ambient air.
- Energized State (Shifted Position): Represented by the square box adjacent to the solenoid coil symbol. When current activates the coil, the plunger shifts positions. Port 3 (Exhaust) becomes blocked, and an open pathway connects Port 1 (Inlet) directly to Port 2 (Work Port), routing pressurized media directly to the actuator.
While standard 3/2 valves act as Normally Closed or Normally Open control devices, 3-way valves can also be wired or plumbed as Diverting Valves (1 inlet split into 2 alternate outlets) or Selector Valves (2 alternate inlets routed to 1 outlet). Always check line arrows on the schematic symbol to verify flow orientation before plumbing.
From an electrical wiring schematic perspective, modern 3-way solenoids typically feature two-pin Deutsch DT, DIN 43650, or weather-pack connectors. Pin 1 (often tagged with a Red or Yellow wire) connects to the switched 12V/24V power supply or Pulse-Width Modulation (PWM) signal driver from an Electronic Control Unit (ECU). Pin 2 (Black or Brown wire) connects to chassis ground or an ECU low-side driver circuit. When reviewing high-performance engine control blueprints, refer to our comprehensive electronic boost control solenoid guide for PWM duty-cycle signal interpretation.
Troubleshooting System Failures with the Solenoid Circuit Blueprint
When diagnosing fluid power or electronic switching failures, systematic troubleshooting of the 3-way solenoid valve circuit prevents unnecessary part replacement. Diagnostics should evaluate both mechanical valve integrity and electrical control loop performance against factory specifications.
Always isolate electrical power and completely vent line pressure (0 PSI / 0 Bar) before removing a 3-way solenoid valve from a manifold block. High-pressure hydraulic fluid injection beneath the skin can cause severe injury or tissue damage.
Begin electrical testing by disconnecting the harness plug and using a digital multimeter set to ohms (Ω) to measure internal coil resistance across the terminal pins:
- Open Circuit (OL): Indicates a broken internal copper winding or burnt wire connector. The coil must be replaced.
- Abnormally Low Resistance (< 2.0 Ω): Indicates an internal short circuit across coil windings, which often blows system fuses or damages driver transistors inside the control module.
- High Resistance to Ground (> 1 MΩ check): Test between either electrical pin and the metal valve housing to check for internal dielectric breakdown. Resistance must read infinite.
For mechanical troubleshooting, perform a pressure-hold test. Apply regulated air pressure (30–50 PSI) to Port 1 while the coil is de-energized. In a Normally Closed valve, zero pressure should pass to Port 2, and no air should leak out of Port 3. If pressure bleeds out of Port 3 during rest, foreign debris, varnish contamination, or a damaged FKM poppet seat is preventing complete closure. For advanced hydraulic fluid contamination procedures, read through our specialized hydraulic manifold pressure troubleshooting reference guide.
3 Way Solenoid Valve Diagram Configurations and Technical FAQs
What is the difference between a Normally Closed (NC) and Normally Open (NO) 3-way solenoid valve diagram?
In a Normally Closed (NC) schematic, Port 1 (Inlet) is blocked when the coil is de-energized, while Port 2 (Work) vents to Port 3 (Exhaust). In a Normally Open (NO) schematic, Port 1 connects directly to Port 2 at rest, supplying fluid pressure continuously until the solenoid energizes to shift the plunger and block the inlet line.
How do you identify Port 1, Port 2, and Port 3 on an unmarked valve body?
Refer to manufacturer stamping or casting marks near the threaded ports. Port 1 (Inlet) is typically designated by “P” or “1”. Port 2 (Work) is labeled “A”, “B”, or “2”. Port 3 (Exhaust/Return) is designated by “R”, “E”, or “3”. If unstamped, blow low-pressure air into the ports while de-energized: the port that exhausts air directly out another open port without restriction is Port 2 venting to Port 3.
Can a 3-way solenoid valve be operated using Pulse-Width Modulation (PWM)?
Yes, fast-acting 3-way solenoid valves with low-inductance armature coils are specifically engineered for duty-cycled PWM operation. By cycling the coil signal between 20 Hz and 300 Hz, the control unit varies the average position of the internal plunger to deliver precise variable fluid pressure, such as in boost control or dynamic transmission clutch actuation circuits.
Why does a 3-way solenoid valve coil overheat or buzz during operation?
Coil overheating occurs due to sustained overvoltage, excessive ambient heat, or mechanical jamming of the armature. In AC-powered solenoid circuits, if mechanical debris prevents the plunger from pulling in completely, high magnetic inrush current continues flowing through the coil, causing excessive heating and severe AC armature chatter (buzzing).
How do you wire a flyback diode into a 3-way solenoid valve circuit schematic?
A flyback (suppression) diode, such as a 1N4007, is installed in parallel across the solenoid coil terminals in reverse-bias orientation (cathode connected to 12V/24V positive power, anode to the switched ground). When the control switch opens, the coil collapses its magnetic field, generating a high-voltage inductive spike. The flyback diode safely dissipates this voltage spike, protecting control module transistors from transient breakdown.
Step-by-Step Guide to Understanding the 3 Way Solenoid Valve Diagram
Identify – Determine the valve type and flow configuration (normally closed or normally open) by checking port labels P, A, and R.
Locate – Map the valve structure within your system, referencing physical port locations against the circuit layout diagram.
Reference – Review the electrical pinout diagram to match terminal 1 (positive), terminal 2 (negative), and the ground lug.
Connect/Route – Route pneumatic or hydraulic lines to appropriate ports and torque thread fittings to manufacturer specification.
Verify – Power the 12V/24V DC coil to confirm smooth plunger actuation, proper port switching, and zero external fluid leakage.
Troubleshoot – If the valve fails to actuate, test coil resistance using a multimeter to check for an open circuit or internal short.
