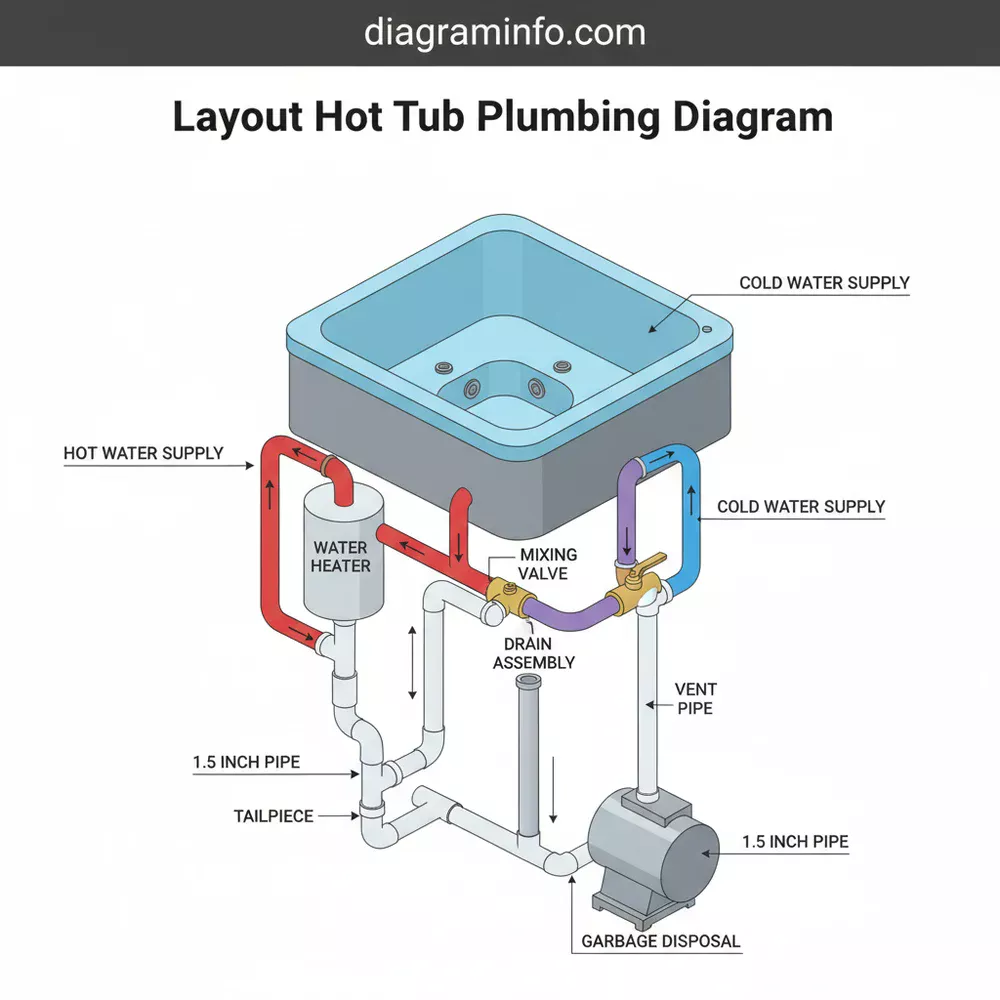

Layout Hot Tub Plumbing Diagram: Step-by-Step Guide
A layout hot tub plumbing diagram outlines the circular path water takes through the pump, heater, and filter before reaching the jets. It highlights the suction side for water intake and the pressure side for return, ensuring components like the drain assembly and P-trap manage wastewater safely while maintaining optimal hydrotherapy pressure.
📌 Key Takeaways
- Visualizes the connection between the pump, heater, and jets
- The drain assembly is the most critical component for maintenance
- Ensure all suction lines have safety covers to prevent entrapment
- Use rigid PVC for long runs and flexible PVC for tight jet connections
- Use this diagram during the rough-in stage of spa construction
Navigating the complexities of spa maintenance or construction requires a clear understanding of how water moves through the system. A layout hot tub plumbing diagram serves as the essential blueprint for identifying the network of pipes, pumps, and valves that keep your water circulating and heated. Whether you are troubleshooting a pressure loss or building a custom tub from scratch, having the correct visual guide ensures that every component is installed in the right sequence. This article provides a deep dive into reading these diagrams, understanding the specific parts involved, and mastering the fluid dynamics necessary for a high-performing spa.
Understanding the Layout Hot Tub Plumbing Diagram
A layout hot tub plumbing diagram is more than just a map; it is a schematic of pressure, suction, and filtration. At its most basic level, the diagram illustrates the “closed loop” nature of spa plumbing. Water is pulled from the footwell and skimmer, pushed through a filter and heater, and then distributed back into the tub through various jet orifices. Unlike standard residential plumbing where gravity does much of the work, a spa relies on high-velocity pumps and intricate manifold systems to provide the hydrotherapy experience users expect.
When viewing a high-quality diagram, you will notice a distinct separation between the suction side and the pressure side. The suction side is typically represented by larger diameter PVC piping to prevent cavitation in the pump. The pressure side, which leads from the pump discharge to the jets, often involves a complex web of manifolds that split the water flow into multiple smaller lines. Many diagrams use color-coding to help DIYers: blue for suction or cold-return lines, and red for the heated water entering the jet manifolds. Some diagrams may also include an auxiliary line for an ozonator or a dedicated drain assembly path to facilitate water changes.
Most modern hot tubs utilize Schedule 40 PVC for rigid sections and specialized flexible PVC for jet lines. While they look similar to household pipes, the pressure ratings and chemical resistance are specifically engineered for high-temperature, chlorinated environments.
The Core Components of the Plumbing Network
To accurately read a layout hot tub plumbing diagram, you must be able to identify the specific hardware that regulates flow. While some terms overlap with household plumbing, their application in a spa context is unique.
- ✓ Pump and Motor: The “heart” of the system that creates the vacuum for suction and the force for the jets.
- ✓ Manifolds: Junction blocks that take a single high-pressure line and distribute it to 4, 6, or 8 individual jet lines.
- ✓ Drain Assembly: Located at the lowest point of the shell, this allows for total gravity drainage during maintenance.
- ✓ Slip Joint Unions: These connectors allow the pump and heater to be disconnected without cutting the PVC pipe.
- ✓ Air Induction Valves: These allow air to mix with the water at the jet face to create the “venturi effect.”
While a hot tub does not utilize a garbage disposal, the concept of debris management is handled by the skimmer basket and the main filter. If your hot tub is installed indoors, you might encounter a P-trap and a vent pipe connected to the drain assembly. This setup mirrors household sink plumbing to prevent sewer gases from entering the room. In some modern installations, an AAV valve (Air Admittance Valve) might be used instead of a traditional vent pipe to allow for proper drainage without needing to penetrate the roof of the structure.
Step-by-Step Guide: How to Interpret and Install Plumbing
Reading a layout hot tub plumbing diagram requires a systematic approach. Follow these steps to translate the 2D drawing into a physical, leak-free system.
Step 1: Identify the Flow Direction
Look for arrows on the diagram. Plumbing starts at the suction fittings (skimmers and footwell suctions). The lines converge at a manifold before entering the front of the pump. Understanding this “intake” phase is critical, as any air leak here will cause the pump to lose prime.
Step 2: Locate the Filtration and Heating Block
Following the pump discharge, the diagram will show the water passing through the filter canister and then the heater tube. Note the order: usually, it is Pump -> Filter -> Heater. This ensures that only clean water passes through the heating element, extending its lifespan and preventing debris buildup.
Step 3: Map the Manifold Distribution
Once the water is heated, it travels to the manifolds. On your diagram, these look like “trees” with multiple branches. Each branch leads to a specific jet or cluster of jets. If you are building or repairing, ensure the PVC lengths are as equal as possible to maintain consistent pressure across all jets.
Step 4: Understand the Venturi (Air) Lines
Most diagrams include a secondary set of lines that are smaller in diameter (usually 1/2 inch or 3/8 inch). These are the air lines. They connect to the top of the jet bodies and lead back to an air control valve on the spa lip. These lines do not hold water under normal operation but are vital for the massage quality.
Step 5: Inspect the Connections and Unions
Identify where slip joint unions are placed. In a layout hot tub plumbing diagram, these are usually marked at the entrance and exit of the major equipment. During installation, these joints must be hand-tightened and then snugged slightly with a wrench—over-tightening often cracks the plastic nut.
Step 6: Integrate the Drainage System
The drain assembly often connects to a tailpiece similar to those found under a kitchen sink. If your spa is integrated into a home’s waste system, ensure the diagram shows a P-trap to create a water seal against odors. If the drain path is long, an AAV valve may be necessary to prevent a vacuum from slowing down the drainage process.
When gluing PVC, always use a primer. Hot tub plumbing is subject to constant vibration and thermal expansion. A “solvent weld” created by primer and heavy-duty PVC glue is the only way to ensure the joints don’t pop under the high-PSI environment of a 2-horsepower pump.
Common Issues & Troubleshooting Using the Diagram
Even with a perfect layout hot tub plumbing diagram, issues can arise. The diagram acts as a diagnostic tool to help you isolate where the failure is occurring.
One of the most frequent problems is a “surging” pump. By looking at the suction side of your diagram, you can trace the path from the skimmer to the pump. A leak at a slip joint on the intake side will suck in air, causing the pump to sputter. If the water isn’t heating, the diagram helps you locate the “pressure switch” or “flow sensor” usually located on the heater tailpiece. This component ensures the heater only turns on when there is sufficient water movement.
Another common issue is a “dead jet.” If one jet isn’t working while others are, the diagram will show you which manifold branch feeds that specific jet. You can then check that specific PVC line for a kink or an internal obstruction. For drainage issues, check if the vent pipe or AAV valve is blocked; without air displacement, the water will struggle to leave the tub through the drain assembly.
Never run the pump if the plumbing layout is not fully primed with water. Running a pump “dry” for even 60 seconds can melt the internal shaft seal, leading to an expensive repair that the plumbing diagram cannot fix.
Advanced Plumbing: Air Induction and Water Chemistry
While the primary keyword “layout hot tub plumbing diagram” focuses on water flow, a comprehensive system also manages air. Air is drawn in via the venturi effect. As high-pressure water passes through a narrow nozzle inside the jet, it creates a vacuum that pulls air down from the top-side controls.
In high-end setups, you may also see an ozonator plumbed into the system. This usually involves a “Mazzei injector”—a small specialized fitting that utilizes the same venturi principle to suck ozone gas into the water stream. This must be placed after the heater but before the water reaches the manifolds. If you see a small loop of clear tubing on your diagram that rises above the water line (often called a “Hartford Loop”), this is to prevent water from backing up into the ozonator or air blower.
Tips and Best Practices for Long-Term Durability
To ensure your plumbing lasts as long as the shell of the hot tub, follow these professional standards:
- ✓ Use Flexible PVC Sparingly: While “flex pipe” is easier to install, it is more susceptible to “termite” damage (cracking from chemical imbalance) than rigid PVC. Use rigid pipe for long straight runs.
- ✓ Support the Pipes: Water is heavy, and the vibration of the pump can cause fatigue at the joints. Use foam supports or plastic strapping to secure the manifolds.
- ✓ Maintain Proper Chemistry: Low pH or high chlorine can eat away at the rubber gaskets in your slip joints and the tailpiece of your heater, leading to slow “weeping” leaks.
- ✓ Winterization: If you live in a cold climate, your diagram should highlight the low points where water can trap and freeze. Ensure the drain assembly is fully opened and the pump unions are loosened during winter storage.
When replacing parts, always match the “Schedule” of the pipe. Most spas use Schedule 40. Using a thinner wall pipe (like Schedule 20) might be cheaper, but it cannot handle the heat and pressure cycles of a hot tub. Furthermore, ensure that any replacement P-trap or vent pipe used in an indoor installation is rated for high-temperature drainage, as spa water is often discharged at 100°F or higher.
Conclusion: Mastering Your Spa’s Infrastructure
Successfully implementing a layout hot tub plumbing diagram is the difference between a high-performance relaxation retreat and a maintenance nightmare. By understanding how the suction and pressure sides interact, and by identifying the roles of components like the manifold, drain assembly, and PVC connectors, you gain total control over your spa’s health.
Remember that while a hot tub shares some commonalities with household fixtures—such as the need for a vent pipe or P-trap in certain indoor configurations—it is a specialized high-pressure environment. Treating it with the same precision you would a high-end mechanical system ensures safety and longevity. Use your diagram as a living document: mark it up as you make repairs, note the dates of valve replacements, and always refer back to it before making any structural changes to your plumbing. With the right layout and a bit of DIY patience, your hot tub will provide years of leak-free service.
Frequently Asked Questions
Where is the P-trap located?
The P-trap is typically located on the secondary drainage line leading away from the hot tub’s main drain assembly. If you are connecting the spa to a sanitary sewer system, the P-trap sits below the floor level to prevent sewer gases from rising back through the vent pipe and into the spa area.
What does a layout hot tub plumbing diagram show?
This diagram illustrates the flow of water from the intake suctions through the main manifold, into the pump and heater, and back out through the return jets. It also details the drainage path, showing how the tailpiece connects to the larger waste system to ensure the tub empties efficiently during maintenance.
How many connections does a standard spa pump have?
A standard spa pump features two primary plumbing connections: the suction intake and the pressure discharge. The suction side pulls water from the skimmer and footwell, while the discharge side pushes heated, filtered water toward the jet manifolds. These connections usually use 2-inch or 2.5-inch unions for high-volume water movement.
What are the symptoms of a bad drain assembly?
A failing drain assembly often results in persistent water loss even when the pumps are turned off. You may notice dampness around the tub’s base or air being sucked into the lines. Unlike a jammed kitchen garbage disposal, spa plumbing leaks are often found at the tailpiece connection or the surrounding gaskets.
Can I install this plumbing myself?
Yes, you can install the plumbing yourself using a layout hot tub plumbing diagram, provided you have experience with PVC solvent welding. Unlike small-scale DIY projects like installing a garbage disposal, spa plumbing involves high-pressure lines. You must ensure the vent pipe is properly positioned to avoid vacuum locks during drainage.
What tools do I need for hot tub plumbing?
You will need a PVC pipe cutter or hacksaw, PVC primer and medium-body glue, a tape measure, and various fittings. For the drainage portion, ensure you have the correct tailpiece adapters to connect the spa shell to the P-trap. A heat gun may also be necessary for fitting flexible PVC hose.
