Busch Vacuum Pump Parts Diagram 2026: Installation Guide

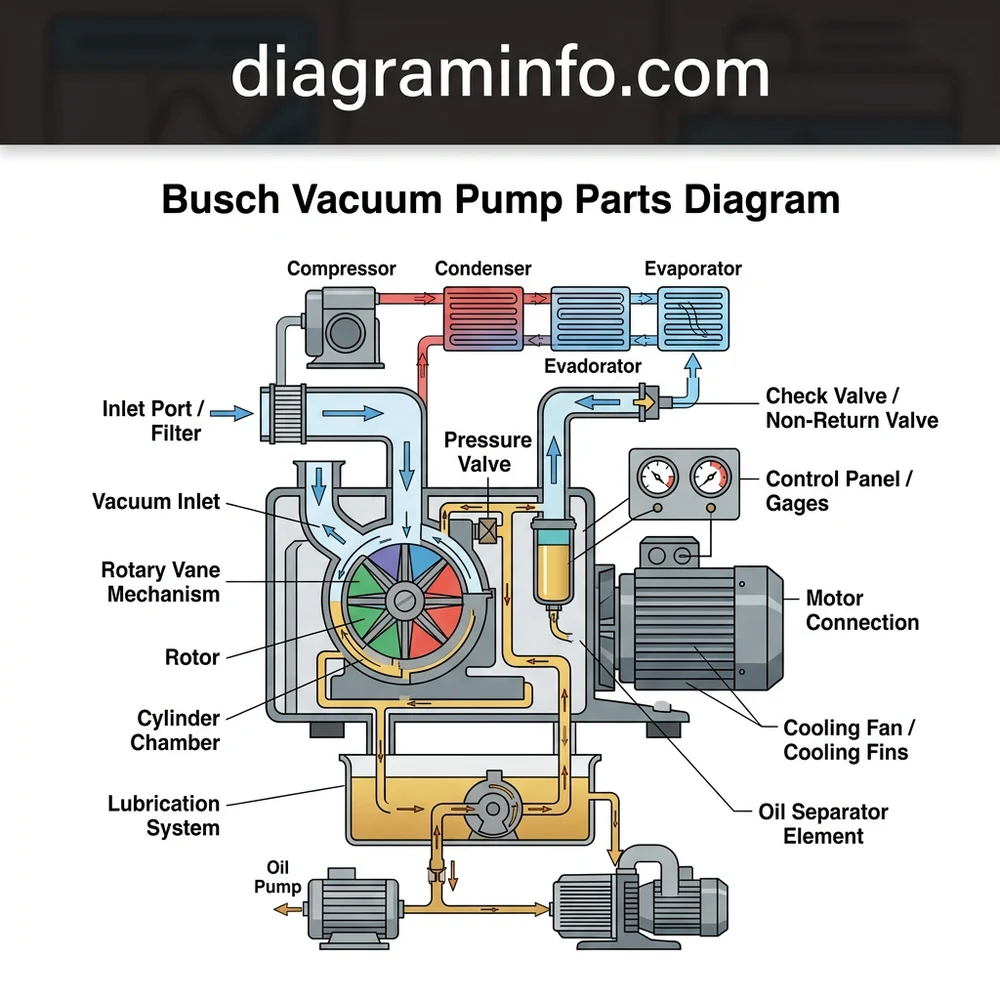

The busch vacuum pump parts diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the busch vacuum pump parts diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
Navigating the intricate landscape of modern HVAC systems demands more than just hands-on experience; it requires a meticulous understanding of their underlying schematics. This guide delves into interpreting comprehensive HVAC diagrams, equipping technicians and experienced DIYers with the expertise to identify components, trace operational flows, and diagnose faults efficiently. While our focus is on the HVAC system itself, remember that specialized tools, like a Busch vacuum pump, are indispensable for installation and maintenance, and having access to a reliable busch vacuum pump parts diagram is equally critical for keeping your essential equipment operational.
[DIAGRAM_PLACEHOLDER: Imagine a detailed HVAC system diagram here. It would include a compressor, condenser, expansion valve, evaporator, refrigerant lines (liquid and suction), a blower motor, air handler, return duct, supply duct, electrical wiring, and possibly safety sensors. Each component would be clearly labeled with a number or letter corresponding to the Component Breakdown section. A legend would define symbols for electrical components, valves, and flow directions.]
Fig 1: Typical Residential/Commercial HVAC Refrigeration and Airflow Diagram
Component Breakdown
A thorough understanding of each element depicted in an HVAC diagram is paramount for effective diagnostics and maintenance. As illustrated in the notional diagram above (Fig 1), every line, symbol, and label represents a critical part of the system’s operation.
The core of the refrigeration cycle begins with the compressor. Typically located in the outdoor unit, this component is responsible for increasing the pressure and temperature of the refrigerant vapor before it moves to the condenser coil. Modern systems often employ scroll or reciprocating compressors, each with specific operating parameters. Manufacturer specs indicate that a typical 3-ton residential scroll compressor might draw 18-25 Amps at 240V AC during operation.
From the compressor, high-pressure, high-temperature refrigerant vapor enters the condenser, also an outdoor component. Here, heat is dissipated to the ambient air, facilitated by a large fan. The refrigerant then condenses into a high-pressure liquid. This heat exchange process is vital, and a clogged condenser coil significantly impairs system efficiency.
The liquid refrigerant then travels through a metering device (e.g., a thermostatic expansion valve or capillary tube) into the evaporator coil, located within the indoor air handler. Inside the evaporator, the refrigerant absorbs heat from the indoor air, evaporating into a low-pressure vapor. This cooling process directly removes heat and humidity from the conditioned space.
Integral to air distribution is the blower motor, housed within the air handler. This motor drives the fan that pushes conditioned air across the evaporator coil and through the supply ducts into the building. Simultaneously, it pulls warm, humid air back into the system via the return duct. According to OEM specifications for most residential units, the blower motor operates on 120V or 240V AC, with variable speed models offering enhanced efficiency and humidity control.
The continuous circulation of refrigerant (e.g., R-410A, R-32) through these components constitutes the core of the cooling process. Its state changes (vapor to liquid and back) are driven by pressure and temperature differentials. Understanding the flow direction and state changes on the diagram is crucial. Furthermore, ensuring the system is free of non-condensable gases and moisture post-installation or repair necessitates a deep vacuum, achieved with a reliable vacuum pump. A well-maintained Busch vacuum pump, with its components identified through a detailed busch vacuum pump parts diagram, ensures peak evacuation performance. Lastly, beyond the primary refrigeration loop, systems incorporate ancillary heat exchanger surfaces in both evaporator and condenser coils, maximizing thermal transfer efficiency.
Modern HVAC systems (post-2010) frequently utilize variable-speed compressor and blower motor technologies, controlled by complex inverter drives. These components are often represented with specific symbols on diagrams, indicating their variable output capabilities, which directly impact overall system efficiency (SEER2/HSPF2 ratings).
Step-by-Step Guide
Effectively interpreting an HVAC diagram is a methodical process that allows you to trace operational paths, identify potential points of failure, and plan maintenance procedures. Follow these steps to maximize your diagnostic capabilities:
1.
Orient Yourself to the Layout:
Begin by identifying the indoor and outdoor units on the diagram. Locate the primary refrigeration circuit, typically denoted by thick lines for refrigerant flow, and the electrical control circuit, usually represented by thinner lines and distinct symbols. Pay close attention to the legend, as symbols for relays, capacitors, sensors, and valves can vary slightly between manufacturers and diagram revisions (e.g., 2018 vs. 2022 models might show different control schemes for inverter-driven compressors).
2.
Trace the Refrigerant Cycle:
Start at the compressor. Follow the discharge line (high-pressure, high-temperature vapor) to the condenser coil. Observe where the refrigerant transitions to a liquid state. From the condenser, trace the liquid line to the metering device and then to the evaporator coil within the air handler. Note the point of evaporation and then follow the suction line (low-pressure, low-temperature vapor) back to the compressor. This full cycle shows you the heat absorption and rejection points. Proper refrigerant charge and purity are critical, necessitating a meticulous evacuation process using a robust vacuum pump. For example, a system undergoing a major component replacement (like a new compressor) absolutely requires thorough evacuation to less than 500 microns. Consulting a busch vacuum pump parts diagram ensures your vacuum pump is in optimal working condition to achieve such deep vacuums consistently, preventing non-condensables from compromising the system.
3.
Map Airflow Paths:
Simultaneously, trace the airflow. Identify the return duct bringing unconditioned air to the air handler. See how the blower motor pulls this air across the evaporator coil and then pushes conditioned air into the supply ductwork. Understand that any restrictions in these paths – whether a clogged filter in the return duct or an undersized supply register – will impact system performance.
4.
Analyze Electrical Schematics:
Locate the main power input and trace the lines through contactors, relays, capacitors, and safety devices (e.g., high-pressure switches, low-pressure switches, thermal overload protectors). Pay attention to wire colors, which are often standardized (e.g., red for 24V common, blue for control voltage). According to NFPA 70 (National Electrical Code), specific wire gauge requirements apply based on circuit amperage; deviations can lead to overheating or nuisance tripping. For detailed guidance on specific electrical components, refer to our article on HVAC Electrical Troubleshooting.
5.
Identify Interlocks and Safety Circuits:
Many systems incorporate safety interlocks. For instance, the compressor may not engage if the blower motor is not running (fan interlock). High-pressure or low-pressure switches are common on the refrigerant lines, designed to protect the compressor from extreme conditions. Understanding these on the diagram helps prevent premature component failure.
| Refrigerant Type | Typical Application | Approx. Operating Pressures (PSIG) – Low/High (R-410A) |
|---|---|---|
| R-410A | Residential & Light Commercial AC | 110-130 / 300-450 |
| R-22 (Legacy) | Older Residential & Commercial AC | 60-70 / 180-250 |
| R-32 | Mini-Splits, Emerging Systems | 100-120 / 280-420 |
Troubleshooting
Effective troubleshooting with an HVAC diagram allows you to systematically pinpoint issues, reducing diagnostic time and preventing costly misdiagnoses. When a system malfunctions, the diagram serves as your roadmap.
Consider a scenario where the outdoor unit’s compressor is running, but the indoor unit’s blower motor is not, leading to freezing of the evaporator coil. Consult the diagram:
1. Verify power to the air handler. Look for fuses or circuit breakers in the diagram’s electrical section.
2. Trace the low-voltage control wiring from the thermostat to the blower motor relay. Is the fan command signal reaching the relay? Use a multimeter to check for 24V AC at the appropriate terminals, as indicated by the diagram’s wiring schematic.
3. Examine the blower motor circuit itself. Check for a capacitor if it’s a permanent split capacitor (PSC) motor; a failed capacitor is a common cause of motor failure, easily identified on the diagram. For ECM or variable-speed motors, consult the diagram for fault codes or control board diagnostics. If the motor capacitor is bulged or reading below its specified microfarad (µF) rating (e.g., 50µF ±5%), replacement is necessary.
Another common problem: poor cooling performance. The diagram helps you evaluate the entire refrigerant circuit.
1. Check pressures: Low suction pressure and high discharge pressure might indicate a restriction, potentially in the metering device or liquid line, as shown on the diagram. Conversely, high suction and high discharge could point to overcharging or non-condensables.
2. Inspect the condenser and evaporator coils. While not directly shown on a diagram, the diagram helps you locate these components. Dirty coils impede heat transfer. A diagram showing airflow paths can also highlight blocked return duct or supply lines, which starve the system of proper airflow.
3. A system that consistently loses refrigerant over time points to a leak. Post-repair, the critical step of system evacuation with a vacuum pump is paramount. If your vacuum pump is not performing optimally – perhaps due to old oil, a worn vane, or a leaky seal – the system will never reach the required deep vacuum (typically 500 microns or less, as per industry standards like ACCA Manual J). This can lead to premature compressor failure or reduced efficiency because of non-condensables. This is precisely why having a busch vacuum pump parts diagram readily available for your tool maintenance is not just convenient, but essential. It ensures that when you need to pull a deep vacuum for a refrigerant repair or installation, your equipment performs as expected. Understanding the nuances of Refrigerant Charging Procedures is crucial for this.
| Symptom | Possible Cause (Diagram Reference) | Initial Diagnostic Steps |
|---|---|---|
| No Cooling, Compressor Not Running | Blown fuse (Electrical), Failed Contactor (Electrical), Low Refrigerant/LP Switch (Refrigerant), Faulty Thermostat (Control Circuit) | Check circuit breaker, 24V to contactor coil, inspect contactor points. Gauge refrigerant pressures. |
| Weak Airflow from Vents | Clogged Filter (Return Duct), Blower Motor Fault (Air Handler), Obstructed Ductwork (Airflow Path) | Inspect filter, check blower motor amperage/voltage. Verify damper positions. |
| Evaporator Coil Freezing | Low Refrigerant (Refrigerant Circuit), Dirty Air Filter (Return Duct), Blower Motor Fault (Air Handler), Dirty Evaporator (Evaporator Coil) | Check refrigerant charge, inspect/replace air filter, verify blower operation, clean coil. |
Always de-energize the HVAC system at the disconnect switch and main breaker before performing any inspections or maintenance involving electrical components. Improper handling of refrigerant can lead to severe injury and environmental damage; adhere to EPA 608 guidelines.
FAQ
Why is a busch vacuum pump parts diagram essential for HVAC technicians?
A busch vacuum pump parts diagram is critical for several reasons. Primarily, it enables precise identification of components when performing routine maintenance, such as oil changes, filter replacements, or vane inspections. This ensures that only genuine or manufacturer-approved parts are used, maintaining the pump’s specified vacuum depth and speed, which is vital for proper HVAC system evacuation. Without a reliable diagram, technicians risk misidentifying components, leading to incorrect part orders, extended downtime, or improper repairs that compromise the pump’s performance and, consequently, the integrity of the HVAC system being serviced. It’s a foundational document for any technician committed to maintaining high-quality tools.
What are the critical pressure points to monitor in the refrigerant circuit?
The most critical pressure points are the suction pressure (low-side, entering the compressor from the evaporator) and the discharge pressure (high-side, exiting the compressor to the condenser). These pressures, along with corresponding temperatures, are used to calculate superheat and subcooling, which are vital indicators of the refrigerant charge and metering device performance. For systems using R-410A, typical suction pressures might range from 110-130 PSIG (at ~40°F saturation) and discharge pressures from 300-450 PSIG (at ~110-120°F saturation), depending on ambient and indoor conditions. Deviation from OEM specifications for these pressures often points to issues within the compressor, condenser, evaporator, or metering device.
How do I differentiate between AC and heat pump diagrams?
While both types of systems share core components like the compressor, condenser, and evaporator, a heat pump diagram will prominently feature a reversing valve. This four-way valve is depicted in the refrigerant circuit, indicating its ability to switch the direction of refrigerant flow, allowing the outdoor coil to function as an evaporator (cooling mode) or a condenser (heating mode). Heat pump diagrams will also often include supplementary electric strip heaters in the air handler for defrost or auxiliary heating, which would not be present in a cooling-only AC diagram. Additionally, control wiring for the reversing valve (typically energized for cooling or heating, depending on manufacturer) will be a distinguishing feature. For deeper insights into heat pump operations, consider reviewing our guide on Heat Pump Troubleshooting and Maintenance.
What role does the blower motor play in system efficiency?
The blower motor plays a crucial role in system efficiency beyond simply moving air. It ensures proper airflow across the evaporator and heat exchanger coils, which directly impacts heat transfer. Insufficient airflow (e.g., from a failing blower motor, dirty filter, or restricted return duct) can lead to coil freezing, reduced dehumidification, and decreased sensible cooling capacity. Conversely, excessive airflow can lead to poor dehumidification. Modern variable-speed blower motors, often depicted on diagrams with specific control modules, precisely match airflow to demand, significantly improving comfort, humidity control, and overall system SEER2/HSPF2 ratings by minimizing energy consumption and maximizing coil efficiency.
For residential HVAC evacuation, industry standards (e.g., ARI 700) recommend achieving a vacuum level of 500 microns or less. This level must be held for a minimum of 15-30 minutes without rising, indicating the absence of non-condensables and moisture. For specific Busch vacuum pump models, consult your pump’s operational manual for recommended maintenance intervals and part numbers, often cross-referenced with your busch vacuum pump parts diagram.
