The 1998 Chevy K1500 brake line routing connects the dual-reservoir master cylinder to the Kelsey-Hayes 4-wheel ABS EBCM unit mounted on the driver-side inner frame rail. Primary 1/4-inch hydraulic lines route to the front calipers, while a dedicated line runs rearward along the frame rail, splitting at the axle junction block into 3/16-inch steel lines.
📌 Key Takeaways
- Master cylinder to ABS module uses 1/4-inch steel hydraulic lines with ISO bubble flare fittings.
- Standard tube nut flare fitting torque spec is 14 lb-ft (19 Nm) to prevent leaks and stripped threads.
- The driver-side frame rail bend near the fuel tank crossmember is the primary rust failure point.
- An ABS module wiring fault can trigger an OBD-II diagnostic code or illuminate the brake warning light.
- Proper bench-bleeding of the master cylinder is required before installing new pre-bent brake lines.
The 1998 Chevrolet K1500 four-wheel-drive pickup utilizes a split-diagonal hydraulic braking layout managed by a Kelsey-Hayes 4WAL (Four-Wheel Anti-Lock) electro-hydraulic control assembly. Navigating the complete hydraulic network requires a detailed understanding of GM GMT400 platform architecture, line sizing, fitting threads, and flare profiles. Whether servicing original steel lines corroded by road salt or upgrading to nickel-copper (NiCopp) tubing, utilizing an accurate 1998 Chevy K1500 brake line diagram prevents incorrect port routing, cross-threading, and persistent soft-pedal conditions. For related brake booster and vacuum supply diagnostics, reference our GMT400 Brake Proportioning Valve and Master Cylinder Guide.

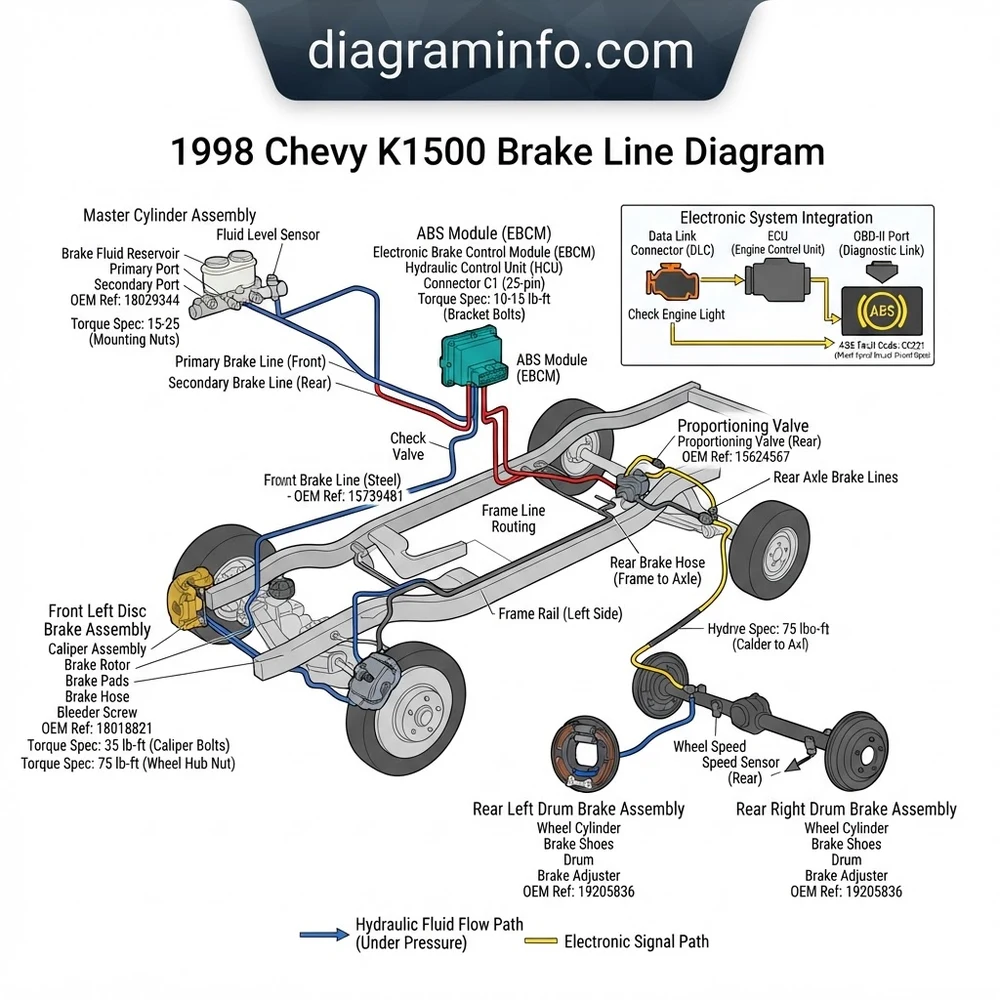

Component Breakdown on the 1998 Chevy K1500 Brake Line Diagram
According to OEM General Motors engineering schematics, the 1998 K1500 hydraulic system is divided into three distinct operational zones: primary pressure generation at the engine bay, hydraulic modulation via the Electronic Brake Control Module (EBCM) assembly, and downstream distribution to the four wheel endpoints.
Master Cylinder and Combination Valve Interface
The aluminum dual-piston master cylinder features a 1.25-inch (31.75 mm) bore diameter paired with a stepped cast-iron combination/proportioning valve mounted directly below the cylinder body. Two primary feed hard lines connect the master cylinder ports to the proportioning valve inlet ports:
- Forward Port (Rear Brakes): Delivers fluid to the rear proportioning circuit via 1/4-inch outer diameter (OD) steel line using a 1/2-20 inch inverted flare fitting.
- Aft Port (Front Brakes): Delivers fluid to the front hydraulic split via 3/16-inch OD steel line using a 7/16-24 inch inverted flare fitting.
Kelsey-Hayes 4WAL Electro-Hydraulic Control Unit Routing
From the combination valve, hydraulic pressure enters the Kelsey-Hayes 4WAL ABS module located on the driver-side inner fender panel. The 4WAL unit contains four internal dump valves and four isolation valves that actively regulate line pressure during lockup events. The port configuration on the EBCM manifold follows strict dimensional standards:
- Inlet Port Rear: 1/4-inch line, M12x1.0 bubble flare thread.
- Inlet Port Front: 3/16-inch line, M10x1.0 bubble flare thread.
- Outlet Port Left Front (LF): 3/16-inch line routed along the upper frame arch directly to the left brake hose bracket; uses an M10x1.0 inverted flare nut.
- Outlet Port Right Front (RF): 3/16-inch line routed along the front crossmember behind the steering rack center link to the right wheel well bracket; uses an M10x1.0 inverted flare nut.
- Outlet Port Rear Circuit: Single 1/4-inch hard line running continuously down the inside web of the left chassis frame rail.
Chassis Frame Rail and Rear Axle Distribution
The main 1/4-inch rear line extends approximately 112 inches from the ABS module outlet down the driver-side chassis rail, secured by five plastic anti-vibration isolator clips. Just forward of the rear axle crossmember, the hard line connects to a flexible rubber junction hose (GM part #15720838 or equivalent). This hose bridges the chassis-to-axle articulation gap and terminates at a brass junction block mounted to the top of the GM 8.5-inch / 8.625-inch rear axle housing via the differential breather vent bolt. Two 3/16-inch hard lines branch outward from this block along the axle tubes, terminating at the rear left and rear right drum wheel cylinders via standard 3/8-24 inch inverted flare nuts.
Factory lines on the 1998 K1500 utilize both SAE double inverted flares (45-degree) and ISO metric bubble flares (180-degree flat seat). Never substitute double flares into metric EBCM bubble flare ports, as doing so will permanently destroy the aluminum internal sealing seat and cause catastrophic fluid loss under high line pressure (>1,200 PSI).
| Line Segment | Outer Diameter (OD) | Flare Type | Port Thread Size |
|---|---|---|---|
| Master Cylinder to Prop Valve (Rear) | 1/4 in. (6.35 mm) | SAE 45° Double Flare | 1/2-20 UNF |
| Master Cylinder to Prop Valve (Front) | 3/16 in. (4.75 mm) | SAE 45° Double Flare | 7/16-24 UNF |
| Prop Valve to ABS EBCM (Rear) | 1/4 in. (6.35 mm) | ISO Metric Bubble Flare | M12 x 1.0 |
| Prop Valve to ABS EBCM (Front) | 3/16 in. (4.75 mm) | ISO Metric Bubble Flare | M10 x 1.0 |
| EBCM Outlets to Front Caliper Hoses | 3/16 in. (4.75 mm) | SAE 45° Double Flare | 3/8-24 UNF / M10x1.0 |
| EBCM Outlet to Rear Axle Flex Hose | 1/4 in. (6.35 mm) | SAE 45° Double Flare | 7/16-24 UNF / 1/2-20 UNF |
| Axle Junction Block to Drum Cylinders | 3/16 in. (4.75 mm) | SAE 45° Double Flare | 3/8-24 UNF |
1998 Chevy K1500 Brake Line Routing Symptoms and Failures
The GMT400 platform chassis design exposes specific line segments to extreme environmental stress, thermal cycles, and mechanical vibration. Identifying failure points quickly requires mapping specific symptoms to the physical layout shown on the 1998 Chevy K1500 brake line diagram.
Chassis Frame Rail Line Pitting and Blowouts
The primary 1/4-inch rear line running along the inside of the left frame rail is the most common point of hydraulic failure on the 1998 K1500. Road debris, moisture, and road salt collect inside the frame rail channel, trapping corrosive elements against the uncoated OEM mild steel line. Initial failure presents as localized wetness near the transmission crossmember brackets, rapidly progressing to severe pedal travel loss. Under panic braking conditions, pressure spikes exceeding 1,000 PSI cause catastrophic line blowouts, collapsing the rear hydraulic circuit and triggering the red brake warning light on the instrument cluster.
Rear Axle Flex Hose Expansion and Internal Delamination
The central rubber brake drop hose bridging the chassis frame to the rear differential block undergoes extreme rotational strain during off-road articulation and payload compression. Over time, internal rubber plies deteriorate, leading to two distinct failure modes:
- Volumetric Expansion (Soft Pedal): The outer hose wall swells under hydraulic pressure, absorbing master cylinder displacement and causing a spongy brake pedal despite zero external fluid leaks.
- Internal Check-Valve Effect: Loose internal rubber folds create a one-way restriction. Hydraulic pressure reaches the drum wheel cylinders during pedal application, but cannot release when the pedal is freed. This keeps the rear brake shoes continuously dragged against the drum, causing severe overheating, thermal drag, and burnt friction linings.
Kelsey-Hayes 4WAL ABS Internal Shuttle Valve Contamination
Moisture entering the hydraulic system degrades old DOT 3 fluid, promoting internal oxidation within the 4WAL aluminum valve block. Corroded isolation valves fail to seal fully during hard stops, forcing fluid past the internal dump circuits back into the reservoir. Symptomatically, the driver experiences a gradual pedal sink down to the floorboard while sitting at a traffic light, even though no external fluid leaks exist anywhere on the chassis.
When replacing lines on a 1998 K1500 equipped with the 4WAL system, never allow the master cylinder or EBCM reservoir to run completely dry. If air enters the internal accumulation chambers of the Kelsey-Hayes unit, standard manual pedal bleeding will not compress or evacuate the trapped air pockets. Fluid replacement procedures must follow specific pressure-bleeding protocols.
Diagnosing Hydraulic Pressure Losses using the 1998 Chevy K1500 Brake Line Diagram
Isolating hydraulic fluid pressure loss or air intrusion on a 1998 Chevrolet K1500 requires a systematic process of elimination starting at the master cylinder and ending at the individual wheel calipers and wheel cylinders. For detailed fluid bench bleeding procedures prior to installation, consult our guide on GM Master Cylinder Bench Bleeding Techniques.
Step 1: Visual Inspection and Pressure Testing the Main Line Runs
Begin by topping off the translucent master cylinder reservoir with clean DOT 3 fluid. Clean all brake line runs, flare connections, and hose junction brackets with aerosol brake cleaner to remove grease and road grime. Place high-capacity fluid catchment basins under all four wheels.
Have an assistant apply heavy, steady pressure to the brake pedal while you inspect the hard lines along the inner frame rail, the front crossmember routing, and the rear axle junction block. Check specifically for micro-fissures, flaking rust, or wet fluid accumulation around line retention clips. If fluid spurts from the 1/4-inch main rear line, the entire frame-length line section must be flared and replaced.
Step 2: Isolating the Master Cylinder and Combination Valve
If pedal travel remains soft without visible external fluid loss, isolate the hydraulic generator from the ABS system:
- Disconnect the front and rear output hard lines at the combination/proportioning valve outlets.
- Install inverted flare threaded brass test plugs (3/8-24, 7/16-24, or 1/2-20 depending on port) into the valve ports to seal the combination valve completely.
- Depress the brake pedal. If the pedal is rock-hard with near-zero travel, the master cylinder and proportioning valve are operating within factory tolerances. The loss of pressure or soft pedal is caused downstream within the 4WAL ABS unit, flexible hoses, or wheel end components.
- If the pedal sinks to the floor with the output ports plugged, internal fluid bypass is occurring past the primary or secondary master cylinder piston seals, requiring a full master cylinder replacement.
Step 3: Performing the Automated ABS Scan Tool Bleed Procedure
Air trapped inside the Kelsey-Hayes 4WAL electro-hydraulic unit cannot be purged through simple manual pump-and-hold bleeding methods. When new hard lines are installed, perform an Automated ABS Bleed using a factory Tech 2 or equivalent high-level OBD-II scan tool capable of bi-directional EBCM control.
Connect the diagnostic tool to the OBD-II port under the driver-side dash panel. Command the EBCM function “Automated Bleed”. The scan tool cycles the internal 4WAL solenoid valves and runs the internal return pump for 20–60 seconds, forcing trapped air bubbles into the outer hard lines where they can be systematically bled out at the caliper and wheel cylinder bleeder screws.
Integrating Brake Hydraulics with ECU Engine Controls and OBD-II Diagnostics
The brake system on the 1998 Chevrolet K1500 does not operate in total mechanical isolation; it interfaces directly with the vehicle’s Powertrain Control Module (PCM/ECU), the Electronic Brake Control Module (EBCM), and the OBD-II network.
Electrical and Vacuum Interlocks in the Engine Compartment
When running replacement hard lines along the left frame rail and engine bay, maintain critical component clearances to prevent thermal degradation and false electrical signaling:
- Exhaust and Thermal Clearances: Ensure line runs maintain a minimum 2.0-inch clearance from exhaust manifold downpipes and catalytic converter heat shields. Radiant exhaust heat can boil DOT 3 fluid under heavy load, causing sudden hydraulic lock or total pedal fade.
- Engine Bay Harness Clearances: Avoid routing brake lines adjacent to the main engine wiring harness, oil pressure sensor leads, or lower radiator hoses controlling engine coolant flow. Hydraulic line vibration can rub through adjacent wire insulation, causing short circuits or erratic sensor feedback to the vehicle’s ECU.
- Timing Chain & Accessory Drive Clearance: Up forward near the timing chain cover and serpentine accessory brackets, route lines behind existing wire looms to ensure complete isolation from moving belt drives and water pump pulleys.
OBD-II Fault Diagnostics and ABS System Interlock
If a brake line ruptures or air enters the 4WAL ABS manifold, the loss of pressure balance or wheel speed discrepancy triggers diagnostic trouble codes (DTCs) within the EBCM memory. While standard powertrain fault codes trigger a check engine light via the ECU, hydraulic and ABS electrical faults trigger the red BRAKE warning lamp or amber ABS indicator light on the instrument panel.
Connecting a bi-directional scanner to the 16-pin OBD-II port allows technicians to read critical diagnostic codes associated with hydraulic system health:
- DTC C0035 / C0040: Front Left / Right Wheel Speed Sensor Circuit Malfunction (often triggered when fluid leakage contaminates speed sensor pick-up rings).
- DTC C0221 – C0226: ABS Solenoid Valve Circuit Open/Shorted (occurs during severe EBCM internal electrical ground faults or corrosion).
- DTC C0281: Brake Switch Circuit Failure (indicates issues with the mechanical stop-lamp switch mounted on the brake pedal pushrod, which informs the ECU to disengage torque converter lockup and cruise control during braking).
| Fastener / Fitting Location | Thread / Tool Size | Factory Torque Spec (lb-ft) | Factory Torque Spec (N·m) |
|---|---|---|---|
| Master Cylinder to Brake Booster Nuts | M10 x 1.5 (15mm Socket) | 25 lb-ft | 34 N·m |
| Brake Tube Nuts (3/16 and 1/4 in.) | 3/8-24 to 1/2-20 Flare Wrench | 14 lb-ft (168 lb-in) | 19 N·m |
| Front Caliper Banjo Bolts | M10 x 1.5 (10mm Hex / 3/8 Box) | 33 lb-ft | 45 N·m |
| Rear Axle Junction Vent Bolt | 7/16-20 (5/8 Socket) | 18 lb-ft | 24 N·m |
| Front Caliper Bleeder Screws | M10 x 1.0 (10mm Box Wrench) | 9 lb-ft (108 lb-in) | 12 N·m |
| Rear Drum Cylinder Bleeder Screws | 5/16 in. / 8mm Box Wrench | 6 lb-ft (72 lb-in) | 8 N·m |
1998 Chevy K1500 Brake Line Diagram Frequently Asked Questions
What materials are recommended when replacing hard lines on a 1998 Chevy K1500?
While original equipment was zinc-coated mild steel, modern replacements are best crafted from Copper-Nickel alloy (NiCopp / C70600). NiCopp lines conform to SAE J1047 specifications, withstand working pressures up to 3,120 PSI, offer total rust resistance, and bend cleanly by hand without kinking during frame rail installation.
What sequence should be used to bleed the brake lines on a 1998 K1500?
Always follow the traditional longest-to-shortest hydraulic path routing: Right Rear (RR), Left Rear (LR), Right Front (RF), and Left Front (LF). If the system ran bone dry, bleed the master cylinder bench ports first, perform an automated scan-tool bleed on the 4WAL ABS unit second, and finish at the wheel bleeder valves third.
Can the Kelsey-Hayes 4WAL ABS unit be bypassed using custom brake lines?
While physically possible using custom 3/16-inch and 1/4-inch union fittings, bypassing the 4WAL ABS module disables all anti-lock braking features, keeps the dash ABS warning light permanently illuminated, and voids OEM safety compliance. It can also cause severe rear-wheel lockup under light payload conditions due to unmodulated hydraulic pressure distribution.
What flare tool is required to replicate factory GMT400 brake line connections?
You require a dual-function hydraulic or quality bench-mounted flaring tool capable of producing both 45-degree SAE double inverted flares (for wheel end connections and proportioning valve ports) and ISO metric 180-degree bubble flares (for EBCM inlet fittings). Standard single-flare or basic hardware store tools will crush tube walls and leak under high line pressure.
Why does my 1998 K1500 brake pedal travel low after replacing all hard brake lines?
Low pedal travel after installing new lines typically indicates air remains trapped inside the Kelsey-Hayes 4WAL internal dump chambers, or the rear drum brake shoes require manual star-wheel adjustment. Ensure the rear shoes are adjusted so they drag slightly against the drum before re-bleeding the system using an OBD-II automated scan tool bleed sequence.
Step-by-Step Guide to Understanding the 1998 Chevy K1500 Brake Line Diagram
Identify – Locate the master cylinder, ABS control module (EBCM), and rusted line sections using the brake line diagram.
Locate – Find the primary 1/4-inch feed lines at the master cylinder and track them to the ABS module on the left frame rail.
Reference – Cross-reference port markings on the ABS valve block with the diagram to prevent misrouting lines to individual wheels.
Route – Bend and secure new line runs along the chassis clips, maintaining distance from exhaust heat shields and steering linkages.
Torque – Tighten all tube nut fittings to the factory torque spec of 14 lb-ft using metric flare nut wrenches.
Verify – Bleed the brake system starting at the right rear wheel, scanning for OBD-II ABS trouble codes and checking for hydraulic leaks.
