Ford Wheel Hub Front Wheel Bearing Diagram: Repair 2026
A front wheel hub and bearing assembly integrates the wheel flange, ABS speed sensor ring, inner and outer roller bearings, and central spindle housing. Located between the brake rotor and steering knuckle, it secures the wheel while allowing smooth rotation under load, requiring precise axle nut torque specs between 150 and 250 lb-ft.
📌 Key Takeaways
- Axle nut torque specs typically require 150 to 250 lb-ft to maintain correct bearing pre-load.
- Integrated magnetic ABS tone rings must face inward toward the speed sensor during press-in installation.
- Structure consists of an outer hub flange, sealed ball/roller bearings, retainers, and ABS harness connections.
- Common failure causes include moisture intrusion, improper torque leading to excessive endplay, and thermal stress.
- Press-in bearings require specialized hydraulic presses; pre-assembled unit hubs are ideal for standard DIY replacement.
The front wheel hub assembly acts as the primary load-bearing junction between the vehicle’s suspension, steering knuckle, and drivetrain. Interpreting a wheel hub front wheel bearing diagram requires a deep understanding of rotational mechanical dynamics, radial and axial load vectors, and component integration. Modern automotive and commercial equipment platforms utilize various bearing designs—ranging from press-fit Generation 1 double-row angular contact ball bearings to fully integrated Generation 3 unitized hub assemblies. This technical guide delivers an explicit breakdown of the structural blueprint, component layout, service protocols, torque specs, and diagnostic workflows necessary for professional technicians to repair front wheel bearing systems accurately.
Wheel Hub Front Wheel Bearing Diagram Component Overview

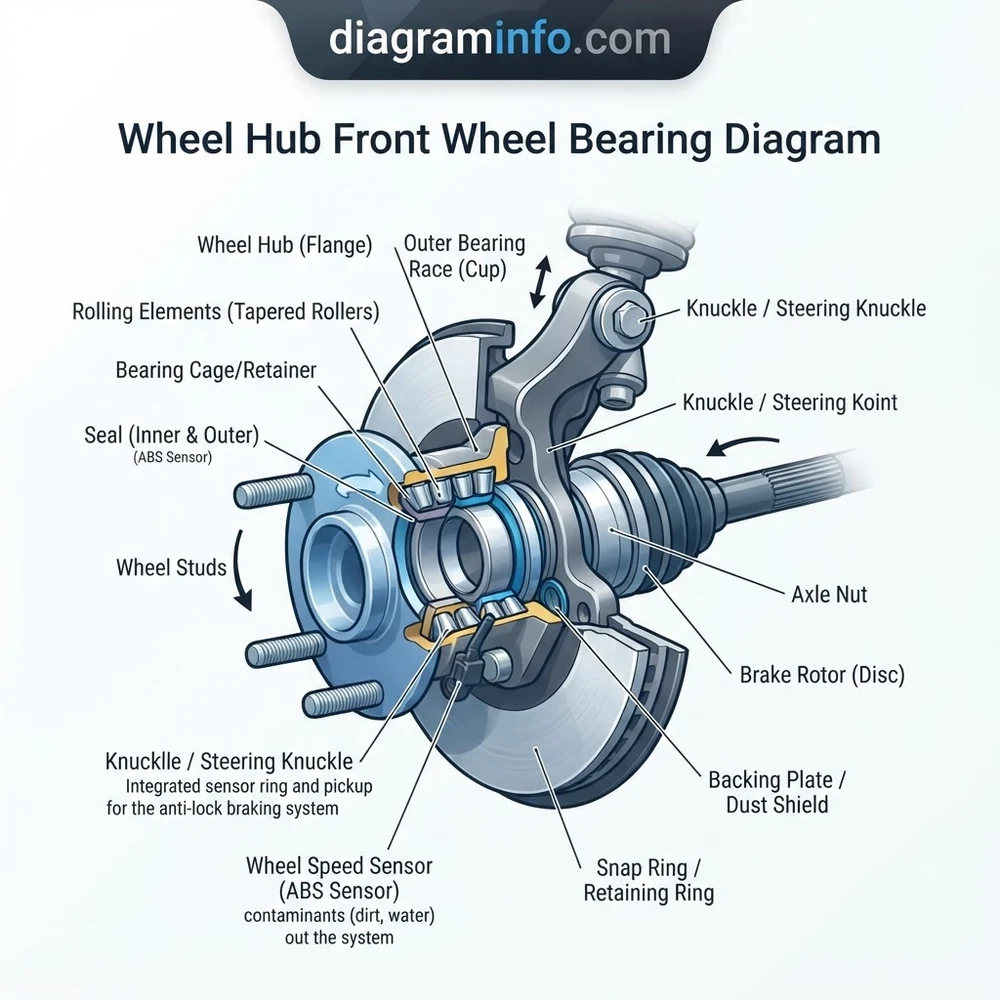

A standard wheel hub front wheel bearing diagram outlines the exact spatial arrangement and mechanical interlock of the wheel rotation system. Whether analyzing a vintage press-in setup or a modern bolt-on unitized module, every diagram consists of core structural elements engineered to withstand multi-directional stresses during cornering, braking, and acceleration.
Recommended Best Deal Products
Axle Nut, Wheel Studs, and Outer Hub Flange Structural Blueprint
The outer hub flange serves as the primary mounting face for the brake rotor and wheel assembly. Grade 10.9 or 12.9 wheel studs are press-fit into the flange to provide high tensile clamping force. Extending through the center of the hub is the splined bore, which mates directly with the constant velocity (CV) axle stub shaft. The axle nut fastens onto the outer threads of the CV shaft, applying critical axial clamping preload across the inner races of the bearing assembly. Improper axle nut torque directly alters bearing clearance, leading to rapid thermal runaway and premature fatigue failure. For axle removal details, cross-reference our front axle shaft replacement guide.
Bearing Assemblies: Tapered Roller vs. Sealed Angular Contact Ball Bearings
In lighter-duty FWD and AWD passenger platforms, double-row angular contact ball bearings are predominant. These feature dual ball tracks oriented at opposing angles to handle simultaneous radial loads (vehicle weight) and axial thrust loads (cornering forces). Heavy-duty trucks and rear-wheel-drive equipment often incorporate paired tapered roller bearings, which feature conical rollers running on tapered raceways. These require precise endplay adjustment during setup. In Generation 2 and Generation 3 configurations, the outer race is integrated directly into the hub body or mounting flange, factory-sealed with synthetic lithium-complex grease and high-temp rubber-to-metal lip seals.
Steering Knuckle, Inner/Outer Race, and ABS Tone Ring Interface
The steering knuckle houses the entire outer perimeter of the hub or bearing. In Gen 1 systems, the outer bearing race is pressed directly into the machined bore of the knuckle and secured with a heavy-duty internal snap ring. Modern Gen 3 systems bypass internal pressing; instead, a triangular or quad-bolt flange bolts directly to the knuckle face. Integrated within the seal assembly is a magnetic pulse encoder ring (ABS tone ring). The anti-lock brake system (ABS) wheel speed sensor mounts through the knuckle, positioning its hall-effect tip within 0.5 mm to 1.5 mm of the magnetic encoder ring to generate frequency signals for the ECU.
| Component Part | Material Specification | Standard Engineering Tolerance / Torque |
|---|---|---|
| Wheel Hub Flange | Forged AISI 1045 / 1050 Medium Carbon Steel | Maximum Radial Runout: 0.0012 in (0.03 mm) |
| Bearing Races & Rolling Elements | AISI 52100 High-Carbon Chromium Steel | Hardness: 58–64 HRC; Surface finish: < 0.1 µm Ra |
| CV Axle Retaining Nut | Grade 10 High-Tensile Alloy Steel | 150–250 ft-lbs (200–340 Nm) based on thread pitch |
| Hub-to-Knuckle Retaining Bolts | Class 10.9 Flange Bolts (Zinc Flake Coated) | 65–95 ft-lbs (88–130 Nm) + angle yield where required |
| ABS Wheel Speed Sensor Air Gap | Hall-Effect Probe / Magnetic Encoder Ring | 0.020–0.060 in (0.5–1.5 mm) clearance window |
Reading the Front Wheel Bearing Schematic and Assembly Blueprint
Translating an exploded blueprint or schematic diagram into an accurate bench procedure requires systematic identification of key locking features, seal orientations, and fastener torque sequences. When reviewing a technical diagram prior to service, technicians must map out the exact order of press operations and thermal expansion allowances.
Evaluating the Exploded Layout and Identifying Fastener Torques
An exploded diagram illustrates components along a central axis line. Key items to locate include internal retaining rings, dust shields, brake splash guards, and torque-to-yield (TTY) fasteners. Before disassembly, verify whether the CV shaft nut is a stake-type nut, a prevailing torque locknut, or a cotter-pin castellated nut. Always cross-reference the diagram’s fastener index with manufacturer shop manuals for exact torque specifications and replacement mandates.
Hydraulic Pressing and Extraction Protocols for Press-Fit Systems
For Generation 1 pressed configurations, the diagram indicates the press direction for removing the hub from the bearing inner race, followed by removing the retaining ring from the knuckle bore. Applying hydraulic force against the incorrect race surface will destroy the new bearing instantly. When pressing a new bearing into the steering knuckle, force must be applied strictly to the outer race using an appropriate arbor adapter sleeve. When subsequently pressing the wheel hub flange into the installed bearing inner race, the inner race must be supported underneath using a press shoe to prevent unseating the internal ball cage.
Recommended Best Deal Products
Never press a wheel hub flange into a Generation 1 bearing without supporting the lower inner bearing race. Pressing against the outer race alone transfers full hydraulic force (typically 5 to 12 tons) through the rolling elements, indenting the raceways and causing immediate bearing brinelling.
Flanged Unit Installation and Axle Nut Torque Sequence
Generation 3 unitized hub removal requires unbolting the hub-to-knuckle retention bolts from the backside of the spindle. Ensure the mating face of the steering knuckle is thoroughly cleaned with a wire wheel to remove corrosion layer build-up; corrosion distortion can cause hub misalignment exceeding 0.003 inches, resulting in brake pedal pulsation. Tighten the hub retaining bolts in a star pattern to the specified torque. Torque the center axle nut strictly while the vehicle is suspended or using a brake pedal depressor tool—never drop the full vehicle weight onto an un-torqued wheel bearing, as this causes immediate brinelling of the bearing raceways.
Factory assembly guidelines require setting final axle nut torque with calibrated torque wrenches. Impact wrenches must never be used for final tightening on angular contact ball bearings due to torque spike variations and thread stretch risk.
Wheel Hub Front Wheel Bearing Diagram Configuration and Service Steps
Execution of front wheel bearing service varies significantly depending on whether the vehicle uses a Generation 1 press-in cartridge, Generation 2 flanged outer race, or Generation 3 unitized dual-flange configuration. Reviewing the specific schematic layout dictates tool selection, press tool adapters, and teardown steps.
Generation 1 Press-Fit Service Protocol
Disconnect the tie-rod end, ball joint, and brake caliper bracket assembly. Secure the caliper out of the way. Unbolt the steering knuckle and move it to a hydraulic press bench. Remove the snap ring from the knuckle groove using internal snap-ring pliers. Press out the hub flange using a push pin adapter. The outer inner race will remain stuck on the hub flange shaft; remove it using a splitter puller tool. Press out the old outer bearing casing from the knuckle. Clean the knuckle bore, apply a light coat of anti-seize paste, press the new bearing in by its outer race, re-install the snap ring, and press the hub flange while backing the inner race.
Generation 2 & Generation 3 Unitized Bolt-On Replacement Sequence
Unitized Gen 3 configurations streamline maintenance. After removing the axle nut, brake caliper, and rotor, remove the three or four hub-to-knuckle mounting bolts located on the rear side of the steering knuckle. If galvanic corrosion has fused the hub body to the knuckle bore, apply penetrating fluid and use a slide hammer or dedicated hub removal puller attached to the wheel studs. Avoid hitting the knuckle with a sledgehammer to prevent bending the spindle arm. Clean the receiver bore thoroughly, install the backing plate, slide the new unitized hub into place, apply medium-strength threadlocker to the mounting bolts, and torque to factory specifications.
Front Wheel Bearing System Diagnostics and Fault Troubleshooting
When diagnosing front-end dynamic faults, technicians must systematically distinguish between wheel bearing breakdown, tire tread cupping, and brake rotor dynamic runout. Utilizing technical diagnostic protocols ensures accurate fault isolation before component teardown.
Acoustic Diagnostics: Rotational Pitch vs. Load Transfer
Bearing failure typically manifests as a low-frequency hum, growl, or rumble that increases in frequency directly with road speed, independent of engine RPM. Technicians must conduct a dynamic load transfer test: weaving the vehicle gently side-to-side on a safe test road shifts vehicle weight. When weight transfers to the left side (right turn), load increases on the front left wheel bearing. If the noise intensifies during a right turn, the front left bearing is usually deteriorated. Conversely, unloading the damaged bearing diminishes the acoustic output.
Dial Indicator Runout Checks and Wheel Play Verification
Physical degradation causes excessive endplay and runout. To measure bearing axial play, lift the vehicle, support it safely on jack stands, and mount a dial indicator with a magnetic base to the steering knuckle. Place the indicator plunger against the smooth face of the hub flange. Grasp the hub at the 12 o’clock and 6 o’clock positions, applying push-pull force. Total dial indicator movement exceeding 0.002 in (0.05 mm) indicates internal raceway spalling or excessive cage wear, necessitating full hub assembly replacement. For related steering play issues, consult our detailed steering knuckle alignment specifications.
ABS Diagnostic Trouble Codes (DTCs C0035 / C0040) and Encoder Wear
A damaged bearing allows subtle lateral axial play, creating air-gap fluctuations between the wheel speed sensor and the internal magnetic encoder ring. This results in intermittent signal dropouts, setting DTCs C0035 (Left Front Speed Sensor Circuit) or C0040 (Right Front Speed Sensor Circuit). In severe cases, metallic debris from spalled bearing steel migrates to the magnetic encoder ring, distorting the square-wave signal. When replacing the hub unit, always inspect the sensor harness connector for corrosion and check our brake caliper bracket torque chart when reinstalling brake hardware.
Do not operate a vehicle showing DTC codes alongside severe hub play (>0.005 in). Extreme bearing wear can lead to total separation of the outer hub flange from the inner race assembly, resulting in sudden wheel detachment and loss of steering control.
Wheel Hub Front Wheel Bearing Diagram Questions Answered
What are the primary structural differences between Gen 1, Gen 2, and Gen 3 front wheel bearing diagrams?
A Generation 1 diagram shows a standalone cartridge bearing that must be press-fitted into the steering knuckle, requiring a separate wheel hub flange pressed into its inner bore. A Generation 2 diagram depicts a bearing featuring an integrated outer mounting flange or integrated inner hub flange, simplifying press operations. A Generation 3 diagram displays a complete, pre-assembled module with dual integrated flanges: one flange bolts directly to the steering knuckle spindle, while the other serves as the wheel and brake rotor mounting interface. Gen 3 designs are completely sealed, factory-preloaded, and non-serviceable internally.
How do you distinguish between brake rotor warping and a worn front wheel hub bearing?
Brake rotor warping (thickness variation or dynamic runout) causes pedal pulsation and steering wheel shimmy strictly during brake application. In contrast, a failing front wheel hub bearing produces a continuous rotational noise (growl, whine, or rumble) that changes pitch with vehicle speed and fluctuates during chassis load transfers (cornering). However, excessive hub bearing runout (>0.0015 in) will cause the brake rotor to wobble as it rotates, creating lateral push-back against the brake caliper pads. This can induce premature brake rotor wear and brake pedal chatter even if the rotor itself is true.
What installation mistakes lead to immediate or premature front wheel bearing failure?
The three most common installation errors are: 1) Using impact wrenches to tighten the center CV axle nut, which causes severe shock loading and raceway brinelling; 2) Applying hydraulic press force across the rolling elements (e.g., pressing against the hub flange without supporting the inner bearing race); and 3) Neglecting to clean rust and scale from the steering knuckle mating bore, which cocks the bearing off-axis. Off-axis misalignment of just 0.002 inches generates concentrated stress spikes on the raceways, accelerating fatigue spalling within a few thousand miles.
Why must the main CV axle nut be replaced, and how does torque affect bearing life?
Most original equipment manufacturers specify prevailing-torque locknuts or stake-type nuts for the front CV axle shaft. These fasteners are designed for single-use deformation; reusing them risks thread relaxation and loss of clamping force. The axle nut torque provides the essential axial clamp load that holds the split inner races of Generation 1 and Generation 2 bearings together at the correct internal clearance. Insufficient torque leads to inner race separation, excessive clearance, and rapid destruction. Over-torquing crushes the bearing internal clearance, causing high operational friction, thermal expansion breakdown, and grease breakdown.
Which direction should the integrated magnetic ABS ring face on a press-in front wheel bearing?
On Generation 1 double-row angular contact bearings equipped with an internal magnetic ABS encoder ring, the ring is built into the rubber seal on one side of the bearing only. The diagram indicates that this magnetic side MUST face inward toward the vehicle centerline, directly adjacent to the wheel speed sensor mounting hole in the steering knuckle bore. If installed backward, the wheel speed sensor cannot read the magnetic pulses, causing immediate illumination of the ABS and traction control warning lights upon vehicle startup. Technicians should test the bearing faces with an ABS indicator card prior to pressing.
Step-by-Step Guide to Understanding the Wheel Hub Front Wheel Bearing Diagram
Identify – Review the diagram layout to confirm whether your system utilizes a press-in bearing or a bolt-on hub assembly.
Locate – Position the wheel hub assembly relative to the steering knuckle, brake caliper adapter, and axle shaft splines.
Reference – Consult the schematic for exact seal orientation, ensuring magnetic ABS rings face inward toward the wheel speed sensor.
Connect/Route – Align hub splines onto the axle shaft, attach knuckle mounting bolts, and route ABS sensor wiring along designated brackets.
Verify – Torque the axle nut to manufacturer specifications (typically 150-250 lb-ft) and check for zero play and smooth hub rotation.
Troubleshoot – If grinding noise or ABS warning lights persist, re-check bearing pre-load torque and inspect sensor air gap configuration.
