Standard Clogged Basement Floor Drain Diagram: Proper Routing 2026

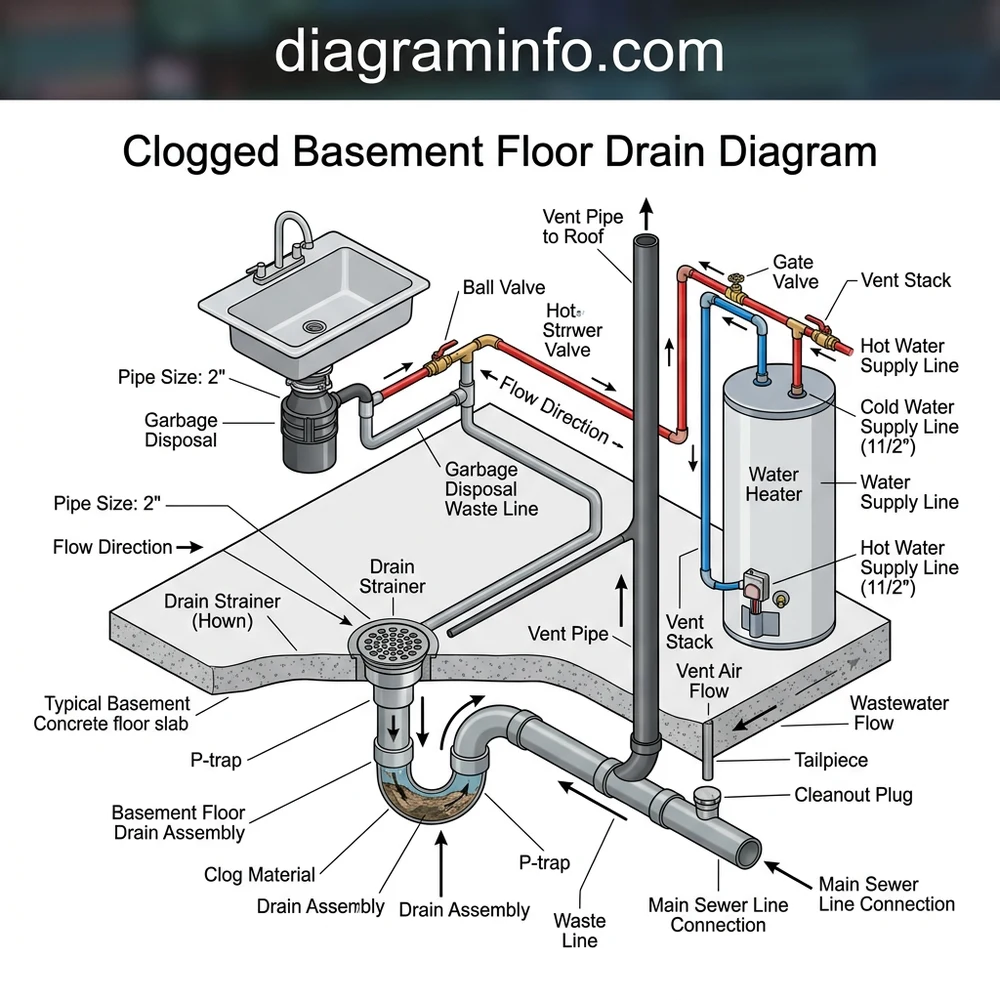

A clogged basement floor drain diagram outlines the primary drain assembly, showing the grate, cleanout plug, submerged P-trap, tailpiece connection, and main sewer line outlet. Blockages typically occur in the 2-inch or 3-inch U-bend of the P-trap due to sediment, debris, or a blocked vent pipe restricting air flow.
📌 Key Takeaways
- Basement floor drains typically feature 2-inch or 3-inch DWV piping connected to a subterranean 2-to-4-inch deep water trap seal.
- An internal side cleanout plug provides direct mechanical auger access downstream of the P-trap curve.
- Blockages located upstream of the main vent pipe create vacuum pressure, leading to gurgling and fixture backups.
- The primary point of blockage is sediment buildup at the lower U-bend sweep of the drain assembly.
- Use a 3/8-inch motorized plumber auger for persistent line obstructions before attempting structural pipe replacement.
When diagnosing drainage backup in commercial or residential substructures, a detailed clogged basement floor drain diagram serves as the foundational blueprint for mechanical troubleshooting. Basement floor drains rely on gravity-fed DWV (Drain-Waste-Vent) dynamics to manage groundwater infiltration, HVAC condensate discharge, and emergency overflow. Over time, heavy particulate, laundry lint, mineral scale, and grease form resilient blockages deep within the sub-slab assembly. Utilizing a precise structural schematic allows technicians to locate the exact position of obstruction relative to the P-trap, cleanout access, and vertical stack, eliminating guesswork during diagnostic augering or hydro-jetting operations.
Understanding Every Component in a Clogged Basement Floor Drain Diagram
A comprehensive basement floor drain assembly consists of integrated sub-slab, surface, and venting components designed according to International Plumbing Code (IPC) standards. Understanding how each component connects within the system schematic enables fast identification of restriction points.
Sub-Slab Drain Assembly and Strainer Body
The top interface features a heavy-duty brass or cast iron strainer screwed into the drain assembly body. Below the grate, the drain bowl funnels liquid directly into a 2-inch or 3-inch Schedule 40 PVC or cast iron receiving line. According to OEM plumbing specs, the strainer must maintain an open area percentage sufficient to prevent debris larger than 1/4-inch from entering the lower branch.
P-Trap Deep Seal and Integrated Cleanout Plug
Positioned directly beneath the floor slab, the P-trap maintains a liquid barrier (typically 2 to 4 inches of standing water) to stop sewer gases from entering the living space. Most modern floor drain schematics feature a horizontal cleanout plug located on the upper inlet side of the trap bend. Removing this threaded plug allows direct mechanical auger access to the downstream branch pipe without navigating the tight radius of the trap sweep.
Vent Pipe Integration and Air Admittance Valve (AAV Valve) Systems
Proper drainage requires atmospheric balance. A dedicated vent pipe ties into the branch line downstream of the trap to prevent negative pressure siphonage. In retrofit installations where tying into a primary wet vent stack is impossible, an Air Admittance Valve (AAV valve) is installed on a vertical riser. The single-direction membrane opens under negative pressure to admit air, then seals tight under neutral or positive pressure.
Schedule 40 PVC Piping, Tailpiece, and Slip Joint Interfaces
Auxiliary discharges—such as a basement utility sink, laundry standpipe, or nearby garbage disposal bypass—often join the main drain via a vertical tailpiece secured with a threaded slip joint nut and EPDM washer. These transition junctions are prime locations for lint and fat buildup, creating localized restrictions upstream of the main floor drain body.
| Component Name | Standard Material & Spec | Primary Plumbing Function |
|---|---|---|
| Drain Strainer Grate | Nickel-Bronze / Cast Brass / Heavy PVC | Screens large debris; protects sub-slab entrance |
| P-Trap Water Seal | 2″ – 3″ DWV Schedule 40 PVC / ABS | Holds 2″-4″ liquid column to block sewer gas backflow |
| Cleanout Tap / Plug | Threaded NPT Brass or Polypropylene | Bypasses P-trap curve for direct main line snake insertion |
| Air Admittance Valve (AAV) | ANSI/ASSE 1050/1051 Approved Polycarbonate | Admits ambient air during flow to prevent trap siphonage |
| Tailpiece Slip Joint | 1-1/2″ Tubular PVC with Rubber Washer | Connects upper fixture runoff into the lower drain branch |
How to Read the Clogged Basement Floor Drain Diagram Step by Step
Interpreting a structural clogged basement floor drain diagram requires tracing fluid velocity, venting pathways, and pressure vectors through the sub-slab profile.
Tracing Gravity Flow from Strainer to Main Sewer Lateral
Start reading the diagram at the topmost surface strain point. Follow the liquid path downward through the vertical drop assembly into the U-shaped dip of the P-trap. Fluid velocity drops in the trap sweep, allowing sand and heavy sediment to settle at the bottom curve. Beyond the P-trap bend, the piping transitions to a minimum 1/4-inch per foot slope toward the main sewer stack or sump pit. For detailed line sizing specifications, consult our technical guide on sub-slab DWV pipe sizing standards.
Locating Siphonage, Hydraulic Lock, and Venting Airflow
Airflow routes are denoted on technical diagrams by dashed arrows or secondary lines running off the drain branch. Look for the junction point where the vertical vent pipe connects downstream of the P-trap weir. If the diagram indicates a downstream blockage past this junction, water will fill the vent pipe riser, resulting in hydraulic lock. Under this condition, incoming water bounces off the air column, causing immediate overflow at the basement floor grate.
Inspecting Auxiliary Inlets: Garbage Disposal, Laundry, and Tailpiece Connections
Trace secondary lateral lines that enter the assembly above the floor line. Systems incorporating an upper utility basin or a discharge line from a floor-mounted unit often use a slip joint nut and tailpiece assembly. If a garbage disposal or high-efficiency washing machine discharges into this line, suspended solids can accumulate where the vertical tailpiece drops into the horizontal sub-slab branch line.
Under IPC Chapter 7 standards, 2-inch sub-slab PVC floor drain branches must maintain a minimum slope of 1/4″ per foot (2% pitch) to achieve a scour velocity of 2 feet per second. Dropping below this velocity threshold causes suspended heavy particulates to settle immediately inside the P-trap base.
Troubleshooting Sub-Slab Blockages and P-Trap Hydraulic Lock
When the visual symptoms match a downstream restriction on your clogged basement floor drain diagram, systematic mechanical intervention is required.
Clearing Heavy Sediment and Debris from the Deep P-Trap
If standing water remains in the floor drain bowl, the blockage is often seated inside the P-trap U-bend. Insert a manual bulb-head auger or a 3/8-inch flexible cable directly through the floor strainer. Rotate the cable clockwise while applying moderate forward pressure. Avoid using oversized drop-head augers through the grate, as they can wedge permanently in the tight 2-inch PVC sweep radius.
Mechanical Augering via Secondary Cleanout Access
When water backs up out of the floor drain during washing machine discharge or main sewer usage, the blockage lies beyond the trap in the underground lateral line. Refer to your diagram to locate the cleanout plug inside the drain body. Unscrew the plug using a 1/2-inch square-drive socket or cleanout wrench. Insert a professional 1/2-inch continuous-cable drain machine directly into the cleanout port to bypass the trap and clear the downstream line up to the main stack. Review our sewer line video inspection guide to accurately verify line clearance after mechanical augering.
Diagnosing AAV Valve Failure and Negative Pressure Lock
If water drains slowly and emits a bubbling sound, inspect the Air Admittance Valve (AAV valve). Over time, environmental dust or mechanical spring fatigue causes the internal silicone seal to stick shut. Unthread the AAV unit from the vent stack riser and check for free mechanical movement. Replace any sticky valve with a unit rated for the correct DFU (Drain Fixture Unit) capacity.
Never leave the threaded cleanout plug off the drain assembly after completing mechanical cable clearing. Operating a basement system without a sealed cleanout plug or wet P-trap allows toxic sewer gases (hydrogen sulfide and methane) to enter the structure. Always apply PTFE thread sealant tape before re-torquing brass cleanout plugs.
Clogged Basement Floor Drain Diagram Solutions and Technical FAQ
Why does water back up out of the basement floor drain when the washing machine drains?
This symptom indicates a downstream main lateral obstruction rather than an isolated floor drain issue. High-volume discharge from a laundry pump rapidly fills the main branch. If the primary line is restricted, water flows back along the path of least resistance, overflowing at the lowest relief point shown on your diagram—the basement floor drain strainer. Installing an inline check valve or servicing the main sewer lateral resolves this problem. Read our guide on backwater valve installation and maintenance for detailed retrofitting steps.
How do I remove a frozen or corroded brass cleanout plug inside the drain assembly?
Corroded brass plugs in legacy cast iron floor drains often lock due to galvanic corrosion. Apply a fast-acting penetrating oil directly to the threads and allow 15 minutes of dwell time. Apply localized heat to the cast iron housing using a propane torch to expand the outer threads. Insert a breaker bar into the 1/2-inch square drive notch and apply steady counter-clockwise torque. If the square head strips, use an internal pipe extractor tool to break the plug free without damaging the female threads.
Can an Air Admittance Valve (AAV valve) be installed below slab level on a floor drain?
No, plumbing codes strictly mandate that an AAV valve must be installed a minimum of 4 inches above the top of the horizontal drain branch or flood-level rim of the fixture it serves. Installing an AAV inside a sub-slab pit exposes the mechanical valve membrane to liquid submersion during a backup, causing complete valve failure and violating health codes.
What mechanical snake head profile is best suited for 2-inch Schedule 40 PVC floor drain traps?
When entering directly through the floor grate, use a flexible 3/8-inch cable equipped with an articulated drop-head or a light bulb auger bit. Do not use heavy C-cutter blades or rigid grease cutters inside a 2-inch PVC trap, as the rigid tool body can fracture thin-wall Schedule 40 fittings or become permanently stuck in the short-radius 90-degree sweeps.
Step-by-Step Guide to Understanding the Clogged Basement Floor Drain Diagram
Identify – Inspect surface grate, tailpiece section, and surrounding floor area for standing water and debris.
Locate – Find the internal cleanout plug inside the drain assembly bowl using the reference schematic.
Reference – Consult the diagram to trace the route from the P-trap to the main sewer line branch pipe.
Route/Connect – Insert a manual or powered plumbing auger cable through the cleanout port past the P-trap bend.
Verify – Flush the drain assembly with clean water to confirm smooth flow and verify trap seal replenishment.
Troubleshoot – Inspect the connected vent pipe for air obstructions if water drains slowly or gurgles repeatedly.
