Hayward Above Ground Pool Filter Diagram: 2026 Setup

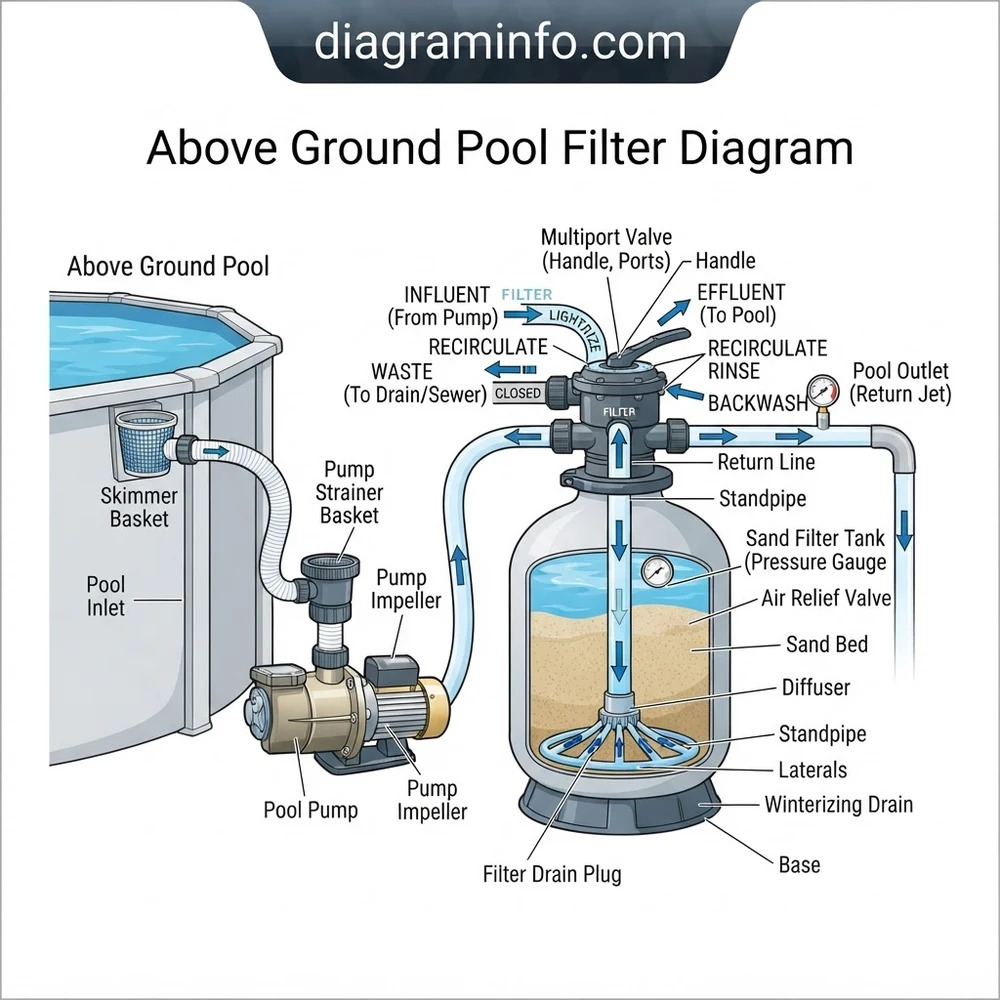

An above ground pool filter diagram illustrates water flow from the pool skimmer to the pump inlet, through the strainer basket, into the multiport valve top port (1.5-inch thread), down through media (sand or cartridge), and back out to the pool return. Normal operating pressure ranges from 8 to 15 PSI.
📌 Key Takeaways
- Standard operating system pressure ranges between 8 and 15 PSI; pressure exceeding 20 PSI indicates a dirty filter element requiring backwashing or cleaning.
- Critical layout connections use standard 1.5-inch NPT threaded fittings or clamp hoses attached securely to the pump intake and return manifold.
- Multiport valves feature distinct positions including Filter, Backwash, Rinse, Waste, Recirculate, and Closed configuration settings.
- O-ring degradation at the pump pot lid or multiport valve stem is the most common cause of suction-side air leaks.
- Replace cracked filter tanks or damaged high-pressure plumbing professionally, but handle routine hose routing and seal replacements DIY.
An above ground pool filter diagram serves as the definitive engineering blueprint for understanding hydraulic circulation, media filtration efficiency, and line pressure balance. Whether installing a sand, cartridge, or diatomaceous earth (DE) system, adhering to correct piping schedules, multiport valve orientation, and pump suction alignments ensures optimal turnover rates and motor longevity. Incorrect plumbing configurations can induce cavitation, excessive head pressure, or blowouts at union connections. By utilizing this comprehensive dynamic schematic, equipment operators and technicians can systematically verify pipe runs, isolate flow restrictions, correctly integrate pool pump wiring schematics, and execute precision diagnostic protocols across all standard residential filtration setups.
Above Ground Pool Filter Diagram: Core System Components
Every above ground pool filtration loop relies on a closed-loop hydraulic sequence driven by a self-priming or flooded-suction centrifugal pump. The schematic details how water transitions from raw suction to pressurized discharge through primary control interfaces. Understanding each physical component in the system blueprint ensures accurate maintenance and prevents operational failures under high dynamic head loss.
| Component Reference | Technical Specification / Standard | System Function & Operational Role |
|---|---|---|
| Skimmer Assembly & Vacuum Plate | ABS Plastic / 1.5″ or 2″ Female NPT Port | Draws surface water via gravity-fed suction; captures large debris prior to pump inlet. |
| Centrifugal Strainer Strainer Pot | 115V/230V, 0.5 HP – 2.0 HP / Clear HD Lid | Harnesses an internal impeller to generate negative pressure, pulling water through the debris basket. |
| Multiport Valve (MPV) | 6-Way or 7-Way Position Valve / Top Mount or Side Mount | Directs water routing between Filter, Backwash, Rinse, Waste, Recirculate, and Closed functions. |
| Filter Vessel (Sand/Cartridge/DE) | Polypropylene or FRP / 50 PSI Max Rating | Contains filtration media (#20 Silica sand, polyester element, or DE grids) to capture particulate matter (5–40 microns). |
| Pressure Gauge & Air Relief Valve | 0–60 PSI Range / 1/4″ NPT Bottom Mount | Monitors internal vessel operating pressure and vents trapped air from the top manifold. |
| Return Fitting & Eyeball Jet | 1.5″ MIP Threaded / Adjustable Nozzle | Discharges polished water back into the pool vessel, driving circular hydraulic flow. |
As illustrated in the blueprint, raw water flows sequentially from the wall-mounted skimmer and main drain plumbing, through the pump wet-end, into the multiport valve, down through the internal media bed, and out through the discharge laterals before returning to the pool. When servicing or replacing individual elements, ensure fittings align with Schedule 40 PVC dimensional standards and thread sealant specs to prevent vacuum leaks on the suction side.
Analyzing Above Ground Pool Filter Diagram Hydraulics and Layout
Correct interpretation of an above ground pool filter blueprint requires tracing the fluid path through both suction and discharge legs. Above ground systems typically operate on a flooded suction design, meaning the pump suction inlet sits below the pool’s static water line. The hydraulic cycle moves in a controlled loop:
Standard above ground plumbing specifies 1.5-inch Schedule 40 PVC or smooth-bore flex hose rated for a minimum working pressure of 50 PSI at 73°F (23°C). Recommended water velocity across the suction piping should not exceed 6 feet per second (FPS) to eliminate cavitation risks, while discharge pipe velocities must stay under 10 FPS.
When reviewing your layout configuration, confirm that distance runs between the skimmer and pump inlet minimize 90-degree elbows. Sweeping 90s or 45-degree fittings are preferred to reduce total dynamic head (TDH) loss. Ensure ball valves or slice valves are integrated into both the skimmer line and return line layout to allow for isolation during motor servicing or seasonal plumbing winterization.
Never alter the multiport valve handle position while the pump motor is energized. Switching MPV modes under dynamic pressure causes immediate hydraulic shock, destroying the internal spider gasket, valve rotor, and tank clamp assembly.
Troubleshooting Above Ground Pool System Faults and Pressure Drops
Diagnosing filtration abnormalities involves analyzing the system pressure gauge in relation to baseline operational parameters established upon initial installation. The pressure gauge acts as the primary diagnostic tool for the entire hydraulic loop.
A clean operational baseline for an above ground pool system typically sits between 8 to 15 PSI. A sustained pressure increase of 8 to 10 PSI above the clean baseline indicates media loading and requires an immediate backwash or element rinse cycle.
When performing system diagnostics, divide operational faults into high-pressure and low-pressure states:
Above Ground Pool Filter Diagram Technical FAQ
How do I determine the correct GPM flow rate for my filter layout?
Calculate your total pool volume in gallons and divide by your target turnover rate (typically 8 hours). Convert this to gallons per minute (GPM) by dividing by 480. Select a pump and filter combo where the filter’s maximum continuous flow rating (in GPM) meets or exceeds the pump’s rated flow output at your system’s calculated Total Dynamic Head (TDH).
What is the function of the multiport valve Recirculate setting in the schematic?
The Recirculate setting bypasses the filter vessel entirely, routing water directly from the pump inlet through the valve body and back to the pool return. This mode increases flow rate and is utilized when mixing heavy pool chemicals, troubleshooting internal filter blockages, or operating the pump during media bed repairs.
Why does operational pressure rise rapidly immediately after backwashing?
Rapid pressure escalation after backwashing indicates deep bed fouling, oil accumulation (body oils/suntan lotions), or chemical calcification within the sand media that routine backwashing cannot dislodge. The sand bed must be treated with a dedicated alkaline degreaser or replaced if the media has exceeded its service lifecycle.
What schedule PVC pipe is specified for above ground filtration systems?
Manufacturer technical specifications require standard Schedule 40 rigid PVC or heavy-duty flexible PVC pipe with solvent-weld sockets. Thin-wall flex corrugated hose (often supplied with entry-level kits) should be upgraded to Schedule 40 pipe to prevent atmospheric collapse under vacuum suction conditions.
How often should cartridge or sand media be replaced according to specs?
Standard #20 silica sand media maintains sharp edges for mechanical filtration (down to 20–40 microns) for 3 to 5 years under normal operational loads. Polyester cartridge filter elements typically require full replacement every 2 to 3 seasons, or when physical cleaning fails to lower operating pressure back to initial baseline parameters.
Step-by-Step Guide to Understanding the Above Ground Pool Filter Diagram
Identify – Recognize key system components including pump, filter housing, multiport valve, pressure gauge, and connecting hoses.
Locate – Position the pump suction port below water level and locate the skimmer suction hose fitting.
Reference – Consult the layout diagram for proper hose routing between pump discharge and valve inlet.
Connect/Route – Secure 1.5-inch hoses with clamps, ensuring thread seal tape is applied on NPT connections.
Verify – Prime pump basket, seal lid, open return line, start pump, and check for 8-15 PSI gauge reading.
Troubleshoot – Inspect O-rings and tighten fittings if air bubbles appear in basket or pressure exceeds 20 PSI.
