Sta-Rite Pump Parts Diagram: 2026 Component Guide
A Sta-Rite pump parts diagram illustrates the exploded view of the wet end and motor assembly, highlighting key components like the volute housing, diffuser, impeller, shaft mechanical seal (often mechanical seal #201), wear ring, and O-rings. It defines part numbers and hardware torque sequences required for reassembly.
📌 Key Takeaways
- The mechanical shaft seal (AS-200/AS-201) prevents water from leaking into the 56J frame motor shaft.
- Diffuser lock screws must be torqued to 25-30 in-lbs to prevent hydraulic cavitation.
- O-ring sealing surfaces require silicone-based lubricant; petroleum jelly degrades EPDM elastomers.
- Failed mechanical seals cause primary motor bearing failure and thermal overload tripping.
- Replace the rubber shaft sleeve O-ring whenever the impeller is removed from the motor.
Maintaining high-performance fluid handling equipment requires an accurate understanding of manufacturer assembly specifications and mechanical relationships. A standard Sta-Rite pump parts diagram serves as the definitive engineering blueprint for identification, preventative maintenance, and overhaul procedures across residential, agricultural, and commercial pumping applications. Manufactured under Pentair OEM standards, Sta-Rite centrifugal, jet, and pool pumps utilize tight-tolerance mechanical seals, precision-molded impellers, and engineered diffusers designed for optimal hydraulic efficiency. Utilizing an exploded schematic ensures accurate part replacement, preserves net positive suction head (NPSH), and prevents premature mechanical seal or motor bearing failure during system reassembly.

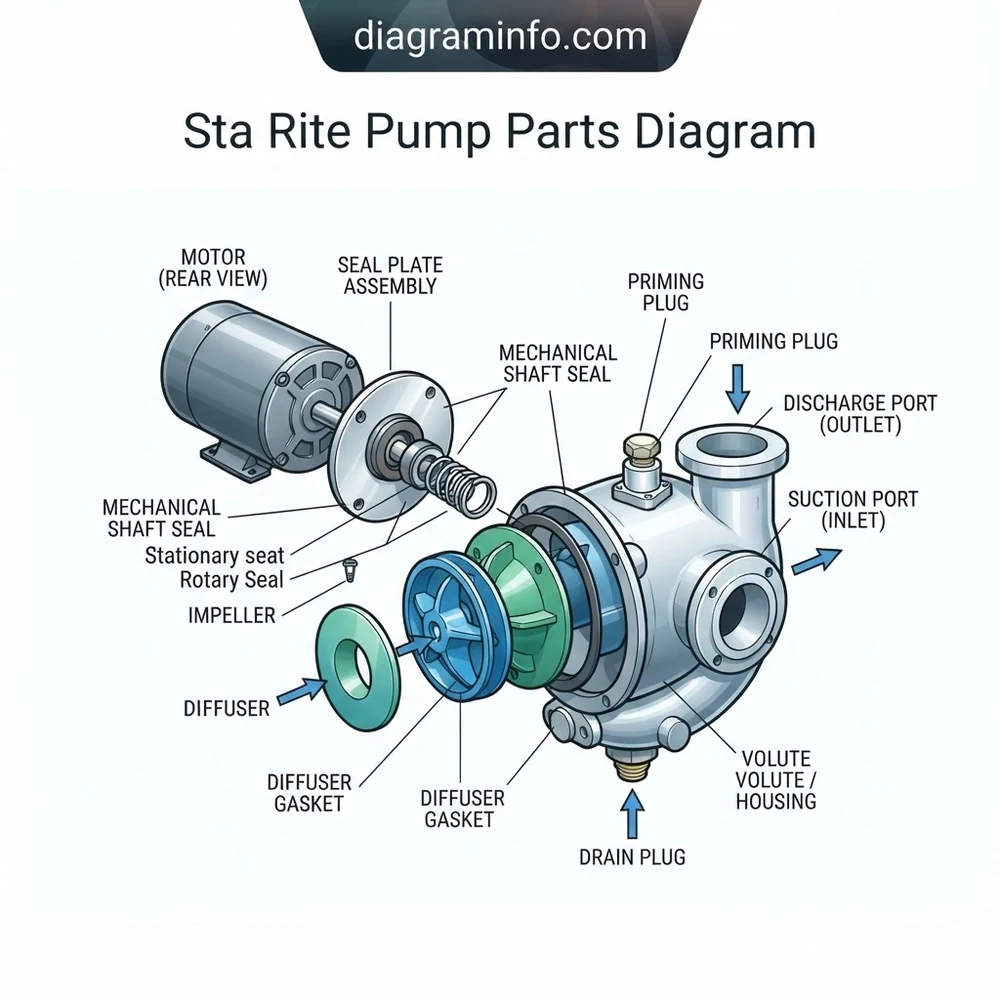

Sta-Rite Pump Parts Diagram: Core Component Layout
Understanding the internal structure of a Sta-Rite pump requires breaking the assembly down into three primary sub-systems: the wet end fluid chamber, the mechanical shaft seal assembly, and the power frame adapter. As illustrated in the standard Sta-Rite pump parts diagram, each internal part maintains a specific positional tolerance to prevent fluid recirculation and internal cavitation.
Recommended Best Deal Products
The wet end consists of the outer volute housing (often glass-reinforced thermoplastic or cast iron), suction flange, and discharge port. Housed directly inside the volute is the diffuser, which converts dynamic kinetic energy (velocity) generated by the impeller into static pressure. The impeller features precision-molded vanes calibrated to specific horsepower ratings. An wear ring or integrated diffuser lip seals against the impeller eye to maintain hydraulic separation between high-pressure discharge water and low-pressure suction intake.
According to OEM specifications for Max-E-Pro and Dura-Glas series, always verify impeller part numbers against motor brake horsepower (BHP) ratings rather than nominal horsepower to prevent motor overloading.
| Component Description | Common OEM Part Series | Key Material Specs |
|---|---|---|
| Volute Housing / Main Body | C105-92P / C105-238P | Reinforced Thermoplastic / Cast Iron |
| Impeller Assembly | C105-138BA / C105-138DB | Noryl® Precision Molded Vanes |
| Diffuser / Stationary Vane Guide | C1-271P / C101-284P | Polypropylene with Brass Insert Rings |
| Mechanical Shaft Seal Set | 37400-0027 / AS-1000 (#201) | Silicon Carbide / Carbon vs. Ceramic |
| Seal Plate Adapter | C103-193P / C105-92P | Die-Cast Aluminum / Engineered Polymer |
Behind the impeller sits the mechanical shaft seal, mounted inside the seal plate adapter. This dynamic seal consists of two halves: a stationary ceramic ring pressed into a rubber boot inside the seal plate, and a rotating carbon ring powered by a stainless steel coil spring resting against the impeller hub. The adapter plate bridges the wet end to the standard NEMA C-face electric motor frame, securing the entire assembly with a clamping band or heavy-duty housing bolts.
How to Read the Sta-Rite Pump Parts Schematic Blueprint
Interpreting a technical Sta-Rite pump parts schematic blueprint requires following the physical axis line running through the center of the drawing. This centerline represents the rotational axis of the motor shaft and indicates the exact order of component extraction and insertion.
When executing an overhaul, cross-reference item index numbers on the exploded layout with the corresponding manufacturer bill of materials. Key assembly steps dictated by the blueprint include:
- Fastener and Housing Disassembly: Remove the band clamp assembly or perimeter bolts securing the tank body to the seal plate. Note the location of alignment pins or cast indexing keys.
- Impeller Removal: Lock the motor shaft at the rear capacitor cover slot using a 7/16-inch open-end wrench. Unthread the impeller counter-clockwise (or remove the center shaft locking screw on designated models, which utilizes a left-hand thread). Refer to our detailed guide on pool pump motor wiring and shaft teardown for electrical safety steps prior to component removal.
- Seal Replacement Sequence: Extract the rotating spring seal assembly from the back of the impeller shaft hub. Press the stationary seat out of the seal plate bore from the motor side using a wood dowel to prevent scoring the seating recess.
- O-Ring Placement: Replace the primary diffuser O-ring, seal plate housing gasket, and drain plug seals. Lubricate elastomers strictly with silicone-based seal lubricants; petroleum-based grease will cause EPDM seals to swell and rupture.
Manufacturer specifications require clamping band nuts to be torqued to 55-65 in-lbs (6.2-7.3 Nm). Motor adapter-to-frame bolts must be tightened in a cross-pattern to 110-120 in-lbs (12.4-13.5 Nm) to prevent mechanical shaft seal misalignment.
When converting jet pumps, ensure the venturi tube and nozzle arrangement within the front housing matches the depth-to-water rating shown on the blueprint. For shallow well configurations, consult our reference manual on shallow well jet pump conversion kits to confirm correct nozzle orifice sizing.
Diagnosing Faults Using the Sta-Rite Pump Parts Diagram
A technical diagram acts as an essential diagnostic map when troubleshooting operational failures such as loss of prime, mechanical noise, or fluid leaks. By matching physical symptoms to specific diagram callouts, technicians can rapidly isolate worn or damaged internal components.
Never run a Sta-Rite pump dry. The mechanical carbon/ceramic seal relies on the pumped liquid for lubrication and cooling. Running dry for even 30 seconds can glaze ceramic surfaces, leading to immediate seal failure and motor shaft flooding.
Common symptom-to-component diagnostic pathways include:
- Water Dripping From Motor Adapter Weep Hole: Indicates failure of the mechanical shaft seal (#201 series). Water bypasses the ceramic seat, escaping through the adapter drop slot to protect the front motor shaft bearing. Immediate replacement is required.
- Pump Motor Runs But Delivers No Flow/Pressure: Indicates a sheared impeller key, clogged impeller eye vanes, or a blown diffuser O-ring. A damaged diffuser seal allows high-pressure discharge fluid to bypass back into the suction inlet zone.
- Air Bubbles in Sight Glass / Loss of Prime: Points to a damaged strainer basket lid O-ring, compromised suction flange gasket, or cracked volute suction port. Inspect parts against the diagram layout to verify proper gasket seating.
- High-Pitched Screeching or Grinding Noise: Signifies corrupted internal bearings within the electric motor caused by long-term water intrusion past the shaft slinger washer. If low pressure is accompanied by erratic cut-in cycles, review our guide on troubleshooting pump pressure switch settings to rule out electrical chattering.
Sta-Rite Pump System Configuration and Parts FAQ
How Do I Identify the Exact Part Number on My Sta-Rite Pump Model?
Locate the metal or heavy-duty vinyl specification plate mounted on the pump body or motor adapter. Identify the full model number (e.g., P6E6F-126L or P2RA6Y-126L) and series code. Standard parts schematics are organized by exact series suffixes, as subtle variations exist in impeller diameter and mechanical seal depth across production years.
What Mechanical Seal Size Does a Sta-Rite Max-E-Pro or Dura-Glas Pump Use?
Most standard Sta-Rite pool and centrifugal pumps utilize a Industry Standard #201 size mechanical shaft seal (5/8-inch shaft diameter). Higher-spec commercial or saltwater configurations require a heavy-duty Silicon Carbide/Viton modification (OEM part number 37400-0027S or AS-1000 series).
Why Is Water Dripping from the Bottom Motor Adapter Housing?
Water exiting the weep hole located under the motor adapter sleeve confirms that the mechanical shaft seal dynamic faces have worn down or suffered thermal shock. Replacing the dynamic carbon ring, ceramic seat, and motor shaft rubber slinger immediately prevents moisture from migrating into the front motor bearing.
Are Sta-Rite Pump Impellers Threaded or Keyed onto the Motor Shaft?
Most fractional-to-3HP Sta-Rite pumps utilize a threaded motor shaft (7/16″-20 UNF thread). The impeller threads clockwise directly onto the shaft. Select commercial or high-horsepower models utilize a keyed shaft secured with an internal impeller retaining screw, which features a left-hand thread that unthreads clockwise.
What Are the Correct Lubricants for Sta-Rite Housing O-Rings?
Always use a 100% pure silicone-based or PTFE-based lubricant on EPDM O-rings (such as the main tank seal and lid seal). Never apply petroleum jelly (Vaseline) or automotive grease, as petroleum hydrocarbon distillates degrade synthetic elastomers, resulting in structural swelling, seal failure, and air leaks.
Step-by-Step Guide to Understanding the Sta-Rite Pump Parts Diagram
Identify – Locate the pump model number on the serial tag before referencing the schematic.
Locate – Isolate the wet-end layout, including the volute body, diffuser, and impeller assembly.
Reference – Match damaged internal hardware with exact replacement OEM part numbers on the schematic.
Connect/Route – Reassemble the mechanical seal ceramic face and carbon ring with proper alignment.
Verify – Inspect the impeller clearance and hand-rotate the motor shaft to check for binding.
Troubleshoot – Confirm vacuum tightness by checking the suction trap seal and drain plug O-rings.
