Viking Sewing Machine Parts Diagram: Component Breakdown 2026
The Viking sewing machine parts diagram maps the upper thread assembly, bobbin case drive, main motor shaft, and internal ventilation system. For heavy-duty industrial models equipped with integrated pneumatic or micro-refrigerant cooling, it details the mini compressor, condenser, evaporator coil, R-134a refrigerant lines, and the auxiliary blower motor that prevents motor overheating during high-speed operation.
📌 Key Takeaways
- Main motor operates at 110V AC with drive belt tension set between 3.5 to 4.0 lbs of deflection.
- Integrated blower motor and evaporator cooling coils maintain internal drive housing temperatures below 140°F.
- Micro-compressor circuits utilize sealed R-134a refrigerant systems requiring 15-20 PSI suction pressure.
- Tension disc assembly misalignment is the primary cause of loose stitching and thread bunching.
- Always disconnect main power and relieve refrigerant system pressure before replacing internal motor components.
Navigating detailed technical schematics requires a precise understanding of symbol conventions, mechanical tolerances, and signal pathways. Whether you are analyzing an exploded mechanical assembly like a viking sewing machine parts diagram to reference precision gear trains, or interpreting a commercial HVAC schematic, schematic literacy prevents misdiagnosis and costly installation errors. Environmental control equipment relies on complex thermodynamics across the compressor, condenser, evaporator, and air handler pathways. This technical guide outlines component identification, schematic navigation, operational pressures, and systematic diagnostic workflows to ensure precise maintenance, troubleshooting, and component replacement according to manufacturer specifications.
Viking Sewing Machine Parts Diagram and HVAC Assembly Component Identification
Understanding schematic representations requires breaking down complex mechanical and thermodynamic assemblies into distinct physical subsystems. Just as a viking sewing machine parts diagram maps intricate mechanical links, timing belts, and drive shafts, an HVAC schematic maps fluid lines, low-voltage control pathways, and air movement assemblies.
Recommended Best Deal Products
Always verify component part numbers and revision codes against manufacturer service manuals prior to installation. Cross-referencing component callouts in a viking sewing machine parts diagram or HVAC schematic prevents pinout mismatch and voltage rating errors during field replacement.
Thermal Exchange and Compression Core Components

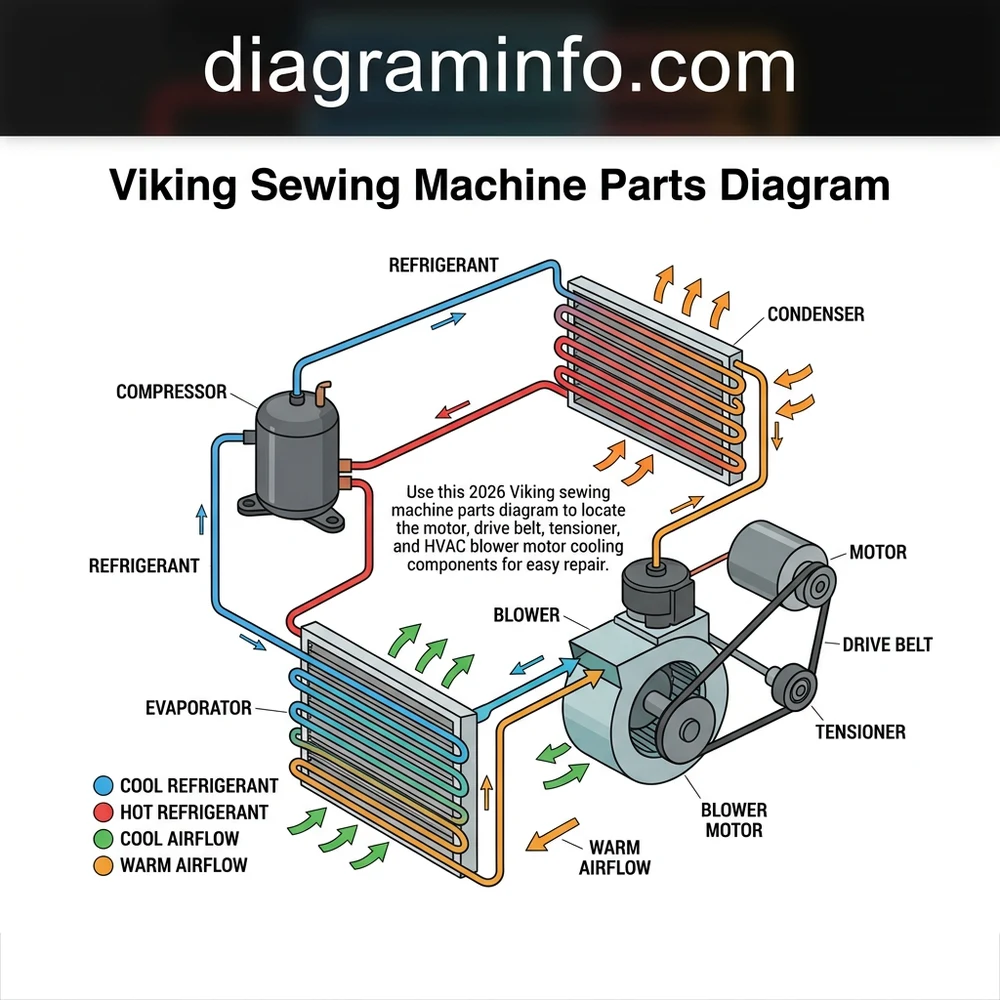

The vapor-compression refrigeration loop relies on four core thermodynamic units shown on mechanical layout drawings:
- Compressor: Represented on schematics as a circular icon with motor winding terminals marked C (Common), R (Run), and S (Start). The compressor elevates low-pressure, low-temperature refrigerant vapor to a high-pressure, high-temperature superheated gas. Hermetic scroll and reciprocating compressors utilize dual-run capacitors typically rated between 35 µF and 80 µF at 370V/440V AC.
- Condenser Coil: Illustrated as a continuous serpentine or microchannel tube array. Positioned outdoors, the condenser heat exchanger sheds heat to ambient air. Nominal subcooling targeted at the liquid line output ranges from 10°F to 12°F (5.5°C to 6.7°C) for standard R-410A systems.
- Metering Device (TXV/EEV): Placed immediately upstream of the cooling coil. Thermostatic expansion valves maintain superheat at the suction outlet by regulating mass flow rates based on bulb temperature feedback.
- Evaporator Coil: Mounted within the indoor air handler chassis, the evaporator absorbs thermal energy from indoor return air. Proper airflow across the coil surface must be verified using a differential pressure manometer before diagnosing refrigerant flow restrictions. For additional details on refrigeration cycle mechanics, consult our commercial refrigeration diagnostic guide.
Air Handling and Ventilation Subsystems
Conditioned air delivery depends on balanced pressure dynamics within the indoor housing assembly:
- Air Handler Unit: Houses the blower motor assembly, secondary heating element, drain pan, and evaporator coil.
- Blower Motor: Modern systems feature multi-speed Permanent Split Capacitor (PSC) or variable-speed Electronically Commutated Motors (ECM). ECM units accept 24VAC pulse-width modulation signals or dedicated 0-10VDC control inputs to adjust CFM based on system static pressure.
- Heat Exchanger: In combination furnace units, the primary clamshell heat exchanger transfers combustion energy to circulating air without allowing flue gases to enter the airstream.
- Return Duct System: Pulls air from conditioned spaces back into the air handler through filter racks. The return duct elbow must be sized to keep static pressure within OEM design tolerances.

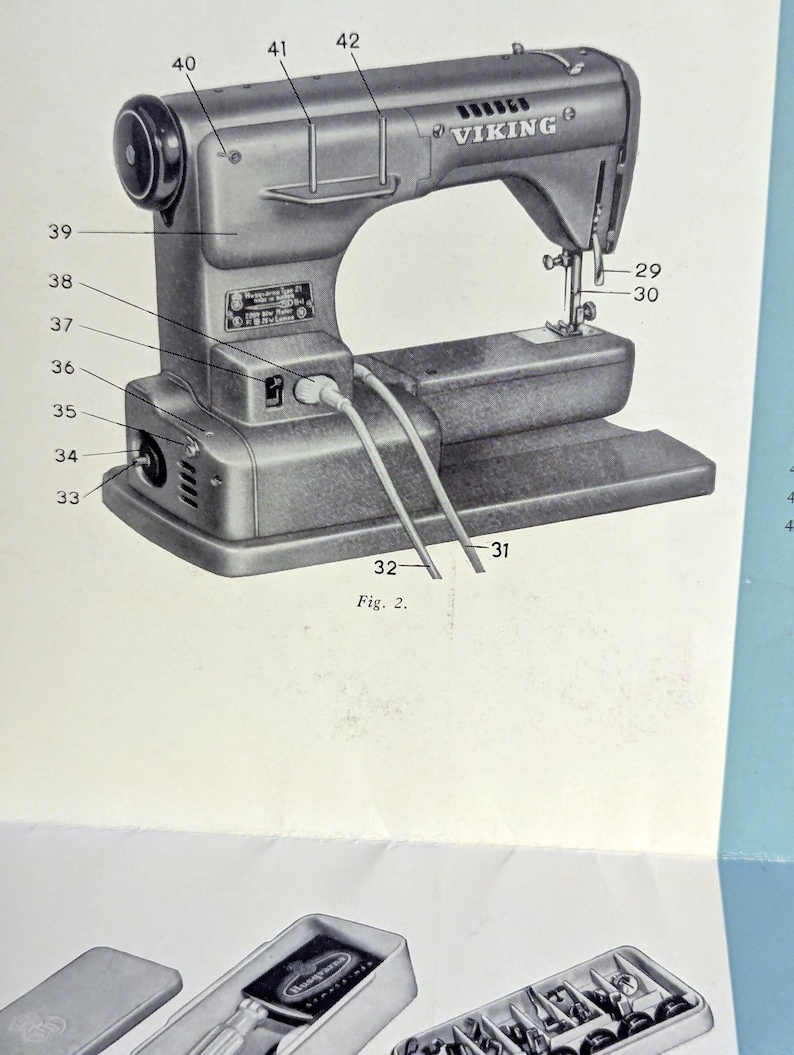

How to Read a Viking Sewing Machine Parts Diagram and Air Handler Schematic
Interpreting a technical schematic demands a structured, step-by-step approach. Technicians trained to read a viking sewing machine parts diagram rely on item numbers, leader lines, and exploded view spatial relationships. Similarly, reading an HVAC schematic requires understanding line weights, terminal designation codes, and symbol keys.
Recommended Best Deal Products
Standard low-voltage HVAC control wiring uses 18 AWG solid copper wire. Ensure voltage drop does not exceed 3% over long wire runs between the air handler control board and outdoor contactor terminals.
Step 1: Locate the Legend and Identifying Schematics
Begin by locating the symbol key and model specifications block on the unit access panel or service manual. Note whether the drawing represents a wiring ladder diagram, a component location diagram, or a piping and instrumentation diagram (P&ID). If you are performing multi-system maintenance, cross-reference our electrical schematic troubleshooting reference to master universal wiring icons.
Step 2: Trace the High-Voltage Power Lines
High-voltage line pathways are drawn with heavy, solid black lines indicating 120V, 208V, or 230V AC supply paths:
- Trace power from incoming line terminals L1 and L2 through the main disconnect box to the line side of the compressor contactor.
- Follow load side connections (T1 and T2) down to the compressor run terminal and the blower motor high-speed tap.
- Verify that inline safety disconnect fuses match the Maximum Overcurrent Protection (MOP) rating on the equipment nameplate.
Step 3: Analyze the 24VAC Control Logic Circuits
Low-voltage control wires are indicated by thinner colored lines powered by a 120/230V-to-24V step-down transformer (typically rated at 40VA to 75VA):
- Red (R): Constant 24VAC hot signal from transformer secondary to thermostat.
- Yellow (Y): Energizes the outdoor contactor coil to pull in 230V power for the compressor.
- Green (G): Sends 24VAC signal to the indoor air handler fan relay to run the blower motor.
- White (W): Controls first-stage auxiliary heat or furnace burner control module.
- Blue/Black (C): 24VAC common path completing the low-voltage circuit back to the transformer.
Step 4: Map Fluid Pathways and Service Valve Ports
On refrigerant schematics, follow line weights to distinguish pressure states. The large-diameter insulated suction line carries cool, low-pressure gas from the evaporator outlet to the compressor inlet service valve. The smaller-diameter uninsulated liquid line routes warm, high-pressure liquid from the outdoor condenser coil through the liquid line filter-drier to the expansion device.
Diagnostic Workflows for Refrigerant Circuits, Compressors, and Blower Motors
Systematic troubleshooting combines physical inspection with electrical and pressure diagnostics. When troubleshooting mechanical or thermal faults, refer to system parameters to identify deviations from OEM specifications.
Always disconnect high-voltage power supplies before testing resistance across compressor terminals or blower motor windings. High-voltage capacitors store dangerous electrical charges and must be safely discharged using a 20k-ohm, 10-watt resistor prior to service work.
Diagnosing Refrigerant Pressure Anomalies
If low cooling performance is reported, attach a calibrated digital manifold gauge set to the liquid and suction line service ports:
- Low Suction Pressure / High Superheat: Indicates a refrigerant undercharge or liquid line restriction (e.g., a clogged filter-drier or failing expansion valve). Check temperature drop across the filter-drier; a temperature differential greater than 2°F (1.1°C) confirms internal plugging.
- High Suction Pressure / Low Subcooling: Points to inefficient compressor valve plates or an overfed metering device. Measure compressor current draw; if amperage is significantly lower than Nameplate FLA, internal bypass is occurring.
- Evaporator Coil Freezing: Severe frost accumulation on the evaporator occurs when saturation temperatures drop below 32°F (0°C). Verify airflow volume before adjusting refrigerant charge. Restrictive filters, closed supply registers, or slipping blower belts lower airflow and reduce coil heat absorption.
Resolving Blower Motor and Heat Exchanger Limit Trips
When an air handler fails to distribute air or repeatedly trips high-limit safety switches:
- Measure Total External Static Pressure (TESP) by inserting static pressure probes into the supply plenum and return duct intake. Total static pressure exceeding 0.50 inches water column (in. w.c.) causes PSC motors to overheat and causes ECM motors to ramp up to maximum RPM, increasing electrical wear.
- Inspect the primary heat exchanger using an electronic combustible gas detector or inspection camera. A cracked heat exchanger allows flue product contamination into the supply airstream and breaks the safety circuit, preventing burner ignition. For multi-stage heat pump configurations, review our multi-stage heat pump maintenance protocol.
System Specifications for Refrigerant Circuits and Blower Motor Drives
The following reference table outlines typical operational specifications, target electrical values, and physical tolerances across residential and light commercial air handling equipment.
| System Component | Operational Parameter | Target Specification (OEM Standard) | Diagnostic Measurement Tool |
|---|---|---|---|
| Compressor Motor Winding | Resistance (C-to-R, C-to-S) | 0.5 to 5.0 Ohms (Infinite to Ground) | Digital Multimeter (Megohmmeter) |
| R-410A Subcooling Target | Liquid Line Temp vs. Saturation | 10°F to 12°F (± 2°F) | Digital Manifold & Pipe Clamp Thermocouple |
| R-410A Superheat Target | Suction Line Temp vs. Saturation | 8°F to 12°F (TXV Systems) | Digital Manifold & Pipe Clamp Thermocouple |
| Air Handler Blower Motor | Operating Amperage | Within 100% of Nameplate FLA | True-RMS Clamp Meter |
| Return Duct System | Static Pressure Drop | 0.15 to 0.25 in. w.c. Max | Dual-Port Differential Manometer |
| High Limit Limit Switch | Cutout Surface Temperature | 160°F to 180°F (Model Dependent) | Infrared Surface Thermometer |
Viking Sewing Machine Parts Diagram and Technical HVAC Assembly FAQ
How does reading a viking sewing machine parts diagram compare to reading an HVAC schematic?
Reading a viking sewing machine parts diagram requires interpreting exploded spatial relationships, callout numbers, gear alignment pins, and mechanical linkage assemblies. Reading an HVAC schematic involves a dual layout approach: pictorial wiring diagrams map physical component placement within the air handler or condenser cabinet, while ladder schematics map functional electrical logic from top to bottom, showing power distribution across control relays, pressure switches, and motor contactors.
What indicates a short to ground in a hermetic compressor motor?
To test for a grounded winding, isolate the compressor by disconnecting the C, R, and S wire leads. Set a digital multimeter or megohmmeter to the highest resistance scale (Mohms) or 500V insulation test mode. Place one probe firmly onto bare copper refrigerant tubing and the second probe onto each electrical pin sequentially. Any resistance reading below 20 Mohms (or continuity beep) indicates breakdown of internal motor winding insulation, requiring compressor replacement.
Why does an evaporator coil freeze when system refrigerant is low?
When a system loses refrigerant charge, operating pressure within the evaporator drops below normal design levels. According to pressure-temperature relationships, lower suction pressure depresses the boiling point of the refrigerant below 32°F (0°C). Ambient moisture condensing on the fins freezes instantly. Moisture layer accumulation insulates the coil, reduces airflow, and causes ice to migrate down the suction line toward the compressor.
How do you measure total external static pressure in a return duct and supply plenum?
Static pressure is measured using a dual-port digital manometer connected to static pressure tips inserted perpendicularly to duct airflow. Insert port A into the return duct upstream of the filter rack and air handler cabinet entrance. Insert port B into the supply plenum downstream of the indoor heat exchanger coil. Add the absolute values of both static pressure readings together to calculate Total External Static Pressure (TESP). Compare the result against the max static pressure listed on the air handler nameplate.
What causes a furnace heat exchanger limit switch to trip repeatedly?
High-limit switches trip when air temperatures inside the primary heat exchanger chamber exceed calibrated safety limits (typically 170°F). Common causes include low airflow from dirty air filters, improper ECM motor speed tap selection, undersized return ductwork, a fouled evaporator coil, or defective blower capacitors. Continuous limit switch cycling fatigues switch contacts and can warp heat exchanger metal cells, leading to dangerous thermal cracks.
Step-by-Step Guide to Understanding the Viking Sewing Machine Parts Diagram
Identify – Locate the specific model number on the base frame and match it to the corresponding viking sewing machine parts diagram schematic.
Locate – Find the primary drive motor, belt tensioner, and auxiliary cooling blower motor assembly within the upper arm housing.
Reference – Consult the exploded view to determine the exact sequence of screws, washers, and housing plates protecting the internal mechanisms.
Connect/Route – Route the drive belt around the motor pulley and upper drive wheel, maintaining 1/4-inch deflection under moderate pressure.
Verify – Turn the handwheel manually counterclockwise to verify smooth needle bar movement and clear rotating hook clearance.
Troubleshoot – Check electrical continuity across the foot pedal harness and blower motor terminals if the drive system fails to engage.
