Chapin 20000 Diagram Hand Pump Sprayer Parts: Component Breakdown 2026
A typical hand pump sprayer layout features a central pump cylinder containing a piston rod, O-ring seal, and check valve at the bottom. The pump unit inserts into the tank top, building 30–45 PSI. Compressed air pushes fluid through the dip tube, trigger valve handle, wand, and adjustable nozzle tip.
📌 Key Takeaways
- Operating pressure for standard hand pump sprayers ranges between 30 and 45 PSI.
- The Viton O-ring seal on the pump cylinder piston is the primary seal preventing air leaks.
- Always release internal pressure via the safety relief valve before unscrewing the pump barrel.
- Loss of pressure usually stems from a dried-out or damaged plunger cup seal or check valve debris.
- Replace cracked tank bodies immediately; only replace seals, wands, and nozzles for DIY repair.
Hand pump sprayers, commonly classified as manual compression sprayers, rely on precise mechanical equilibrium to maintain fluid pressurization for automotive detailing, agricultural treatment, and industrial fluid application. Understanding a comprehensive diagram hand pump sprayer parts layout allows mechanics, equipment technicians, and service specialists to inspect, diagnose, and rebuild pressure vessels and fluid delivery circuits efficiently. Whether servicing a standard 2-gallon industrial compression sprayer or a specialized solvent applicator, analyzing the internal mechanical schematic reveals how check valves, plunger seals, and relief mechanisms operate in tandem. This guide provides a detailed blueprint overview of core sprayer components, fluid dynamics, and systematic troubleshooting routines.

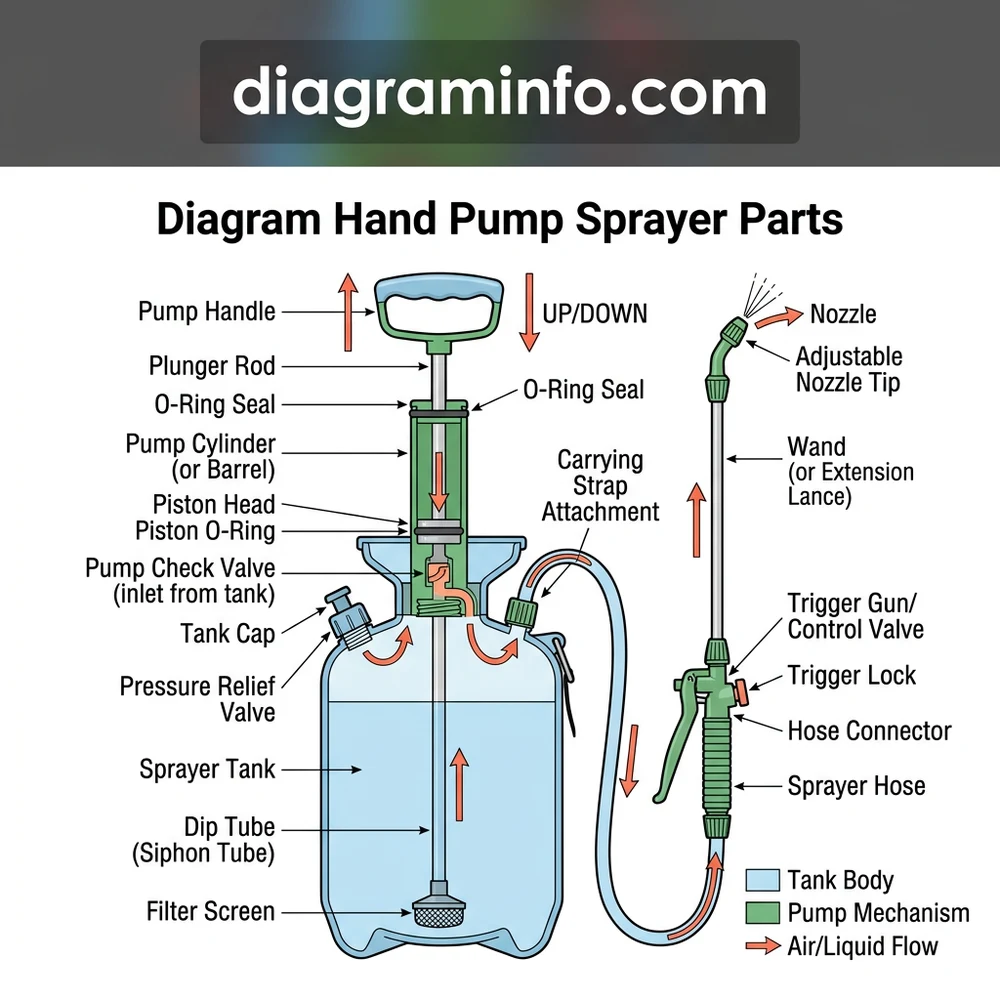

Diagram Hand Pump Sprayer Parts: Core Component Overview
The internal structure of a manual compression sprayer consists of two primary sub-systems: the pneumatic pressurization assembly and the fluid discharge manifold. Disassembling the unit according to an OEM engineering blueprint reveals specific components designed to withstand continuous operating pressures ranging from 40 to 75 PSI.
Key components comprising the overall system configuration include:
- Pump Cylinder & Piston Shaft: The smooth-bore barrel housing the plunger rod, acting as the primary air displacement chamber during manual priming.
- Piston Cup / Dynamic O-Ring Seal: Creates a hermetic barrier between the piston head and internal cylinder wall. Fluoroelastomer (Viton/FKM) seals are specified for hydrocarbon solvent applications, whereas Nitrile (NBR) is utilized for standard water-based formulas (see [internal link: industrial chemical sprayer seals]).
- Base Check Valve (Umbrella / Poppet Valve): Positioned at the bottom outlet of the pump barrel, this one-way valve allows pressurized air into the vessel on the downstroke while blocking fluid from entering the cylinder during the upstroke.
- Pressure Relief / Safety Valve: A calibrated spring-loaded valve designed to auto-bleed tank pressure if internal vessel force exceeds 75 PSI, preventing catastrophic hull failure.
- Dip Tube (Siphon Tube): A rigid or flexible polymer conduit extending from the top tank fitting down to the sump recess, ensuring maximum liquid draw.
- Trigger Valve & Wand Assembly: Houses the shut-off needle valve, spring return, filter screen, and adjustable tip nozzle for flow metering and spray pattern atomization.
| Component Name | Standard OEM Material | Functional Operating Spec |
|---|---|---|
| Pump Cylinder | High-Density Polyethylene (HDPE) / Brass | 100 PSI Burst Resistance |
| Piston Cup Seal | Viton (FKM) / Nitrile (NBR) | -10°F to 400°F Temp Rating |
| Check Valve Seal | EPDM / Fluorocarbon Elastomer | Cracking Pressure: 0.5–1.0 PSI |
| Pressure Relief Valve | Stainless Steel Spring + HDPE Body | Relief Threshold: 60–75 PSI |
| Nozzle Orifice Tip | Brass / Polypropylene | Flow Rate: 0.1–0.5 GPM @ 40 PSI |
Manufacturer specifications indicate that tank head space (ullage) must maintain a minimum 30% air-to-liquid ratio. Overfilling reduces air reservoir volume, requiring significantly more frequent pumping cycles to maintain consistent liquid discharge pressure.
How to Read the Hand Pump Sprayer Schematic Blueprint
Interpreting a technical layout requires tracking the dual-stage operational cycle: pneumatic charge generation followed by hydraulic fluid displacement. Service technicians must follow the schematic path to pinpoint pressure drop locations or mechanical flow restrictions.
Stage 1: Pneumatic Compression Mechanics
As the manual pump handle is elevated, atmospheric air enters the cylinder bore around the flexible lip of the primary piston cup. When the handle is depressed, downward mechanical force causes the dynamic piston lip to expand tightly against the cylinder wall, compressing trapped air. This high-pressure charge pushes open the lower elastomeric check valve, transferring compressed air directly into the head space above the chemical fluid line inside the tank structure.
Stage 2: Hydraulic Siphon and Line Charge
The pressurized air volume trapped inside the sealed tank exerts downward force across the surface area of the liquid chemical. This static pneumatic pressure forces fluid down into the tank sump and upward through the dip tube intake screen. Fluid fills the flexible delivery hose up to the closed trigger assembly. Technicians performing maintenance can consult [internal link: backpack sprayer nozzle repair] procedures when working with extended reach wands or high-flow valve assemblies.
Stage 3: Control Valve Discharge and Pattern Atomization
When the technician depresses the trigger lever, the internal actuator retracts a spring-loaded needle off its elastomeric valve seat. Hydraulic pressure propels liquid through the hollow wand shaft into the nozzle terminal. Tangential grooves inside the nozzle tip create a vortex, transforming the solid liquid stream into atomized micro-droplets formatted in adjustable cone or flat fan spray profiles.
When servicing internal cylinder seals, apply exclusively 100% pure, non-petroleum silicone grease. Petroleum-based lubricants breakdown EPDM and NBR rubber components, causing rapid swelling, seal binding, and loss of compression within hours of application.
Common Diagram Hand Pump Sprayer Parts System Failures
Diagnosing erratic spray delivery, pressure drop, or fluid backflow requires methodical isolation of static seals, moving check valves, and threaded connection points across the sprayer blueprint layout.
Pump Rod Recoil (Piston Bounce-Back)
If the pump handle forcefully drives back upward when released during a stroke, or if liquid chemical enters the inside of the pump cylinder, the umbrella/poppet valve at the base of the cylinder has failed. Particulate debris trapped between the valve face and sealing seat, or chemical distortion of the rubber diaphragm, allows tank air pressure to reverse direction into the cylinder bore. Disassemble the cylinder and clean or replace the bottom check valve.
Inability to Build or Retain Tank Pressure
When stroke resistance feels minimal and no pressure accumulates inside the vessel, inspect the piston cup seal. Dry, cracked, or misaligned cup seals allow air to bypass the piston head during downstrokes. If the pump builds initial pressure but bleeds off while resting, test all static vessel seals—specifically the main tank collar O-ring and safety pressure relief valve—using a soap bubble leak detection method. Validate system sealing integrity following [internal link: pneumatic pump pressure testing] standard operating procedures.
Fluid Dripping from Nozzle Post-Release
Dripping after trigger release indicates incomplete seating of the internal control valve needle. Contaminants on the Viton shut-off seat, a fatigued internal stainless return spring, or a warped shut-off valve rod will prevent full mechanical closure when manual trigger pressure stops.
Always manually actuate the pressure relief valve ring to fully depressurize the vessel before unthreading the pump module assembly or disconnecting discharge hoses. Unthreading components under active 40+ PSI pressure can result in high-velocity chemical projection and severe physical injury.
Diagram Hand Pump Sprayer Parts Technical FAQ
How do Viton seals differ from standard NBR seals in sprayer schematics?
Viton (fluorocarbon elastomer) provides high chemical resistance against aggressive solvents, hydrocarbon oils, and acidic concentrates, maintaining structural durometer hardness up to 400°F. Standard Nitrile (NBR) seals offer good abrasion resistance for water-based fluids and mild agricultural chemicals, but rapidly swell and degrade when exposed to aromatic solvents or harsh petroleum distillates.
What causes a hand pump sprayer cylinder to fill with liquid chemical?
Chemical entering the pump barrel occurs exclusively when the lower check valve (umbrella valve) at the base of the pump cylinder loses seal integrity. Trapped dirt, mineral scaling, or chemical degradation prevents the flexible seal lip from closing flat against the pump housing floor, allowing vessel pressure to push liquid upward into the cylinder.
What thread pitch standards are typically used on industrial wand fittings?
Most commercial compression sprayer manufacturers utilize 1/4-inch or 3/8-inch National Pipe Thread (NPT) or standard metric coarse threads (M14 x 1.5) on wand fittings and extension connections. Always use Teflon (PTFE) thread seal tape or chemical-resistant thread sealant on non-O-ring threaded joints to maintain air-tight fluid sealing.
How often should internal pump cylinder seals be inspected and lubricated?
Inspect dynamic piston seals and apply a light coat of pure silicone grease every 50 operating hours, or prior to storing the sprayer for extended off-seasons. If spraying aggressive solvent solutions or wettable powders, inspect and flush internal seals after every single operational shift to prevent abrasive wear and seal binding.
Step-by-Step Guide to Understanding the Diagram Hand Pump Sprayer Parts
Identify – Depressurize the tank completely using the pressure relief valve before disassembly.
Locate – Unscrew and remove the central pump cylinder rod assembly from the main tank collar.
Reference – Match worn seals and components against the diagram hand pump sprayer parts schematic.
Connect/Route – Lubricate new Viton O-rings with silicone grease and seat the bottom check valve.
Verify – Reassemble the pump module, add clean water, pump to 30 PSI, and test flow.
Troubleshoot – Inspect the nozzle and check valve if pressure drops or spraying remains inconsistent.
