ESP32 Schematic Diagram of Septic Tank: 2026 Guide

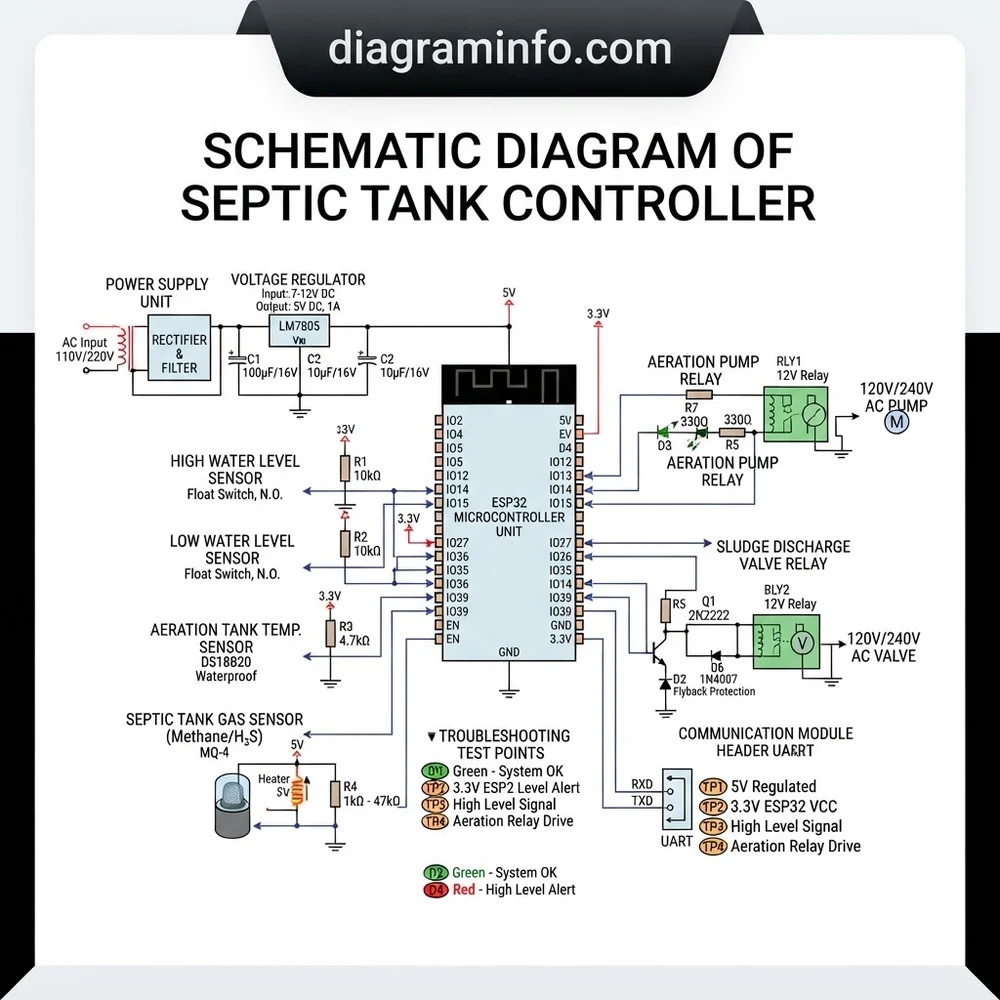

An electronic schematic diagram of septic tank control systems features an ESP32 microcontroller powered by an LM7805 voltage regulator converting 12V DC down to 5V DC. Water level float switches connect to GPIO pins 14 and 27, while a 1N4007 flyback diode protects the relay circuit driving the 120V effluent pump.
📌 Key Takeaways
- The system uses an LM7805 voltage regulator circuit providing steady 5V power to the microcontroller integrated circuit.
- GPIO pin 14 monitors high-water float switch inputs, while GPIO pin 27 triggers the alert relay output.
- A 1N4007 flyback diode must be reverse-biased across the relay coil to absorb inductive voltage spikes.
- Corroded float sensor terminals and cracked optocoupler integrated circuits represent the most frequent point of failure.
- DIY low-voltage sensor troubleshooting is safe, but high-voltage 120V/240V pump power wiring requires a certified electrician.
Modern aerobic and effluent-pumped waste management systems rely on advanced electronic control units (ECUs) to manage dosing cycles, telemetry, and fault detection. Analyzing the schematic diagram of septic tank control assemblies requires a firm grasp of low-voltage logic circuitry, solid-state switching, and sensor signal conditioning. This technical guide breaks down the PCB-level schematic diagram of septic tank monitoring units, detailing how power regulation, signal processing, and high-voltage relay actuation interact. Whether you are servicing an OEM commercial panel, integrating telemetry alarm monitoring systems, or diagnosing an industrial effluent pump controller, understanding these circuit pathways is essential for rapid fault isolation.
Component Breakdown
An electronic schematic diagram of septic tank control units details both the low-voltage control domain and the high-voltage load switching domain. At the core of the printed circuit board (PCB) sits an 8-bit or 32-bit microcontroller (such as an ATmega328P or PIC16F series integrated circuit), which processes analog and digital input signals from float switches, pressure transducers, and current sensors.
The onboard power supply section converts incoming 120V/240V AC utility power to logic-level DC voltages. Step-down transformer outputs feed into a full-wave bridge rectifier diode array, followed by a linear or switching voltage regulator (such as an LM7805 or LM2596) to deliver a ripple-free 5V or 3.3V VCC bus. A dedicated crystal oscillator (typically operating at 16 MHz with dual 22pF load capacitors) provides the hardware clock pulse required for microsecond-accurate float switch debouncing routines and delayed dosing timers.
Sensor inputs route connections through optocouplers to isolate high-voltage field transients from sensitive microcontroller GPIO pins. Each digital input incorporates 10kΩ pull-up resistors and RC low-pass filters to eliminate mechanical contact bounce noise. Output signals from the microcontroller GPIO pins route to Darlington transistor arrays (such as the ULN2003) or optoisolated TRIACs, which control the coil current for heavy-duty 24VDC or 120VAC electromechanical contactors driving the main pump motor.
To suppress inductive flyback voltage spikes generated when relay coils de-energize, a transient suppression diode is wired in parallel across each DC coil. Furthermore, modern multi-layer PCB designs utilize a continuous copper ground plane beneath signal traces to shield low-voltage sensor runs from high-current motor inrush noise.
| Component Type | Designator / Part No. | Functional Operating Specification |
|---|---|---|
| Integrated Circuit Controller | MCU (ATmega328P / PIC16F) | 8-bit RISC, 5.0V VCC, 20 MHz Max Clock, GPIO Logic Control |
| Voltage Regulator | VR1 (LM7805CT) | Input: 7.5V–35V DC, Output: 5.0V DC ±2%, 1.5A Max Current |
| Flyback Diode | D1–D4 (1N4007) | 1000V Peak Reverse Voltage, 1.0A Forward Current |
| Crystal Oscillator | Y1 (HC-49S) | 16.000 MHz Crystal, ±30ppm Frequency Tolerance |
| Optocoupler Isolation IC | U2 (PC817) | 5000V RMS Isolation, Phototransistor Output to GPIO |
Step-by-Step Guide to Reading and Tracing the Schematic
Tracing signal pathways on the schematic diagram of septic tank electronic modules requires a structured, domain-by-domain approach from input power to load actuation.
Step 1: Map the Power Distribution Rail
Begin at the terminal block where main line AC voltage enters the board. Trace line 1 (L1) and neutral (N) into the primary winding of the isolation transformer. Follow the secondary low-voltage AC outputs through the four-diode bridge rectifier. Trace the unfiltered DC trace into the input pin of the primary voltage regulator. Verify that the output pin connects to the system +5V VCC net, supplying power to pin 1 (RESET) and power pins on the primary integrated circuit.
Step 2: Trace Sensor Input Signal Lines
Locate the terminal strip designated for float switches (HIGH LEVEL ALARM, PUMP ON, PUMP OFF). Trace each conductor path through its series 1kΩ current-limiting resistor into the infrared LED side of the PC817 optocoupler. On the isolated phototransistor side, trace the collector node directly to the corresponding digital GPIO input pin on the microcontroller. Note the pull-up resistor connection to the +5V DC rail, which holds the GPIO input high until a float closure pulls the phototransistor to ground.
Step 3: Follow Actuation and Output Triggers
Identify the designated output GPIO pins assigned to pump contractor control and beacon telemetry alarms. Follow the PCB trace from the microcontroller output pin through a 330Ω base resistor into an NPN transistor array driver. Trace the collector circuit pin to the negative terminal of the 24VDC relay coil. Note that the positive coil terminal connects to the raw 24VDC rail, with a freewheeling diode placed in parallel across the coil terminals.
Step 4: Inspect Ground Plane Boundaries and High-Current Lines
Identify the isolation split between the DC low-voltage reference and the AC power earth ground. In post-2018 commercial designs, separate copper pours are connected at a single star-ground point to prevent high-frequency electrical noise generated by motor contactor arcing from corrupting MCU memory register states.
Manufacturer specifications for standard aerobic treatment unit control panels require input trace widths of at least 100 mils (2.54 mm) for 10A current capacity on relay contact lines, while low-voltage signal traces for GPIO and sensor connections are standardized at 10–15 mils (0.25–0.38 mm).
Troubleshooting Electronic Control Circuit Diagnostics
When performing field diagnostics on a non-functional control module using the schematic diagram of septic tank circuit boards, execute systematically staged voltage, frequency, and continuity tests.
1. DC Rail Voltage Verification
Set your digital multimeter to DC volts. Measure potential across the output pin and ground pin of the voltage regulator IC. If the reading drops below 4.75V DC, inspect the smoothing electrolytic capacitors for bulging or equivalent series resistance (ESR) failure. A dead short (0V) on the VCC rail usually indicates a thermal breakdown inside the primary microcontroller or a shorted ceramic bypass capacitor.
2. Clock Oscillator Integrity Testing
Connect a 100 MHz oscilloscope probe with a 10x attenuation setting across the pins of the crystal oscillator (Y1). Measure for a clean, symmetrical 16 MHz sine wave centered around 2.5V DC. If the waveform is flatlined or distorted, inspect the two ceramic load capacitors for cold solder joints or physical cracking caused by enclosure vibration. Without an active clock signal, the microcontroller remains locked in an uninitialized state.
3. Optocoupler and GPIO Logic State Verification
Simulate a float activation by jumpering the input terminal block. Probe the corresponding GPIO input pin on the integrated circuit. The signal level must drop cleanly from 5.0V DC to below 0.8V DC. If the voltage remains near 5.0V DC, test the internal phototransistor inside the PC817 optocoupler for open-circuit failure. If the GPIO toggles correctly but the output relay fails to pull in, probe the base pin of the driver transistor. A 0.7V VBE signal accompanied by 24V DC at the collector indicates a burnt switching transistor or an open-circuit relay coil.
Control panel boards combine high-current 120V/240V AC line power alongside 5V DC micro-logic. Always use isolated probes and rated PPE when taking measurements on energized board traces during active troubleshooting on submersible effluent pump wiring systems.
Frequently Asked Questions
Why is a reverse-biased diode connected across the relay coil in the schematic?
The flyback diode suppresses high-voltage inductive transients generated when current to the relay coil is suddenly interrupted. When the driving transistor turns off, the magnetic field in the coil collapses, inducing a reverse-polarity voltage spike that can exceed several hundred volts. The parallel diode provides a localized current path, protecting the transistor and microcontroller GPIO outputs from overvoltage destruction.
What indicates a failed crystal oscillator on a septic monitoring board schematic?
A failed crystal oscillator prevents the microcontroller from executing code instructions, rendering the entire board unresponsive while power rail voltages remain normal. Diagnosing this requires an oscilloscope to check for the missing clock waveform at the oscillator pins. Physical causes include moisture ingress into crystal packaging or micro-fractures in the solder joints connecting the oscillator traces to the board.
How do optocouplers protect the low-voltage logic domain?
Optocouplers convert incoming electrical signals from outdoor level switches into light via an internal LED, which then triggers an internal phototransistor connected to the microcontroller input pin. This physical optical gap completely isolates the sensitive +5V DC micro-logic from high-voltage surges, ground loops, and lightning strikes that enter through long field wire runs down into the tank chamber.
What causes localized PCB trace delamination on septic controller boards?
Trace delamination occurs when excessive current flow produces heat that breaks down the epoxy bond between the copper trace and the underlying FR4 glass-reinforced substrate. In effluent control systems, this is typically caused by pump motor rotor lockup, which draws excessive locked-rotor amperage through line-voltage switching traces before the secondary thermal breaker trips.
Frequently Asked Questions
What does the schematic diagram of septic tank show?
The electronic schematic diagram shows the circuit connections between level sensors, microcontroller IC, relay drivers, and power regulation sub-assemblies. It maps how float signals travel into GPIO input pins and how output commands drive pump switching relays and high-water alarm buzzers safely.
How do I read the schematic diagram of septic tank?
Start at the power input section, locating the voltage regulator circuit feeding 5V to the microcontroller integrated circuit. Trace input lines from external float switches to designated GPIO pins, and follow output signal paths through driving transistors protected by diodes leading directly to relay coils.
What are the main components in schematic diagram of septic tank?
Key electronic components include an ESP32 microcontroller unit, an LM7805 voltage regulator, 1N4007 protection diodes, 4N35 optocoupler ICs for signal isolation, high-level liquid float switches, switching transistors, and a 5V/12V DC electromagnetic relay wired to control the AC effluent pump.
What are common problems with schematic diagram of septic tank?
Common schematic-related failures include voltage drops on long sensor runs, missing flyback diodes damaging driving transistors, improper pull-up resistors causing floating GPIO logic states, and transient voltage surges damaging unisolated microcontroller input pins during heavy pump motor start-up cycles.
Can I use schematic diagram of septic tank for DIY repair?
Yes, the schematic allows safe troubleshooting of low-voltage DC logic circuits, sensor signals, and component pinouts using a digital multimeter. However, repairing high-voltage AC connections powering the main pump motor should only be attempted after main breaker disconnect.
What tools do I need for schematic diagram of septic tank?
Troubleshooting requires a digital multimeter for checking DC logic voltage levels and continuity, a wire stripper, a fine-tip soldering iron, heat shrink tubing, and electronic contact cleaner to inspect and repair circuit board connections according to circuit schematic diagrams.
