1/2-Inch Stop and Waste Valve Diagram: Component Breakdown 2026
A stop and waste valve diagram illustrates the internal ball or gate mechanism, flow arrow, stem packing, and side drain port. The main water channel allows isolation of downstream lines, while the drain cap releases trapped water from the non-pressure side to prevent freezing damage in cold climate configurations.
📌 Key Takeaways
- The side drain port bleeds remaining water at 0 PSI after closing the main isolation valve.
- Flow directional arrows cast on the brass body dictate correct inlet and outlet orientation.
- Hand-tighten the waste cap threads to 15-20 in-lbs and verify the rubber gasket seated properly.
- Debris buildup on the internal seat washer is the primary cause of downstream seepage.
- Replace worn stem packing seals DIY; call a licensed plumber if main underground lines leak.
A stop and waste valve is a critical inline isolation component engineered to control fluid delivery while providing positive drainage for downstream piping lines. Unlike standard shutoff valves, a stop and waste configuration features an internal bleeder port or waste passage that vents trapped water once the primary supply port is isolated. This design prevents freeze-expansion mechanical failures in unconditioned spaces, exterior irrigation manifolds, and commercial supply lines. Understanding the stop and waste valve diagram is essential for mechanical contractors, piping technicians, and system designers to ensure correct flow orientation, accurate component identification, and precise system maintenance.

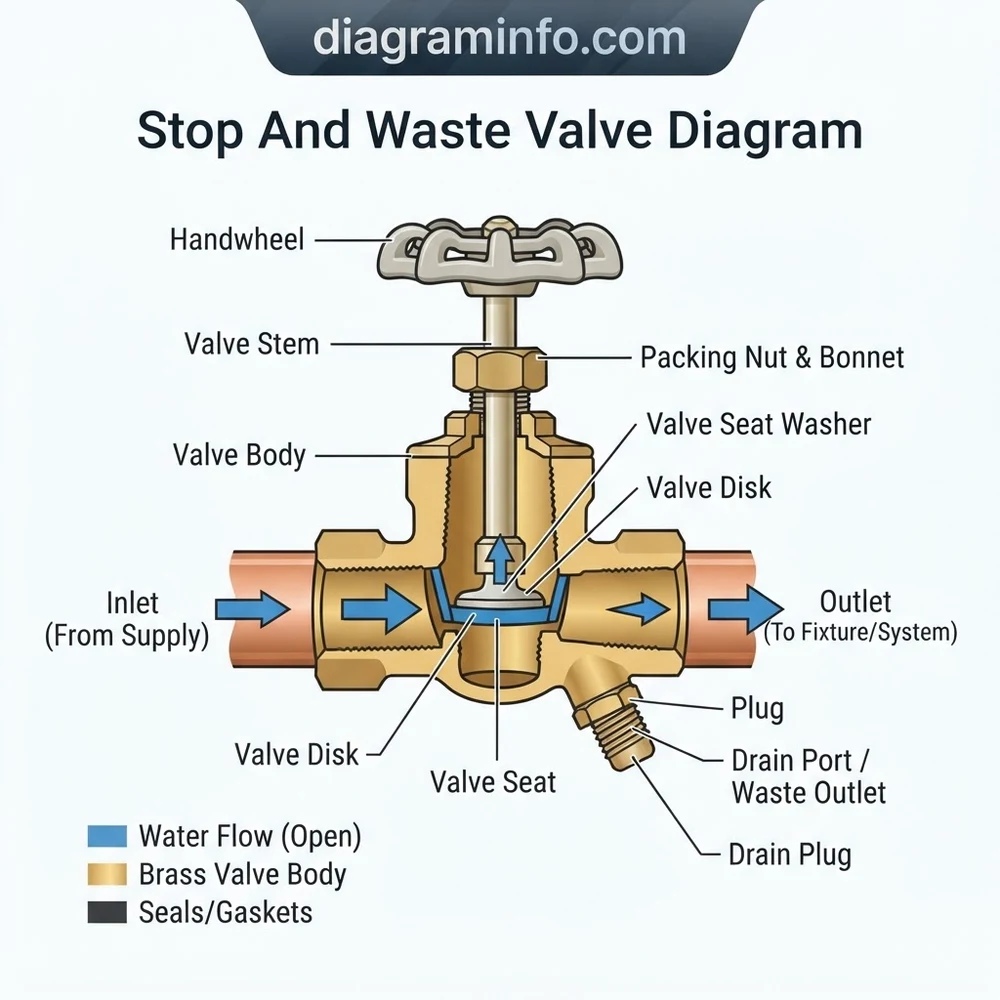

Deconstructing the Stop and Waste Valve Diagram: Structural Breakdown
Analyzing a standard stop and waste valve diagram reveals a multi-part mechanical assembly designed to balance high-pressure fluid isolation with low-pressure gravity drainage. The valve body is typically cast from dezincification-resistant (DZR) brass, ASTM B62 bronze, or lead-free brass alloys (such as C37700 or C89833) to withstand operational pressures up to 200 PSI CWP (Cold Working Pressure). Below is a detailed breakdown of the structural components highlighted in typical engineering schematics.
Primary Valve Body and Flow Configuration
The main casting consists of an inlet port, an outlet port, an internal globe or ball seat structure, and a secondary waste channel. Cast into the exterior body wall is a directional flow arrow that indicates fluid movement from the pressurized supply side to the downstream load side. In globe-style stop and waste configurations, an internal divider wall directs water up and over an elevated valve seat, while ball-style variants utilize a hollow, chrome-plated brass ball with a machined bypass port.
Stem, Seat Washer, and Packing Assembly Specifications
The upper mechanical stack comprises the rising or non-rising stem, packing nut, PTFE/graphite stem packing, and bonnet assembly. In threaded globe configurations, turning the handwheel drives the stem downward, compressing an EPDM or NBR rubber seat washer against the machined metal seating ring to cut off main fluid flow. The stem threads are precision-machined ACME or fine-pitch NPT threads designed to produce high clamping forces with minimal input torque, typically requiring 12 to 18 ft-lbs of handwheel torque to achieve complete shutoff.
The Waste Port Drain Mechanism and Orifice Design
The defining feature on the stop and waste valve schematic is the waste port. Located on the downstream side of the internal valve seat, this small port (usually 1/8-inch or 1/4-inch NPT) contains a knurled brass waste cap and a small rubber sealing gasket. On manual-bleed models, opening the waste cap allows atmospheric pressure to break the vacuum in the downstream line, draining trapped water out through the port. On auto-draining underground curb stops, closing the main stem mechanically uncovers the waste port, venting residual water directly into a surrounding gravel drain field.
| Component Name | Material Specification | Operational Function |
|---|---|---|
| Valve Body | Forged Brass / C37700 / ASTM B584 | Houses internal fluid channels, seat, and mounting threads. |
| Valve Stem | DZR Brass / Stainless Steel 304 | Transmits rotational torque to actuate the internal sealing disc. |
| Seat Washer / Disc | EPDM Elastomer / NBR Rubber | Forms positive high-pressure seal against the cast metal seat ring. |
| Stem Packing | Virgin PTFE / Molded Graphite | Prevents pressurized fluid seepage along the stem shaft. |
| Waste Cap & Gasket | Machined Brass with NBR Gasket | Seals waste outlet during normal operation; allows manual venting. |
Standard stop and waste valves are rated for maximum cold working pressure (CWP) of 125 to 200 PSI and working temperatures from 32°F to 180°F (0°C to 82°C). Always cross-reference ANSI/ASME B16.18 for sweat connections or ANSI/ASME B1.20.1 for NPT thread engagements before installation.
How to Read the Stop and Waste Valve Schematic for System Installation
Correct interpretation of a stop and waste valve blueprint or installation layout prevents severe field errors, such as installing the valve in reverse orientation, which locks supply pressure against the waste orifice and renders the drain feature useless. The following mechanical layout guidelines govern standard installations.
Orientation and Directional Flow Identification
When reviewing the stop and waste valve diagram, locate the directional arrow stamped on the body casting or indicated by a vector on the piping isometric blueprint. Fluid must enter from the supply side, pass across the isolation seat, and exit toward the downstream fixture. The waste port is strictly positioned on the downstream side (the load side) of the internal seal. If the valve is flipped 180 degrees during installation, line pressure will constantly blow through the waste port whenever the main handwheel is shut off, leading to continuous flooding.
Integration into Sub-Surface and Above-Ground Piping Systems
For above-ground, exposed installations (such as seasonal hose bibb supply lines or equipment washdown feeds), the valve must be positioned at the lowest physical point in the downstream piping run. This structural placement relies on gravity to pull water out of the downstream pipe work when the waste cap is removed. In underground municipal or irrigation setups (curb-stop stop and waste installations), the valve is installed below the frost line—frequently 36 to 72 inches deep depending on geographic climate zones—inside a rigid PVC or cast-iron valve box equipped with a long extension stem key.
Torque Specifications and Thread Sealing Procedures
Proper mechanical joining is mandatory to prevent body distortion that could misalign the internal stem assembly. When connecting female NPT threaded models, apply PTFE tape (MIL-T-27730A compliant) or high-grade anaerobic pipe thread sealant to male pipe threads only. Thread engagement should be made hand-tight plus 1.5 to 2 full turns using a smooth-jawed pipe wrench on the valve hex flats nearest the joint being tightened. Applying wrench force to the opposite end hex flat can twist the valve body casting and ruin internal seat tolerances.
When soldering sweat-connection stop and waste valves into copper lines (ASTM B88 tubing), always remove the internal stem, stem packing, seat washer, and waste cap gasket prior to applying heat. Excessive torch heat (over 450°F / 232°C) will char synthetic rubber seals and melt PTFE stem packing.
Common Stop and Waste Valve Diagram Anomalies and Mechanical Failures
Diagnosing issues in a stop and waste system requires systematically evaluating failure symptoms against the valve layout and internal schematic. Below are common field failure modes, root causes, and corrective action protocols.
Diagnosing Waste Port Leakage and Seat Blow-By
Water constantly leaking or dripping from the waste cap during normal operational (open valve) conditions indicates one of two specific mechanical failures: a degraded waste cap rubber gasket or internal blow-by across the primary seat ring. If tightening the waste cap hand-tight fails to stop the leak, shut down the main supply, unthread the cap, and inspect the internal rubber face seal for cracking, mineral scale encrustation, or physical blowout. If water gushes continuously from the waste port while the valve stem is fully closed and the cap is off, the main seat washer or internal valve body seat is pitted, warped, or holding debris, allowing supply pressure to bypass the main seal directly into the waste cavity.
Resolving Packing Gland Seepage and Stem Binding
Seepage appearing around the upper valve stem during operation indicates stem packing compression failure. Over time, cycling the valve stem causes the PTFE or graphite packing rings to wear, creating a micro-gap between the valve stem OD and bonnet ID. To rectify this, place an open-ended wrench on the hex packing nut and tighten it clockwise in 1/8-turn increments until fluid seepage ceases. Do not overtighten, as excessive packing compression will bind the stem threads, causing mechanical galling and preventing handwheel rotation.
Freeze Failure Analysis in Underground Piping Systems
Underground curb-style stop and waste valves that fail to drain downstream lines usually suffer from a blocked exterior gravel drainage pocket or an obstructed waste orifice. When an underground valve is shut, water must freely exit the waste orifice into a surrounding bed of 3/4-inch washed pea gravel. If backfill soil, clay, or fine debris packs tightly against the waste drain outlet, hydraulic backpressure prevents water in the vertical riser from evacuating, leaving lines vulnerable to severe freeze expansion ruptures during winter sub-zero cycles.
| Symptom | Probable Root Cause | Diagnostic Procedure | Corrective Action |
|---|---|---|---|
| Water leaks from waste cap when valve is fully OPEN | Defective cap gasket or damaged waste seat surface | Inspect cap rubber disc; check for debris in cap threads | Replace waste cap gasket or clean internal female cap threads. |
| Water continuous from waste port when valve is CLOSED | Reverse flow installation OR main seat washer failure | Check valve body flow arrow orientation against supply direction | Re-orient valve correctly; replace EPDM main seat disc if worn. |
| Seepage around stem hex nut during operation | Loose packing nut or compressed stem packing material | Visual check under normal operating line pressure | Torque packing nut 1/8 turn clockwise; repack PTFE if needed. |
| Downstream pipe remains full after closing isolation stem | Clogged waste orifice or downstream vacuum trap | Unscrew waste cap completely; open downstream fixture to vent | Clear port with wire probe; open downstream taps to allow air intake. |
When servicing internal seats on older globe-pattern stop and waste valves, inspect the brass bibb screw that secures the EPDM washer to the stem end. Dezincification in high-mineral municipal water often renders brass bibb screws brittle. Always install a fresh 304/316 stainless steel replacement screw during rebuilds to prevent stem head separation under cyclic stress.
Stop and Waste Valve Blueprint and Application Technical FAQs
What happens if a stop and waste valve is installed backward on the blueprint layout?
If installed in reverse relative to the flow direction arrow, the main isolation seat will still block forward water flow when closed, but line pressure from the upstream supply side will remain permanently connected to the downstream waste channel. Consequently, whenever you attempt to open the waste cap to drain the system, main line pressure will continuously discharge out of the waste cap at full system pressure, flooding the surrounding space and preventing the downstream piping from draining.
How does the waste port automatically drain residual downstream water?
In manual stop and waste models, removing the waste cap exposes the isolated downstream line to atmospheric air pressure, allowing accumulated water in elevated downstream pipes to drain out through the waste hole via gravity. In mechanical underground curb stop models, an internal sleeve or port alignment shifts during the stem isolation turn, opening a direct internal passageway from the downstream side out to the external drain housing, evacuating water into an engineered drain sump automatically without manual cap removal.
What are the minimum burial depth specs for key-operated stop and waste valves?
Burial depth is dictated by localized frost depth maps established by local mechanical codes (e.g., IPC or UPC standards). Underground stop and waste valves must be installed at least 6 to 12 inches below the maximum frost penetration line for the geographic region—typically 36 to 72 inches deep. The valve box enclosure must extend vertically to finished grade level, providing a rigid conduit for an extended valve key to engage the upper stem nut.
Can a stop and waste valve be used in pressurized hot water applications?
Standard stop and waste valves are rated primarily for cold water isolation (max 140°F–180°F depending on seal material). Standard EPDM seat discs and rubber waste gaskets degrade rapidly under elevated heat and glycol mixtures. If specified for hydronic loops or high-temperature hot water lines, you must select high-temperature rated valves equipped with continuous-duty Viton (FKM) gaskets, metal-to-metal secondary seats, and PTFE stem packings rated for 250°F (121°C) minimum operating thresholds.
How do you service an underground curb-stop style stop and waste assembly?
Underground curb-style stop and waste units housed inside Minneapolis-pattern valve boxes are serviced without excavation by removing the upper box cap and utilizing a specialized long-reach valve socket tool or stem puller. By unthreading the upper bonnet collar through the riser pipe, the entire internal stem assembly, including upper seals and main seating discs, can be extracted vertically, inspected, repacked, and re-inserted into the buried valve body casting.
Step-by-Step Guide to Understanding the Stop And Waste Valve Diagram
Identify – Examine the stop and waste valve diagram to locate the main valve body, stem, and waste outlet port.
Locate – Find the flow direction arrow stamped on the brass valve body to match your piping configuration.
Reference – Consult the diagram layout to confirm the waste port is positioned on the unpressurized downstream side.
Connect/Route – Install the valve body inline, applying pipe thread sealant and aligning components according to system specs.
Verify – Shut off main supply, close the primary valve, unscrew the waste cap, and test line drainage efficiency.
Troubleshoot – Inspect stem packing and seat seals for leaks if water continues weeping from the drain port.
