Carrier Air Conditioning Unit System Diagram: 2026 Guide
An air conditioning unit system diagram outlines the electrical configuration and mechanical refrigerant flow between the compressor, condenser coil, evaporator, thermal expansion valve, and contactor. Low-voltage thermostat wires (Y, G, R, C) connect to the control board, while line-voltage 240V feeds the contactor to power the compressor and outdoor fan motor.
📌 Key Takeaways
- Line voltage requires 208/230V single-phase power connected across contactor terminals L1 and L2.
- The dual-run capacitor uses HERM for the compressor, FAN for the outdoor fan, and C for common.
- Always disconnect 240V main power and safely discharge capacitors before inspecting internal electrical structure.
- Pitted contactor points and swollen dual-run capacitors account for over 60% of electrical cooling failures.
- Capacitor and contactor replacements are DIY-accessible, but refrigerant leaks require EPA Section 608 certification.
An accurate air conditioning unit system diagram serves as the foundational schematic for diagnosing thermodynamic and electromechanical failures across automotive, heavy equipment, and industrial HVAC installations. Interpreting this blueprint correctly allows certified technicians to trace high-pressure and low-pressure refrigerant loops, isolate electrical control circuits, and verify component functionality. Whether analyzing an OEM R-134a dual-evaporator system or a modern R-1234yf microchannel system layout, understanding how vapor compression cycle components interact prevents misdiagnosis, protects expensive hardware from liquid slugging, and ensures system performance aligns strictly with factory engineering specifications.
Air Conditioning Unit System Diagram: Core Component Layout

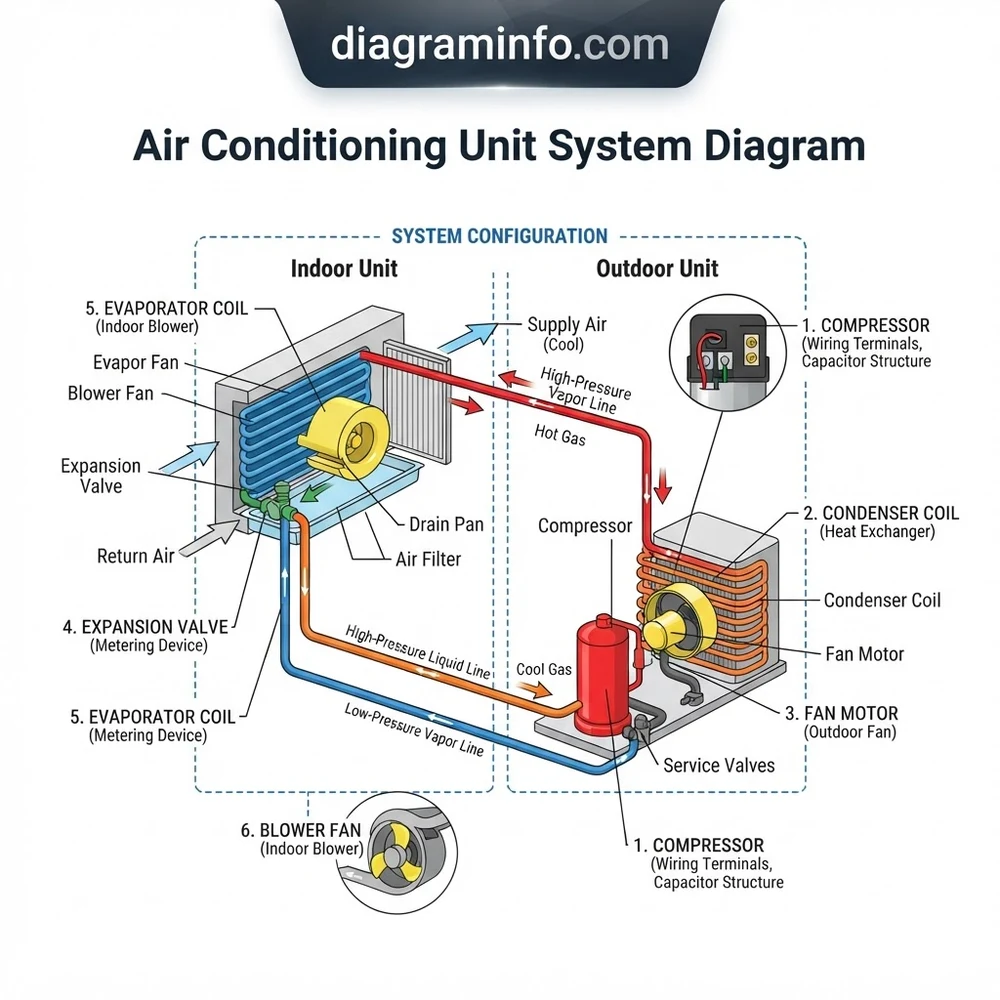

The mechanical structure of an air conditioning configuration relies on four primary thermodynamic components interconnected by high-pressure and low-pressure lines. As illustrated in the system overview, the compressor acts as the mechanical pump for the closed loop. Driven by an engine accessory belt or an high-voltage electric motor, it draws low-pressure, superheated refrigerant gas from the suction line and compresses it into a high-pressure, high-temperature vapor. This vapor passes directly into the condenser coil mounted at the front of the equipment cooling stack.
Inside the condenser, heat transfers from the hot refrigerant vapor to ambient air, causing the refrigerant to condense into a high-pressure liquid. This liquid flows through a receiver-drier or inline desiccant canister—which extracts moisture and filters debris—before reaching the metering device. The expansion valve (TXV) or orifice tube restricts fluid flow, inducing an abrupt pressure drop. This thermodynamic expansion rapidly lowers the refrigerant’s temperature as it transitions into a low-pressure atomized liquid-vapor mixture entering the evaporator core inside the air handler cabin box.
| Component Name | Operating State / Phase | Typical Specification / Pressure |
|---|---|---|
| A/C Compressor | Low-Pressure Gas to High-Pressure Gas | 150–250 PSI Discharge / 15–22 ft-lbs mounting torque |
| Condenser Assembly | High-Pressure Gas to High-Pressure Liquid | Subcooling: 10°F to 15°F below saturation temp |
| Thermal Expansion Valve (TXV) | High-Pressure Liquid to Low-Pressure Spray | Superheat control: 8°F to 12°F targeted drop |
| Evaporator Core | Low-Pressure Atomized Liquid to Gas | 25–45 PSI Suction line pressure (R-134a) |
According to OEM service standards, line connections using aluminum block-fitting O-rings must be torqued to 11–15 ft-lbs (15–20 Nm). Always coat HNBR (green) or EPDM (black) O-rings with clean ISO 46/100 PAG or POE oil prior to assembly to prevent shearing during installation.
Tracing Lines on an Air Conditioning Unit System Diagram
Reading a technical schematic requires differentiating between fluid circuits and control pathways. On a standard wiring blueprint, line styles and colors define system pressure states and electrical connections. High-pressure liquid lines are depicted as solid red or thick solid paths running from the condenser outlet to the expansion valve inlet. Conversely, low-pressure suction lines are indicated by solid blue or dashed wide pathways extending from the evaporator outlet back to the suction port on the compressor manifold.
To trace control systems, follow the electrical schematic overlays. A 3-wire A/C pressure transducer circuit typically consists of a 5V reference supply wire (Gray), a signal wire (Blue/White), and a sensor ground (Black/Green) connected directly to the Powertrain Control Module (PCM). The PCM evaluates system pressure via this sensor before energizing the 12V DC compressor clutch relay coil. Referencing a detailed compressor clutch relay circuit diagram allows you to verify whether a non-engaging clutch stems from a failed pressure switch trigger or an open control ground wire.
Modern HVAC schematics utilize LIN-bus control networks for variable-displacement swash-plate compressors. Instead of cycling a magnetic clutch relay on and off, the control unit transmits a Pulse-Width Modulation (PWM) signal (typically 400 Hz) to an internal solenoid valve regulating piston displacement from 1% to 100% stroke capacity.
When reviewing dual-evaporator blueprints for buses, vans, or heavy machinery, locate the secondary solenoid valve tee-junction. This junction splits the high-pressure liquid line into primary (front cabin) and secondary (rear passenger/cargo) metering devices. If the rear circuit lacks cooling while the front functions normally, trace the electrical signal path from the rear climate module to the inline liquid line solenoid valve.
Diagnosing System Failures Using the A/C Schematic Layout
System troubleshooting requires matching real-world digital manifold gauge pressures and multimeter measurements against the operational blueprint layout. When high-side and low-side pressures equalize or fail to achieve specified differential thresholds upon compressor engagement, consult the system diagram to systematically isolate mechanical, electrical, or thermal points of failure.
If gauge readings show abnormally elevated high-side pressures (>300 PSI) accompanied by high suction pressure, cross-reference the layout to locate the condenser fan control relay and ambient air temperature sensor circuits. Reduced airflow across the condenser prevents heat transfer, causing severe pressure spikes. Check for 12V power at the condenser fan motor harness connector using a digital multimeter. For deeper electrical diagnostic procedures on control sensors, refer to our comprehensive A/C pressure transducer diagnostic guide.
Never charge refrigerant into the low-pressure side of an A/C system while holding the refrigerant cylinder upside down (liquid state) unless using a liquid-throttling adapter. Introducing raw liquid refrigerant directly into the suction port causes catastrophic hydraulic locking (“slugging”) of the compressor internal reed valves and scroll plates.
Conversely, a low-side reading dropping into vacuum (<0 PSI) alongside a lower-than-normal high-side reading points directly to a restriction at the metering device. Locate the thermostatic expansion valve on your physical blueprint. Inspect the thermal bulb capillary line for physical damage or loss of charge. If internal ice buildup caused by moisture contamination is suspected, replace the inline receiver-drier assembly, perform a 45-minute vacuum evacuation down to 500 microns, and recharge precise refrigerant mass per the manufacturer dataplate specifications.
For systems experiencing erratic cooling performance, inspect the evap temperature sensor circuit. Consult the thermostatic expansion valve calibration documentation to confirm that resistance values across the evaporator freeze-protection thermistor match specified ranges (typically 10k ohms at 77°F / 25°C).
Air Conditioning Unit System Diagram Technical FAQ
What Do Solid vs. Dashed Lines Represent on an A/C System Diagram?
Solid thick lines on an A/C unit diagram represent hard mechanical refrigerant lines carrying fluid or vapor (red for high-pressure lines, blue for low-pressure lines). Thin dashed or dotted lines typically denote electrical wiring harnesses, sensor signal pathways, CAN/LIN communication buses, or vacuum control lines driving interior mode-door actuators.
How Do High-Side and Low-Side Pressures Differ on a Blueprint Layout?
The high-side section extends from the compressor discharge port, through the condenser, to the inlet of the expansion valve, operating between 150 PSI and 275 PSI under normal conditions. The low-side section spans from the outlet of the expansion valve, through the evaporator, back to the suction port on the compressor, operating between 25 PSI and 45 PSI under normal thermal load conditions.
What Electrical Pinouts Standardize A/C Compressor Control?
Standard 12V DC fixed-displacement compressor engagement circuits use a 2-pin connector layout: Pin 1 receives switched 12V (+) power from the compressor relay output, while Pin 2 connects to engine block chassis ground (-). An inline flyback diode is often wired in parallel across these two pins to absorb high-voltage inductive spikes produced when the magnetic clutch coil de-energizes.
Why Does Refrigerant Flow Reverse in Heat Pump HVAC Configurations?
In heat pump HVAC equipment layouts, a 4-way reversing valve solenoid is added immediately downstream of the compressor discharge port. When energized by the control module, this valve alters the flow direction, diverting hot, high-pressure discharge gas into the indoor evaporator coil (acting as a condenser) while routing cold liquid to the outdoor coil to absorb ambient heat.
Step-by-Step Guide to Understanding the Air Conditioning Unit System Diagram
Identify – Locate the system model data plate and matching electrical wiring schematic on the cabinet access panel.
Locate – Isolate the main 240V power supply at the outdoor disconnect switch and verify zero voltage with a multimeter.
Reference – Match thermostat low-voltage wire terminals (Y, G, R, C) on the control board diagram layout.
Connect/Route – Route high-voltage power lines L1/L2 and load wires T1/T2 to the designated contactor terminals.
Verify – Measure dual-run capacitor capacitance values across HERM, FAN, and C terminals against manufacturer microfarad specifications.
Troubleshoot – Test 24V coil energization when a cooling call is initiated, ensuring the contactor plunger engages properly.
