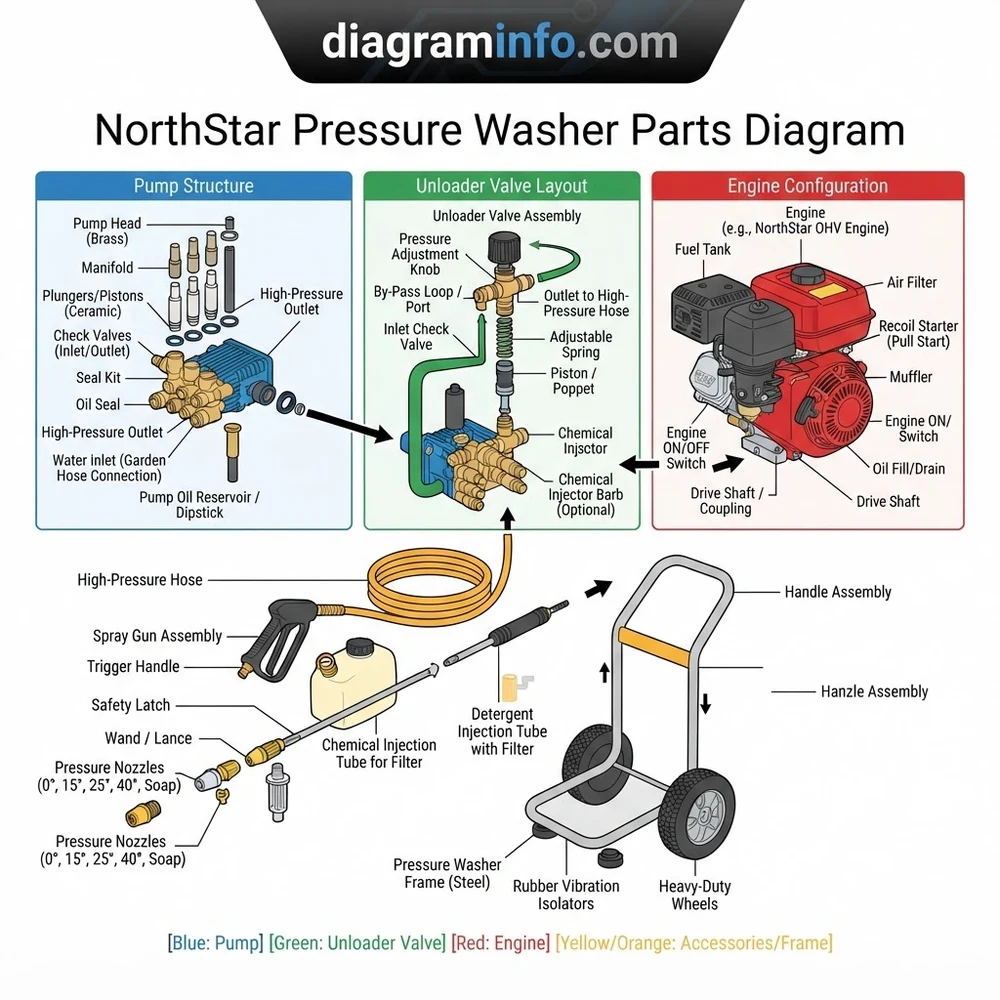

NorthStar Pressure Washer Parts Diagram: 2026 Repair
A NorthStar pressure washer parts diagram maps the drive system, direct-drive or belt-drive triplex plunger pump layout, thermal relief valve, and unloader assembly. Key component specs include 3/8-inch quick-connect fittings, 3/4-inch engine shafts, and high-pressure nozzle configurations rated for 3,000 to 4,000 PSI output.
📌 Key Takeaways
- Triplex plunger pumps use solid ceramic pistons rated for 3,000–4,000 PSI with 1/2-inch inlet ports.
- Unloader valve configuration controls bypass flow routing to prevent pump head pressure spikes.
- Pump manifold retaining bolts require cross-pattern torquing to precisely 18–22 ft-lbs.
- Degraded unloader O-rings and blown thermal relief valves cause over 70% of system pressure drops.
- Replace pump seals and check valves as DIY tasks; seek professional service for internal crankcase wear.
Understanding the mechanical configuration of industrial-grade equipment requires precise schematics. The NorthStar pressure washer parts diagram serves as an essential reference for field technicians, mechanics, and equipment operators maintaining high-pressure fluid delivery systems. Operating at pressures exceeding 4,000 PSI, these machines integrate high-torque gas engines or heavy-duty electric motors with precision triplex plunger pumps, bypass unloaders, and thermal management circuits. Analyzing the complete system blueprint enables accurate part identification, precise torque application during rebuilds, and rapid diagnostic isolation when mechanical or hydraulic performance drops below OEM specifications.
Northstar Pressure Washer Parts Diagram: Structural Overview and System Assembly
A NorthStar pressure washer system consists of two primary sub-assemblies: the power source (internal combustion engine or electric motor) and the high-pressure fluid delivery system. Mapping these components on a schematic requires understanding how mechanical kinetic energy transfers across the drive shaft into hydraulic head pressure. High-end commercial units utilize direct-drive or belt-drive power configurations, linking engines such as the Honda GX390 or Kohler CH440 directly to a triplex plunger pump manifold.
Recommended Best Deal Products
Standard Commercial Pump Torque & Spec Limits: Triplex Manifold Bolts: 18–22 ft-lbs (24–30 Nm); Valve Caps: 33–44 ft-lbs (45–60 Nm); Crankcase Oil Capacity: 11–15 oz Non-Detergent SAE 30W; Max Thermal Protection Cutoff: 145°F (63°C).
Engine and Drive Coupling Configuration
In the power section of the NorthStar pressure washer parts diagram, the engine crank output shaft connects directly to the pump input shaft via a keyway slot and set screw arrangement, or through a multi-groove V-belt system. Belt-driven models use an adjustable slide plate configuration to alter tension on the drive belts. This layout reduces pump RPM from standard engine speeds (3400 RPM) down to 1750 RPM, which drastically decreases thermal stress on internal pump seals and extends plunger life. Shaft alignment must remain within a tolerance of ±0.005 inches to prevent premature bearing race wear inside the crankcase assembly.
Triplex Plunger Pump Fluid End Component Structure
The fluid end (pump manifold) represents the highest-stress mechanical region within the blueprint structure. The assembly incorporates three solid ceramic plungers reciprocating inside high-pressure packing assemblies. When reading the internal housing section of the NorthStar schematic, you will identify distinct sub-components:
- Manifold Block: Precision-machined forged brass or stainless steel housing containing the suction and discharge galleries.
- Suction and Discharge Valve Assemblies: Six individual check valves (3 inlet, 3 outlet) containing stainless steel cages, spring-loaded poppets, and Viton/NBR O-rings that enforce unidirectional water flow.
- High-Pressure and Low-Pressure Seals: Dual-packing arrangement per cylinder. The low-pressure seal prevents water from bypassing back into the crankcase, while the high-pressure V-packing maintains system head pressure.
- Ceramic Plungers: Precision-ground solid ceramic cylinders attached to stainless steel guide rods driven by the internal crankshaft connecting rods.
Mechanical Unloader and Thermal Bypass Circuit
The unloader valve acts as the primary hydraulic control system on the pressure washer layout. When the trigger gun on the spray wand is released, the unloader detects the pressure spike and diverts water flow back to the pump inlet side or an external bypass tank. Mounted adjacent to the unloader is the thermal relief valve. If the pump remains in bypass mode for longer than two minutes without water discharge, fluid friction increases internal loop temperature. The thermal relief valve opens automatically when water reaches 145°F (63°C), venting hot water to protect the elastomeric high-pressure seals from heat deformation.
| System Sub-Assembly | Critical Component Name | OEM Specification / Service Limit |
|---|---|---|
| Pump Fluid End | Check Valve Rebuild Kit | Replace every 500 operating hours; clean cages during oil changes |
| Pump Fluid End | High Pressure V-Packings | Max tolerance wear 0.015 in; replace when pressure drops >10% |
| Pressure Controls | Trapped-Pressure Unloader Valve | Adjust bypass spring to +10% above max operating PSI |
| Crankcase Drive End | Connecting Rod Bolts | Torque spec: 9.6 ft-lbs (13 Nm); inspect oil sight glass daily |
| Protection System | Thermal Relief Valve (1/2 in. NPT) | Actuation point: 145°F; replace once valve springs fail to re-seat |
Decoding the Northstar Pressure Washer System Schematic and Structural Blueprint
Interpreting an technical exploded-view diagram requires systematic tracking from fluid intake to high-velocity discharge. Mechanics must isolate fluid pathways from mechanical hardware callouts to perform proper maintenance, such as completing a full CAT pump seal replacement guide procedure or servicing unloader spring tensioners.
Recommended Best Deal Products
When referencing callout numbers on a NorthStar blueprint, note that numbers enclosed in boxes indicate complete pre-assembled kits (e.g., Valve Kit, Seal Kit), while unboxed numbers refer to individual hardware components, such as brass washers or Allen bolts.
Tracing Fluid Dynamics from Low-Pressure Inlet to High-Pressure Discharge
Follow the directional flow on the NorthStar pressure washer parts diagram starting at the low-pressure hose connection:
- Inlet Strainer & Garden Hose Adapter: Water enters through a 3/4-inch mesh filter screen located inside the inlet fitting to block particles larger than 50 mesh (300 microns).
- Suction Gallery: Fluid enters the lower manifold channel, surrounding the suction check valves. As a ceramic plunger retracts, vacuum pressure draws water past the suction valve poppet into the displacement cylinder.
- Discharge Compression Stroke: As the engine crankshaft drives the plunger forward, the suction valve seats shut. Water pressure forces the discharge check valve open, pushing high-pressure fluid into the upper discharge gallery.
- Unloader Porting: High-pressure water passes through the unloader body out to the quick-connect coupler leading to the spray gun hose assembly.
Cross-Referencing Exploded Views and Maintenance Seal Kits
Modern NorthStar pressure washer schematics group wear items into functional rebuild packages. Rather than ordering individual O-rings, manufacturers assign kit part numbers mapped directly on the exploded view layout. For example, a single valve kit code contains six identical O-rings, cages, springs, and poppets needed to overhaul the entire manifold valve bank. When matching replacement components, verify year-specific updates; for instance, pre-2018 NorthStar direct-drive configurations use distinct ceramic sleeve retains compared to post-2018 models equipped with quick-fit plunger guide extensions.
Wiring Layout and Safety Interlocks on Burner Systems
If you are servicing a hot-water NorthStar system, the schematic includes a low-voltage DC or 120V AC electrical system layout alongside the hydraulic path. Refer to the electrical section of your blueprint to trace system safety interlocks:
- Flow Switch / Pressure Switch Wire Connections: Positioned downstream of the unloader, this switch closes an electrical contact only when fluid movement is detected. A red 12V+ wire feeds signal current through the flow switch to prevent the oil burner from firing dry.
- Thermostat & Limit Switch Circuit: High-limit switches wired in series along the white ignition signal wire break the circuit if water temperatures exceed the preset 200°F cutoff limit.
- Fuel Solenoid Valve: Connected via black/white leads directly to the ignition control module, opening the diesel supply line to the burner electrode assembly. For additional electrical routing assistance, refer to our comprehensive Honda GX390 engine wiring diagram resource.
Troubleshooting Fluid and Mechanical Issues with the Northstar Pressure Washer Layout
By using the NorthStar pressure washer parts diagram as a diagnostic roadmap, technicians can isolate mechanical failures down to the specific failed seal, spring, or valve component without replacing entire assemblies unnecessarily.
Never attempt to service or disassemble the pump manifold or unloader valve while the engine is running or while the system remains pressurized. Trapped hydraulic pressure above 3,000 PSI can cause fluid injection injuries. Always squeeze the trigger gun to relieve residual system pressure prior to servicing.
Diagnosing Pressure Drops via the Valve Assembly Schematic
A sudden drop in working pressure usually indicates failure within the check valve gallery or unloader bypass seat. Locate the six hex valve caps on the front section of the manifold schematic:
- Debris in Valve Seats: Remove the top discharge caps using a socket wrench. Inspect check valve cages for caught sand or mineral deposits preventing the spring-loaded poppet from sealing flat against the brass seat.
- Worn Unloader O-Rings: Inspect the unloader stem internal seal rings on the diagram. If the internal Viton shaft seal wears out, pressurized fluid leaks back into the bypass loop continuously, dropping working pressure by 30% to 50%.
Isolating Fluid Leaks and Crankcase Oil Contamination
When pump crankcase oil turns milky white, water has crossed the barrier between the fluid manifold and oil sump. Consult the seal retainer section of the blueprint:
- Check the low-pressure water seals and high-pressure packings for tearing or heat distortion.
- Examine the ceramic plungers mapped in the center section of the exploded pump view. Inspect the ceramic surfaces for hairline thermal cracking caused by running the unit dry without inlet water. Cracked ceramic will slice through replacement water packing seals within minutes of operation.
- Replace the crankcase oil seal located directly behind the brass seal retainers to block water from migrating along the plunger guides into the needle bearing sump.
Correcting Engine Stalling Caused by Unloader Bypass Failure
If the engine stalls immediately upon releasing the spray wand trigger, the unloader valve stem is failing to actuate the bypass channel. On the diagram, identify the internal bypass piston and main spring tensioner. Over time, hard water mineral scale welds the unloader piston inside its bore. When the wand trigger closes, trapped pressure cannot force the piston back against the spring, locking the pump hydraulics solid and stalling the engine drive shaft. Disassemble the unloader body, clean the internal bore with solvent, apply silicone grease to the stem O-rings, and recalibrate the spring preload nut using standard pressure washer unloader valve tuning procedures.
Common Northstar Pressure Washer Parts Diagram Questions Answered
How do I locate the exact OEM part numbers on my NorthStar pressure washer parts diagram?
To locate correct OEM replacement parts, match the item number tag on your model’s exploded view diagram to the corresponding parts list table usually printed on the adjacent page. Cross-reference the machine’s exact model number (found on the silver frame tag, such as Model #157120 or #157310) to ensure component compatibility, as NorthStar frequently updates pump manufacturers (CAT, Comet, or General Pump) across production model years.
What is the recommended torque specification for NorthStar pump manifold bolts?
According to NorthStar and OEM pump manufacturer specifications, standard 8mm steel manifold retaining bolts must be torqued in a cross-pattern to 18–22 ft-lbs (24–30 Nm). Over-tightening can crack the brass manifold flange, while under-tightening will lead to high-pressure water seal blowout under max operating load.
How does the unloader valve bypass configuration appear on the schematic?
On a NorthStar pressure washer system schematic, the unloader valve bypass appears as an auxiliary hydraulic loop branching off the main discharge gallery. The fluid path shows a channel running either back into the low-pressure suction port of the pump (internal bypass layout) or exiting through a bypass hose Barb fitting back to an external supply tank (external bypass configuration).
Why does my NorthStar diagram show two different seal kits for the same pump model?
NorthStar diagrams often display two distinct seal kits because high-pressure pump maintenance requires servicing two separate fluid zones: the water packing kit (containing high-pressure V-packings, low-pressure seals, and brass head rings) and the oil seal kit (containing rubber oil seals mounted on the crankcase wall). Check your wear symptoms to determine whether you need the fluid seal kit (for water leaks) or the crankcase seal kit (for oil leaks).
Where can I trace the thermal relief valve on a cold-water NorthStar system diagram?
On cold-water NorthStar blueprints, the thermal relief valve is threaded directly into a 1/4-inch or 1/2-inch NPT port located on the suction side of the brass pump manifold or integrated into the base of the unloader valve housing. On the diagram, it appears as a small brass hex fitting containing an internal spring and heat-sensitive wax pellet assembly.
Step-by-Step Guide to Understanding the Northstar Pressure Washer Parts Diagram
Identify – Determine your NorthStar model series and exact pump brand (e.g., Comet or CAT) on the unit serial tag.
Locate – Find the target component group on the exploded layout, such as the manifold, unloader, or crankcase assembly.
Reference – Match the item callout number on the diagram to the parts list to confirm exact OEM part numbers.
Connect/Route – Follow the indicated hose routing, bypass line pathways, and valve orientation during reassembly.
Verify – Torque manifold bolts in a cross pattern to 18–22 ft-lbs and confirm O-ring seating across all high-pressure seals.
Troubleshoot – Test system pressure under load; if bypass chatter or pressure drops persist, re-check unloader valve pin alignment against the diagram.
