ISL9 Cummins Fuel System Diagram: Component Breakdown 2026
The Cummins ISL9 fuel system diagram illustrates key components like the high-pressure fuel pump (HPFP), fuel bowl, injection pressure regulator, and fuel return line routing. It details the path from the fuel tank through filtration and delivery to the injectors, ensuring optimal engine performance and efficient fuel delivery.
📌 Key Takeaways
- The ISL9 high-pressure fuel pump (HPFP) generates up to 2,500 bar (36,250 psi) for precise fuel injection.
- Identify the fuel return line as the smaller diameter line running from the injector return manifold back to the tank or fuel cooler.
- Always relieve fuel system pressure before servicing; wear eye protection due to extremely high operating pressures.
- Clogged fuel filters or a failing injection pressure regulator are common causes of ISL9 fuel system performance issues.
- High-pressure component diagnostics or replacement often require specialized tools and should be performed by certified technicians.
Understanding the Cummins ISL9 fuel system diagram is paramount for accurate diagnostics, efficient maintenance, and successful repairs on this robust engine platform. This comprehensive guide provides a detailed breakdown of the ISL9 fuel delivery architecture, identifying critical components, illustrating fuel flow, and offering practical insights essential for service technicians and experienced equipment operators. The ISL9 utilizes a high-pressure common rail (HPCR) system, demanding precision and specific procedures to maintain its operational integrity and emissions compliance.

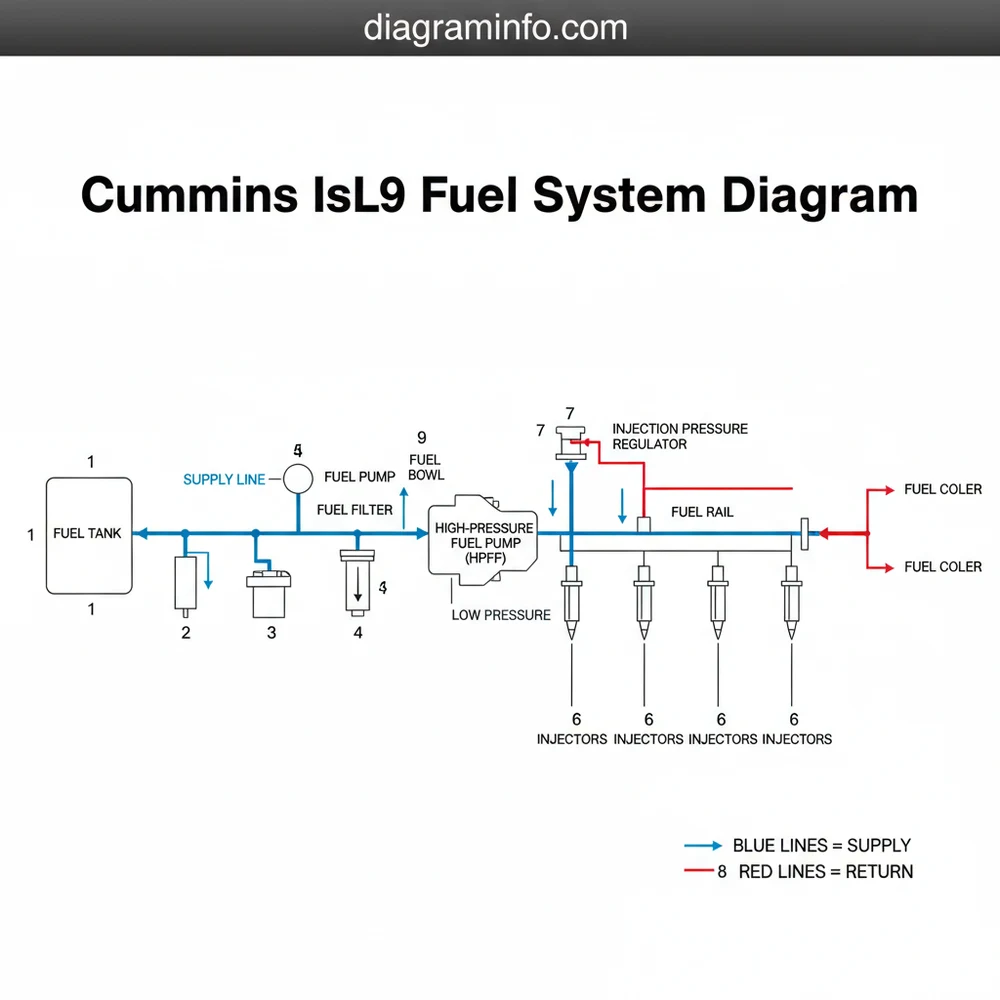

[Insert Cummins ISL9 Fuel System Diagram Here – Ensure components are clearly labeled and fuel flow is indicated.]
Fuel System Components Breakdown
The Cummins ISL9 fuel system is engineered for precise fuel delivery, ensuring optimal combustion and emissions control. Tracing the fuel path from the tank to the injectors and back is crucial for effective troubleshooting. As depicted in the diagram above, the system comprises several key elements working in concert.
| Component | Function |
|---|---|
| 1. Fuel Tank | Stores diesel fuel. Incorporates a sender unit for fuel level monitoring. |
| 2. Fuel Transfer/Lift Pump | Draws fuel from the tank, delivering it under low pressure (typically 70-130 PSI) to the primary filtration system. May be integrated with the HPFP or a separate electric unit. |
| 3. Fuel Filter/Water Separator (Fuel Bowl) | A primary stage filter that removes larger contaminants and separates water from the fuel. Often includes a water-in-fuel (WIF) sensor and a drain valve. The fuel bowl houses these elements. |
| 4. Fuel Heater | Located before the fuel filters, this component warms the fuel during cold ambient conditions to prevent waxing and ensure proper filtration and flow. |
| 5. Secondary Fuel Filter | A finer filter (e.g., 5-10 micron) that removes smaller particles before fuel reaches the high-pressure pump, protecting precision components. |
| 6. High Pressure Fuel Pump (HPFP) | The core of the HPCR system. Driven by the engine, it pressurizes fuel from the lift pump to extreme pressures (up to 29,000 PSI or 2000 Bar) required for injection. The ISL9 typically uses a Bosch CP3 or CP4 style pump. |
| 7. Fuel Rail (Common Rail) | A robust accumulator that stores high-pressure fuel from the HPFP, distributing it to each injector. It dampens pressure pulsations and ensures consistent pressure for injection events. |
| 8. Injection Pressure Regulator (IPR) / Fuel Pressure Limiting Valve | Manages the fuel pressure within the common rail. The IPR (also known as a Fuel Metering Solenoid or Quantity Control Valve on some pumps) is typically located on the HPFP or rail, regulating fuel flow into the high-pressure section. The pressure limiting valve is a safety device that opens to relieve excessive pressure. |
| 9. Fuel Rail Pressure (FRP) Sensor | Monitors the actual fuel pressure in the common rail, providing feedback to the Engine Control Module (ECM) for precise control. |
| 10. Fuel Injectors | Electronically controlled solenoids (or piezo) that precisely spray atomized fuel into the combustion chamber at the optimal time and duration, based on ECM commands. |
| 11. Fuel Return Line | Carries excess fuel, including leakage from the injectors and bypass fuel from the HPFP and pressure regulating valves, back to the fuel tank. This fuel is often warm. |
| 12. Fuel Cooler | Cools the returning hot fuel before it re-enters the tank. This prevents excessive fuel tank temperatures, reduces evaporative emissions, and maintains optimal fuel density for efficient operation. |
| 13. Primer Pump (Manual or Electric) | Used to purge air from the fuel system after filter changes or service, ensuring fuel is available to the lift pump and HPFP. |
While the core architecture remains consistent, specific component designs and locations may vary slightly across ISL9 model years and applications (e.g., road vs. off-highway). Always consult the OEM service manual specific to your engine’s build year for the most accurate component identification and service procedures. For more in-depth troubleshooting of fuel pressure issues, refer to our comprehensive Cummins ISL9 Diagnostic Procedures guide.
Common Failure Points & Symptoms
The sophisticated nature of the Cummins ISL9 fuel system means that issues in one component can cascade, affecting overall engine performance. Accurate diagnosis requires understanding typical failure modes.
-
High Pressure Fuel Pump (HPFP) Failure
- Symptoms: Hard starting, no-start condition, rough idle, significant loss of power, engine derate, Diagnostic Trouble Codes (DTCs) related to low rail pressure (e.g., P0087 – Fuel Rail/System Pressure – Too Low), excessive smoke (black or white).
- Diagnosis: Monitor actual vs. desired fuel rail pressure using a diagnostic scanner. A failing HPFP will struggle to maintain target pressure, especially under load. Check for metal particulates in the fuel filter, indicating internal pump wear.
-
Injection Pressure Regulator (IPR) / Fuel Metering Solenoid Malfunction
- Symptoms: Erratic rail pressure, engine stalling, fluctuating idle RPM, poor acceleration, P0088 (Fuel Rail/System Pressure – Too High) or P0087 (Too Low), depending on the failure mode (stuck open or closed).
- Diagnosis: Monitor IPR command and feedback signals via scanner. Check wiring integrity to the IPR. A faulty IPR often results in rail pressure that deviates significantly from the commanded value, even if the HPFP is capable of producing pressure.
-
Fuel Filter/Water Separator (Fuel Bowl) Issues
- Symptoms: Reduced engine power, stumbling, hard starting, excessive black smoke, fuel restriction warnings on the dash, water-in-fuel (WIF) light illumination. Clogging leads to fuel starvation.
- Diagnosis: Visually inspect the filter for heavy contamination. Drain the fuel bowl for water accumulation. A pressure drop across the filter indicates restriction. Always replace both primary and secondary filters together.
-
Fuel Injector Malfunctions
- Symptoms: Misfires, rough running, excessive black or white smoke, poor fuel economy, increased exhaust temperatures, cylinder contribution test failures, P020X (Injector Circuit Malfunction) codes.
- Diagnosis: Conduct cylinder cutout tests, observe fuel trim values, and perform return flow tests. Advanced diagnostics may involve injector removal and testing on a specialized bench. For more detailed injector troubleshooting, consult our ISL9 Injector Replacement Guide.
-
Fuel Leaks in Fuel Return Line or High-Pressure Lines
- Symptoms: Visible fuel leakage, fuel odor, unexplained fuel loss, difficulty building or maintaining rail pressure (especially if high-pressure leaks), environmental concerns.
- Diagnosis: Thorough visual inspection of all fuel lines, fittings, and connections, especially after components like the HPFP, rail, and injectors. Use a UV dye if the leak source is elusive.
Repair & Replacement Steps: High Pressure Fuel Pump (HPFP)
Replacing the HPFP on a Cummins ISL9 engine is a critical procedure that requires precision, cleanliness, and adherence to OEM specifications. This process is complex and should only be undertaken by qualified technicians with appropriate tooling.
High-pressure fuel systems operate at extreme pressures (up to 29,000 PSI). Always relieve system pressure before disconnecting any high-pressure lines. Failure to do so can result in serious injury or death. Ensure strict cleanliness to prevent contamination, which can immediately damage new components.
-
Preparation and Safety:
- Disconnect the negative battery terminals.
- Relieve residual fuel pressure. Consult your OEM service manual; this typically involves cycling the ignition with specific diagnostic tool commands or waiting for an extended period after engine shutdown.
- Drain approximately 1-2 gallons of fuel from the tank if you suspect line contamination, to avoid introducing debris during line disconnection.
- Have clean rags, caps for lines, and a clean workspace ready.
-
Access and Disconnection:
- Identify the HPFP location (typically on the engine’s side, driven by the gear train).
- Disconnect all electrical connectors to the HPFP (e.g., fuel metering solenoid, pressure sensor if integrated).
- Loosen and remove the high-pressure fuel line connecting the HPFP to the common rail. Cap both ends immediately with clean plugs.
- Disconnect the low-pressure supply line from the lift pump and the fuel return line from the HPFP. Cap these lines as well.
- Remove any brackets, sensors, or ancillary components obstructing access to the pump.
-
HPFP Removal:
- Unbolt the HPFP mounting bolts from the engine block/timing cover. Note that some pumps are gear-driven and may require specific timing procedures or specialized tools to disengage the gear.
- Carefully remove the HPFP, ensuring not to damage the drive shaft or mounting surfaces.
- Inspect the drive gear and engine-side mounting for any wear or damage.
-
Installation of New HPFP:
- Ensure the new HPFP is an exact OEM replacement or approved aftermarket equivalent.
- Install new O-rings and gaskets as supplied with the new pump. Lubricate lightly with clean diesel fuel.
- Carefully position the new HPFP, engaging its drive mechanism correctly.
- Install the mounting bolts, tightening them to the manufacturer’s specified torque.
-
Reconnection and Priming:
- Reconnect all fuel lines, ensuring new sealing washers/gaskets are used for high-pressure connections. Tighten high-pressure lines to OEM torque specifications.
- Reconnect electrical connectors.
- Utilize the primer pump (manual or electric) to purge air from the low-pressure fuel system. Cycle the primer pump until firm resistance is felt and no air bubbles are visible in any clear sections of the fuel lines. This is critical for preventing dry running of the new HPFP.
- Connect a diagnostic scanner and monitor low-pressure fuel system readings during priming to confirm proper flow and pressure.
-
Final Checks and Start-up:
- Reconnect batteries.
- Crank the engine, allowing it to build fuel pressure. It may take several cranking cycles. Do NOT use starting fluid.
- Once running, check for any fuel leaks, especially at high-pressure connections.
- Monitor rail pressure and other fuel system parameters using a diagnostic scanner to ensure proper operation. Allow the engine to idle and reach operating temperature.
Typical HPFP Mounting Bolt Torque: Consult OEM service manual. (Example: 45-60 ft-lbs, dependent on bolt size and application).
High-Pressure Line Fitting Torque: Consult OEM service manual. (Example: 20-25 ft-lbs for M12, 35-40 ft-lbs for M14, specific to line material and fitting type).
It is highly recommended to replace the secondary fuel filter when replacing the HPFP, and consider cleaning or replacing the primary fuel bowl filter. Any contamination left in the system can quickly compromise the new pump. For best practices in fuel system upkeep, review our guide on Diesel Fuel System Maintenance Best Practices.
FAQ
Why is a fuel cooler necessary on the Cummins ISL9?
The fuel cooler is crucial for maintaining optimal fuel temperatures. Fuel heated by compression in the HPFP and by passing through the cylinder head (for injector cooling) returns to the tank. Without adequate cooling, this hot fuel would significantly increase the temperature of the fuel in the tank, leading to several issues: reduced fuel density (affecting power and economy), increased evaporative emissions, and potential damage to fuel system components over time. The cooler ensures fuel remains within an efficient operating temperature range.
What is the function of the fuel heater, and when does it activate?
The fuel heater‘s primary function is to prevent diesel fuel from gelling or waxing in extremely cold ambient temperatures. Diesel fuel contains paraffin wax, which can solidify and clog fuel filters, leading to fuel starvation and engine shutdown. The fuel heater, often an electric element integrated near the primary fuel bowl or filter, warms the fuel to maintain its fluidity. It typically activates automatically when the fuel temperature drops below a predetermined threshold, as monitored by the ECM.
Can I bypass the primer pump if it fails?
Bypassing the primer pump is strongly discouraged. Its role is to manually pressurize the low-pressure fuel system and remove air after maintenance (like filter changes or HPFP replacement). Without proper priming, the HPFP can run dry, leading to cavitation and premature failure. While some engines may eventually self-prime with extended cranking, this puts undue stress on the starter, batteries, and the HPFP. A failed primer pump should be replaced immediately to ensure proper service procedures can be followed.
What are the critical diagnostic parameters to monitor for the injection pressure regulator?
When diagnosing an injection pressure regulator (IPR) on the Cummins ISL9, you should primarily monitor:
- Desired Fuel Rail Pressure: The pressure the ECM is commanding.
- Actual Fuel Rail Pressure: The pressure reported by the Fuel Rail Pressure (FRP) sensor. These two values should closely match during normal operation.
- IPR/Fuel Metering Solenoid Command Percentage/Duty Cycle: This indicates how much the ECM is commanding the IPR to open or close to achieve the desired pressure. Fluctuations or a consistently high/low duty cycle without corresponding pressure changes can indicate an IPR issue or a leak elsewhere in the high-pressure system.
- IPR Solenoid Resistance: Static test using a multimeter (engine off), typically within 0.5-2.0 ohms for most common rail IPRs. Consult OEM specs for the exact value.
Discrepancies between desired and actual pressures, especially if the IPR command is maxed out while actual pressure is low, point towards a fuel supply or high-pressure leak issue, or a faulty HPFP/IPR. For further details on specific fault codes and their relation to the IPR, our HPFP Troubleshooting Guide offers additional insights.
What is the typical working pressure range for the Cummins ISL9 high-pressure common rail system?
The Cummins ISL9 high-pressure common rail system operates within a wide pressure range, dynamically adjusted by the ECM based on engine load and speed. The low-pressure side (from the lift pump to the HPFP inlet) typically maintains 70-130 PSI (4.8-9.0 Bar). The high-pressure side, within the common rail, can range from approximately 4,000 PSI (275 Bar) at idle to over 29,000 PSI (2000 Bar) under full load. Precise control of this pressure by the injection pressure regulator and HPFP is essential for optimal combustion and emissions performance.
Step-by-Step Guide to Understanding the Isl9 Cummins Fuel System Diagram: Component Breakdown 2026
Identify – Locate the main components: high-pressure fuel pump (HPFP), fuel bowl, and fuel return line on the Cummins ISL9 engine.
Locate – Pinpoint the fuel pressure sensor on the common rail and the injection pressure regulator on the HPFP assembly.
Reference – Trace the fuel flow path from the fuel tank through the lift pump, filters, HPFP, common rail, and injectors using the diagram.
Connect/Route – Verify correct routing of the fuel return line, ensuring no kinks or obstructions from the engine back to the tank.
Verify – Check for proper electrical connections to the injection pressure regulator and fuel pressure sensor, ensuring terminals are clean and secure.
Troubleshoot – If fuel delivery issues arise, test fuel pressure at key points and inspect the fuel bowl for contaminants or water accumulation.
Frequently Asked Questions
What are the main components of the Cummins ISL9 fuel system?
The Cummins ISL9 fuel system primarily consists of the lift pump, fuel filter module (often with a fuel bowl), high-pressure fuel pump (HPFP), injection pressure regulator, common rail, and electronic unit injectors. It also includes associated fuel lines, such as the crucial fuel return line, for efficient fuel circulation and pressure regulation.
What are symptoms of a failing Cummins ISL9 fuel system high-pressure fuel pump?
Symptoms of a failing Cummins ISL9 high-pressure fuel pump (HPFP) include reduced engine power, hard starting or no start condition, excessive white smoke, and diagnostic trouble codes (DTCs) related to low rail pressure. You might also notice unusual noises from the pump itself or frequent regeneration cycles.
How do I diagnose a fuel leak in the Cummins ISL9 fuel system?
To diagnose a fuel leak in the Cummins ISL9 fuel system, visually inspect all fuel lines, fittings, and components, especially around the fuel filter housing, HPFP, and injectors, for wetness or drips. Use a UV dye kit in the fuel for elusive leaks, and check the fuel bowl for cracks or loose drains. Pressure testing might be needed.
What is the fuel pressure spec for the Cummins ISL9 fuel system?
The Cummins ISL9 fuel system operates with a high-pressure common rail. The rail pressure can range from approximately 250 bar (3,625 psi) at idle to over 2,000 bar (29,000 psi) at full load, depending on engine speed and load demands. The lift pump typically provides low pressure around 5-7 bar (70-100 psi).
How long does a Cummins ISL9 fuel system fuel pump last?
The lifespan of a Cummins ISL9 high-pressure fuel pump (HPFP) can vary widely, typically lasting between 200,000 to 500,000 miles or more with proper maintenance and clean fuel. Factors like fuel quality, regular filter changes, and avoiding fuel starvation significantly impact its longevity. Neglect can shorten its life considerably.
Can I replace the Cummins ISL9 fuel system fuel filter myself?
Yes, replacing the Cummins ISL9 fuel filter is generally a DIY-friendly task, provided you have basic tools and follow proper procedures. Ensure you use the correct OEM or equivalent filter, pre-fill it with clean fuel to prevent airlocks, and correctly seat the O-rings in the fuel bowl. Be cautious of fuel spills and high-pressure components.
