3-Prong Dryer Outlet Wiring Diagram: Connection Mapping 2026
A 3-prong dryer outlet diagram connects two hot wires (typically black and red) to the X and Y terminals, and a combined neutral/ground wire (typically white or bare copper) to the W terminal. Ensure proper polarity and secure connections for safe operation according to code in older installations.
📌 Key Takeaways
- 3-prong dryer outlets provide 240V, using two hot wires (L1, L2) and a combined neutral/ground wire.
- Identify terminals as L1 (hot, often black), L2 (hot, often red), and Neutral/Ground (white or bare, L-shaped slot) for proper pin assignment.
- Always disconnect power at the circuit breaker before attempting any wiring work to prevent severe shock hazards.
- Incorrectly bonding neutral to ground at the outlet in newer 4-wire systems or loose terminal screws are common wiring mistakes and failure points.
- Consult a qualified electrician if you are unsure about wiring procedures, especially when upgrading from 3-prong to 4-prong systems or if local codes differ.
Accurate wiring of a 3-prong dryer outlet is critical for both appliance functionality and operational safety. This guide provides a comprehensive wiring diagram and step-by-step instructions for properly connecting a NEMA 10-30R receptacle, specifically designed for older 240-volt dryer installations. Understanding the correct pin assignment, wire color code, and adherence to electrical codes are paramount. Miswiring can lead to equipment damage, fire hazards, or severe electrical shock. This resource is engineered to ensure you execute a reliable and compliant installation, focusing on precision and technical adherence.
Always de-energize the circuit at the main service panel before beginning any electrical work. Verify the circuit is dead using a non-contact voltage tester or multimeter. Failure to do so can result in serious injury or death. Consult local electrical codes and obtain necessary permits before commencing work.

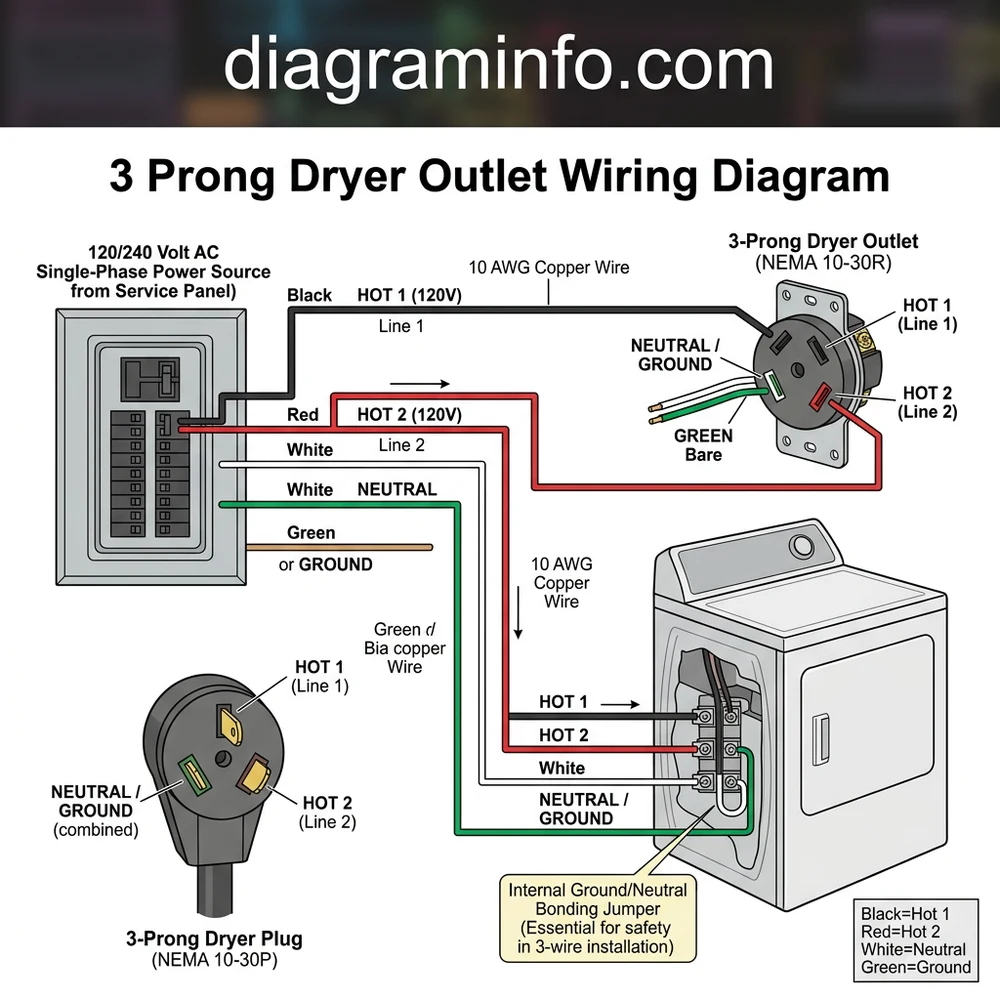

(Imagine a detailed wiring diagram here. It would illustrate a NEMA 10-30R receptacle with three terminals: two angled slots for the hot wires (L1, L2) and one L-shaped slot for the neutral/ground wire. Wires would be shown connecting to these terminals: a black wire to one hot terminal, a red wire to the other hot terminal, and a white wire (or bare copper/green) to the neutral/ground terminal. The diagram would clearly label L1, L2, and the neutral/ground terminal, along with the corresponding wire colors.)
WIRE COLOR REFERENCE TABLE
For a standard 3-prong 240V dryer circuit, the wire color code and their corresponding functions are specific. It’s crucial to understand that in this older configuration, the neutral conductor also serves as the grounding path, differentiating it significantly from modern 4-wire systems.
| Wire Color (Typical) | Function | Pin/Terminal Assignment | Notes |
|---|---|---|---|
| Black | Hot Line 1 (L1) | Left Angled Slot (NEMA 10-30R) | Carries 120V to Neutral. Connects to one of the 240V breaker poles. |
| Red | Hot Line 2 (L2) | Right Angled Slot (NEMA 10-30R) | Carries 120V to Neutral. Connects to the other 240V breaker pole. |
| White (or sometimes Bare/Green in older systems) | Neutral (Combined with Ground) | L-Shaped Slot (NEMA 10-30R) | Carries return current for 120V loads and serves as the equipment grounding path. |
While typically white, some very old 3-wire installations may have used bare copper or green insulation for the combined neutral/ground conductor. Always confirm continuity and function with a multimeter, especially in legacy systems. The NEMA 10-30R receptacle is rated for 30 amperes at 250 volts.
STEP-BY-STEP CONNECTION GUIDE
This procedure details the precise connection sequence for a 3-prong dryer outlet (NEMA 10-30R). Adherence to this sequence and the correct pin assignment is non-negotiable for safety and optimal appliance performance. Ensure you have confirmed the circuit is de-energized before proceeding.
-
De-energize the Circuit: Locate the corresponding 30-ampere, two-pole circuit breaker for the dryer circuit in your main service panel. Switch it to the “OFF” position. Utilize a non-contact voltage tester or a multimeter at the outlet box to confirm there is no live voltage on any conductor. This crucial step prevents electrocution. If you are unsure about working safely in an electrical panel, consult a licensed electrician.
-
Prepare the Outlet Box: If installing a new box, ensure it is securely mounted and the correct type (e.g., metal or PVC, appropriate depth). For existing boxes, remove the old receptacle if necessary. Install a suitable cable clamp or strain relief into one of the knockouts on the outlet box. This prevents the cable from being pulled out and protects the wire insulation.
-
Strip Cable Jacket and Wire Insulation: Feed the non-metallic (NM) or armored (AC/MC) cable into the box through the cable clamp, leaving approximately 6-8 inches of cable extending into the box. Carefully strip the outer jacket of the cable, ensuring you do not nick the insulation of the internal conductors. Then, strip about ¾ inch of insulation from the end of each individual wire (Black, Red, White).
-
Connect the Neutral/Ground Wire: Identify the L-shaped terminal on the NEMA 10-30R receptacle. This terminal serves as the combined neutral and grounding point. Take the white (or bare/green) wire and loop its stripped end clockwise around the terminal screw. Tighten the screw firmly. Manufacturer specifications often recommend a torque of 12-14 inch-pounds for these connections to prevent loose connections and arcing.
-
Connect the Hot Wires (L1 & L2): Identify the two angled terminals. These are for your hot lines. Typically, the black wire connects to one angled terminal (L1), and the red wire connects to the other (L2). The orientation (left/right) often doesn’t matter for the hot wires on the receptacle itself, but consistent practice helps. Loop the stripped end of the black wire clockwise around one angled terminal screw and tighten it. Repeat this process for the red wire on the remaining angled terminal. Ensure all wire strands are captured under the screw head.
-
Secure Connections and Mount Receptacle: After all wires are securely fastened to their respective terminals, gently push the wires into the outlet box, being careful not to kink or damage them. Mount the NEMA 10-30R receptacle to the outlet box using the provided mounting screws. Ensure it is flush with the wall surface. Install the faceplate.
-
Test the Circuit: Return to the main service panel and re-energize the dryer circuit by switching the 30-ampere, two-pole breaker back to the “ON” position. Use a multimeter to test the voltage at the newly installed receptacle. You should read approximately 240V between the two angled hot slots, and 120V between either angled hot slot and the L-shaped neutral/ground slot. This confirms correct voltage and continuity. Finally, plug in the dryer and test its operation.
For a 30-ampere dryer circuit, National Electrical Code (NEC) requires a minimum wire gauge of 10 AWG (American Wire Gauge) copper conductors. Using undersized wire can lead to overheating and fire hazards due to excessive current flow.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even for experienced technicians, specific errors in 3-prong dryer outlet wiring can lead to hazardous conditions or operational failures. Understanding these pitfalls and their remedies is essential.
-
Incorrect Wire-to-Terminal Assignment:
Mistake: Reversing a hot wire (black or red) with the neutral/ground wire (white) on the receptacle.
Consequence: This creates a direct short circuit if a 120V appliance is plugged in, or worse, can energize the appliance’s chassis with 120V if the neutral/ground path is lost, leading to a severe shock hazard. It can also trip the circuit breaker immediately or cause appliance damage.
Fix: Always double-check the wire color code against the NEMA 10-30R pin assignment (refer to the diagram and table). Black and Red wires connect to the angled hot terminals, and the White wire connects to the L-shaped neutral/ground terminal. Use a multimeter to verify voltage between terminals before plugging in the dryer. -
Loose Terminal Connections:
Mistake: Not sufficiently tightening the terminal screws on the receptacle, or failing to properly wrap the wire strands under the screw head.
Consequence: Loose connections generate heat due to increased electrical resistance, leading to arcing, premature wire degradation, and potential fire hazards. It can also cause intermittent power to the dryer, leading to operational issues.
Fix: Ensure all terminal screws are torqued to the manufacturer’s specified values (typically 12-14 inch-pounds for most receptacles). Always wrap wire ends clockwise around the screw so tightening the screw pulls the wire further into the connection. -
Using Incorrect Wire Gauge:
Mistake: Employing wire smaller than 10 AWG (e.g., 12 AWG) for a 30-ampere dryer circuit.
Consequence: Undersized wire cannot safely handle the amperage of the dryer, leading to excessive heat generation, insulation meltdown, voltage drop under load, and a significant risk of fire. It also violates NEC requirements.
Fix: For a 30-ampere 240V circuit, always use 10 AWG copper conductors as a minimum. For longer runs, or if there’s any doubt, consulting a wire gauge chart or an electrician is recommended to ensure proper current carrying capacity. -
Absence of Strain Relief/Cable Clamp:
Mistake: Not installing a cable clamp where the dryer cable enters the outlet box.
Consequence: Without proper strain relief, tension on the cord can pull wires out of their terminals, damage insulation, or create loose connections, leading to electrical hazards.
Fix: Always install a code-compliant cable clamp or conduit connector at the entry point of the cable into the electrical box. This secures the cable and protects the internal conductors from physical stress. -
Confusing 3-Prong with 4-Prong Systems:
Mistake: Attempting to wire a 3-prong NEMA 10-30R receptacle where a modern 4-wire circuit (with a separate neutral and ground) is present, or vice-versa without proper adaptation.
Consequence: This is a major safety and code violation. Wiring a 3-prong receptacle to a 4-wire circuit incorrectly can leave the appliance chassis ungrounded, creating a severe shock hazard. Conversely, attempting to use a 4-prong appliance on a 3-prong system without a proper 3-wire cord kit conversion can also be dangerous if the bond between neutral and ground isn’t established at the appliance terminal block.
Fix: Verify the existing circuit wiring. If it’s a 4-wire circuit, install a NEMA 14-30R 4-prong receptacle. If it’s a 3-wire circuit, use the NEMA 10-30R 3-prong. Understand that the National Electrical Code (NEC) has mandated 4-wire dryer circuits since 1996 for enhanced safety (dedicated ground wire). Conversions should be done at the appliance terminal block, strictly following manufacturer instructions and local codes.
FREQUENTLY ASKED QUESTIONS
What is the primary difference between a 3-prong and a 4-prong dryer outlet?
The fundamental difference lies in the grounding conductor. A 3-prong outlet (NEMA 10-30R) combines the neutral and ground wires into a single conductor, meaning the neutral wire carries both return current and provides the equipment grounding path. A 4-prong outlet (NEMA 14-30R), which is the current standard per the National Electrical Code (NEC) since 1996, provides a dedicated neutral wire and a separate, dedicated ground wire. This separation offers enhanced safety by ensuring the appliance chassis is always grounded, even if the neutral conductor fails.
Can I use a 3-prong dryer cord on a modern 4-prong dryer?
Yes, but it requires a specific conversion. Most new 4-prong dryers are designed to be convertible. You will need to purchase a 3-prong dryer cord and modify the wiring at the dryer’s terminal block according to the appliance manufacturer’s instructions. This typically involves removing the green ground strap that bonds the neutral terminal to the dryer chassis (as the 3-prong cord will bond it to the neutral conductor instead). It’s crucial to follow the dryer’s manual precisely to ensure safe operation and avoid code violations.
What wire gauge is required for a 3-prong dryer outlet?
For a standard 30-ampere 240-volt dryer circuit, the National Electrical Code (NEC) mandates a minimum of 10 AWG (American Wire Gauge) copper conductors for all three wires (two hot, one neutral/ground). Using a smaller gauge wire risks overheating, voltage drop, and fire hazards. Always verify your specific local electrical codes, as they may have additional requirements.
Why did older 3-prong dryer outlets combine neutral and ground?
In older electrical systems, it was a common practice to use a single conductor for both the neutral current return and the equipment grounding path for certain 240V appliances like dryers and ranges. This design, while functional, lacked the dedicated safety ground present in modern 4-wire systems. The combined neutral/ground created a potential safety hazard if the neutral connection failed, as it could energize the appliance’s metal frame. The NEC updated its requirements to mandate separate neutral and ground conductors for dryers in 1996 for improved safety.
Step-by-Step Guide to Understanding the 3-Prong Dryer Outlet Wiring Diagram: Connection Mapping 2026
Identify – Identify the power source (breaker panel) and disconnect power for the dryer circuit. Confirm absence of voltage using a multimeter before proceeding.
Locate – Locate the existing dryer outlet or the installation point for the new 3-prong receptacle box. Ensure adequate space and proper securing of the box.
Reference – Reference the 3-prong dryer outlet wiring diagram to understand the correct pin assignment for L1, L2 (hot), and the combined neutral/ground terminals.
Connect/Route – Connect the black hot wire to L1, the red hot wire to L2, and the white neutral wire (or bare ground wire) to the L-shaped neutral/ground terminal. Secure all connections tightly.
Verify – Verify all wire color code connections match the diagram, ensuring no bare wires are exposed or touching. Double-check terminal screw tightness before securing the outlet cover.
Troubleshoot – Troubleshoot by restoring power and testing the outlet with a multimeter or a dryer test kit for correct voltage. If issues arise (e.g., no power, incorrect voltage), immediately disconnect power and re-check all wiring mistakes.
Frequently Asked Questions
What wire color is function on 3 prong dryer outlet wiring diagram?
On a 3-prong dryer outlet wiring diagram, the hot wire functions are typically handled by black (L1) and red (L2) wires. The combined neutral/ground function is usually served by a white neutral wire or a bare copper ground wire, connecting to the L-shaped slot. Always refer to local wire color code standards.
What do the pin numbers mean on 3 prong dryer outlet wiring diagram?
While 3-prong dryer outlets don’t typically use pin numbers, they have distinct terminal identifications or pin assignments. The two vertical or straight slots are for L1 and L2 (hot wires). The L-shaped slot is for the combined neutral wire and ground wire. Incorrect pin assignment can cause hazards.
How many wires does 3 prong dryer outlet wiring diagram have?
A 3-prong dryer outlet wiring diagram inherently involves three wires from the electrical panel. These consist of two hot wire conductors (typically black and red for 240V) and one combined neutral wire / ground wire conductor (usually white or bare copper). This setup is common in older installations.
What are common wiring mistakes with 3 prong dryer outlet wiring diagram?
Common wiring mistakes include reversing hot wire polarity, failing to secure terminal screws tightly, or incorrect neutral wire to ground wire bonding. Crucially, in a 3-prong setup, the neutral is typically bonded to the outlet’s ground, but misapplying this in a 4-prong system is a major error. Always follow the diagram.
Can I upgrade a 3-prong dryer outlet to 4-prong?
Upgrading a 3-prong dryer outlet to 4-prong often requires running a new four-conductor cable (two hot wires, one neutral wire, one dedicated ground wire) from the electrical panel. This ensures a separate ground path, which is safer and required by current codes. Consult an electrician for this DIY/repair task.
What gauge wire does 3 prong dryer outlet wiring diagram require?
A 3 prong dryer outlet wiring diagram typically requires 10-gauge copper wire for circuits up to 30 amps, which is standard for most electric dryers. This wire color code applies to both hot wires and the combined neutral wire/ground wire. Ensure the circuit breaker matches the wire gauge for safety.
