Whirlpool Cabrio Washer Parts Diagram: 2026 Repair Guide
The Whirlpool Cabrio washer parts diagram details the mechanical and electrical system structure, highlighting the stator/rotor drive assembly, shift actuator, drain pump, and suspension rods. It illustrates component pinouts, harness connections, and tub layout to assist in diagnosing LF, OL, or F51 error codes during disassembly or component replacement.
📌 Key Takeaways
- Direct-drive stator windings should measure between 16 and 20 ohms across harness terminals.
- The optical sensor on the shift actuator relies on proper tub alignment to monitor basket RPM.
- Always disconnect 120V power and shut off water supply before removing cabinet panel sections.
- Cracked splutch drive hubs or worn pulley teeth are top causes for loud grinding and F51 errors.
- Suspension rod wear leads to severe tub imbalance (UL code) and requires replacing all four rods together.
Deciphering the mechanical and electrical structure of top-loading laundry equipment requires precise reference materials. The Whirlpool Cabrio platform—encompassing popular series such as the WTW7000, WTW7300, and WTW8000—utilizes high-efficiency direct-drive and belt-driven architecture depending on the production generation. Whether you are analyzing motor coil winding resistance, diagnosing tub drive hub wear, or tracing signal rails across the main electronic control board, an accurate technical breakdown is essential. This technical reference unpacks the Whirlpool Cabrio washer parts diagram, detailing mechanical sub-assemblies, schematic reading protocols, diagnostic troubleshooting paths, and exact component specifications for field service technicians.
Whirlpool Cabrio Washer Parts Diagram Component Layout
The structural layout of a Cabrio high-efficiency washer is segregated into four primary subsystems: the cabinet and outer structure, the drive and motor assembly, the suspension system, and the electronic control matrix. Understanding how these systems physically interface on the exploded diagram ensures fast identification during teardown and rebuild procedures.
In direct-drive models (typically early to mid-generation Cabrio units), the drive motor eliminates traditional belts and transmission gearboxes. Instead, a 3-phase brushless DC (BLDC) stator mounts directly to the tub bottom, interacting with a permanent magnet rotor secured to the main drive shaft. In contrast, belt-driven Cabrio iterations utilize a shift actuator and drive pulley system. Refer to our washing machine drive hub replacement guide when servicing mechanical splines attached to the inner wash basket.
| Component | OEM Reference Part | Operating Specification | System Function |
|---|---|---|---|
| 3-Phase Stator Assembly | W10419333 / W10383180 | 16.0 Ω ±7% across phases | Direct-drive electromagnetic propulsion |
| Rotor Position Sensor (RPS) | W10178988 | 5 VDC logic circuit supply | Motor tachometer & Hall-effect feedback |
| Inner Tub Drive Hub Kit | W10396887 | Reinforced drive splines | Locks basket to drive shaft hub |
| Suspension Rod Kit (Set of 4) | W10780048 | Calibrated spring dampening | Isolates dynamic out-of-balance loads |
| Drain Pump Assembly | W10536547 | 120 VAC, 60 Hz, 15-20 Ω | Evacuates tub wash water |
When reassembling the drive system on direct-drive Cabrio models, torque the single central rotor retaining bolt to exactly 30 ft-lbs (40.6 Nm). Under-tightening causes rotor slip and premature spline strip, while over-tightening can crack the inner aluminum drive hub.
How to Read the Cabrio Schematics and System Blueprints

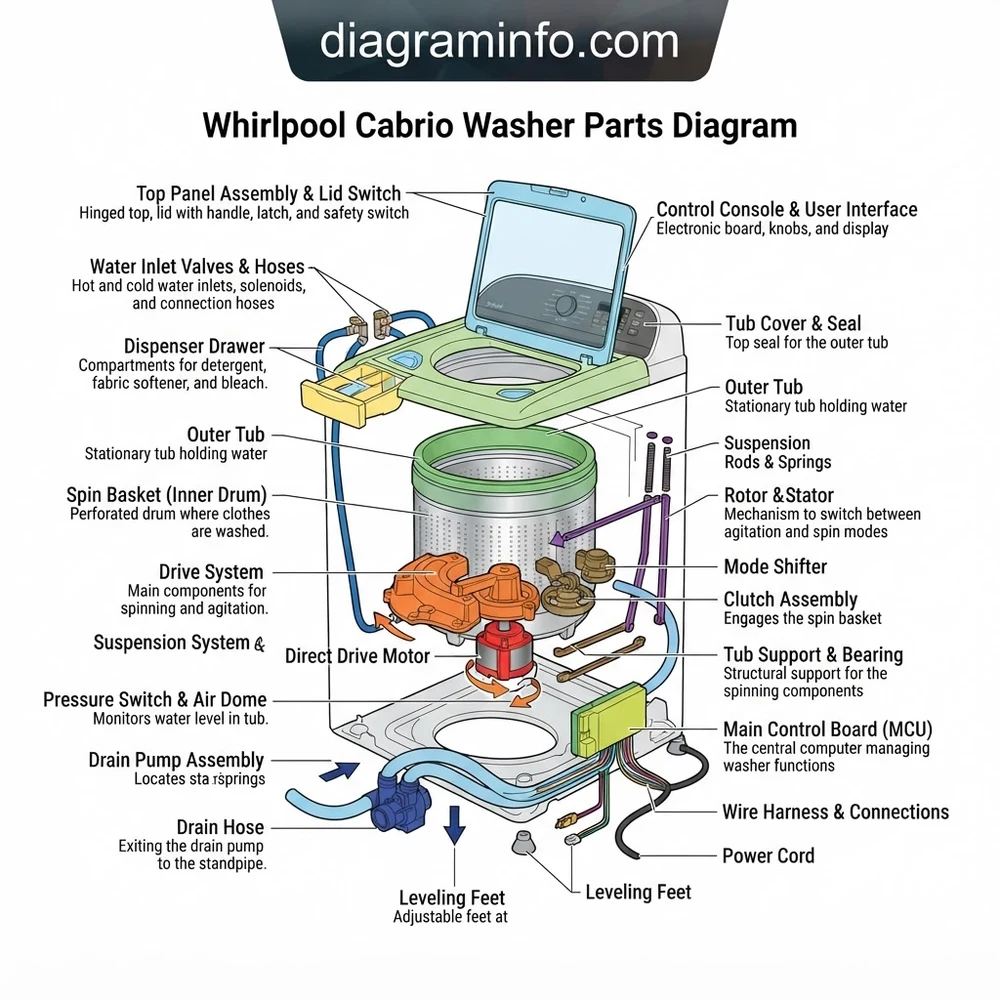

Interpreting a technical diagram for the Whirlpool Cabrio platform requires cross-referencing exploded mechanical views with the high-voltage and low-voltage schematic schematics found in the unit’s service packet. As shown in the diagram above, components are designated by item callout numbers linked directly to the manufacturer parts matrix.
To systematically navigate the technical layout, follow these procedural steps:
1. Identify Section Blueprint Views: Technical diagrams break the washer into distinct modules: Cabinet & Front Panel, Top Console & Control Board, Wash Tub & Suspension, and Drive Motor & Pump Assembly. Locate the specific section relevant to your repair target.
2. Trace Wire Harness Logic: Low-voltage control signals originate at the main electronic control unit (MCU). The Rotor Position Sensor (RPS) harness utilizes a multi-pin connector routing 5 VDC power and return logic channels directly to the dual Hall-effect sensors on the stator frame. High-voltage line connections (120 VAC) route separately to the drain pump, inlet valves, and lid latch solenoids.
3. Locate Terminal Pinouts on Schematics: When troubleshooting electrical continuity, consult the main board connector map. For example, connector P5 handles motor winding outputs, while connector P11 interfaces directly with the pressure transducer and lid lock switches. Review our Whirlpool tech sheet diagnostic mode manual for detailed board pinout mapping.
For late-model Cabrio units (WTW8000 series and above), the pressure sensor is integrated directly onto the electronic control board. If the blueprint shows a clear air hose running from the tub base directly to the control board housing without an inline switch, the pressure transducer is non-serviceable separately from the board.
Diagnosing Faults Using the Whirlpool Cabrio Washer Parts Diagram
A structured technical diagram simplifies point-to-point electrical testing and mechanical fault analysis when troubleshooting error codes. Below are diagnostic protocols derived from official technical service manuals for common Cabrio system failures.
Always disconnect the 120 VAC main power source before performing resistance checks or removing component wiring harnesses. High DC voltage capacitor banks on the main control board remain charged for up to 3 minutes after line power removal.
Addressing Error Code F51 (RPS Failure): The F51 fault code signals a failure in the motor tachometer feedback loop. Using the wiring schematic, locate the RPS module attached to the stator. Disconnect the harness at the main board (Connector P2) and measure resistance across pins. If wiring continuity is intact, inspect the stator coils using a digital multimeter set to ohms:
• Measure resistance between Terminal 1 and Terminal 2 on the stator plug (Spec: ~16.0 Ω).
• Measure resistance between Terminal 2 and Terminal 3 (Spec: ~16.0 Ω).
• Measure resistance between Terminal 1 and Terminal 3 (Spec: ~16.0 Ω).
An open circuit or significant resistance deviation indicates a blown winding, requiring stator replacement. If winding resistance matches OEM specs, inspect the physical drive hub splines for mechanical slippage, or replace the RPS board assembly.
Resolving “uL” (Unbalanced Load) Codes: An persistent uL condition points toward mechanical failure within the tub suspension layout or drive engagement system. Check the dynamic suspension dampers shown in the tub frame blueprint. Disconnect each rod and inspect for loss of dampening fluid or cracked dampening cups. Additionally, inspect the inner tub drive hub (Part #W10396887). Worn plastic teeth prevent the basket from spinning freely on the shaft, causing the control board to miscalculate tub load balance. Consult the OEM bearing press tool instructions if inner shaft play indicates tub seal leakage into the primary bearing housing.
Whirlpool Cabrio System Configuration FAQ
What is the winding resistance specification for the Cabrio direct-drive stator motor?
According to OEM manufacturer specifications, a functional direct-drive stator assembly measures approximately 16.0 ohms (±7%) phase-to-phase across terminals U, V, and W. Testing should be performed across pins 1-2, 2-3, and 1-3 at the motor harness connector. Resistance reading zero indicates a short circuit, while infinite resistance confirms an open winding requiring replacement.
How do early WTW6000 series diagrams differ from later WTW8000 series schematics?
Early Cabrio WTW6000 series units rely primarily on direct-drive BLDC motors paired with discrete edge-mounted Rotor Position Sensors and mechanical pressure switches. Later WTW8000 series models often transition to belt-driven variable-speed motor platforms with a shift actuator module, integrated lid-lock sensing logic, and board-mounted digital pressure transducers. Always match your exact model number suffix (e.g., WTW7000DW0 vs. WTW7000EW0) before ordering parts.
Why does the Whirlpool Cabrio parts diagram show two different tub bearing configurations?
Whirlpool manufactured two primary tub shaft designs across the Cabrio lifespan. Older models utilize a dual-bearing outer tub structure where bearings and tub seals are pressed directly into the plastic outer tub assembly using a specialized installation tool. Newer revisions integrate the bearings into a pre-assembled outer tub drive shaft kit or sealed housing. Verify your serial number to select the correct press-in bearing kit or full outer tub module.
What wire color codes indicate the lid lock solenoid state versus switch status on the schematic?
On standard Cabrio wiring schematics, the lid lock mechanism uses a 5-pin terminal connector. High-voltage solenoid energization wires are typically designated by Blue and White/Red traces (120 VAC pulse). Low-voltage lock sensing switch state feedback channels run along Yellow and Gray wire traces returning a 5 VDC logic signal to the main control module when the latch mechanism fully engages.
Where is the physical tech sheet schematic located inside the Cabrio washer cabinet?
The factory technical document—containing real-time diagnostic test sequences, wiring schematics, and error code tables—is factory-sealed inside a clear plastic sleeve. On top-load Cabrio units, this tech sheet is taped to the inner front cabinet wall or attached to the inside underside of the main top console lid housing. You must remove the top console retaining screws to access the packet without damaging the sheet.
Step-by-Step Guide to Understanding the Whirlpool Cabrio Washer Parts Diagram
Identify – Locate the model sticker on the rear frame to match your exact Whirlpool Cabrio parts schematic version.
Locate – Position key drive components including the rotor, stator, splutch assembly, and shift actuator under the outer tub system.
Reference – Trace wire harness configurations from the main control unit to the pump, valves, and motor connections.
Connect/Route – Replace damaged hardware, torqueing the drive hub bolt to specification and securing wiring along chassis clips.
Verify – Run an automated recalibration cycle to test optical sensor feedback and basket spin alignment.
Troubleshoot – Check terminal resistance with a multimeter if error codes persist after component replacement.
