Traxxas Stampede 2WD Parts Diagram: 2026 Component Breakdown
The Traxxas Stampede 2WD parts diagram details the complete chassis configuration, Magnum 272 transmission system, and front/rear suspension assemblies. It maps exploded views of 3mm hex hardware, slipper clutch layout (#5552X), planetary gear differential (#2388X), and steering bellcranks for precise component location and rebuilds.
📌 Key Takeaways
- Magnum 272 transmission uses a 48-pitch spur gear and 32mm internal planetary gear structure.
- Critical identification points include the ultra-molded composite chassis layout and long-arm suspension pins.
- Torque all 3mm countersunk screws to hand-tight (approx. 0.9-1.2 Nm) to prevent stripping plastic bulkheads.
- Most common failure point is worn spur gear teeth (#4686) caused by improper mesh gap setup.
- Replace stripped plastic spur gears and bent shock shafts DIY; professional service recommended for ESC motor desoldering.
The Traxxas Stampede 2WD monster truck features a modular composite chassis platform engineered for high-impact off-road durability and technical agility. Utilizing an exploded blueprint and accurate schematic view is essential when executing complete chassis teardowns, replacing sheared stub axles, or servicing the sealed Magnum 272 transmission assembly. A precise technical diagram maps out every hardware dimension, exploded sub-assembly sequence, and OEM part callout number required to restore factory mechanical tolerances. This comprehensive technical guide breaks down the full structural layout of the 2WD Stampede platform, detailing how to correctly interpret line schematics, map fastener specifications, and execute precision troubleshooting across all mechanical systems.

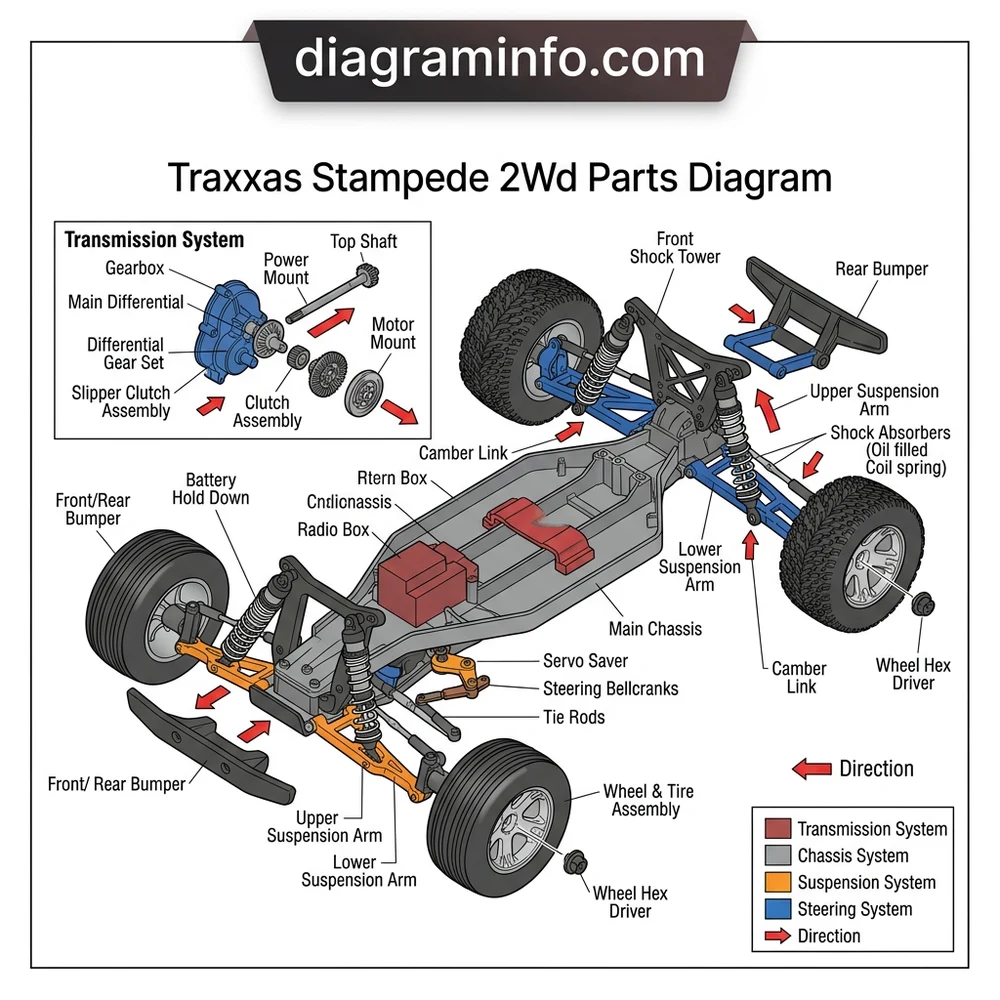

Traxxas Stampede 2WD Parts Diagram: Mechanical Structure Overview
The structural layout of the Traxxas Stampede 2WD is organized into three primary mechanical sub-assemblies: the front steering/suspension module, the central composite tub chassis, and the rear power-transmission pod. Understanding how these isolated systems integrate is critical for maintaining correct suspension geometry and torque delivery. Manufacturer specifications indicate that the chassis relies on a raised ground-clearance design (Part #3622), which mounts the steering bellcranks and front bulkhead directly to the forward upper plate, transferring impact loads away from the main tub.
Front Suspension and Steering Sub-Assembly
The front end structure relies on a high-impact bulkhead (Part #3630) that anchors the lower suspension arm pins (Part #3640). The front suspension arms (Part #3631) connect to composite C-hubs or caster blocks (Part #3632), which house the steering blocks (Part #3636). Steering movement is controlled by a dual-bellcrank linkage system featuring an integrated servo saver (Part #3744) designed to absorb torsional force from heavy front-tire impacts. Front axle stub spindles rotate on dual 5x11x4mm rubber-sealed ball bearings (Part #5116), eliminating friction under side-load cornering forces. When referencing the front steering structure, mechanics should note that the Nitro Stampede chassis layout differs significantly in bulkhead angle and mounting holes despite sharing identical steering block geometry.
Rear Axle and Magnum 272 Transmission Layout
The rear transmission structure houses the core drivetrain, consisting of the Magnum 272 gearbox (Part #3691) mounted to the rear suspension rear shock tower (Part #3638) and rear hub carriers (Part #3752). The gear case houses a 20-tooth metal top drive gear (Part #3696), a 30-tooth steel idler gear (Part #1993), and a heavy-duty planetary gear differential (Part #2381X). Power transfers from the differential outdrives through telescoping U-joint driveshafts (Part #1951) to the rear stub axles (Part #2753X). Shock damping is managed by long Ultra Shocks (Part #3762) operating on oil-filled silicone dampening circuits.
| System Component | OEM Part Number | Technical Specification / Dimension | Fastener Type / Torque Context |
|---|---|---|---|
| Front Suspension Arms | #3631 | High-grade composite nylon, left/right symmetrical | 3x48mm hinge pins with e-clips (#1633) |
| Caster Blocks (C-Hubs) | #3632 | 30-degree caster angle, dual kingpin mounting | 3x20mm shoulder screws (#3642) |
| Transmission Case Set | #3691 | Split-halves composite housing with motor plate mount | 3x12mm cap screws (0.9 Nm torque) |
| Planetary Differential | #2381X | Hardened steel internal bevel gears, 3.01:1 internal ratio | 5x11x4mm rubber sealed bearings (#5116) |
| Telescoping Half-Shafts | #1951 | Splined composite slider driveshafts with cross-pins | M4 wheel nuts / 3x5mm screw pins |
How to Read the Traxxas Stampede 2WD Parts Diagram Schematic
Interpreting a technical schematic requires a structured approach to line conventions, part callout bubbles, and hardware labeling standards. On a factory Traxxas schematic, solid projection lines indicate direct axial assembly paths, while dashed alignment lines trace the insert orientation of pins, bearings, and internal transmission shafts. Callout numbers enclosed in circles map directly to the official Traxxas replacement part master index, allowing technicians to verify hardware sizing before assembly.
Exploded Blueprint Symbols and Hardware Callouts
Every fastener callout on the technical overview uses explicit metric standardized notation. For example, a callout listed as “3x12mm BCS” denotes a Buttonhead Cap Screw with an M3 thread diameter and a 12mm shaft length (excluding the head). Conversely, “3x10mm CS” indicates a Countersunk Screw designed for flush mounting on the underside of the main chassis plate (Part #3622). Screw threads are cut with standard metric pitch (M3x0.5mm). Ball bearings are designated by their inner diameter, outer diameter, and width; for instance, “5x11x4mm” specifies a 5mm axle bore, 11mm outer race diameter, and 4mm overall width.
Sub-Assembly Torque Values and Fastener Mapping
When rebuilding sub-assemblies from the exploded blueprint, observing correct fastener torque limits prevents stripping tapped composite screw holes. Metal-to-composite connections (such as mounting the aluminum motor plate Part #3790 to the plastic transmission case Part #3691) require hand tightening to approximately 0.8–0.9 Nm. Metal-to-metal joints, such as the pinion gear set screw (Part #1747) binding onto the 3.175mm motor shaft flat spot, require a thread-locking compound (blue medium-strength) and a torque value of 1.2 Nm using a high-grade 1.5mm hex driver.
According to OEM service guidelines, always verify fastener length before re-installing screws into blind composite chassis holes. Inserting a 3x15mm screw into a hole designated for a 3x12mm screw will fracture the plastic boss and permanently compromise chassis structural integrity.
System Maintenance and Drivetrain Rebuild Configuration
Routine service intervals require systematic teardowns of the Magnum 272 transmission, slipper clutch, and suspension pivots. Working directly from the component layout schematic ensures that thrust washers, Teflon shims, and internal shaft spacers are reinstalled in their exact factory sequence, preserving correct axial play across the drivetrain.
Gear Mesh Alignment and Slipper Clutch Assembly
The transmission slipper clutch assembly (Part #5552X) modulates torque transfer to prevent gear teeth stripping during heavy landings. To rebuild the slipper assembly according to factory schematic orientation:
- Slide the slipper pressure plate (Part #5552) onto the transmission top shaft (Part #3695), aligning the drive pin into the keyed slot.
- Install the friction peg ring/pad (Part #5556) flat against the spur gear (Part #4686, 86-tooth 48-pitch standard).
- Place the outer slipper pressure disc, followed by the spring washer, lock spring, and the M4 nylon locknut.
- Tighten the adjustment nut fully until the spring collapses, then back the nut off precisely 1/4 to 1/2 turn to set baseline tension for standard high-traction surfaces.
Setting the gear mesh between the motor pinion and spur gear requires establishing a backlash distance of 0.05mm to 0.10mm. Technicians should insert a standard strip of 20lb printer paper between the 48-pitch gear teeth, press the motor firmly against the spur gear, tighten the 3x10mm motor plate retaining screws, and roll the paper out through the mesh. Correct backlash yields minimal rotational play without binding the gear teeth.
Differential Maintenance and Lubrication Specs
The standard planetary gear differential (Part #2381X) is lubricated with high-temperature lithium grease from the factory. During an overhaul, clean all internal spider gears, cross-pins, and side bevel gears using an electrical contact cleaner. Inspect the internal gear teeth under magnification for pitting or shearing. Apply approximately 1.5 grams of synthetic lithium grease evenly across the internal planet gears. If upgrading to the sealed differential housing (found in modern VXL schematics or the modern Magnum 272R transmission exploded view), fill the internal cavity 80% full with 30,000 cSt to 50,000 cSt silicone differential fluid to tune power transfer across the rear tires.
Do not overfill sealed differential cases beyond 80% volume capacity. Fluid expansion caused by thermal build-up during high-speed 3S LiPo runs will force silicone oil past the silicone X-rings, destroying the outer rubber seals and contaminating the transmission housing.
Diagnosing Mechanical Failures Using Assembly Callouts
Systematic troubleshooting of mechanical anomalies on the 2WD Stampede relies on isolating symptoms directly back to callout sections in the assembly blueprint. Because the vehicle utilizes a rear-wheel-drive configuration with high ground clearance, suspension droop and drivetrain torque place specific stress on driveline joints and shock hardware.
Driveshaft Dislodgement and Telescoping Joint Wear
Under severe suspension droop (full shock extension), the factory splined telescoping half-shafts (Part #1951) operate at steep working angles. If a rear driveshaft repeatedly pops out of its inner slider or snaps at the axle yoke, verify the following schematic alignment points:
- Inspect the lower shock mounting position on the rear suspension arm (Part #3655X). Mounting the shock in the outermost hole increases droop angle, forcing the half-shaft to over-extend. Move the lower shock screw to the inner hole to restrict extreme suspension extension.
- Check stub axle carrier play. Worn 5x11x4mm axle bearings allow the stub axle (Part #2753X) to tilt, placing eccentric load on the outer plastic U-joint drive pins. Replace loose bearings immediately.
- Examine the splined slider male and female engagement lengths. Twisting or mechanical binding in the splines indicates torsional fatigue; replace damaged shafts with heavy-duty driveshaft assemblies (Part #6851X).
Stripped Spur Gear and Pinion Backlash Correction
Spur gear tooth destruction (Part #4686) is typically caused by motor plate flex, loose motor screws, or improper gear mesh spacing. If gear teeth wear down unevenly or strip instantaneously upon acceleration, execute the following technical diagnostic steps:
- Check the aluminum motor plate (Part #3790) for flatness using a precision straightedge. Repeated high-impact landings can warp the plate, preventing the motor shaft from running parallel to the transmission top shaft.
- Inspect the slipper clutch shaft bearing (Part #5116) housed in the gear cover/transmission case. Radial slop in this bearing allows the top shaft to flex away from the motor pinion under load.
- Verify the motor pinion set screw alignment. Ensure the set screw seats directly onto the flat surface of the rotor shaft. A set screw tightened onto the round section of the shaft will back out due to vibration, causing the pinion to slide axially and misalign with the spur gear.
Factory Mechanical Specs: Drivetrain Internal Gear Ratio: 3.01:1 | Standard Spur Gear: 86-Tooth 48-Pitch | Standard Pinion (XL-5): 19-Tooth 48-Pitch | Total Final Drive Ratio: 13.65:1 | Shock Oil Viscosity: 30wt (350 cSt) Silicone | Wheel Hex Size: 12mm Standard Molded Hex.
Traxxas Stampede 2WD Parts Diagram Technical FAQ
How do vintage XL-5 diagrams differ from modern VXL schematics?
While the core composite tub layout (Part #3622) remains uniform across generations, modern VXL (brushless) and BL-2s schematics incorporate full precision steel turnbuckles (Part #3641X) with captured rod ends rather than fixed-length plastic camber links. Additionally, VXL/BL-2s exploded diagrams specify hex-head hardware (2.5mm and 2.0mm button-head screws) throughout the chassis, replacing the vintage cross-recess Phillips-head self-tapping screws used on classic XL-5 models. The modern transmission schematics also feature steel internal idler gears and rubber-sealed ball bearings as factory standard equipment.
What are the standard ball bearing specifications across the chassis?
The Traxxas Stampede 2WD chassis utilizes standardized ball bearing dimensions across major sub-assemblies. The steering blocks, rear axle carriers, and internal transmission top shaft use 5x11x4mm rubber-sealed bearings (Part #5116). The steering bellcrank assembly utilizes 5x8x2.5mm bearings (Part #5114) or composite bushings. When replacing worn bushings shown on base-model schematics, technicians should always replace them with high-grade ABEC-3 rated, rubber-sealed chrome steel ball bearings to reduce drag and prevent dirt ingress.
Which diagram section covers the slipper clutch and gear differential?
The slipper clutch components and internal differential assembly are mapped within the “Transmission Exploded View” section of the OEM documentation. Callout Part #5552X details the Revo-spec slipper rebuild assembly on the transmission top shaft external extension, while internal callouts #2381X or #2388X cover the planetary differential housing, internal sun gears, planetary spider gears, and outdrive yokes seated within the transmission case halves (Part #3691).
How do you distinguish metric hardware from legacy imperial fasteners?
Modern Traxxas schematics exclusively utilize metric fasteners, primarily M3 thread dimensions with standard 0.5mm thread pitch. Fasteners are categorized on line blueprints by head type: BCS (Buttonhead Cap Screw), CS (Countersunk Screw), CS (Cap Screw with cylindrical head), and SS (Set Screw). Legacy Stampede models produced prior to the mid-2000s utilized 4-40 and 6-32 imperial hardware. Technicians can identify metric screws on visual diagrams by their pitch and hex driver requirements—M3 cap screws require a standard 2.0mm or 2.5mm metric hex key driver.
Are components cross-compatible with the Traxxas Slash 2WD drivetrain schematic?
Yes, significant portions of the drivetrain and rear pod assemblies are fully interchangeable. The complete Magnum 272 transmission housing, internal steel gears, slipper clutch assembly, and planetary differential share identical callout part numbers with the Traxxas Slash 2WD drivetrain schematic. However, the main chassis tub (Part #3622), front/rear body mounts, bumper assemblies, and suspension arm lengths differ due to the Slash’s longer wheelbase and short-course truck body dimensions.
Step-by-Step Guide to Understanding the Traxxas Stampede 2Wd Parts Diagram
Identify – Locate the specific sub-assembly on the traxxas stampede 2wd parts diagram, such as the front bulkhead, transmission, or rear axle assembly.
Locate – Cross-reference part callout numbers with the official Traxxas part list to confirm replacement hardware or component numbers.
Reference – Follow the exploded assembly paths to determine the correct order of washers, bearings, drive pins, and spacers.
Connect/Route – Position components according to the layout and secure 3mm fasteners while routing motor leads clear of moving driveshafts.
Verify – Check suspension arm movement and gear mesh clearance using a strip of paper between the pinion and spur gear.
Troubleshoot – Inspect tight or binding drivetrains against the diagram to verify bearing orientation and internal differential gear assembly.
