The Gravely ZTX 52 parts diagram details the mower deck structure, drive belt layout, Hydro-Gear EZT transaxles, and Kawasaki/Kohler engine configurations. It specifies exact part numbers, belt routing paths (07200718 deck belt), spindle assemblies (51528100), and mounting hardware schematics needed for accurate disassembly, maintenance, and replacement.
📌 Key Takeaways
- The 52-inch fabricated deck utilizes 3 blades (18-1/8 inch length) with a 07200718 drive belt.
- Critical identification requires matching the frame serial tag under the seat to the diagram revision.
- Spindle mounting bolts must be torqued to 30-35 ft-lbs during deck reassembly.
- Misrouting the drive belt around tensioner idler pulleys is the primary cause of premature wear.
- Transaxle fluid purging and belt replacements are simple DIY tasks, but internal pump failure requires professional service.
Maintaining commercial-grade zero-turn outdoor power equipment requires precise technical reference materials. The Gravely ZTX 52 zero-turn mower—built on the robust Ariens 915 series chassis—utilizes an intricate arrangement of mechanical, hydraulic, and electrical systems. Navigating the gravely ztx 52 parts diagram allows field technicians, equipment managers, and experienced mechanics to accurately perform teardowns, verify OEM component alignment, diagnose sub-assembly failures, and order exact replacement items. This comprehensive reference guide breaks down the complete structural blueprint, component schematics, wiring layouts, torque specifications, and system troubleshooting procedures for the ZTX 52 platform.

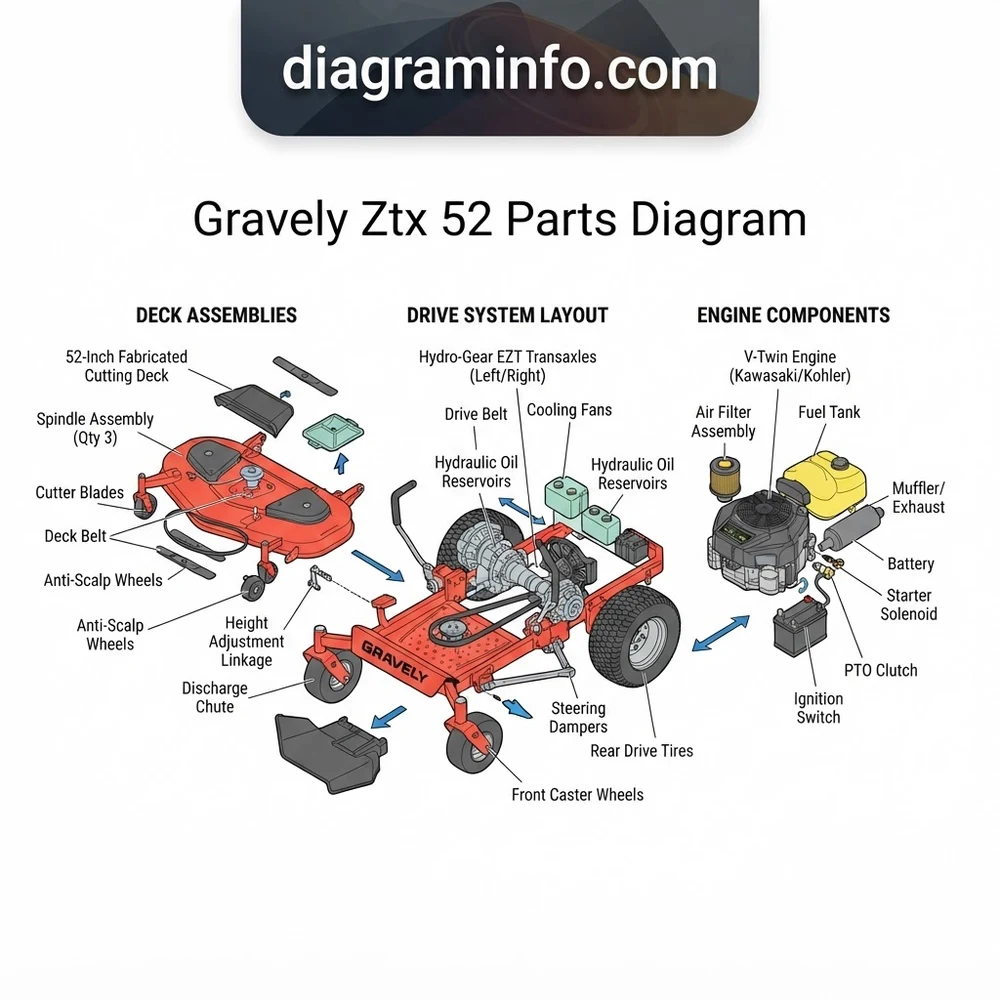

Gravely ZTX 52 Parts Diagram: Major Structural Components and Systems Overview
The Gravely ZTX 52 architecture is divided into five core functional groups: the 52-inch fabricated mower deck, the hydrostatic drive transmission system, the main tubular steel frame assembly, the steering and control linkage, and the 12-volt electrical interlock system. Interpreting the technical layout requires understanding how these integrated sub-assemblies interface during operational loads.
Recommended Best Deal Products
52-Inch Fabricated Cutting Deck Assembly (915 Series)
The cutting deck schematic illustrates an 11-gauge steel welded structure incorporating three 18-inch high-lift cutting blades. The primary drive is transferred from the engine output shaft to the deck input pulley via an engine-to-deck drive belt (OEM P/N 07200718). Mechanical power transfers across three heavy-duty spindle assemblies (OEM P/N 51528000 / 03839000). Each spindle houses dual sealed deep-groove ball bearings, an inner spacer, a cast iron pulley, and a hardened blade shaft secured with a top pulley nut and a heavy-duty Belleville washer assembly at the blade foot.
The deck pitch and height adjustment system uses a foot-operated mechanical lift mechanism connected to four adjustable deck hangers. The front hanger linkages utilize trunnion blocks and locknuts to set the precise deck rake (1/8-inch to 1/4-inch pitch lower at the front tip relative to the rear trailing edge). Belt tensioning is maintained by a spring-loaded idler arm pivoting on a bronze bushing, dampening transient belt shock loads under heavy turf conditions.
Hydrostatic Drive Transaxle Assembly and Controls
Propulsion is managed by twin Hydro-Gear ZT-2200 (EZT Series) integrated transaxles (OEM P/N 04780100 Left, 04780000 Right). The hydro schematic depicts an engine-driven primary hydro belt (OEM P/N 07200508) driving top-mounted cooling fans and input pulleys on both transaxles. Control rod linkages connect the dual directional steering levers to the mechanical swashplate arms on each hydro pump. Neutral return spring assemblies and hydraulic dampener shocks (OEM P/N 03943800) prevent sudden control lever snapping and smooth out directional acceleration.
Frame, Engine Mounting, and Electrical System Layout
The foundation is a 1.5 x 2-inch fully welded steel tube chassis supporting either a Kawasaki FR691V or Kohler KT740 engine block. The lower power takeoff (PTO) area features an electromagnetic PTO clutch (Warner Electric, OEM P/N 04803300) torqued directly to the engine crankshaft stem. Electrical schematics detail a fused 12V DC system containing safety interlock switches at the seat, parking brake lever, dual control arms, and PTO engagement switch.
Refer to the fast-reference table below for exact manufacturer service limits, fastener torque parameters, and part identification codes when executing repairs based on the Gravely ZTX 52 blueprint.
| System / Component | OEM Part Number | Technical Specification / Torque Limit |
|---|---|---|
| Spindle Assembly | 51528000 / 03839000 | Mounting Bolts: 25–35 ft-lbs (34–47 Nm) |
| Mower Cutting Blades (3 required) | 00450300 / 03882000 | Blade Bolt: 115–130 ft-lbs (156–176 Nm) |
| 52″ Deck Drive Belt | 07200718 | V-Belt, Heavy-Duty Aramid Cord |
| Hydrostatic Transmission Belt | 07200508 | Raw-Edge V-Belt Construction |
| Electric Clutch (PTO) | 04803300 | Retaining Bolt: 50–55 ft-lbs (68–75 Nm); Air Gap: 0.012″–0.015″ |
| Hydro-Gear ZT-2200 (Left/Right) | 04780100 / 04780000 | Transaxle Mounts: 30–35 ft-lbs (40–47 Nm); 20W-50 Engine Oil |
| Rear Wheel Lug Nuts | 06500002 | Torque: 60–70 ft-lbs (81–95 Nm) |
How to Interpret the Gravely ZTX 52 Schematic and Layout Blueprint
Technical schematics use standardized industrial drawing rules. Mastering the indexing logic, component relationships, and harness paths shown in the technical drawings prevents costly installation errors during teardowns or rebuilds.
Deciphering Line Types, Explosive Indexes, and Callout Balloons
In a typical exploded parts drawing, individual hardware pieces are projected outward along phantom centerline vectors showing their precise assembly sequence. Numbered callout balloons reference the corresponding item index table detailing description, quantity per unit, and OEM reference numbers.
Fasteners with internal lock washers or specialized hardware arrangements—such as Belleville spring washers under mower blade head bolts—are oriented specifically on the vector line. On the Gravely ZTX 52 blade bolt assembly, the concave cupped side of the Belleville washer must face toward the blade metal surface. Reversing this washer causes rapid loosening under blade shock loads. For complementary mechanical procedures, review our guide on Kawasaki FR series engine schematics to verify upper flywheel and crankcase hardware configurations.
Tracing Belt Routing Schematics and Hydrostatic Linkages
The drive pulley layout features two distinct mechanical belt loops. The deck belt configuration forms an extended continuous serpentine path across six total pulley points: three spindle drive pulleys, two stationary back-side flat idlers, and one mechanical spring tensioner idler.
When replacing the deck belt (P/N 07200718), route the V-side of the belt into the deep grooves of the outer left, center, and outer right spindle pulleys. Position the flat backside of the belt against the two smooth idler pulleys. Verify that the spring anchor arm moves freely without binding against the deck anchor pin.
The lower hydro drive belt layout routes vertically from the stacked engine crankshaft pulley down to the dual input sheaves on the ZT-2200 transaxles. Tension is maintained via a sub-frame mounted mechanical tensioning arm. Ensure the hydro bypass release valves (located at the rear inner frame rail) are fully engaged forward before installing or adjusting steering linkage neutral settings.
Navigating the Electrical Schematic and Wiring Harness Layout
The Gravely ZTX 52 electrical system uses standardized wire insulation colors to define system functions across safety interlocks and power delivery paths:
- Red (12V B+ Constant): Battery positive cable running to the starter solenoid main post and 20A main system fuse.
- Violet (PTO Clutch Engagement): Switched 12V supply leading directly from the dash-mounted PTO switch to the Warner electromagnetic clutch coil connector.
- Yellow / White (Interlock Logic Loop): Safety sensing circuit wiring routed in series through the operator seat switch, parking brake microswitch, and control lever switches.
- Blue (Ignition Run / Solenoid Trigger): Switched key switch output supplying current to the engine starter solenoid coil and anti-afterfire fuel shutoff solenoid.
- Black (Ground / B- Return): Main chassis ground connections terminating at the engine block ground stud and battery negative terminal.
Mechanics performing electrical trace procedures can consult our detailed analysis on zero-turn mower electrical wiring diagrams to isolate safety module bypass steps and continuous loop testing methods.
Diagnostic Troubleshooting Using the Gravely ZTX 52 Parts Diagram
Integrating mechanical diagnosis with exploded parts schematics allows technicians to quickly pinpoint root-cause component failures, mechanical wear patterns, and electrical interlock faults.
Deck Vibration, Uneven Cut Patterns, and Belt Throwing
Severe deck vibration or irregular turf cutting is commonly traced back to damaged spindle assemblies or distorted deck shell alignment:
- Spindle Shaft Deflection: Remove blades and check lower spindle shaft runout using a dial indicator. Shaft runout exceeding 0.005 inches requires complete spindle replacement (OEM P/N 51528000).
- Bearing Degradation: Spin spindle pulleys manually. Roughness or axial play indicates internal bearing fatigue. Replace housing assembly or rebuild internal deep-groove ball bearings.
- Belt Misalignment / Tension Failure: If the deck belt rolls off the pulleys during PTO engagement, inspect the tensioner arm pivot bushing (OEM P/N 05500936). A worn bushing cocks the tensioner pulley out of vertical plane alignment, throwing the belt off the guide paths under load.
Hydrostatic Drive Tracking Drift and Transaxle Power Loss
When a ZTX 52 pulls to one side during straight travel, or experiences complete hydraulic drive failure on one wheel assembly, consult the hydro linkage and drive system diagram:
- Tracking Adjustments: Adjust the eccentric stop bolts on the steering control arm frame brackets. Ensure both dampener rod ball joints (OEM P/N 03943800) are securely torqued without excessive play.
- Bypass Lever Position: Confirm the transaxle dump valves are pushed fully inward into the drive position. A partially opened bypass valve allows fluid to recirculate, causing drive slippage and excessive thermal buildup.
- Hydro Air Entrainment: If transaxles are noisy or sluggish after belt changes, purge air by raising drive wheels off the ground, opening bypass valves, cycling steering levers forward and reverse 6 times, closing bypass valves, and repeating under power. Specialized maintenance procedures are detailed in our Hydro-Gear transaxle service guides.
Never perform transaxle purging or mechanical tracking adjustments while the mower is supported solely by hydraulic jacks. Always position heavy-duty 2-ton rated jack stands beneath the main rear tubular frame rails before running the drive system.
Electrical Interlock Faults and PTO Clutch Non-Engagement
If the engine cranks but will not start, or if the electric deck PTO clutch fails to pull in when the dash switch is pulled, trace the safety logic loop:
- PTO Air Gap Measurement: Measure the clearance between the armature and magnet face on the Warner electric clutch using a feeler gauge inserted through the three slot windows. Standard air gap must measure between 0.012 and 0.015 inches. Adjust the three spring-loaded locknuts evenly to re-establish specification.
- Coil Resistance Diagnostics: Disconnect the clutch harness connector. Set a digital multimeter to Ohms. Measure resistance across the two clutch terminal pins. A normal coil reads between 2.4 and 3.4 Ohms. A reading of 0 Ohms indicates a shorted coil, while infinite resistance indicates an open internal winding.
- Safety Switch Continuity: Test individual switch contacts using a multimeter continuity setting. The seat switch must toggle continuity across terminals when depressed. Control levers must firmly depress their microswitches in the outward neutral position to complete the starter solenoid trigger circuit.
Gravely ZTX 52 Mower System and Parts Configuration FAQ
How do I identify the exact model year and serial number for ordering parts on my Gravely ZTX 52?
The official model and serial number decal on the Gravely ZTX 52 is located on the main frame tube beneath the operator seat pan or near the rear engine guard. Gravely ZTX 52 models typically carry a 6-digit product number starting with “915” (e.g., 915231, 915261). Always reference the exact 915-prefix model number when consulting parts manuals, as minor hardware variations exist across different production years.
What is the correct belt routing and replacement part number for the 52-inch deck?
The Gravely ZTX 52 deck belt uses OEM part number 07200718 (aramid cord reinforced). The belt routes from the electric PTO clutch pulley at the rear, forward around the spring-loaded idler pulley, wrapping around the left spindle pulley, passing across the smooth back-side center idler, driving the center spindle pulley, and wrapping around the right outer spindle pulley. Ensure the standard V-shaped profile sits down inside all spindle pulley grooves.
What are the electrical PTO clutch specifications and air gap settings on the Gravely ZTX 52 blueprint?
The electric clutch (OEM P/N 04803300) operates on standard 12-volt DC supply with a coil resistance range of 2.4 to 3.4 Ohms. Current draw is approximately 4.0 to 5.0 Amps during operation. Mechanical clearance between the clutch armature and rotor must be maintained between 0.012 inches (0.30 mm) and 0.015 inches (0.38 mm). Tighten the mounting bolt at the crankshaft tail to 50–55 ft-lbs (68–75 Nm) using medium-strength thread locker.
How do I purge air from the Hydro-Gear EZT transaxles after replacing fluid or drive belts?
To purge air from the Hydro-Gear ZT-2200 units, elevate the rear tires off the ground using jack stands. Disengage the transaxles by pulling both bypass control levers at the rear frame. Start the engine, release the parking brake, and cycle both control levers smoothly from full forward to full reverse 6 to 8 times. Stop the engine, push the bypass levers back into the run position, restart the engine, and repeat the lever cycling process until transaxle operation is smooth and whisper-quiet.
Where are the safety interlock switch harness connections located on the frame diagram?
The safety interlock system contains four main switch positions: the seat safety switch located directly underneath the seat cushion spring plate, two neutral-sense switches mounted inside the upper control lever housing columns beneath the console panels, and the parking brake interlock switch located adjacent to the brake engagement shaft assembly beneath the left frame rail.
Step-by-Step Guide to Understanding the Gravely Ztx 52 Parts Diagram
Identify – Locate the frame serial number tag beneath the seat to confirm exact model variant.
Locate – Find the specific component layout on the diagram, such as the 52-inch deck assembly.
Reference – Match callout item numbers from the exploded schematic to the OEM parts list table.
Connect/Route – Route belts, wire harnesses, or control linkages strictly following the diagram paths.
Torque – Tighten all spindle bolts and deck hardware to factory torque specifications.
Verify – Inspect full system motion and run diagnostic checks before operating the zero-turn mower.
