Hayward Pool Sand Filter Parts Diagram: 2026 Guide
A pool sand filter system configuration includes a multiport valve, internal standpipe, lateral assembly with 8 to 10 slotted fingers, pressure gauge, and drain plug. Water enters through the top valve, filters downward through #20 silica sand, enters 0.25 mm lateral slots, and travels up the center pipe to return clean water.
📌 Key Takeaways
- Uses standard #20 silica sand (0.45–0.55 mm grain size) filled to approximately 2/3 tank capacity.
- The multiport valve (MPV) controls six system operational modes via an internal spider gasket.
- Never remove the valve clamp without fully bleeding tank pressure below 0 PSI via the air relief valve.
- Cracked lateral fingers or damaged standpipe O-rings are the leading cause of sand entering the pool.
- DIY-friendly for O-ring and lateral replacement; seek a professional if the tank shell cracks or structural integrity fails.
Commercial and residential pool sand filtration systems rely on precise hydraulic distribution and mechanical containment to remove particulate down to 20–40 microns. Operating under internal working pressures ranging from 15 to 30 PSI, these pressurized vessels utilize a specific spatial alignment of internal laterals, standpipes, and multiport valve diverters. Understanding the structural layout through a pool sand filter parts diagram is essential for performing accurate diagnostic overhauls, media reloads, and component replacements. According to OEM engineering specifications, misaligning internal plumbing during maintenance can compromise hydraulic seals, leading to media bypass, structural cracking, or complete pressure vessel failure.

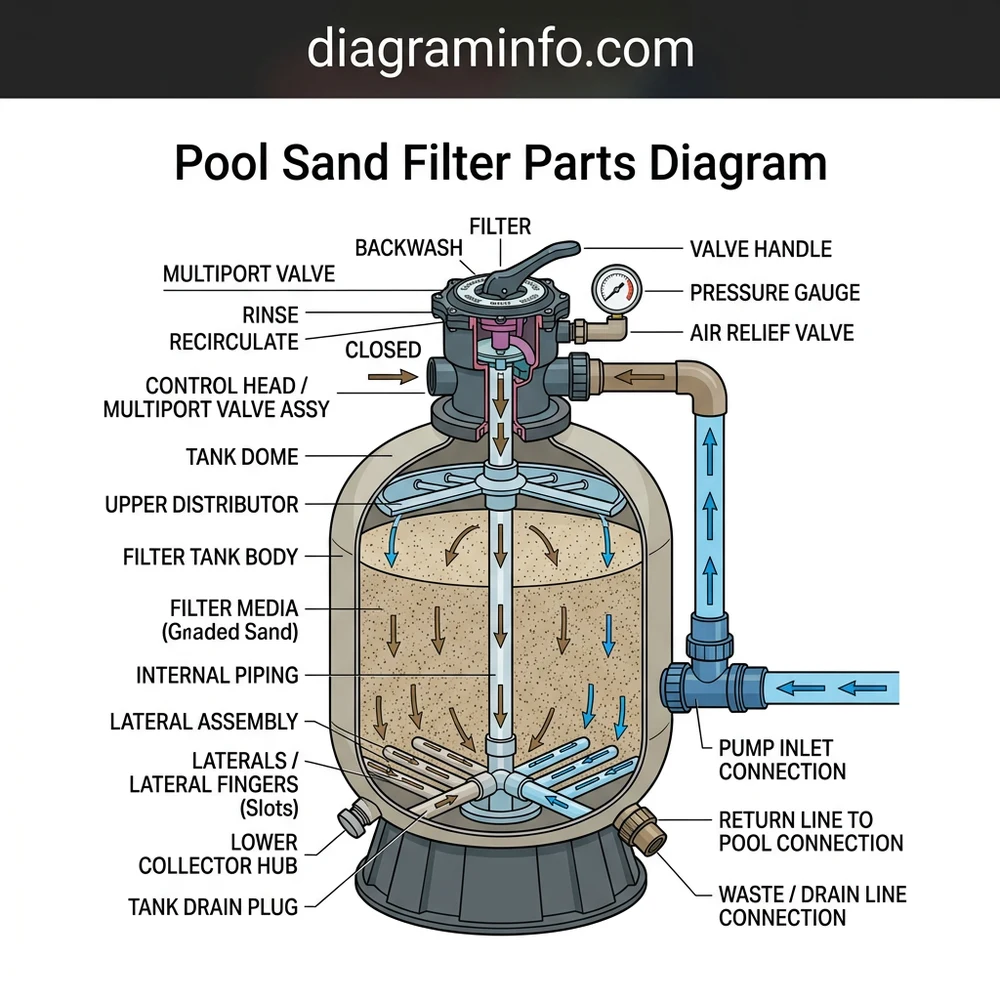

Pool Sand Filter Parts Diagram: Core Component Breakdown
A sand filtration unit consists of two distinct assemblies: the external flow-control distribution head and the internal pressure vessel plumbing. According to manufacturer schematics, fluid dynamics depend on a balanced relationship between flow rate (measured in GPM) and media surface area. The primary components visible on an exploded pool sand filter parts diagram include:
- Multiport Valve (MPV) Assembly: Controls flow direction using a six-position rotor plate, spider gasket, spring-loaded diverter stem, and sight glass. It mounts either top-side via a clamp ring or side-mounted via dual bulkhead unions.
- Filter Tank Vessel: Formed from blow-molded high-density polyethylene (HDPE) or filament-wound fiberglass reinforced plastic (FRP). Designed to maintain structural integrity up to 50 PSI max hydrostatic burst limits.
- Center Standpipe: A rigid Schedule 80 PVC vertical conduit that connects the bottom hub assembly to the top multiport valve intake port.
- Lateral Hub & Assembly: Positioned at the base of the tank, this radial manifold holds 6 to 10 slotted lateral fingers. Each finger features micro-slots measuring 0.25 mm (0.010 inches) to retain sand media while allowing filtered water passage.
- Drain Assembly: Located at the absolute bottom of the tank shell, containing a coarse screen cap, threaded 1/2-inch or 1.5-inch NPT plug, and an EPDM sealing gasket for winterization and media removal.
| Component Name | Material & Specification | Torque / Tolerance Spec |
|---|---|---|
| Multiport Valve Clamp Flange | Stainless Steel / Reinforced ABS | 60 – 80 in-lbs (Hand-tight + 1.5 turns) |
| Lateral Fingers (Slotted) | Polypropylene (0.25mm slot width) | Hand-tight into hub (15-20 in-lbs max) |
| Tank Drain Plug Assembly | ABS / Schedule 80 PVC with EPDM O-Ring | 20 – 30 in-lbs (Do not over-torque) |
| Pressure Gauge Connection | 1/4″ NPT Brass or Stainless Steel | 2-3 wraps PTFE tape; 35 in-lbs |
Analyzing the System Layout and Filter Assembly Schematic
When executing maintenance or rebuilding a filter stack, mechanics must follow the specific installation sequence indicated in the equipment blueprint. Improper assembly sequence is the leading cause of internal lateral cracking during media backfilling.
Begin by inspecting the lower lateral assembly outside the tank shell. Thread each individual lateral into the center manifold hub until snug. Do not over-torque plastic threads, as cross-threading damages the internal sealing seat. If working with a fold-up umbrella lateral hub, collapse the lateral fingers upward into their vertical transport position before lowering the assembly through the top tank opening.
Standard media loading requires #20 Silica Sand with an effective grain size of 0.45 mm to 0.55 mm and a uniformity coefficient below 1.5. Always leave a freeboard distance of 10 to 12 inches between the top surface of the media bed and the top rim of the tank vessel to allow for bed expansion during backwash mode.
Once the lateral assembly rests squarely in the bottom positioning recess, fill the tank one-third full with water. This water cushion absorbs the impact of falling aggregate when loading media. Cover the top opening of the vertical standpipe with a pipe cap or plastic tape to prevent media from entering the center channel. Carefully pour the required weight of sand media into the tank body.
After media loading, remove the standpipe seal cap. Inspect the upper rim of the tank opening for grit, wash thoroughly, and apply a thin film of non-petroleum silicone lubricant to the main flange tank O-ring. Seat the multiport valve onto the standpipe, ensuring the internal pipe O-ring slides smoothly over the PVC shaft without pinching. Secure the flange split-clamp assembly uniformly, alternating between the left and right bolt nuts until the proper clamp gap is established. For systems experiencing pressure drop anomalies downstream, inspect pool pump mechanical seals to confirm primary hydraulic primed pressure is stable.
Never start the pump system without opening the manual air relief valve on top of the multiport valve head. Air trapped inside a sealed 30 PSI vessel compresses violently and can cause explosive housing separation upon pump start-up.
Diagnosing Failures Using the Pool Sand Filter Blueprint
System failures in sand filters manifest in three primary mechanical modes: physical media bypass into the pool structure, elevated vessel operating pressure (Delta-P), and fluid bypass through the waste port. Utilizing the schematic layout allows for methodical isolation of structural defects.
If sand media bypasses the filter and accumulates at pool floor return jets, the failure lies at the bottom of the internal plumbing assembly. Inspect the schematic for three points of failure: a cracked lateral finger micro-slot, a fractured bottom hub casting, or a dislodged standpipe alignment seat at the valve connection. Replace damaged components using exact OEM parts, ensuring thread pitch matches the center hub housing.
A baseline clean operating pressure is established immediately following a thorough 3-to-5 minute backwash cycle. Mark this reading on the pressure gauge dial bezel. When operating pressure rises 8 to 10 PSI above this baseline, the sand bed has accumulated critical particulate load and requires backwashing.
If operating pressure remains elevated immediately following a backwash cycle, the media bed has become calcified from high total dissolved solids (TDS) or channelized by scale deposits. The filter vessel must be drained, the media dumped, and internal laterals manually inspected for mud-balling or structural clogging. When rebuilding the valve manifold or addressing internal bypass leakages, installing multi-port valve rebuild kits restores proper diverter seating geometry, while evaluating backwash line plumbing configurations ensures minimal hydraulic backpressure during rinse cycles.
Pool Sand Filter System Structure and Parts FAQ
How often should internal laterals be replaced according to the system diagram?
Under normal operational cycles, lateral assemblies last between 5 to 8 years. However, structural degradation occurs faster in high-sanitizer or low-pH chemical environments. Laterals should be completely replaced whenever sand media is changed, as aggregate removal places severe torsional stress on aged, brittle polypropylene plastic.
What causes the multiport valve spider gasket to blow out?
Spider gasket failure occurs when the valve handle is rotated while the circulation pump is actively running. Pressurized water forces the neoprene or EPDM gasket legs out of their molded valve body grooves. Always shut off power to the main pump before changing valve position settings on the diverter head.
What is the correct sand grain specification for standard filter configurations?
Standard commercial sand filters require strict #20 Grade Silica Sand (0.45 mm to 0.55 mm diameter). Using finer sand (such as play sand or masonry aggregate) causes immediate media blowthrough into the pool via the 0.25 mm lateral slots, while coarser gravel reduces filtration efficiency and causes premature media channelization.
How do you diagnose a cracked internal standpipe on the schematic?
A cracked center standpipe allows dirty, unfiltered water and raw sand media to enter the clear water return line bypass channel. If sand enters the pool exclusively during initial startup or under high hydraulic pump surge conditions, inspect the upper 3 inches of the vertical standpipe where it slips into the bottom socket of the multiport valve.
What torque specification should be applied to top flange clamp bands?
Top flange split clamps should be tightened evenly to 60–80 in-lbs of torque. Ensure the metal clamp gap is symmetrical on both sides of the vessel shoulder. Over-tightening deforms the flange plastic rim, leading to continuous high-pressure water leaks past the main tank body O-ring seal.
Step-by-Step Guide to Understanding the Pool Sand Filter Parts Diagram
Identify – Inspect the pool sand filter parts diagram to locate all major structural components and seal locations.
Locate – Position the multiport valve, clamp assembly, pressure gauge, sight glass, and lower drain assembly on the filter tank.
Reference – Review the internal diagram layout to understand how the standpipe and lateral hub seat inside the tank bottom.
Connect/Route – Align the central standpipe into the lateral hub, lower into position, and secure plumbing connections to the multiport valve.
Verify – Pressurize the filter system, inspect all O-rings and clamps for leaks, and verify proper operating pressure on the gauge.
Troubleshoot – Consult the diagnostic section of the diagram if sand enters the pool or water leaks around the valve clamp.
