4L60E Manual Shift Wiring Diagram: Connection Mapping 2026
A 4L60E manual shift wiring diagram bypasses the PCM by routing 12V hot wire power to the transmission harness. Switched ground wire paths trigger shift solenoids A (Pin A, Light Green) and B (Pin B, Yellow/Black) to force gear states: 1st (A+B ON), 2nd (B ON), 3rd (NONE), and 4th (A ON).
📌 Key Takeaways
- Shift Solenoid A uses Pin A (Light Green wire color code) and Shift Solenoid B uses Pin B (Yellow/Black wire code).
- Full manual conversion requires a fused 12V hot wire ignition source connected to Pin E (Pink wire).
- Gear states rely on solenoid energization: 1st Gear requires both Solenoids A and B grounded simultaneously.
- Incorrect ground wire grounding or bypassing the neutral wire safety switch will cause limp mode or unsafe starting.
- Always verify 12V to 14.2V operating voltage at transmission harness Pin E before troubleshooting shift switches.
Executing a manual shift conversion on a GM 4L60E electronic four-speed automatic transmission requires bypassing or re-configuring the factory Powertrain Control Module (PCM) or Transmission Control Module (TCM). Whether installing an aftermarket standalone manual control module, an off-road toggle box, or a custom microswitch shifter, utilizing an accurate 4L60E manual shift wiring diagram is critical to ensure precise solenoid energization, correct system line pressure, and reliable torque converter lockup. This technical guide outlines the complete harness pinouts, wire color codes, terminal identification, and step-by-step connection sequences necessary to convert 1993-and-newer 4L60E, 4L65E, and 4L70E transmissions to manual shift control without damaging internal electronic solenoids.

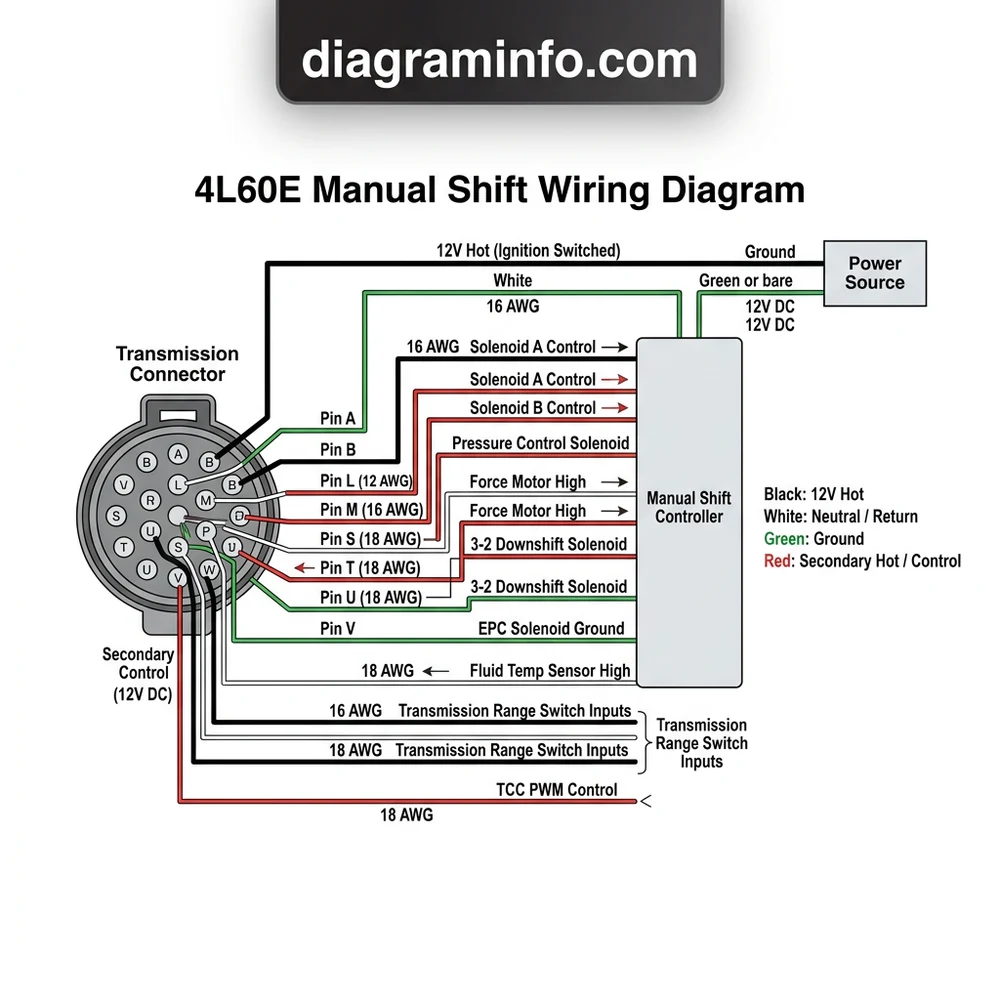

Decoding the 4L60E Manual Shift Wiring Diagram Pinouts and Color Codes
The standard GM 4L60E transmission utilizes a 12-pin or 13-pin main pass-through connector located on the passenger side of the transmission case above the pan rail. To manually control shift execution, you must manipulate the grounding state of Shift Solenoid A (1-2) and Shift Solenoid B (2-3) while maintaining a steady fused ignition hot wire supply to the common positive rail. OEM harness wire colors remained relatively consistent between 1993 and 2008, though verifying pin assignment location at the round main terminal block is vital due to minor pinout variations across model years.
| Pin Assignment | Wire Color Code | Circuit Function | Gauge & Specs |
|---|---|---|---|
| Pin A | Light Green | Shift Solenoid “A” (1-2) Ground Control | 18 AWG TXL / Switch-to-Ground |
| Pin B | Yellow / Black | Shift Solenoid “B” (2-3) Ground Control | 18 AWG TXL / Switch-to-Ground |
| Pin C | White | 3-2 Control Solenoid (PWM) | 18 AWG TXL / Bypass in manual setups |
| Pin D | Red / Black | Pressure Control Solenoid (PCS) High | 16 AWG / Force Motor Control |
| Pin E | Pink | Switched Hot Wire (+12V Solenoid Power) | 16 AWG / 15A Fused Ignition Feed |
| Pin F | Dark Blue / White | Pressure Control Solenoid (PCS) Low | 16 AWG / Force Motor Low Return |
| Pin K | Orange / Black | Internal Mode Switch (IMS) Signal | 18 AWG / Transmission Range Signal |
| Pin L | Blue | Transmission Fluid Temp (TFT) Sensor | 18 AWG / Temperature Signal |
| Pin M | Black / White | TFT Sensor Ground Wire | 18 AWG / Sensor Signal Ground |
| Pin N | Pink / Blue | Pressure Switch Manifold Bit A | 18 AWG / Logic Feedback |
| Pin P | Dark Yellow | Pressure Switch Manifold Bit B | 18 AWG / Logic Feedback |
| Pin R | Dark Green | Pressure Switch Manifold Bit C | 18 AWG / Logic Feedback |
| Pin T | Tan / Black | TCC PWM Solenoid Ground Control | 18 AWG / Torque Converter Lockup |
| Pin U | Brown | TCC On/Off Solenoid Ground Control | 18 AWG / Lockup Control (1993–1995) |
When wiring a standalone manual shift box, only a subset of these pins are actively driven. Shift Solenoids A and B operate on a binary ground-truth matrix. Grounding or opening the ground paths for Pin A and Pin B dictates the mechanical gear ratio engaged inside the transmission valve body:
- 1st Gear: Shift Solenoid A = GROUNDED (ON) | Shift Solenoid B = GROUNDED (ON)
- 2nd Gear: Shift Solenoid A = OPEN (OFF) | Shift Solenoid B = GROUNDED (ON)
- 3rd Gear: Shift Solenoid A = OPEN (OFF) | Shift Solenoid B = OPEN (OFF)
- 4th Gear (Overdrive): Shift Solenoid A = GROUNDED (ON) | Shift Solenoid B = OPEN (OFF)
Factory 4L60E Shift Solenoid Coil Resistance: 20 to 30 Ohms measured across Pin E (+12V feed) and Pin A or Pin B at 70°F (21°C). Pressure Control Solenoid resistance must measure between 3.5 and 4.6 Ohms across Pin D and Pin F. Wire gauge for switched ground lines should be minimum 18 AWG TXL automotive wire, while the main hot wire on Pin E requires 16 AWG wire protected by a 15-amp fuse.
Electrical Principles in a 4L60E Manual Shift Harness Setup
Operating a 4L60E without transmission computer feedback introduces key electrical considerations regarding line pressure regulation and inductive solenoid switching. In standard factory applications, the PCM modulates system line pressure between 60 PSI (idle/coasting) and 210 PSI (heavy throttle) via pulse-width modulation (PWM) on the Pressure Control Solenoid (Pins D and F). When building a full manual setup without electronic pulse management, leaving the PCS disconnected causes line pressure to default to maximum (full mechanical line pressure). While maximum pressure prevents clutch slippage under load, it creates extremely firm gear engagement at low speeds.
To moderate line pressure without a computer, builders often install an adjustable vacuum modulator kit (replacing the internal PCS mechanically) or introduce an inline rheostat/PWM driver box across Pins D and F to lower DC current. Reducing current across the PCS increases line pressure, whereas supplying higher current (up to 1.1 Amps) lowers hydraulic pressure.
For specialized off-road, drag racing, or heavy towing builds, cross-referencing this guide with standard 4L80E manual shift wiring diagrams can help clarify line pressure control modifications, as both GM transmission families share similar force motor logic and solenoid resistance thresholds.
Additionally, torque converter lockup (TCC) must be independently controlled. Pin T (Tan/Black) grounds the TCC solenoid coil. Grounding Pin T while in 3rd or 4th gear locks the converter clutch. However, failing to break the TCC ground circuit when coming to a stop will stall the engine. Integrating a brake pedal switch into the TCC ground circuit automatically releases the torque converter lockup whenever the brake pedal is depressed, maintaining street driveability.
How to Wire a 4L60E Manual Shift Wiring Diagram Configuration Step-by-Step
Follow this systematic connection guide to fabricate or wire a manual shift harness using a multi-position switch assembly or terminal block junction.
Step 1: Mount the Main Terminal Block and Prepare the Wiring Harness
Install a 6-pole or 8-pole automotive terminal block inside the vehicle cabin near the shifter assembly. Strip back 6 inches of the outer protective loom from the 4L60E transmission connector harness. Isolate the key conductors: Pin E (Pink hot wire), Pin A (Light Green Solenoid A ground), Pin B (Yellow/Black Solenoid B ground), and Pin T (Tan/Black TCC ground). Seal off unused wires (Pins C, K, L, M, N, P, R) with heat-shrink tubing to prevent accidental chassis grounding.
Step 2: Connect the Main Fused Hot Wire Power Supply
Run a dedicated 16 AWG pink ignition hot wire from a switched +12V power source on the vehicle fuse panel to the terminal block input side for Pin E. Install an inline 15A fuse near the power source. Connect the outgoing side of this terminal block port directly to Pin E on the transmission connector plug. Verify operating voltage across Pin E and chassis ground with key-on engine-off; voltage must read between 12.2V and 12.8V DC.
Step 3: Wire the Shift Solenoid Ground Triggers
Route Pin A (Light Green) and Pin B (Yellow/Black) from the transmission plug to separate positions on the terminal block. Connect the output sides of these terminals to your manual shifter microswitches, rotary gear selector switch, or dual toggle switches. Ensure the switches control the path to chassis ground:
- Connect Switch 1 (Solenoid A control) between Pin A terminal and ground wire terminal block bus.
- Connect Switch 2 (Solenoid B control) between Pin B terminal and ground wire terminal block bus.
- Ensure the common ground wire leading from the terminal block is anchored securely to the vehicle body or engine block using 14 AWG wire with ring terminals, showing less than 0.2 Ohms of resistance to the battery negative post.
Inductive Solenoid Flyback Voltage: Always install 1N4007 flyback suppression diodes across microswitch contact terminals or relay coils controlling Pin A and Pin B. Unsuppressed back-EMF spikes reaching 100V+ during solenoid collapse can rapidly pit microswitch contacts, weld switch poles, or damage digital manual controllers.
Step 4: Wire the Torque Converter Clutch Lockup Circuit and Brake Intercept
Connect Pin T (Tan/Black) to the terminal block. Route the control side through a normally closed (NC) brake pedal switch. Route the remaining side of the brake switch to a momentary or toggle switch on your shifter console before terminating to chassis ground. When the console switch is ON and the brake pedal is released, the circuit completes to ground, applying the lockup clutch. Pressing the brake pedal opens the circuit, immediately releasing the TCC clutch.
Step 5: Connect Park/Neutral Safety Switch Wiring
To ensure engine starting occurs only in Park or Neutral, locate the external Transmission Range Switch (Neutral Safety Switch) mounted on the driver-side shift selector shaft. Extend the two thick 14 AWG starter relay signal wires (typically Purple and Dark Green on standard GM steering column circuits) to the terminal block. Attach them to the primary contacts of the range switch. Test continuity using a digital multimeter: continuity must exist strictly when the mechanical shifter lever sits in Park or Neutral positions.
Troubleshooting Failures in 4L60E Manual Shift Wiring Diagrams and Harnesses
Improper connection sequences or wiring defects in a manualized 4L60E harness result in specific operational errors. Review these common fault conditions, symptoms, and targeted technical fixes:
1. Transmission Stuck in 2nd Gear Limp-Mode (No Solenoid Power)
- Cause: Loss of +12V switched hot wire voltage to Pin E or a blown inline fuse.
- Symptom: Transmission remains mechanically locked in 2nd gear regardless of manual switch positions because both shift solenoids remain de-energized (OFF state = 3rd gear mechanically, but manual valve lever forces 2nd).
- Fix: Probe Pin E at the transmission connector using a multimeter set to DC Volts. If voltage reads 0V, verify the 15A inline fuse, ignition switch relay, and terminal block connections. Check for internal harness short circuits to ground.
2. Reversed Gear Shift Sequence (1st Gear Acts Like 4th Gear)
- Cause: Transposed pin assignment between Pin A (Light Green) and Pin B (Yellow/Black) at the terminal block or microswitch connection.
- Symptom: Selecting 1st gear engages 4th gear, or selecting 2nd gear engages 3rd gear due to inverted solenoid ground states.
- Fix: Swap the connections for Pin A and Pin B at your terminal block junction. Re-verify truth table states using an inline LED indicator kit (LED lit = Solenoid Grounded/ON).
3. Harsh Clunking on All Gear Shifts and Excessively High Line Pressure
- Cause: Disconnected or ungrounded Pressure Control Solenoid (Pins D and F left completely open without mechanical pressure modification).
- Symptom: Transmission shifts extremely hard even at low throttle angles, causing premature wear on drive-line U-joints and transmission mounts.
- Fix: Install an aftermarket vacuum modulator kit to mechanically modulate pressure based on engine vacuum, or wire an adjustable manual force motor driver across Pins D and F to adjust baseline hydraulic pressure. Understanding GM transmission line pressure tuning fundamentals helps achieve smooth shift timing without risking clutch band slippage.
4. Engine Stalls Instantly When Coming to a Stop in 3rd or 4th Gear
- Cause: Torque Converter Clutch (Pin T) wired directly to ground without an inline brake pedal disconnect switch or console master switch.
- Symptom: Torque converter remains fully locked as vehicle speed drops, forcing the engine RPM to zero as the vehicle stops.
- Fix: Re-wire Pin T through a normally closed brake light switch circuit and install an illuminated master switch on the dash so lockup can be manually disengaged or automatically overridden during braking. Refer to standard automotive relay wiring fundamentals to construct a latching lockup control circuit.
4L60E Manual Shift Wiring Diagram Technical Questions and Solutions
What wire gauge should be used when extending 4L60E manual shift harness connections?
Always use minimum 18 AWG TXL or GXL cross-linked polyethylene automotive wire for solenoid ground control lines (Pins A, B, and T). The switched hot wire supply feeding Pin E must use 16 AWG wire to handle the combined current draw of multiple energized solenoid coils. For main starter relay bypass lines on the external neutral safety switch, use 14 AWG wire to prevent excessive voltage drops during cranking.
Can I manually shift a 4L60E without using any external electrical wiring?
No. While moving the mechanical shift lever moves the internal manual valve inside the valve body, the transmission cannot achieve 1st, 2nd, or 4th gears without active electrical ground signals sent to Shift Solenoid A and Shift Solenoid B. Unplugged entirely, moving the mechanical shifter to D3 results in 3rd gear only, moving to D2 results in 2nd gear limp mode, and moving to D1 yields 2nd gear mechanically without proper electronic solenoid energization.
What is the correct solenoid logic combination for 3rd gear in a manualized 4L60E?
3rd gear requires both Shift Solenoid A and Shift Solenoid B to be in the OFF (de-energized/open-circuit) state. In this configuration, neither Pin A nor Pin B is connected to ground. The hydraulic fluid flow redirected by the mechanical manual valve inside the valve body accomplishes the 1:1 drive ratio without active electronic solenoid hold down.
Why is diode suppression recommended across manual shift switch terminals?
Shift Solenoid A and B are inductive coils. When power or ground is suddenly removed from an energized solenoid coil, the collapsing magnetic field generates a reverse voltage spike (back-EMF) that can reach over 100 volts DC. Installing 1N4007 diodes across the switch contacts absorbs this flyback spike, protecting microswitches, push buttons, or digital gear indicators from premature contact arc-burning.
How do I wire a toggle switch box to manually lock the torque converter clutch?
To wire a manual torque converter clutch lockup switch, route a 18 AWG wire from Pin T (Tan/Black) on the transmission harness through a normally closed brake pedal switch, then to one side of a SPST (Single Pole Single Throw) toggle switch. Connect the opposite side of the toggle switch directly to a clean chassis ground. Flipping the toggle switch ON grounds Pin T and locks the torque converter, while pressing the brake pedal automatically breaks the ground circuit to unlock the converter.
4l60e Manual Shift Wiring Diagram: Frequently Asked Questions
What wire color is shift solenoid on 4l60e manual shift wiring diagram?
On the standard 4L60E 13-pin harness, Shift Solenoid A uses a Light Green wire color code at Pin A, while Shift Solenoid B uses a Yellow/Black wire color code at Pin B. Solenoid power is supplied via a Pink 12V hot wire at Pin E.
What do the pin numbers mean on 4l60e manual shift wiring diagram?
Pin numbers on the 4L60E connector designate key functions: Pin A and B control shift solenoids, Pin E delivers 12V ignition power, Pin T handles TCC lockup solenoid, Pin U is TCC PWM, and Pins M and N handle pressure control.
How many wires does 4l60e manual shift wiring diagram have?
A stand-alone manual shift wiring setup typically uses 4 to 6 core wires from the 13-pin main transmission connector, plus a neutral wire for the safety switch: Pin E for 12V hot wire power, Pin A for Solenoid A ground, and Pin B for Solenoid B.
What are common wiring mistakes with 4l60e manual shift wiring diagram?
Common mistakes include failing to ground solenoids properly, swapping Shift Solenoid A and B pin assignments, omitting a relay/brake switch interrupt for the TCC lockup circuit, and running undersized power leads without proper 10-amp inline fuses.
Do I need a brake switch for 4l60e manual shift wiring diagram?
Yes, integrating a brake switch wire into the Torque Converter Clutch (TCC) lockup circuit is essential. It automatically disconnects 12V hot wire power to Pin T when depressing the brake pedal, preventing the engine from stalling upon stopping.
What gauge wire does 4l60e manual shift wiring diagram require?
Use 18 AWG copper wire for solenoid ground control switches and signal leads. The primary 12V hot wire power feed (Pin E) should use 16 AWG copper wire protected by a 10-amp inline fuse to handle total current draw safely.
