Honeywell 3-Way Valve Flow Diagram: 2026 Layout Guide
A 3-way valve flow diagram details fluid paths across ports A, B, and common port AB in mixing or diverting configurations. In mixing mode, two inlet flows (A and B) combine into one outlet (AB). In diverting mode, one inlet (AB) splits into two outlets (A and B) based on actuator stem position.
📌 Key Takeaways
- 3-way mixing valves feature two inlets (A, B) and one outlet (AB), operating with differential pressures under 15–30 PSI.
- Identify port markings embossed on the valve body: ‘A’ (normally closed), ‘B’ (normally open), and ‘AB’ (common supply/return).
- Ensure actuator supply voltage matches control signal specifications, typically 24VAC or 0–10VDC control loops.
- Most common failures stem from reverse plumbing orientation or mineral scale buildup sticking the internal paddle/ball.
- DIY replacement is feasible for threaded hydronic systems; call a professional for welded commercial or high-pressure steam setups.
A 3-way valve flow diagram serves as the foundational schematic for analyzing fluid distribution, thermal management, and hydraulic routing in modern automotive cooling loops, industrial HVAC systems, and heavy equipment power units. Understanding how fluid enters and exits these three distinct ports—whether operating in a mixing or diverting configuration—is critical for diagnosing thermal regulation anomalies, actuation failures, and hydraulic bypass conditions. According to OEM technical service manuals, incorrect interpretation of valve port layouts often leads to misdiagnosed cooling system faults and improper component replacement. This comprehensive technical guide details every architectural detail, wiring schematic, and operational flow path represented in standard 3-way valve documentation.
Deconstructing the 3-Way Valve Flow Diagram Component Layout
To accurately read a 3-way valve schematic, you must first identify the primary structural elements and mechanical interfaces represented in the blueprint layout. A standard 3-way control valve assembly consists of two major sub-assemblies: the lower hydraulic valve body and the upper motor/actuator module. In automotive heat-management modules and industrial fluid circuits, these components interact to dynamically direct fluid based on ECM pulse-width modulation (PWM) or analog control signals.
The core structural elements shown on an engineering blueprint include:
- Valve Body Housing: Cast brass, ductile iron, or reinforced thermoplastic housing designed to withstand operating pressures up to 250 PSI (17.2 bar) and fluid temperatures ranging from -40°F to 250°F (-40°C to 121°C).
- Internal Valve Plug / Spool: The internal moving element (rotor, globe plug, or linear spool) that shifts position to throttle or seal specific fluid ports. Sealing is maintained via high-durometer Viton or EPDM O-rings.
- Fluid Port Designations: The three connection points, universally labeled as Port A, Port B, and Common Port AB (or Port C on legacy hydraulic blueprints).
- Actuator Motor Assembly: Direct-coupled electric, pneumatic, or thermostatic drive unit. Electric actuators typically operate on 12V DC (automotive/equipment) or 24V AC/DC (industrial/HVAC) power supplies.
- Feedback & Limit Switches: Internal microswitches or Hall-effect sensors that transmit shaft position feedback to the system controller via dedicated signal leads.
Manufacturer specifications indicate that standard motorized 3-way control valves require a 0–10V DC or 4–20mA modulating control signal, with full-stroke rotation times ranging from 15 seconds to 90 seconds depending on fluid viscosity and valve seat diameter. Valve body housing bolts must be torqued to 18–22 lb-ft (24–30 Nm) during reassembly to prevent seal distortion.
The table below provides a reference map of standard terminal wiring, port flow functions, and electrical parameters found across typical 3-way valve schematics:
| Terminal / Wire Color | Schematic Designation | Electrical / Mechanical Specification | Operational Function |
|---|---|---|---|
| Red Wire | 24V / 12V Power | 12V DC nominal (11–14.5V) or 24V AC ±10% | Main power supply to actuator motor |
| Black Wire | System Common / Ground | 0V Reference line | Signal return and ground circuit path |
| White or Yellow Wire | Control Input Signal | 0–10V DC or 4–20mA PWM signal | Commands proportional actuator shaft angle |
| Blue / Orange Wires | Auxiliary End Switch | Dry contact rating: 3A @ 250V AC | Verifies full Port A or Port B closure state |
| Port AB / C | Common Fluid Interface | Continuous flow connection point | Main inlet (diverting) or main outlet (mixing) |
How to Read a 3-Way Valve Flow Diagram for Diverting and Mixing Systems
Interpreting a 3-way valve flow diagram correctly requires recognizing the system’s underlying hydraulic configuration. 3-way valves operate in one of two fundamental operational modes: mixing mode or diverting mode. Applying the wrong valve configuration in a system schematic results in hydraulic instability, water hammer, and thermal overshoot.
Differentiating Mixing vs. Diverting Blueprint Configurations

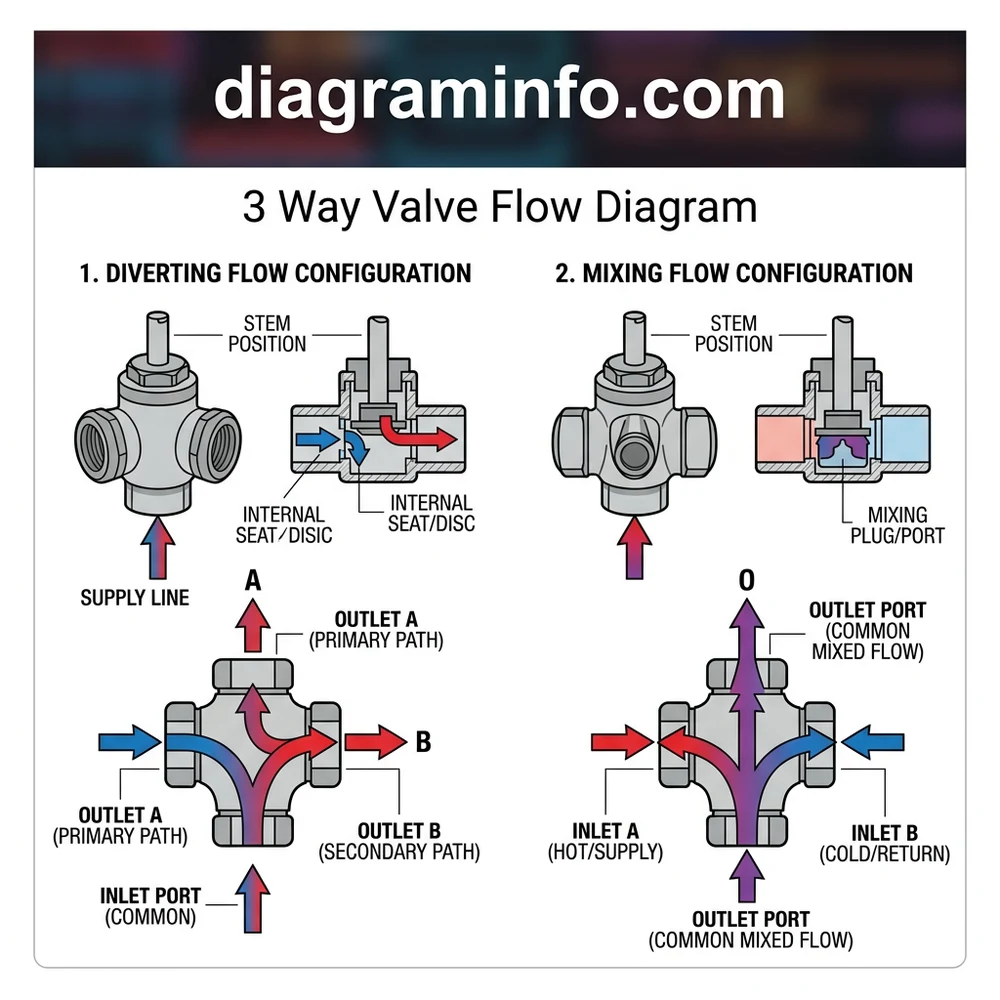

On an engineering schematic, a Mixing Configuration features two fluid inlets and one single combined fluid outlet. Fluid enters through Port A (e.g., hot coolant from the engine block) and Port B (e.g., cooled fluid returning from the radiator) and exits through Common Port AB to supply the pump or heating circuit. The internal plug modulates between Port A and Port B to regulate the discharge fluid temperature.
Conversely, a Diverting Configuration utilizes one fluid inlet and two selectable fluid outlets. Fluid enters through Common Port AB and is directed either through Port A (toward the primary heat exchanger) or Port B (through a bypass loop), depending on system demand. You can verify whether a schematic depicts a mixing or diverting setup by following the arrows marking fluid velocity vectors through the valve ports.
When referencing an engine coolant temperature sensor circuit in combination with a 3-way valve flow diagram, always verify whether the valve stem moves upward or downward upon power application. Normally Open (NO) paths on schematics designate the fail-safe flow route during complete power loss.
Tracing Fluid Paths Across Energized and De-Energized States
To trace fluid travel through the system step-by-step, follow this analytical procedure on the schematic layout:
- Locate the Fail-Safe (De-Energized) Position: Examine the internal spring or mechanical return symbol. In the unpowered state, the internal spring pushes the plug against Port A, sealing it completely and establishing a 100% flow pathway between Port B and Common Port AB (bypass mode).
- Apply Control Voltage: As the system controller outputs a 5V DC or 12V signal to the actuator input terminal, the motor drives the shaft against spring tension.
- Observe Intermediate Modulating States: At a 50% signal input (5V DC or 12mA control loop), the internal plug sits halfway between the valve seats. Fluid flows equally from Port A and Port B, blending into Common Port AB at a 1:1 ratio.
- Identify Full-Stroke (100% Energized) Conditions: At maximum control input (10V DC or 20mA), the motor fully extends the stem, pressing the plug down to seal Port B entirely. Fluid now flows exclusively from Port A to Common Port AB.
Cross-referencing the hydraulic flow paths with related electrical schematics—such as a hydraulic directional control valve schematic—allows technicians to quickly rule out external control module faults versus internal valve binding.
Troubleshooting System Faults Using the 3-Way Valve Schematic
When fluid temperatures fluctuate wildly or system pressure spikes unexpectedly, the 3-way valve flow diagram acts as a logical diagnostic roadmap. Electrical, mechanical, and hydraulic failures each produce specific symptoms that can be isolated by measuring parameters across the valve’s connection points.
Never attempt to dismount or service an energized motorized 3-way valve in high-temperature fluid circuits. Coolant temperatures exceeding 200°F (93°C) under system pressure present severe burn hazards. Always depressurize the system and isolate power sources before disassembly.
Diagnosing Internal Bypass and Seat Leakage
A common failure mode is thermal bleed-through, where fluid leaks past a supposedly closed port seat. To diagnose this issue using the blueprint as your guide:
- Command the valve to 100% Port A position (Port B closed).
- Use an infrared thermal scanner or surface pyrometer to measure pipe surface temperatures 6 inches downstream of Port B.
- If the temperature at Port B approaches the inlet temperature at Port A, the valve seat is damaged, corroded, or obstructed by debris. Standard specifications mandate a seat leakage rate of less than 0.01% of maximum Cv rating.
Tracing Electrical Faults in Actuator Supply Circuits
If the actuator fails to respond to ECU commands, perform signal tracing on the terminal connector using a digital multimeter (DMM):
- Disconnect the wiring harness from the actuator body.
- Set the DMM to DC Voltage and probe the power supply line (Red wire relative to Black ground). Verify system voltage reads 12.0–14.4V DC on automotive platforms or 24V AC/DC on industrial controls.
- Probe the control input line (White/Yellow wire). Command a valve shift via your diagnostic tool and observe whether voltage modulates smoothly from 0V to 10V DC. If voltage remains stationary at 0V, inspect upstream wiring or consult a thermostatic expansion valve troubleshooting guide to trace upstream control module permissions.
- If supply power and control signals meet specifications, test actuator motor coil resistance. Resistance reading across the motor terminals should typically measure between 150 Ω and 300 Ω; an open circuit (OL) indicates a burned motor winding.
Resolving Mechanical Binding and Cavitation Symptoms
Excessive noise, chatter, or vibration inside the valve housing points to mechanical binding or hydraulic cavitation. Cavitation occurs when high pressure drops across an improperly sized valve cause localized fluid boiling and bubble collapse, eroding the internal spool. Verify that the flow direction arrows on the physical casting precisely match the inlet/outlet orientation depicted on your 3-way valve flow diagram. Installing a mixing valve in a diverting application subjects the valve disc to rapid pressure surges, causing seat destruction within weeks of installation.
3-Way Valve Flow Diagram Technical Reference FAQ
What is the structural difference between a mixing valve schematic and a diverting valve schematic?
In a mixing valve schematic, two inlet lines flow into two separate ports (Port A and Port B) and merge into a single outlet port (Common Port AB). The internal plug sits between the two converging flow streams. In a diverting valve schematic, a single fluid line enters Common Port AB, and the internal plug redirects the total flow volume toward either Port A or Port B depending on stem position.
How do port labeling conventions (A, B, AB or A, B, C) map onto physical 3-way valve bodies?
Physical valve bodies usually feature letters cast into the external housing near each threaded or flanged port. Common Port AB (or Port C) is the port that remains open to fluid flow regardless of valve stem position. Port A is typically the default or fail-safe flow path (Normally Open when unpowered), while Port B is the closed or bypass flow path (Normally Closed when unpowered).
What signal voltages are standard on motorized 3-way valve schematics?
Automotive and heavy equipment thermal management circuits utilize 12V DC pulse-width modulated (PWM) signals operating at frequencies between 100 Hz and 1 kHz. Commercial industrial systems standardly utilize 24V AC/DC main power with analog control signals of 0–10V DC, 2–10V DC, or 4–20mA current loops to achieve precise proportional positioning.
How can you determine if a 3-way valve is normally open or normally closed on a diagram?
Examine the mechanical return spring symbol inside the valve actuator on the blueprint schematic. The direction in which the spring force pushes the internal stem indicates the de-energized position. If the spring forces the valve disc against Port B, then Port A to Port AB is “Normally Open” (NO), while Port B to Port AB is “Normally Closed” (NC).
What torque specifications apply when reassembling a 3-way valve body housing?
According to OEM assembly guidelines, structural body bolts securing the actuator module to cast iron or bronze valve bodies require 18–22 lb-ft (24–30 Nm) of torque, applied in a cross-pattern star sequence. Machine screws securing upper plastic actuator covers should be torqued to 35–45 in-lb (4.0–5.0 Nm) to avoid crushing the peripheral rubber gasket seal.
Step-by-Step Guide to Understanding the 3-Way Valve Flow Diagram
Identify – Determine if your application requires a mixing or diverting 3-way valve flow diagram layout.
Locate – Locate ports A, B, and common port AB cast directly onto the physical valve body structure.
Reference – Reference the schematic layout to trace fluid direction from hot/cold supply lines to return pipes.
Connect/Route – Connect plumbing lines to corresponding ports, applying thread sealant and securing fittings to spec.
Verify – Verify actuator wiring connections (24VAC power and 0-10V control signal) against the system wiring diagram.
Troubleshoot – Test valve stroke manually or via controller signal to confirm proper port switching and leak-free operation.
