Samsung Bottom Freezer Ice Maker Diagram: 2026 Repair
The Samsung bottom freezer ice maker diagram illustrates the assembly structure located on the upper-left wall of the lower drawer. It outlines the 120V harness connection, thermistor sensor, drive motor, rake arm, and water fill tube layout. Key test points include the manual reset button beneath the motor housing.
📌 Key Takeaways
- Operating voltage for the ice maker motor assembly is 120V AC, with 5V DC signal routing for the thermistor sensor.
- The blue test/reset switch is located on the side or bottom of the main module housing structure.
- Always disconnect 120V main power before disconnecting the wiring harness plug to prevent control board damage.
- The most common failure point is a frozen fill tube system or a defective thermistor reading outside normal 10k-ohm specs.
- Replace mechanical harness sub-assemblies DIY; seek professional repair if main control PCB logic or sealed evaporator loops fail.
Modern Samsung bottom-freezer refrigerators utilize sophisticated electronic ice-making assemblies integrated into the lower freezer drawer compartment. Analyzing a samsung bottom freezer ice maker diagram requires understanding both high-voltage AC driving circuits and low-voltage DC feedback loops managed by the main printed circuit board (PCB). These systems feature an array of internal sensors, mold thermistors, low-wattage heating elements, drive motors, and timed dual-stage water fill solenoids. Whether you are performing field service or diagnosing intermittent harvesting failures, referencing the functional electrical and structural blueprint guarantees precise component isolation and accurate multimeter verification.
Samsung Bottom Freezer Ice Maker Diagram: Component & Blueprint Breakdown

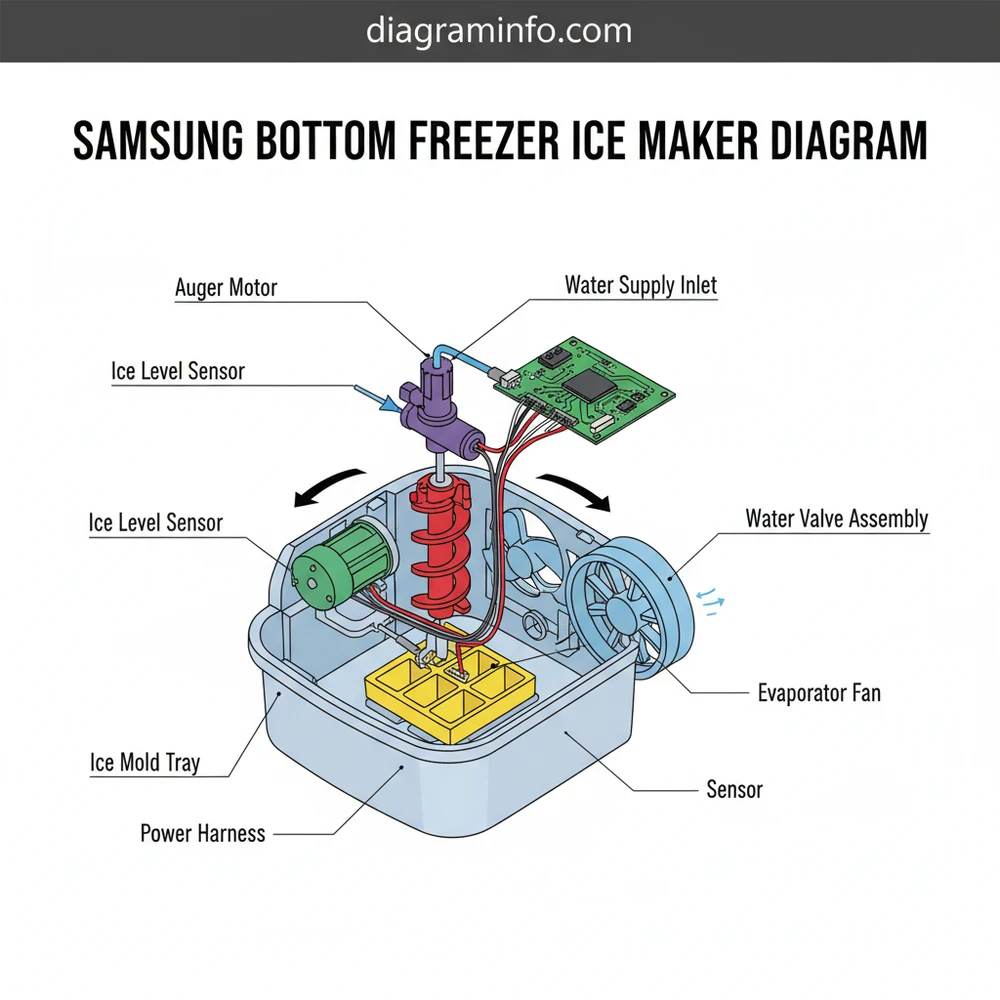

The structural configuration of a Samsung bottom freezer ice maker system consists of several electro-mechanical sub-assemblies connected via the cabinet wiring harness. As shown in the functional diagram above, the primary module houses the ice mold, ejection mechanism, internal thermistor, and heating element. Power distribution and control signals route directly from the main control board—typically from connectors CN70 through CN75 depending on model year generation (such as RF263, RF28, and RFG29 series).
According to OEM service specifications, the internal mold thermistor operates on a negative temperature coefficient (NTC) scale reading 5,000 ohms (5kΩ) at 25°C (77°F), dropping resistance as temperatures plummet during the freezing phase. The mold defrost/harvest heater draws approximately 90–120 Watts at 120V AC.
Understanding each part in the samsung bottom freezer ice maker diagram prevents misdiagnosis when checking low-voltage lines against line-voltage components:
| Component Reference | OEM Specification | Operating Voltage | Functional Description |
|---|---|---|---|
| Ejector Drive Motor | Synchronous / Stepper Motor | 12V DC / 120V AC (Model Spec) | Drives fingers to push frozen cubes into storage bin. |
| Mold Thermistor | NTC Type (5kΩ @ 77°F) | 5V DC Reference | Monitors tray temp to trigger harvest cycle at ~9°F (-13°C). |
| Mold Release Heater | Sheath / Aluminum Element (100W) | 120V AC | Warms ice tray perimeter briefly to release cubes during harvest. |
| Fill Tube Heater Wire | 10–15W Foil Wrapped | 120V AC or 12V DC PWM | Prevents residual water inside the fill nozzle from freezing solid. |
| Dual Water Inlet Valve | Dual Solenoid (300–500Ω coil) | 120V AC | Controls water delivery into fill tube upon PCB signal. |
How to Read the Samsung Bottom Freezer Ice Maker Schematic Layout
Interpreting a samsung bottom freezer ice maker diagram requires tracing path continuity from the primary power source to individual control nodes. The overall system operates through three primary states: Freeze Cycle, Harvest Cycle, and Fill Cycle. Each state corresponds to specific pinout configurations on the main circuit board.
To read the schematic layout accurately during diagnostic routines, follow these structured steps:
- Identify High vs. Low Voltage Lines: Locate the power feed lines. High-voltage lines (120V AC) supply power to the mold release heater, fill tube heater, and water inlet valve solenoids. Low-voltage DC signal wires (typically 5V DC for sensors and 12V DC for optical switches or motor drive control) connect directly to control chip terminals.
- Locate Harness Connectors: Map the physical wire harness leads. In bottom-freezer configurations, harness connectors usually pass through the upper hinge or rear cabinet duct. Cross-reference pin allocations on the main PCB wiring pinouts to establish correct test points.
- Trace the Sensor Feedback Loop: Locate the mold thermistor symbol. Pin connections feed real-time resistance values to the microcomputer. When the temperature drops to approximately 9°F (-13°C) and stays constant for a set duration (typically 90 minutes), the controller initiates the ejection routine.
- Analyze the Drive & Fill Trigger Circuit: Observe the relay contact switch symbols. The main board closes Relay RY71 or RY72 to energize the ejector motor while simultaneously firing the mold release heater circuit for a timed 30 to 60-second burst. Following cube displacement, the board pulses line voltage to the primary coil on the dual inlet valve for 5 to 7 seconds. Review our detailed guide on water inlet valve diagnostic protocols for precise solenoid testing parameters.
Always disconnect main AC line power before taking resistance measurements or unplugging harness connectors from the main PCB. Live voltage testing should only be conducted with insulated probes and proper Personal Protective Equipment (PPE).
Troubleshooting System Failures Using the Samsung Ice Maker Diagram
When an ice maker system malfunctions, technical diagnostics should begin by utilizing the structural circuit diagram to systematically isolate the failed component. Below are common failure symptoms and matching troubleshooting steps based on schematic tracing.
Most modern Samsung ice maker modules feature a tactile rubber test button on the side or bottom of the motor housing. Pressing and holding this button for 3 seconds forces the module into a diagnostic cycle, driving the ejector arm and triggering the water valve regardless of current mold temperature.
Apply these electrical testing procedures to diagnose broken electrical paths:
- Ice Maker Fails to Harvest (No Movement): Disconnect power and check continuity across motor leads at the housing harness. If the motor winding reads open circuit (infinite resistance), replace the drive assembly. If motor resistance is normal (typically 2kΩ–4kΩ on AC motors or solid continuity on DC stepper signals), verify whether 120V AC is delivered from the main board during the forced test cycle.
- Ice Tray Freezes Over / Solid Block of Ice: Check the optical level sensor or mechanical shutoff arm circuit depicted in the schematic overview. An open circuit on the bin-full sensing line causes the board to assume the bin is empty, continuing harvesting cycles continuously. Also cross-reference dispenser interlocks via the refrigerator dispenser control schematics.
- No Water Fill / Hollow Cubes: Measure resistance across the water valve solenoid coils. A functional valve coil reads between 300Ω and 500Ω. If resistance is normal, verify that the fill tube heater circuit shows continuity (typically 100Ω–150Ω). An open fill heater allows residual water to freeze, blocking fresh supply water despite the valve opening correctly.
Frequently Asked Questions About Samsung Bottom Freezer Ice Maker Configurations
What electrical resistance values should be measured across the mold thermistor?
At standard room temperature (77°F / 25°C), an OEM Samsung thermistor measures approximately 5,000 ohms (5kΩ). At standard operating freezer temperatures (0°F / -18°C), resistance rises significantly to approximately 30,000 to 35,000 ohms (30kΩ–35kΩ). Measurements showing zero ohms (short) or infinite ohms (open) indicate a defective thermistor requiring module replacement.
How do you initiate a manual force-harvest test on Samsung bottom freezer units?
Locate the small, rectangular switch or rubber push-button marked “TEST” on the side or bottom profile of the ice maker powerhead assembly. Press and hold this switch for 3 to 5 seconds until a clear single or double chime sounds. The assembly will energize the ejector motor and execute a full 360-degree rotation followed by a brief fill valve pulse.
Why does the fill tube freeze up according to the system blueprint?
According to structural layout diagrams, the water fill tube features a low-wattage heating loop designed to keep water liquid during cabinet cooling phases. If this heater fails (open circuit), or if line voltage fails to reach the heater terminal from the PCB, localized cold air inside the freezer drawer freezes static water inside the nozzle, blocking subsequent fill cycles.
What wire color codes correspond to the water inlet valve trigger lines?
In most standard Samsung bottom-freezer wiring harnesses, the primary ice maker solenoid is driven via a dedicated wire pair—frequently Brown or Pink for the hot lead and White or Light Blue for the neutral return. However, technicians must verify exact pin color allocations against the cabinet wiring diagram sticker located on the rear panel of the specific model year unit under service.
Can a failing main PCB simulate a broken ice maker module?
Yes. If the underlying relays or triac drivers on the main control board short out or lose trace continuity, the board will fail to send 120V AC power to the mold heater or water valve solenoids. If the ice maker module passes manual resistance checks and functions correctly during a isolated bench test, the control board output terminals should be diagnosed for missing voltage command signals.
Step-by-Step Guide to Understanding the Samsung Bottom Freezer Ice Maker Diagram
Identify – Identify your specific Samsung refrigerator model number to select the correct matching ice maker schematic.
Locate – Locate the ice maker unit structure mounted inside the upper section of the bottom freezer compartment.
Reference – Reference the system layout to identify the 6-pin harness plug, mold heater circuit, and thermistor signal leads.
Connect/Route – Route the electrical wire harness along designated housing channels and align wire clip connections securely.
Verify – Verify 120V AC input power and measure thermistor resistance values against diagram specifications using a multimeter.
Troubleshoot – Troubleshoot failure codes or cycling faults by pressing the test button to trigger a forced harvest sequence.
