Stihl HT 131 Parts Diagram: Component Breakdown 2026
The Stihl HT 131 parts diagram details the 36.3cc 4-MIX engine layout, telescoping shaft configuration, and gearhead structure. It illustrates essential component breakdowns, including the clutch, oil pump assembly, valve lifters, and C1Q carburetor, allowing precise part identification and proper mechanical routing for repairs.
📌 Key Takeaways
- Exploded schematics reference exact 4182-series OEM part numbers for the 36.3cc 4-MIX engine system.
- The drive shaft housing layout distinguishes inner drive shaft splines from outer clamping sleeve mechanisms.
- Engine fasteners require strict torque values, including 28 Nm for the flywheel nut and 9.5 Nm for cylinder bolts.
- The most common mechanical failure points are worn oil pump drive gears and carbon-clogged spark arrestor screens.
- Complex 4-MIX valve system overhauls require specialized tools, while gearhead greasing is routine DIY maintenance.
Maintaining the Stihl HT 131 commercial pole pruner requires a precise understanding of its internal mechanical configuration. Powered by the patented Stihl 4-MIX® engine system, this heavy-duty pole saw combines the high-torque characteristics of a four-stroke powerhead with the lightweight, fuel-mixed operation of a traditional two-stroke unit. When executing teardowns, component replacements, or routine preventative maintenance on the telescopic drive tube and gear head, utilizing an exploded stihl ht 131 parts diagram is essential. This technical guide breaks down the equipment’s structural layout, schematic conventions, and service procedures for technicians and equipment owners.

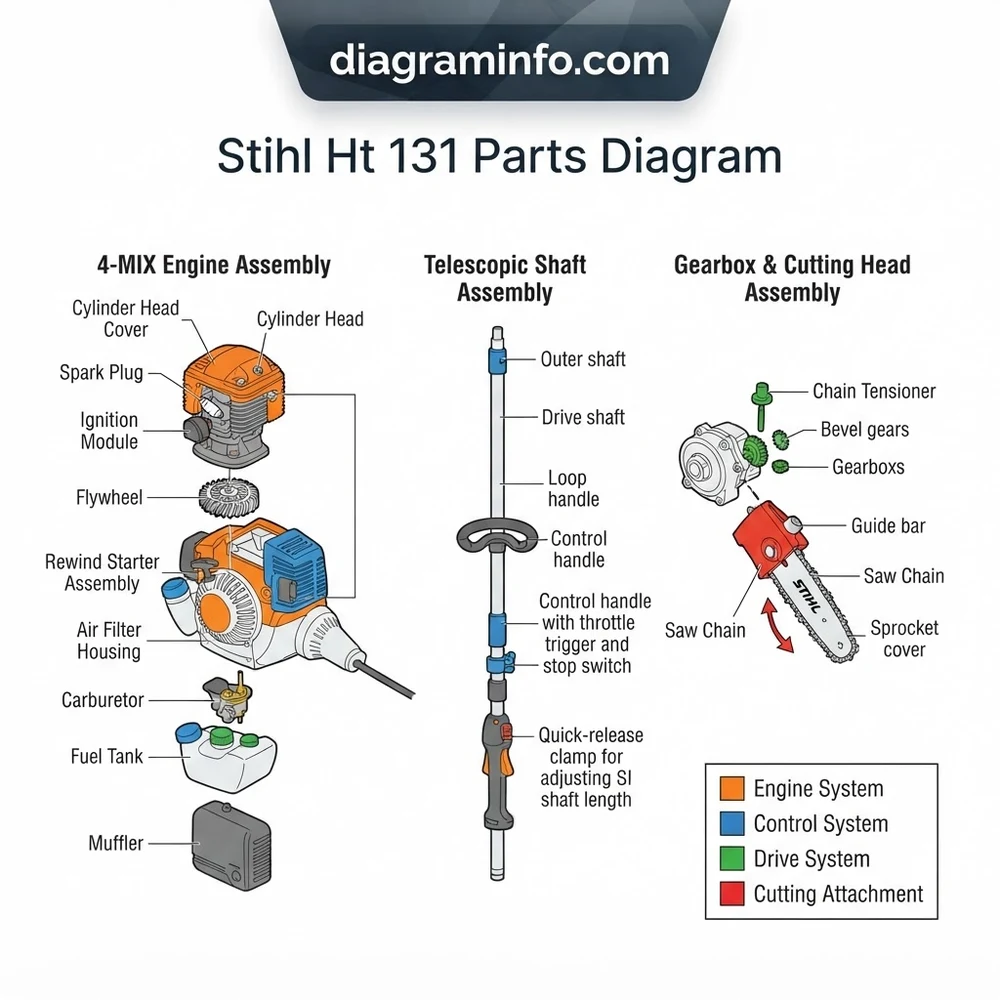

Deconstructing the Stihl HT 131 Parts Diagram: Major System Layouts
The structural framework of the Stihl HT 131 is divided into three primary mechanical assemblies: the 4-MIX powerhead, the telescopic drive tube assembly, and the high-torque cutting gear head. Reading an official schematic requires understanding how these sub-systems interface through intermediate coupling shafts and dampening mounts.
Recommended Best Deal Products
The powerhead layout integrates a valve-in-head (OHV) mechanism driven by a single cam gear and dual pushrods. Unlike conventional two-stroke chainsaws, the HT 131 engine block features dedicated intake and exhaust valve channels that require precise clearance calibration. Surrounding the crankcase, the clutch housing routes mechanical energy through a centrifugal clutch drum into the drive shaft coupling sleeve.
Engine Displacement: 36.3 cc | Power Output: 1.4 kW (1.9 bhp) | Valve Clearance (Cold): 0.10 mm (0.004 in) for both Intake & Exhaust | Cylinder Bolt Torque: 9.5 Nm (7.0 ft-lbs) | Clutch Drum Nut Torque: 12.0 Nm (8.8 ft-lbs)
Downstream from the clutch drum, the drive shaft structure extends through a multi-stage aluminum telescopic housing. The internal layout utilizes a rigid inner steel drive rod supported by rubber-damped guide sleeves. This layout minimizes torsional whip over the full extended length of 3.9 meters (12.8 feet). At the distal end, the bevel gear housing translates rotational energy at a 1:1.08 gear ratio to drive the saw chain sprocket.
| System Assembly | Key Structural Components | OEM Part Reference | Torque / Clearance Spec |
|---|---|---|---|
| Engine Cylinder & Crankcase | Piston, Ring Set, Valves, Pushrods | 4180 020 1206 | 9.5 Nm M5 Screws |
| Carburetor & Air Intake | Zama C1Q-S110 / Metering Diaphragm | 4180 120 0610 | 3.5 Nm Mounting Bolts |
| Telescopic Shaft Assembly | Inner Drive Rod, Clamp Sleeve, Outer Tube | 4182 710 3200 | 6.0 Nm Clamp Assembly |
| Angle Gear Head | Bevel Gear Set, Chain Sprocket, Tensioner | 4182 640 0100 | 6.0 Nm Housing Screws |
How to Interpret the Stihl HT 131 Schematic and Blueprint for Servicing
To successfully perform a complete tear-down using a stihl ht 131 parts diagram, you must understand the visual conventions used in factory technical manuals. Exploded schematics represent complex three-dimensional assemblies in a two-dimensional plane, utilizing dashed centerline projections to indicate insertion paths and fastener orientations.
When analyzing the blueprint for the HT 131 powerhead, notice how components are grouped in logical sub-assemblies. Callout numbers on the diagram link directly to the manufacturer part numbering system. A key bracketed around multiple components signifies an assembly kit—such as a complete short-block engine rebuilding kit—which includes seals, gaskets, and bearings alongside the core structural housing.
When reviewing the drive tube schematic, pay close attention to the index keyway on the inner drive rod. Reassembling the shaft out of alignment with the clamp collar spline will result in severe vibration and premature rounding of the square drive profile. Always verify drive rod seating before tightening outer sleeve clamps.
When working on the telescopic drive mechanism, refer to related procedural resources such as the telescopic drive shaft overhaul page and the 4-MIX engine maintenance guide. Note how the diagram highlights retaining rings (E-clips) and thrust washers along the inner drive rod. Skipping a single thrust washer illustrated on the blueprint will cause axial shaft play, resulting in excessive wear on the clutch housing coupling socket.
Fastener callouts on Stihl blueprints frequently specify Torx T27 driver interfaces. Ensure that every fastener mapped on the schematic is returned to its exact location, as thread pitches vary between plastic-threading self-tapping screws used on the shroud and fine-pitch metric bolts used on the aluminum crankcase.
Resolving System Failures with the Stihl HT 131 Parts Diagram
Mechanical failures on the Stihl HT 131 typically manifest in three key areas: power loss due to valve train drift, shaft slippage under load, or cutting head binding. Referencing the system schematic allows you to isolate the root cause systematically.
If the engine idles properly but the saw chain fails to rotate under load, consult the clutch and drive tube section of the diagram. Inspect the square drive profile on the inner drive shaft (Part No. 4182 711 3200). If the square edges appear rounded off in comparison to the crisp right angles shown on the schematic, the drive rod must be replaced. Furthermore, check the flexible rubber coupling dampeners housed within the outer tube; cracked dampeners allow high-frequency resonance to loosen clamping collars.
When servicing the ignition and starter assembly as mapped on the flywheel schematic, exercise extreme caution. The rewind spring is stored under tension inside the starter housing. Always wear eye protection and heavy leather gloves before removing the pulley retaining screw.
For engine performance degradation, cross-reference the 4-MIX valve train blueprint. Over time, carbon buildup or pushrod wear causes valve lash to drift beyond the 0.10 mm specification. Utilizing feeler gauges, reset the rocker arm adjustment nut while referencing the top-dead-center (TDC) timing marks stamped on the flywheel hub and crankcase casting. When servicing the gear head, consult the Stihl bevel gear lubrication protocol to ensure the correct grease fill level is maintained relative to the internal gear mesh layout.
Stihl HT 131 Component Diagram and Repair FAQ
How do I identify the valve train components on a Stihl HT 131 parts diagram?
On the engine structure schematic, the valve train is located at the top of the cylinder head assembly. Look for the rocker cover, two rocker arms, pushrod tubes, and small valve springs positioned directly above the intake and exhaust ports. The pushrods extend down into the crankcase where they ride on the single camshaft gear lobe.
What is the correct valve clearance setting specified in the HT 131 technical blueprint?
Manufacturer specifications dictate a cold valve clearance of 0.10 mm (0.004 inches) for both the intake valve and the exhaust valve. This clearance must be adjusted using a feeler gauge placed between the rocker arm pad and the valve stem tip while the piston is held precisely at Top Dead Center (TDC) on the compression stroke.
Are part numbers for the inner drive shaft interchangeable across Stihl HT 101, HT 131, and HT 133 models?
While the overall telescopic configuration is similar, part numbers vary across generations. The HT 131 uses an inner square drive shaft profile matched to its specific clutch drum coupler. Always cross-reference the exact OEM part number listed on the model-specific stihl ht 131 parts diagram before ordering replacement drive line components.
Why does my Stihl HT 131 blueprint show two different carburetor variations?
Stihl updated the fuel delivery system over the production lifecycle of the HT 131. Depending on the manufacture year, your unit will feature either a Zama C1Q-S110 or C1Q-S174 carburetor. Check the model code stamped directly onto the metallic body of your carburetor to select the corresponding diaphragm and gasket repair kit on the schematic list.
What torque specification should be used for the cylinder mounting screws during an engine rebuild?
According to factory service manual specifications, the M5 metric cylinder base screws securing the upper cylinder to the lower crankcase pan must be torqued to 9.5 Nm (7.0 ft-lbs) using a crisscross cross-pattern to ensure uniform gasket compression and prevent air leaks.
Step-by-Step Guide to Understanding the Stihl Ht 131 Parts Diagram
Identify – Locate your Stihl HT 131 serial number to ensure matching diagram revision for your pole saw configuration.
Locate – Find the target sub-assembly section, such as the engine block, drive tube housing, or cutting gearhead.
Reference – Match callout number tags on the diagram to the corresponding OEM part numbers in the hardware index list.
Connect/Route – Route fuel lines, throttle cables, and shaft drive splines strictly following the spatial orientation in the layout.
Verify – Check mechanical clearance and ensure all fasteners match recommended torque settings like 9.5 Nm for cylinder bolts.
Troubleshoot – Consult the diagnostic layout section if drive shaft rotation binds or fuel delivery fails during operation.
