Kitchen Sink Hot and Cold Water Plumbing Diagram: 2026 Setup

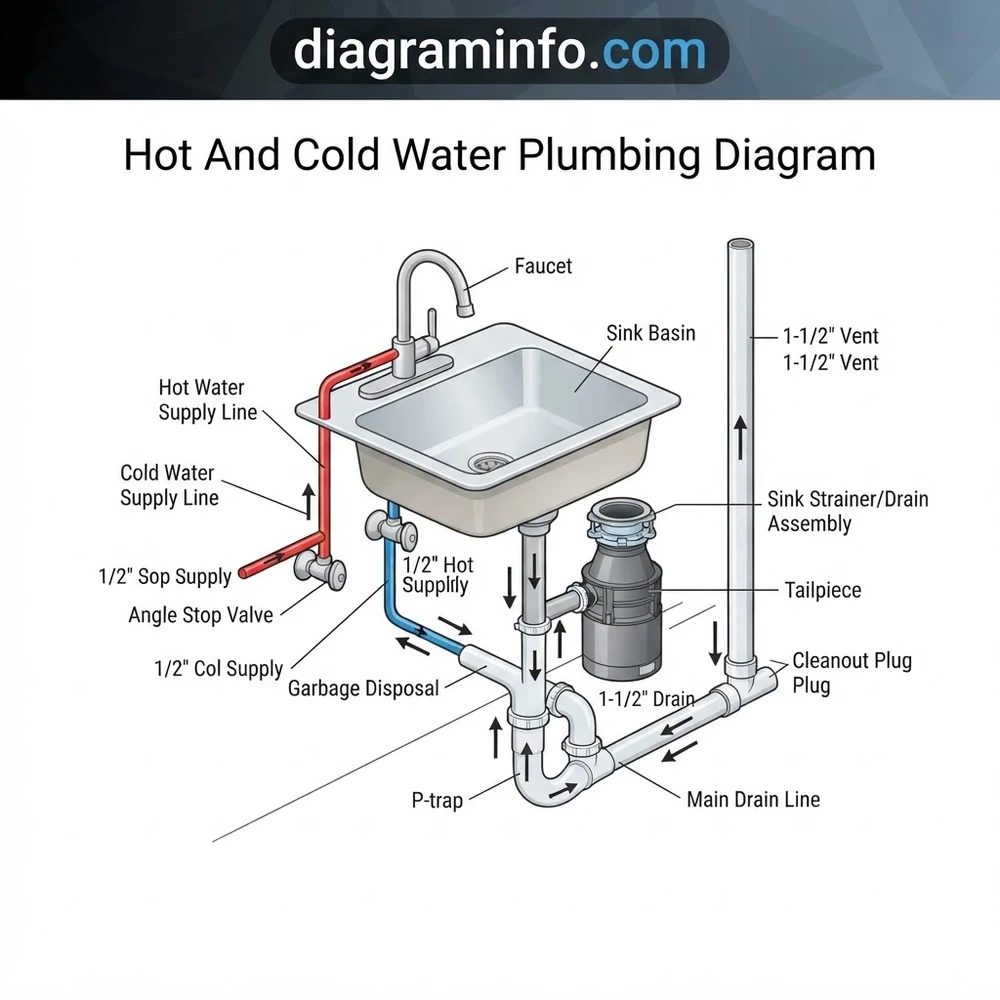

A hot and cold water plumbing diagram maps red (hot) and blue (cold) supply lines connecting 1/2-inch PEX or copper pipes to shutoff valves. Cold water feeds the faucet and garbage disposal if equipped, while hot water connects to the left faucet shank and dishwasher outlet, directing wastewater down through a tailpiece, P-trap, and vent pipe.
📌 Key Takeaways
- Red (hot) supply lines connect to the left shutoff valve; blue (cold) lines connect to the right using 1/2-inch PEX or copper tubing.
- The kitchen sink drain assembly connects to a vertical tailpiece before entering the standard 1.5-inch P-trap water seal.
- Slip-joint nuts on drain connections should be hand-tightened plus 1/4 turn to prevent washer distortion and leaks.
- Clogged P-traps and misaligned garbage disposal discharge tubes account for over 80% of under-sink drainage failures.
- Replacing under-sink fixtures is DIY-friendly, but modifying main wall-bound supply trunks or vent pipes requires a licensed plumber.
Navigating a home plumbing project without a detailed plan often leads to weak pressure, hidden leaks, and frustrating code violations. A well-constructed hot and cold water plumbing diagram serves as your master map, detailing the exact layout for pressurized supply pipes and gravity-assisted drain lines. Whether you are running flexible PEX tubing through studs for a bathroom remodel or installing a new kitchen sink drain assembly, understanding a plumbing schematic ensures that every fixture functions reliably and drains safely.
For DIY enthusiasts, learning how clean water supply networks interact with Drain-Waste-Vent (DWV) systems is essential. Pressurized supply lines push clean water directly to your faucets, while waste systems rely on specific line slopes, trap seals, and vent balances to carry wastewater away cleanly. This guide breaks down essential symbols, pipe dimensions, components, and layout techniques so you can accurately read or design your own system blueprint.
Recommended Best Deal Products
Decoding a Hot and Cold Water Plumbing Diagram: Key Components
A comprehensive residential schematic breaks down into two distinct functional zones: the pressurized supply side (delivering clean hot and cold water) and the gravity-driven waste side. Recognizing how these parts connect on paper helps prevent costly installation mistakes.
Main Supply Lines and Color-Coding Standards
On modern diagrams, supply lines are color-coded for quick identification. Cold water pipes are rendered as solid blue lines (or solid black lines on monochrome prints), while hot water pipes appear in red or as dashed lines. Main trunk lines extending from your water meter or pressure tank typically use 3/4-inch nominal diameter tubing made from PEX or copper. This larger diameter preserves overall volume and pressure across the home. From the trunk, 1/2-inch branch lines split off to supply individual fixtures like faucets, shower valves, and toilets.
The Drain Assembly, Tailpiece, and Slip Joint Fittings
At each fixture, clean supply lines meet the waste side. Beneath a sink, the drain opening connects to the top of the drain assembly. Water flows down through a straight pipe section called a tailpiece (typically 1-1/4 inches wide for bathroom vanities and 1-1/2 inches for kitchen sinks). Modern drain assemblies join using threaded compression nuts and rubber washers known as a slip joint connection. This adjustable joint simplifies alignment and allows easy disassembly for cleaning or maintenance.
P-Trap Seals and Venting (Vent Pipe vs. AAV Valve)
Directly beneath the tailpiece sits the standard P-trap. This curved fitting holds a permanent pocket of standing water that forms an airtight seal against hazardous sewer gases. The horizontal outlet of the P-trap feeds into a sanitary tee connected to the wall pipe. From this junction, wastewater flows down toward the main drain, while air moves up into a vertical vent pipe exiting through the roof. Where routing a vent through the roof is impractical, diagrams often specify an AAV valve (Air Admittance Valve). This mechanical device opens under negative pressure to let fresh air into the drain line during a discharge, preserving the P-trap water seal, and seals shut under neutral pressure to lock out sewer gases.
Kitchen Garbage Disposal Integration
Kitchen plumbing schematics show the hot water line branching to feed both the main sink faucet and the dishwasher inlet. Waste from a garbage disposal drops through a dedicated directional elbow into a continuous waste tailpiece or directly into the side inlet of a dual-sink P-trap assembly to prevent backup issues.
How to Read a Hot and Cold Water Supply Diagram Correctly
Interpreting a schematic requires following fluid paths from the main source down to individual fixture shutoff valves. Follow these practical steps to trace any layout correctly:
Recommended Best Deal Products
1. Trace Water Flow from Source to Fixtures
Locate the main service entry point on your diagram. Cold water flows along the 3/4-inch trunk line. A primary branch feeds the cold intake port on your water heater, while other 3/4-inch branches extend toward kitchen and bathroom zones before stepping down to 1/2-inch lines at individual fixtures. Trace the hot water line leaving the top output of the water heater; it generally runs parallel to cold water lines, stopping roughly 6 inches away to prevent thermal transfer.
2. Locate Shutoff Valves and Transitions
Diagrams use small triangle or cross symbols to indicate stop valves. Look for master shutoff valves at the main service line, isolated shutoffs near the hot water tank, and angle stop valves located under sinks. Angle stops mark the transition point where rigid 1/2-inch PEX or copper lines convert to flexible 3/8-inch braided stainless steel supply risers.
3. Follow Drain Pitch and Vent Pathways
Drain lines appear as thick lines marked with directional arrows. Standard DWV lines must pitch downward at a continuous slope of 1/4 inch per foot toward the waste stack. Trace horizontal drain lines past the P-trap to confirm that a vertical vent line or an AAV valve is placed within code-compliant distances (typically within 30 to 42 inches of the trap depending on pipe size).

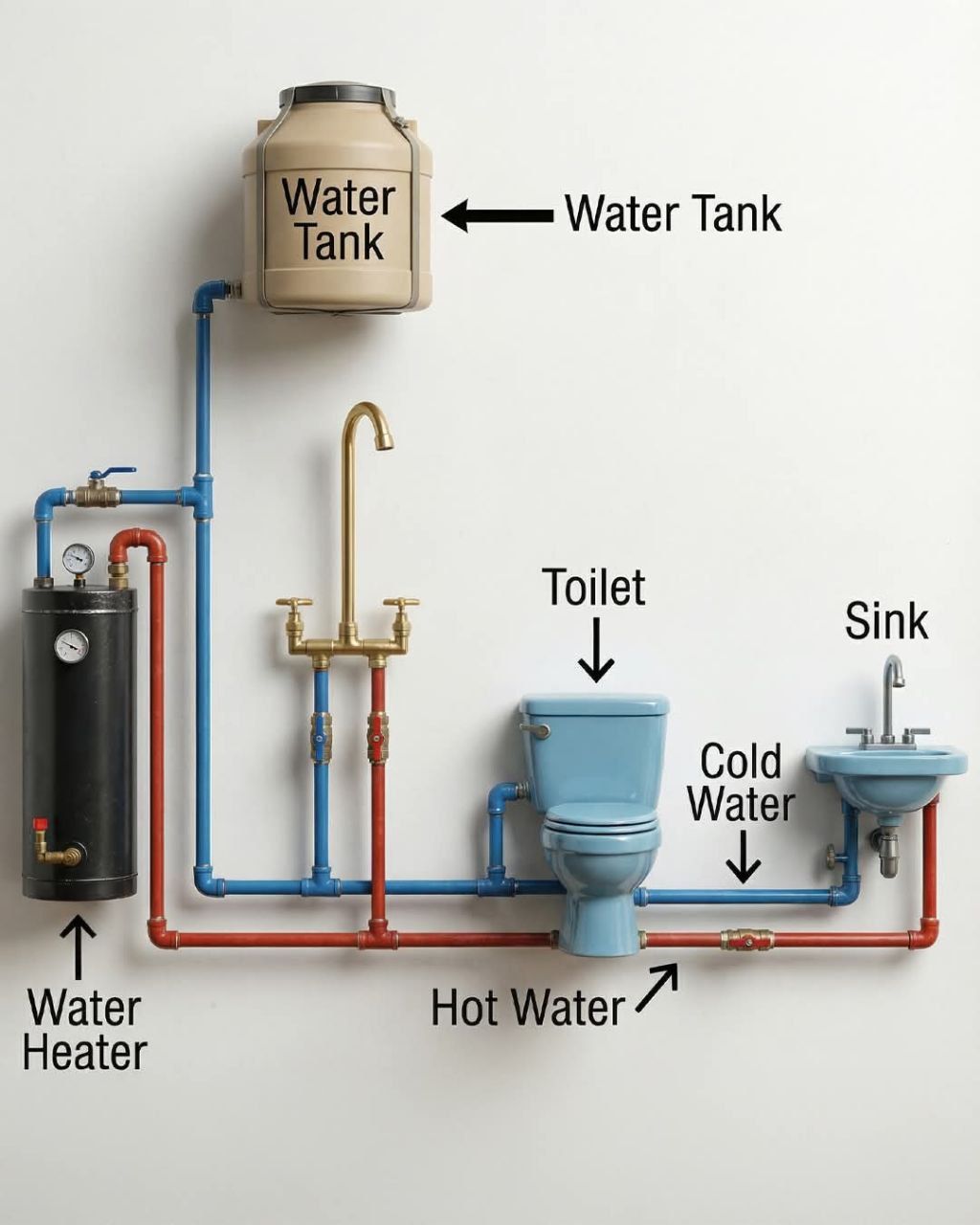

DIY Tips for Planning Your Hot and Cold Water Plumbing Diagram
When drafting your own layout blueprint, taking practical installation needs into account will streamline labor and materials. Keep these key guidelines in mind:
- Select the Right Materials: Use flexible red and blue PEX tubing for supply lines. PEX handles thermal expansion better than copper and uses crimp or expansion fittings that speed up installation. Use rigid Schedule 40 PVC or ABS pipe for all DWV connections.
- Respect Diameter Limits: Never downsize a 3/4-inch supply trunk to 1/2-inch before reaching your final major fixture branch. Premature line reduction causes sudden pressure drops when multiple taps run at once.
- Minimize Flow Resistance: Sharp 90-degree elbows increase friction loss. Map out gradual sweep elbows or utilize flexible PEX bend supports to preserve dynamic water pressure throughout long runs.
Troubleshooting Layout Errors in Your Plumbing Schematic
Catching design flaws while your project is still on paper prevents water damage, noisy pipes, and unexpected tear-outs later. Review your schematic against these common DIY pitfalls:
Fixing Low Water Pressure and Temperature Spikes
If your blueprint branches multiple fixtures—such as a shower, toilet, and double sink—off a single 1/2-inch trunk, users will suffer pressure drops whenever a valve opens elsewhere. Solution: Run a main 3/4-inch supply trunk directly into the fixture group area, stepping down to 1/2-inch branch lines within 30 inches of individual fixture shutoff valves.
Eliminating Gurgling Drains and Sewer Odors
Gurgling sounds in your wall or persistent foul smells indicate trap siphoning caused by improper venting. If your diagram shows a P-trap dropping directly into a vertical drain line without a vent connection at the tee, falling water will pull a vacuum that drains the trap dry. Solution: Add a sanitary tee junction immediately after the P-trap outlet arm. Route the top port upward to a main roof vent line or install an approved AAV valve at least 4 inches higher than the horizontal drain arm.
Preventing Slip Joint Leaks and Appliance Clogs
Aligning sink drains incorrectly creates stress on thin-walled tailpiece fittings, leading to persistent drips. If a kitchen garbage disposal connects directly into a flat horizontal waste line, food debris can collect and harden. Solution: Align tailpieces vertically, ensuring the disposal drops directly into a directional baffle tee above the P-trap entrance. Hand-tighten all slip joint nuts firmly, finishing with a precise quarter-turn using adjustable slip-joint pliers to secure water-tight seals without distorting the rubber washers.
Step-by-Step Guide to Understanding the Hot And Cold Water Plumbing Diagram
Identify – Differentiate hot (left) and cold (right) supply lines along with drain assembly components.
Locate – Position shutoff valves, garbage disposal port, P-trap inlet, and vertical vent pipe tie-in.
Reference – Match supply color codes (red/blue) and pipe diameter dimensions against diagram specifications.
Connect/Route – Attach 1/2-inch supply risers to faucet shanks and assemble slip-joint tailpiece to P-trap.
Verify – Hand-tighten fittings, pressurize lines slowly, check for leaks, and test drain water flow.
Troubleshoot – Adjust misaligned trap washers, clear air gaps, or inspect vent pipe if draining remains sluggish.
Hot and Cold Water Plumbing Diagram: Frequently Asked Questions
What does the hot and cold water plumbing diagram show?
The diagram details pressurized hot (red) and cold (blue) supply piping feeding shutoff valves and faucet shanks. It also maps the gravity drainage side, showing how graywater moves from the drain assembly and garbage disposal through the tailpiece, P-trap, and main waste stack with an integrated vent pipe.
How do I read the hot and cold water plumbing diagram?
Follow red lines for hot supply originating from the water heater and blue lines for incoming main cold supply. Solid lines represent pressurized water delivery to valves, while wider, sloped black or PVC lines represent non-pressurized drainage routing through the tailpiece, P-trap, and vertical stack vent pipe network.
What are the main components in hot and cold water plumbing diagram?
Key components include hot and cold supply shutoff valves, 1/2-inch flexible risers, faucet shanks, stainless drain assembly, garbage disposal unit, vertical tailpiece, 1-1/2 inch P-trap, and a 2-inch vent pipe. Together, these manage pressurized clean water input and safe, trap-sealed waste discharge.
What are common problems with hot and cold water plumbing diagram?
Common issues include crossed supply lines causing swapped hot/cold tap outputs, dried-out P-trap seals letting sewer gas escape, improperly sloped drain lines leading to disposal backups, loose slip-joint washers, and insufficient vent pipe height causing siphon action inside the drainage assembly.
Can I use hot and cold water plumbing diagram for DIY repair?
Yes, DIYers can use the diagram to replace under-sink shutoff valves, connect garbage disposal discharge lines, or replace corroded P-traps. However, altering main hot/cold supply trunk lines or re-routing structural vent pipes standardly requires professional plumbing tools and building permit compliance.
What tools do I need for hot and cold water plumbing diagram?
Basic plumbing tasks require an adjustable wrench, tongue-and-groove pliers, pipe thread sealant tape, tube cutter, and bucket. Working with modern PEX supply lines also requires a PEX crimping tool, while solvent welding PVC drain assemblies demands PVC primer, cement, and a fine-tooth hacksaw.
