7 Wire Turn Signal Switch Diagram: Installation Setup 2026
Standard 7 wire turn signal switch diagrams split power between turn signals and brake lights. Typical color coding uses Red for brake switch input, Yellow for left rear light, Green for right rear light, Black for flasher hot wire, Blue for flasher power, Gray for front left, and White for front right signal.
📌 Key Takeaways
- Standard 7-wire switches isolate rear brake lights from front turn signals using an internal contact mechanism.
- Standard wire color code: Black connects to flasher hot wire, Red connects to the brake light switch feed.
- Always maintain a solid 16-18 AWG ground wire connection to prevent erratic flasher relay operation.
- Cross-wiring front and rear outputs leads to active brake lights backfeeding into the front turn signals.
- If flasher buzzes without blinking, check for improper LED load or incorrect relay pin assignment.
Integrating an aftermarket or heavy-duty 7-wire turn signal switch into a custom automotive build, commercial truck, or vintage vehicle requires precise knowledge of dual-filament circuits and directional power routing. A standard 7-wire switch manages left and right directional signals, hazard warning flasher circuits, and brake light override logic inside a single mechanical housing. Understanding the complete 7 wire turn signal switch diagram ensures your vehicle’s lighting architecture functions safely under standard 12V DC operating conditions. This technical reference details the exact wire color code, pin assignment, gauge selection, voltage parameters, and terminal block routing required for an OEM-quality installation.

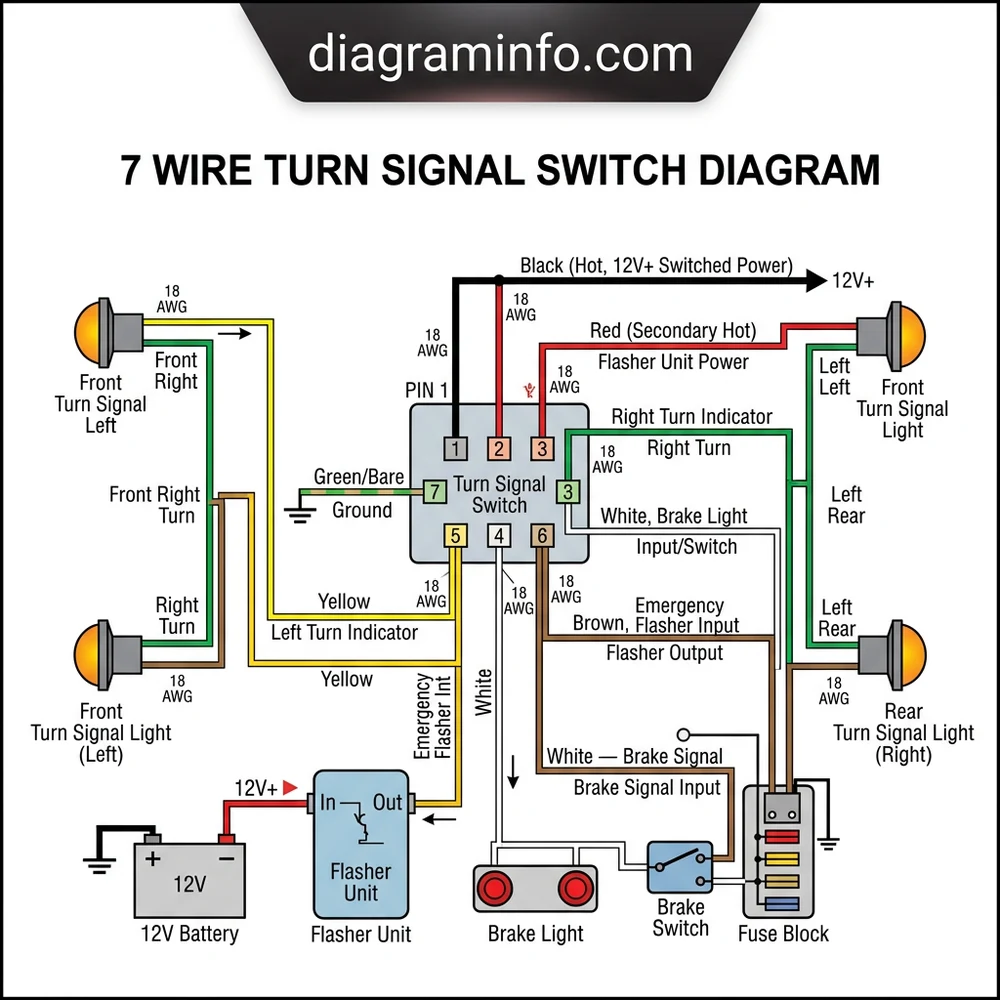

7 Wire Turn Signal Switch Diagram: Wire Color Code and Pin Assignments
Most universal 7-wire turn signal switches (such as standard Signal-Stat, Grote, and Truck-Lite column switches) share a standardized universal color code scheme. However, pin assignment mapping must always be verified against the internal switch logic before applying DC power. The 7-wire harness integrates both the turn signal flasher output and the brake light switch circuit, allowing the rear lights to serve dual functions as both turn indicators and brake stop lamps.
Recommended Best Deal Products
| Wire Color | Circuit Function | Pin / Terminal Connection | Technical Notes |
|---|---|---|---|
| Black | Left Front Turn / Dash Pilot | Terminal L-FRONT / Dash Pilot | Feeds left front park/turn bulb filament and dashboard indicator bulb. |
| Green | Right Rear Stop / Turn Output | Terminal R-REAR | Connects directly to the bright filament of the right rear brake/turn bulb. |
| Red | Brake Light Switch Feed (Hot Wire) | Brake Pedal Switch Output Terminal | Carries 12V DC power only when the brake pedal is depressed. |
| Yellow | Left Rear Stop / Turn Output | Terminal L-REAR | Connects directly to the bright filament of the left rear brake/turn bulb. |
| Blue | Right Front Turn / Dash Pilot | Terminal R-FRONT / Dash Pilot | Feeds right front park/turn bulb filament and dashboard indicator bulb. |
| White | Turn Flasher Load Output | Turn Signal Flasher Relay Terminal “L” | Carries pulsed 12V power from primary turn flasher unit. |
| Brown | Hazard Flasher Load Input / Feed | Hazard Flasher Relay Terminal “L” | Provides pulsed 12V power dedicated to emergency 4-way hazard flashing. |
Inside the switch assembly, an internal mechanical cam automatically overrides the brake light input on the signaling side. When you signal a left turn, the switch breaks the continuous brake switch feed (Red) to the left rear wire (Yellow) and replaces it with the interrupted load feed from the turn flasher (White). The right rear light (Green) remains connected directly to the brake feed, ensuring solid illumination on the right while the left side flashes.
Voltage Drop, Wire Gauge, and Circuit Protection Specifications
Automotive 12V DC electrical systems require strict adherence to wire gauge sizing to prevent excessive voltage drop and thermal overheating. When installing a 7-wire turn signal switch across extended runs—such as commercial vehicles, utility trailers, or custom hot rods—the total wire length from the main fuse block to the rear light assemblies dictates conductor selection.
According to SAE J1128 specifications for low-voltage primary cable, all primary power feeds (hot wire connections from the main distribution panel) should utilize stranded copper wire with cross-linked polyethylene (Type GXL or TXL) insulation for resistance to oil, grease, and ambient engine compartment heat.
System Voltage: 12.8V DC (Nominal) / 14.2V DC (Charging system active)
Main Power Wire Gauge: 14 AWG (Red, White, Brown feeds)
Signal Line Wire Gauge: 16 AWG (Green, Yellow, Blue, Black output runs)
Indicator / Ground Wire Gauge: 18 AWG
Overcurrent Protection: 15-Amp ATO/ATC Inline Fuse or Circuit Breaker
Max Recommended Voltage Drop: < 3% (< 0.36V DC across total harness length)
Recommended Best Deal Products
In standard DC automotive systems, chassis grounding serves as the return path rather than a separate AC-style neutral wire. However, when connecting specialized equipment or isolated ground light housings, a dedicated ground wire must be attached directly to a clean metal frame point or a ground lug on your terminal block. Maintaining a solid chassis return prevents backfeeding, high resistance faults, and dim LED performance.
How to Read and Connect a 7 Wire Turn Signal Switch Diagram
Connecting a 7-wire turn signal switch requires systematic routing using heat-shrink crimp connectors or soldered terminal junctions. Follow this step-by-step installation sequence to establish correct pin assignment mapping and circuit protection.
1. Isolate System Power and Mount the Switch Assembly
Disconnect the negative terminal of the 12V battery before performing any electrical splicing. Clamp the 7-wire switch housing securely to the steering column using the provided worm-gear clamp. Ensure the harness clear of steering shaft mechanisms and pedal linkages to prevent cable chafing or binding during wheel rotation.
2. Wire Switched Hot Wire Power to the Flasher Relays
Route a fused 12V DC hot wire (14 AWG) from an ignition-switched terminal on your auxiliary fuse panel to terminal “X” or “P” of your 2-pin turn signal flasher. Attach the White wire from the switch harness to terminal “L” (Load) of this turn signal flasher relay. For the hazard circuit, route a constant (unswitched) 12V battery feed through a 15A fuse to terminal “X” of a second dedicated hazard flasher relay. Attach the Brown wire from the switch harness to terminal “L” of the hazard flasher.
3. Integrate Brake Switch Input
Connect the Red wire from the switch harness directly to the load terminal of your mechanical or hydraulic brake pedal light switch. Verify that this terminal receives constant 12V power only when the brake pedal is fully depressed. Do not connect this wire directly to a constant power panel, as doing so will energize the brake circuit continuously.
4. Cable Front Directional Lamps and Dashboard Pilots
Route the Black wire (16 AWG) to the left front turn signal bulb high-intensity filament and connect its spliced lead to the left dashboard pilot lamp. Route the Blue wire (16 AWG) to the right front turn signal bulb filament and dashboard indicator. Ensure both front lamp housings have a bare-metal frame ground wire connection to complete the circuit.
5. Connect Dual-Filament Rear Stop/Turn Outlets
Run the Yellow wire to the high-intensity brake/turn filament of the left rear light unit. Run the Green wire to the high-intensity brake/turn filament of the right rear light unit. If you are integrating a heavy-duty trailer wiring harness, route these lines through a central terminal block before splitting off to the trailer socket.
Do not tie the brake switch input directly into the rear yellow and green wires bypassing the switch housing. Doing so bypasses the internal override mechanism, causing the front turn signals and dashboard indicators to illuminate continuously whenever you press the brake pedal.
6. Perform Multimeter Voltage Continuity Testing
Reconnect the negative battery terminal. Set a Digital Multimeter (DMM) to DC voltage mode. Test every terminal block output point prior to final road testing according to the operational conditions below:
- Brake Applied (Neutral Switch): Yellow and Green output wires must show 12V DC. Black, Blue, White, and Brown must show 0V DC.
- Left Signal Engaged: Yellow and Black wires pulse between 0V and 12V DC. Green wire remains at continuous 12V DC (if brake applied).
- Right Signal Engaged: Green and Blue wires pulse between 0V and 12V DC. Yellow wire remains at continuous 12V DC (if brake applied).
- Hazard Switch Pulled: Yellow, Green, Black, and Blue wires pulse simultaneously between 0V and 12V DC.
Common 7 Wire Turn Signal Switch Diagram Wiring Errors and Solutions
Faults in directional switch wiring usually stem from mixed wire color codes, improper flasher relay selection, or inadequate ground wire return paths. The matrix below outlines common operational symptoms, root causes, and corrective actions.
| Symptom | Probable Root Cause | Diagnostic Procedure | Corrective Action |
|---|---|---|---|
| Front lights turn on solid when stepping on the brake pedal | Brake switch output connected directly to front lamp outputs or flasher feed | Check voltage at Blue and Black wires while pressing brake. Voltage indicates cross-wiring. | Move the brake switch hot wire strictly to the Red terminal wire on the 7-wire harness. |
| Turn signals hyper-flash or fail to flash after installing LED lamps | Thermal flasher relay requires higher current draw than LEDs provide | Measure total circuit current draw. Standard thermal flashers require ~4A; LEDs pull <0.5A. | Replace standard 2-pin thermal flasher relay with an LED-compatible electronic flasher unit. |
| Rear lights flash faintly or turn off entirely when brake pedal is pressed | Corroded or missing chassis ground wire at rear tail light housing | Perform a voltage drop test between lamp ground shell and negative battery post. Drop should be < 0.2V. | Clean metal mounting pad to bare metal; install dedicated ground wire from light housing to frame. |
| Main 15A fuse blows instantly when hazard switch is pulled | Brown hazard line shorted to chassis ground or incorrect terminal block pinout | Check continuity to ground on Brown line with switch disconnected. Continuity indicates a short. | Inspect harness for pinched insulation along steering column; correct terminal pin assignments. |
7 Wire Turn Signal Switch Diagram Technical Frequently Asked Questions
How does a 7-wire turn signal switch separate turn signals from brake lights on shared rear bulbs?
The 7-wire switch utilizes internal mechanical contacts that act as an inline transfer switch. Under normal operation with the turn lever centered, brake pedal power entering via the Red wire passes straight through internal contacts to both the Green (right rear) and Yellow (left rear) wires. When you engage a turn signal, the internal mechanism mechanically disconnects the brake power feed from that specific side and replaces it with the pulsating power coming from the White flasher wire. The opposite rear light remains directly connected to the brake input feed.
What wire gauge should be used when extending a 7-wire turn signal switch wiring harness?
When extending the factory switch wiring, use 14 AWG stranded copper wire for main primary power lines (Red brake input, White turn flasher output, and Brown hazard flasher output). For the directional lamp outputs (Yellow, Green, Blue, and Black), 16 AWG stranded copper wire is recommended for harness runs up to 25 feet. For commercial trucks or multi-axle equipment with runs exceeding 25 feet, step up to 14 AWG on all output lines to minimize voltage drop across the system.
Can I use a 7-wire turn signal switch on vehicles with separate yellow/amber turn lights and red brake lights?
Standard 7-wire switches are engineered specifically for combined brake/turn systems (where the same red lamp filament handles brake and turn functions). To use a 7-wire switch on vehicles with independent amber rear turn signals and separate red brake lamps, you must either install a tail light converter module (converter box) downstream of the switch or isolate the brake light feed so that brake power bypassing the turn switch goes directly to the dedicated stop lamps while the Yellow and Green wires feed only the amber turn filaments.
Why is a neutral wire or chassis ground wire required for LED indicator pilots on a 7-wire switch?
Incandescent dash pilot lights complete their circuit through low-resistance incandescent bulb filaments. However, high-efficiency Light Emitting Diodes (LEDs) require a defined ground return path due to their low current draw and unidirectional polarity. When converting dash indicator lamps to LED, connect an explicit ground wire from the indicator shell to a clean chassis terminal block ground point. Failing to provide a common chassis return can cause phantom LED glow or unwanted cross-circuit current leakage.
What is the difference between the White wire and Brown wire flasher feeds in the diagram?
The White wire connects to the primary turn signal flasher, which receives switched 12V DC ignition power. This ensures that directional turn signals only function when the vehicle ignition switch is in the “ON” or “ACC” position. The Brown wire connects to a secondary emergency hazard flasher relay that receives unswitched 12V DC power directly from the battery fuse block. This independent feed allows the hazard 4-way flashers to operate continuously even when the vehicle ignition key is turned off or removed.
Step-by-Step Guide to Understanding the 7 Wire Turn Signal Switch Diagram
Identify – Map each lead on your switch using the official 7 wire turn signal switch diagram.
Locate – Position the flasher relay, brake switch feed, fuse block, and clean chassis ground wire point.
Reference – Match pin assignment data to determine front, rear, brake, and hot wire power circuits.
Connect/Route – Terminate and route wires using 16 AWG primary line, inserting inline fuses where recommended.
Verify – Test right/left turns, hazard lights, and brake overrides using a 12V circuit test light.
Troubleshoot – Check ground wire stability, flasher load rating, and rear pin assignments if lights backfeed.
