DC Flashlight Diagram: How Does a Flashlight Work Diagram 2026
A flashlight functions via a simple direct current (DC) series circuit. When the slide switch closes, it completes an electrical path between the battery positive terminal (1.5V–3.0V), the incandescent or LED lamp, a copper conductor strip, and the coiled steel tail spring connected to the negative terminal.
📌 Key Takeaways
- DC series circuit structure requires continuous contact from 1.5V–3.0V cell terminals through the conductor strip.
- Polarity alignment (+ terminal facing bulb anode) is critical for LED system configurations to function.
- Clean switch contact plates with 90% isopropyl alcohol to eliminate high electrical resistance.
- Tail-cap spring corrosion and loose reflector retaining rings are primary causes of flickering light output.
- Simple continuity testing can be completed via multimeter; replace the housing assembly if switch solder pads tear.
Understanding portable direct current (DC) illumination systems requires analyzing the complete electrical path, mechanical contacts, and solid-state drivers embedded within modern equipment torches. A direct current portable illumination tool operates on a low-voltage closed-loop circuit that converts stored chemical energy into photolytic energy via electron migration across a semiconductor junction. By reviewing the schematic layout below, automotive technicians and industrial equipment specialists can trace current flow, isolate high-resistance fault points, calculate expected voltage drops, and perform precise electrical diagnostics on modern tactical and inspection lighting hardware.

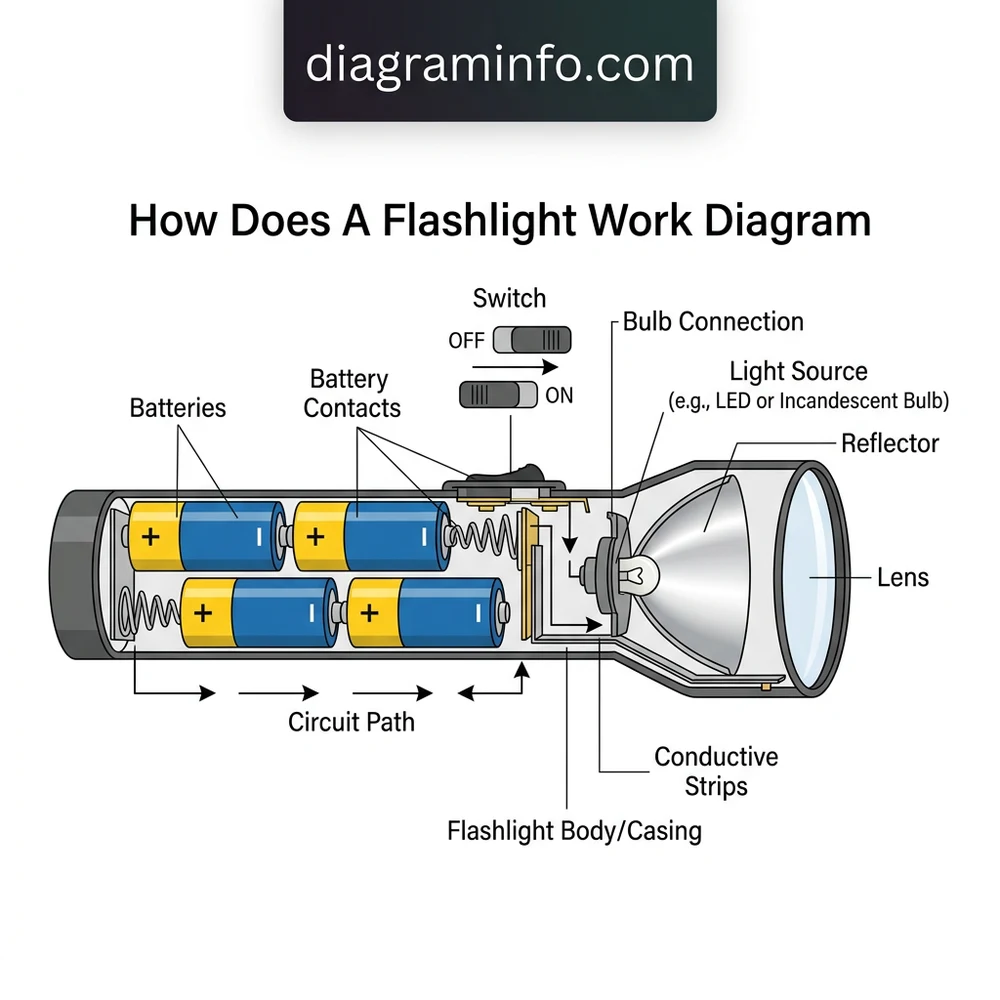

Schematic Overview: DC Power Source, Tail-Cap Switch Ground Path, Constant-Current Driver Board, and LED Semiconductor Emitter
How Does a Flashlight Work Diagram Component Structure
Every commercial and industrial illumination tool relies on an interconnected series of mechanical, electrical, and thermal components. As illustrated in the electrical blueprint, breaking any section of this continuous current loop prevents photon generation.
Power Source and Tail Cap Contact Spring Assembly
The energy source typically consists of one or more lithium-ion (Li-ion) cells—such as an 18650 or 21700 cell operating at a nominal 3.7V—or conventional alkaline primary cells (1.5V per cell in series). At the base of the chassis, a beryllium-copper or gold-plated music wire spring maintains high contact pressure against the negative battery terminal. This spring provides low-resistance electrical coupling (less than 10 mΩ) while dampening mechanical vibration. The tail cap housing screws onto the conductive anodized aluminum body tube, establishing a chassis ground interface via unanodized threads or bare metallic mating surfaces.
Mechanical Switch Interface and Driver Circuit Board
The switch acts as the physical actuator interrupting or closing the circuit loop. In tactical setups, a forward or reverse clicky switch opens and closes the negative ground path. Advanced systems incorporate a microcontroller-based constant current driver board positioned at the head of the assembly. This driver regulates supply voltage, manages thermal throttling, and provides pulse-width modulation (PWM) or constant current regulation to control total output intensity.
Solid-State Emitter, Reflector, and Heat Sink Layout
The load component consists of a high-efficiency Light Emitting Diode (LED) mounted on a Metal Core Printed Circuit Board (MCPCB). Direct Thermal Path (DTP) copper MCPCBs transfer excess thermal energy directly into the aluminum chassis heat sink. A parabolic smooth or orange-peel reflector surrounds the emitter dome, focusing dispersed light rays into a collimated beam.
| Component Part | Primary Function | Electrical Spec / Property |
|---|---|---|
| Tail Spring Assembly | Negative terminal contact & recoil absorption | Resistivity < 15 mΩ (Gold/Beryllium Cu) |
| Aluminum Body Tube | Chassis ground conductor & mechanical housing | Type III Hard Anodized (Threads bare) |
| Buck/Boost Driver Board | Current regulation & voltage translation | 90%+ efficiency, 2.8V–4.2V input range |
| LED Emitter (MCPCB) | Photonic conversion junction | Forward Voltage (Vf) 2.8V–3.2V DC |
How Does a Flashlight Work Diagram Circuit Flow Instructions
Estimated Servicing Time: 15 minutes | Required Tools: Digital Multimeter (DMM), Iso-alcohol (99%), DeoxIT contact cleaner, retaining ring pliers | Safety Equipment: Eye protection (High-Lumen Hazard, IEC 62471 rated), thermal gloves.
Understanding how energy translates through the schematic requires tracking the continuous loop from potential energy release to photon generation. Follow these precise step-by-step circuit mechanics:
- Activating the Mechanical Switch Interface: Pressing the switch plunger toggles the internal metallic contact plate. This bridges the isolated tail-cap contact ring to the grounded tail housing, completing the physical ground return path to the chassis.
- Establishing Conductive Chassis Return: Electrons flow from the cell’s negative (-) terminal, through the compressed tail spring, across the switch contacts, and into the unanodized aluminum barrel threads. The entire outer casing functions as a low-resistance return conductor, similar to standard automotive circuit diagnostics ground systems.
- Engaging the Driver Regulation Circuitry: Potential difference reaches the outer ring of the head assembly driver board. The integrated circuit (IC) controller checks input voltage levels. If supply voltage matches operational parameters (typically above 2.8V DC for Li-ion cell protection), the MOSFET switch opens the gate for current regulation.
- Biasing the Semiconductor Junction: The driver delivers regulated DC current across the LED anode (+) and cathode (-) pads. When forward bias voltage exceeds the emitter’s bandgap threshold (typically ~3.0V DC), electrons recombine with electron holes within the semiconductor chip’s active layer.
- Photonic Emission and Thermal Transfer: This electron recombination releases energy in the form of photons. Excess energy not converted to light converts into thermal heat, which dissipates across the copper DTP surface into the thermal mass of the aluminum head shell, completing the system loop. Technicians maintaining high-output systems should refer to solid-state LED drivers documentation for custom thermal throttling parameters.
When testing high-drain inspection devices, always verify contact surface integrity. Microscopic oxidation on the end-grain body threads increases circuit resistance exponentially, leading to premature thermal throttling and severe voltage drop across the driver board.
Troubleshooting Portable Lighting Systems via Schematic Blueprint
When an inspection light or tactical flashlight fails, systematic electrical diagnosis using a Digital Multimeter (DMM) prevents unnecessary component replacement. Diagnostic isolation should always follow the schematic path from battery supply to emitter output.
Never bypass driver electronics to direct-drive a low forward-voltage LED off a high-drain lithium cell. Unregulated current delivery will cause thermal runaway, vaporizing emitter bond wires or causing hazardous battery venting.
Tracing Open Circuits Across Anodized Body Threads
Set your DMM to Resistance (Ohms) mode. Measure resistance between the tail-cap spring contact and the bare aluminum face of the tube. Resistance must read under 0.2 Ω. If the meter shows infinite resistance (OL), clean the thread interfaces using 99% isopropyl alcohol to remove contaminated grease or silicon oxidation. Consult our guide on battery management system layout for advanced contact preservation techniques.
Evaluating Switch Contact Resistance and Voltage Drop
To isolate a faulty tail switch, remove the tail-cap entirely. Place a heavy-gauge jumper wire or DMM probe (set to 10A DC current mode) directly between the negative battery terminal and the exposed aluminum tube edge. If the light operates normally, the mechanical switch contacts are pitted or loose. Retighten the internal switch brass retaining ring using snap-ring pliers by turning counter-clockwise (left-hand thread on select tactical models).
Diagnosing Driver PWM Failure and Thermal Throttling
If the emitter blinks repeatedly or drops output instantly, check cell voltage under load. A voltage drop below 2.8V DC forces the driver IC into low-voltage protection (LVP). If supply voltage remains stable above 3.6V DC, inspect the driver board for cracked SMD ceramic capacitors or thermal paste breakdown behind the copper MCPCB.
Flashlight Electrical Configuration and Operation FAQs
Why does a flashlight require a continuous ground path through its chassis structure?
Utilizing the aluminum barrel housing as the return ground conductor eliminates the need for internal secondary wiring. This reduces mechanical points of failure, minimizes internal electrical resistance, optimizes heat dissipation, and streamlines the compact mechanical configuration of the tool.
What role does the constant current driver play in the circuit layout?
The driver acts as a DC-to-DC buck or boost converter. Because direct lithium-ion battery voltage declines during discharge (from 4.2V down to 2.5V), a driver dynamically regulates current delivery to ensure uniform lumen output throughout the battery’s operational discharge cycle.
How does switch contact resistance impact total lumen output and thermal efficiency?
Excess resistance at dirty thread interfaces or oxidized switch contacts causes a parasitic voltage drop ($V = I \times R$). This voltage drop dissipates battery power as useless heat within the tail assembly rather than delivering current to the LED emitter, causing diminished light output and degraded efficiency.
Why do LED flashlights use forward voltage instead of direct battery potential?
LEDs are current-driven non-linear diodes. Once the forward voltage ($V_f$) threshold is reached, minor increases in applied voltage cause exponential jumps in current draw. Without driver control matching forward bias specs, direct potential causes instant thermal over-stress and emitter failure.
What causes circuit failure when battery cell orientation is reversed?
Reversing battery polarity feeds positive potential into the ground side of the driver board. Unless the driver features integrated reverse polarity protection (RPP) diodes or physical mechanical lockout rings, backward installation burns out the sensitive input MOSFETs on the driver board instantly.
Step-by-Step Guide to Understanding the How Does A Flashlight Work Diagram
Identify – Examine the overall layout diagram to locate the power source, switch mechanism, and light load.
Locate – Find the positive (+) battery terminal contacting the lamp center post and the negative (-) spring contact structure.
Reference – Trace the slide switch connection configuration to verify mechanical engagement along the internal conductive strip.
Connect/Route – Ensure the copper strip maintains physical contact from the tail spring up to the switch housing assembly.
Verify – Measure circuit continuity with a multimeter set to ohms from the switch contact plate to the bulb shell connection.
Troubleshoot – Clean corroded spring terminals with isopropyl alcohol if open-circuit condition or high resistance occurs.
