Ditch Witch SK800 Parts Diagram: Component Breakdown (2026)
The Ditch Witch SK800 parts diagram details the mini track loader’s structural layout, including the 24.8 HP Kubota D1105 diesel engine, dual hydrostatic pumps, track drive motors, and dual-lever hydraulic control valve assembly. It illustrates component part numbers, exploded views, and fastener torque specs for accurate maintenance.
📌 Key Takeaways
- Powered by a 24.8 HP Kubota D1105-E4B diesel engine with a hydraulic system operating up to 3,000 PSI.
- Drive track tensioning requires proper grease cylinder adjustment to maintain 0.5 to 1.0 inch slack.
- Engine oil drain plug torque is 25-30 lb-ft; hydraulic filter housing requires hand-tightening plus 3/4 turn.
- Most frequent hydraulic system failures stem from contaminated fluid or clogged 10-micron return filters.
- Basic filter replacements and pin bushings are suitable for DIY, while hydrostatic pump overhauls require certified service.
The Ditch Witch SK800 mini skid steer is a heavy-duty compact utility loader engineered for demanding earthmoving, landscaping, and construction applications. Navigating the complex mechanical, hydraulic, and electrical assemblies of this machine requires a detailed understanding of the official Ditch Witch SK800 parts diagram. Whether performing routine field maintenance, replacing worn track drive sprockets, or rebuilding hydraulic valve blocks, interpreting the factory schematic accurately ensures correct component selection and precise OEM torque application. This technical guide breaks down every primary system, outlining callout structures, hydraulic hose routing, and critical replacement specifications for service technicians and equipment owners.

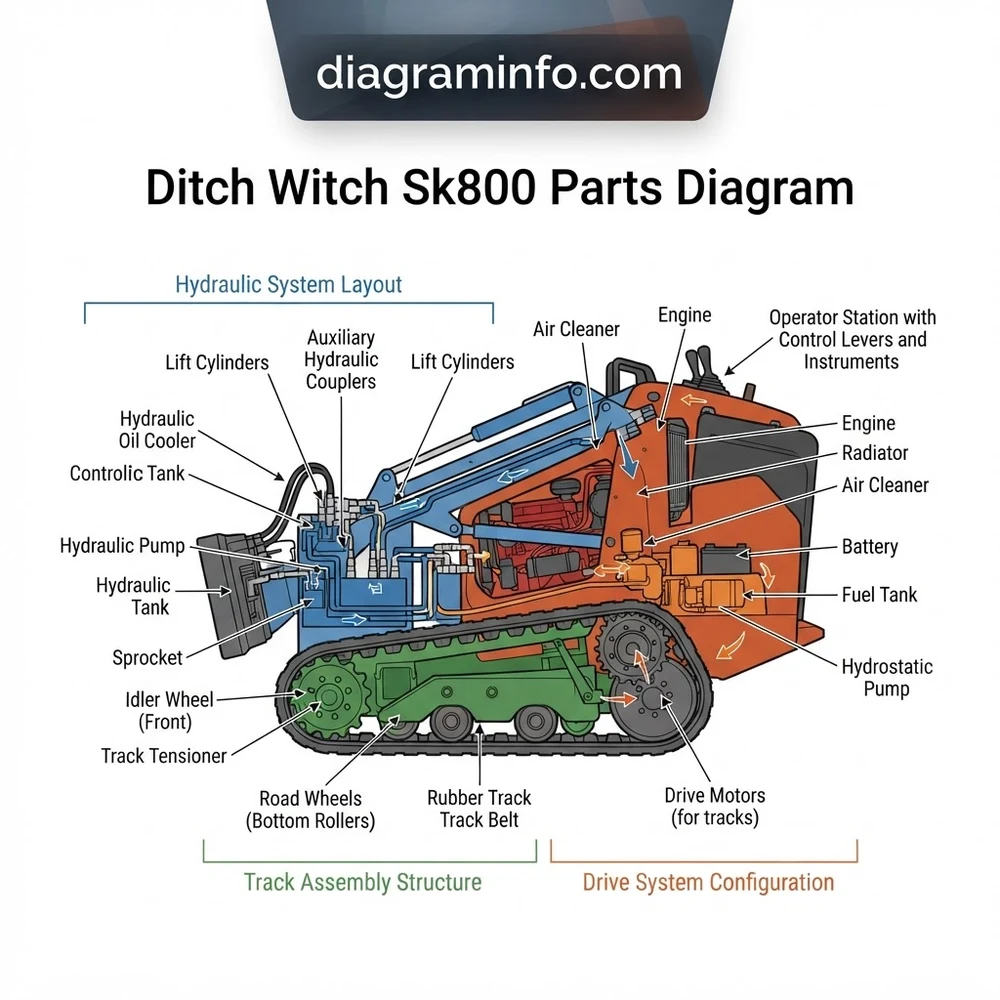

Ditch Witch SK800 Parts Diagram: System and Layout Breakdown
The structural layout of the Ditch Witch SK800 relies on a modular design centered around an all-welded steel unibody frame. Accessing specific subsystems requires cross-referencing the master schematic callouts against the machine’s physical hardware. According to OEM technical documentation, the loader’s operational foundation is divided into four main physical quadrants: the lower chassis and track drive assembly, the mid-frame engine housing, the upper operator station, and the forward lift arm linkage.
Machine Model: Ditch Witch SK800 | Engine: Kubota D1105 3-Cylinder Diesel (24.8 HP @ 3000 RPM) | System Operating Pressure: 3,000 PSI (207 bar) | Auxiliary Flow Rate: 12.0 GPM (45.4 L/min) | Drive Type: Dual Hydrostatic Track Drive
Hydraulic System Layout and Main Pump Configuration
The hydraulic system forms the primary power output of the SK800. As illustrated in the master hydraulic schematic, the system utilizes a tandem hydrostatic drive pump coupled directly to the Kubota D1105 engine flywheel. This assembly feeds two variable-displacement drive motors that control left and right track drive performance independently. A separate gear pump delivers pressurized hydraulic fluid at 3,000 PSI to the loader arm lift/tilt cylinders and the auxiliary manifold. When servicing hydraulic lines, technicians must observe O-Ring Face Seal (ORFS) standards to prevent high-pressure fluid leaks. For comprehensive engine work, refer to our Kubota D1105 diesel engine maintenance guide for complete internal component clearances.
Kubota D1105 Diesel Engine Assembly and Mounting Blueprint
The engine housing section of the Ditch Witch SK800 parts diagram details the liquid-cooled Kubota D1105 diesel power unit. The blueprint illustrates engine isolation mounts designed to dampen high-frequency chassis vibration. Key engine schematic callouts include the dual-element air cleaner assembly, heavy-duty radiator/oil cooler combo unit, and the 12-volt alternator charging system. Critical maintenance points—such as the fuel filter water separator assembly and primary oil filter housing—are clearly indexed with specific OEM part numbers to prevent cross-threading or improper seal seating during filter replacements.
Under架/Track Drive Component Structure and Sprockets
The track drive component layout displays the tensioning mechanism, lower track rollers, front idler, and drive sprockets. The tensioning unit utilizes a sealed grease cylinder spring assembly that exerts constant outward pressure against the front idler shaft. The drive sprocket connects directly to the hydraulic motor output shaft via a tapered splined hub. Factory torque values must be strictly adhered to during sprocket bolt installation to avoid shearing under high torsional loads encountered on rough terrain.
Operator Station and Hydraulic Control Valve Schematic
The operator control quadrant includes the ergonomic joy-stick controls, foot safety pedal, auxiliary control lever, and primary instrument panel. The hydraulic valve bank schematic outlines the multi-spool directional control valve located directly beneath the operator platform. This section details line connections using dash size indicators (-04, -06, -08, -10 ORFS) and specifies internal relief valve cartridges rated to maintain hydraulic pressure stability across auxiliary circuits.
| Component Description | OEM Part Number | Thread / Fitting Spec | Torque Spec / Notes |
|---|---|---|---|
| Hydraulic Return Filter Element | 153-933 | Spin-On / 1-12 UNF | Hand tight + 3/4 turn |
| Engine Oil Filter (Kubota D1105) | 153-934 | M20 x 1.5 Thread | 11 – 13 ft-lbs (15 – 18 Nm) |
| Track Drive Sprocket Mounting Bolts | 105-822 | 1/2-13 UNC Grade 8 | 85 – 95 ft-lbs (115 – 129 Nm) |
| Lift Cylinder Pin Lock Bolts | 106-112 | 3/8-16 UNC Grade 5 | 30 – 35 ft-lbs (41 – 47 Nm) |
| Auxiliary Hydraulic Coupler Set | 155-1082 | -08 ORFS (1/2″ Body) | 40 – 44 ft-lbs (54 – 60 Nm) |
How to Read the Ditch Witch SK800 Parts Diagram Schematic
Deciphering an official Ditch Witch technical blueprint requires familiarity with standardized engineering callout conventions, explosion lines, and hardware coding standards. A comprehensive understanding of these conventions prevents ordering incorrect replacement components and expedites field repairs.
Ditch Witch parts manuals utilize keyed item numbers corresponding to a matching parts table. When a line connects a part callout number to a dashed enclosure box, it indicates that the item is sold both as an individual component and as part of a complete rebuild kit (e.g., hydraulic cylinder seal kits or track tensioner assemblies).
Navigating Explosive Views and Callout Numbering Sequences
Exploded view schematics show components pulled apart along invisible axis lines to indicate exact spatial relationships and installation order. In the SK800 diagram, solid straight lines indicate assembly alignment, while curved arrows show rotation direction or snap-ring insertion paths. Item callout balloons contain single numbers mapped directly to the parts index table. When servicing complex subassemblies like the loader arm tilt cylinder, following the sequence numbers ensures internal components—such as wear rings, piston seals, rod wipers, and locknuts—are installed in the precise OEM order.
Identifying Fasteners, O-Rings, and Hydraulic Fitting Dash Sizes
Hydraulic schematic overlays use industry-standard dash sizing to denote line diameters and fitting threads. On the SK800 layout, hydraulic lines are designated by their inside diameter in 1/16th inch increments (e.g., a -06 fitting represents 6/16″ or 3/8″ nominal size). Fasteners listed in the parts index include specific grade ratings, thread pitches, and length specifications. For example, a entry formatted as “Bolt, HH CS 1/2-13 UNC x 1-1/2 GR8” defines a hex head cap screw, 1/2-inch diameter, 13 threads per inch (Unified National Coarse), 1.5 inches long, rated Grade 8 heavy-duty strength.
Cross-Referencing Model Year Variations and Serial Number Ranges
Ditch Witch frequently introduces running engineering revisions across production runs without changing the core model name. When consulting the parts diagram, always reference your unit’s stamped serial number located on the frame near the operator platform. Production splits are designated in parts manuals by serial break indicators such as “S/N C00101 & Below” or “S/N C00102 & Above.” Utilizing the incorrect serial range diagram can result in receiving mismatched hydraulic hoses, incompatible electrical wiring harnesses, or altered track roller mounts. If servicing hydraulic lines, refer to our detailed guide on auxiliary hydraulic quick coupler assembly specifications for exact port size compatibility.
Troubleshooting Equipment Failures Using the Ditch Witch SK800 Blueprint
Using the official parts schematic as a diagnostic map allows mechanics to systematically isolate mechanical failures, hydraulic pressure drops, and electrical faults down to the specific failed component.
High-pressure hydraulic fluid hazard. Always relieve residual hydraulic pressure from the system by working control levers through all positions with the engine off before disconnecting any lines identified on the parts schematic. Fluid under pressure can penetrate skin, causing severe injury or gangrene.
Diagnosing Auxiliary Hydraulic Pressure Drops and Hose Routing
If auxiliary attachments suffer from low operational force or slow cycle times, consult the main hydraulic system schematic. Tracing the fluid route from the auxiliary control valve block to the quick-disconnect couplers allows you to isolate potential restrictions. Check primary pressure points using a 0-5000 PSI pressure gauge tapped into the main auxiliary test port. If system pressure reads below the factory specified 3,000 PSI, refer to the valve schematic to locate the primary system relief valve (OEM Ref #155-891). Inspect internal pilot O-rings and backup rings for erosion or contamination bypass.
Resolving Track Tensioner Collapse and Drive Motor Leaks
Track slack issues often stem from internal failure within the track tensioner cylinder assembly. The track drive breakdown section of the parts diagram displays the grease-zirk relief valve, piston seal, and heavy coil spring configuration. If grease bleeds past the internal piston quad-ring, tension drops instantly, causing the rubber track to derail. By reviewing the schematic structure, technicians can determine whether replacing the rubber lip seal kit (OEM Ref #190-442) is sufficient or if the entire grease cylinder cylinder barrel must be replaced due to internal scoring.
Electrical System Wiring Schematic and Fuse Box Tracing
Electrical failures—such as glow plug energization loss, starter solenoid drop-outs, or auxiliary solenoid control failures—can be diagnosed using the SK800 master electrical schematic. The wiring diagram establishes wire insulation color codes and circuit terminal points:
- Red (12 AWG): Unswitched main battery positive line running directly from the main 50A breaker to the ignition switch.
- Black (12/14 AWG): Direct chassis ground distribution net connected to the negative terminal post.
- Yellow with Black Stripe (14 AWG): Glow plug relay feed line powering the Kubota D1105 pre-heat system.
- Blue with White Stripe (16 AWG): Auxiliary hydraulic valve solenoid command signal from the handle thumb switch.
- Green with Red Stripe (16 AWG): Operator presence seat/platform safety switch interlocking loop.
When an electrical short occurs, trace the affected color-coded wire on the schematic to locate inline relays, diode blocks, and multi-pin Deutsch connectors. If your maintenance involves physical track adjustment or undercarriage rebuilds, consult our step-by-step skid steer track tension adjustment procedure for field setup steps.
Ditch Witch SK800 Parts Diagram Questions Answered
Where can I locate the serial number on the SK800 to ensure I am using the correct diagram?
The serial number plate on the Ditch Witch SK800 is stamped into the steel frame on the rear left side of the machine, near the operator standing platform and battery compartment door. The serial code consists of a 17-digit alphanumeric string or an 8-digit sequence depending on the production year. Always match the serial range listed on the title page of your parts diagram manual before selecting replacement components, as hydraulic valve porting and electrical harness layouts differ across production runs.
What hydraulic fluid and filter specifications does the SK800 parts manual mandate?
Manufacturer specifications indicate that the Ditch Witch SK800 requires high-viscosity ISO VG 46 anti-wear hydraulic oil (or Mobilfluid 424 for extreme cold environments). The main hydraulic return filter assembly uses OEM part number 153-933, which features a 10-micron synthetic filtration rating and an internal 25 PSI bypass spring. Replacing this filter element every 500 operating hours is critical to protecting the hydrostatic drive motors from harmful metallic wear debris.
How do I determine the correct torque specs for track sprocket bolts using the blueprint?
The track drive hardware section of the parts diagram specifies 1/2-13 UNC Grade 8 hex head bolts (OEM Part #105-822) securing the sprocket to the drive motor hub. Factory torque specifications call for these bolts to be torqued in a cross-pattern sequence to 85–95 ft-lbs (115–129 Nm). Always apply medium-strength blue threadlocking compound (Loctite 242) to the clean threads prior to torquing to prevent hardware backing out under severe vibrational loads.
How are hydraulic hose dash sizes represented on the factory schematics?
On Ditch Witch engineering schematics, hydraulic hoses and fittings use standard dash size conventions representing sixteenths of an inch inside diameter. A hose listed as -04 corresponds to a 1/4-inch inner diameter line, -06 denotes 3/8-inch, -08 indicates 1/2-inch, and -12 signifies 3/4-inch. Port fittings are specified as ORFS (O-Ring Face Seal) or SAE J1926 Straight Thread O-Ring (ORB) to guarantee leak-free sealing under 3,000 PSI working pressures.
Can I substitute aftermarket components using the OEM part numbers from the diagram?
While standard hardware items like Grade 8 bolts, standard SAE O-rings, and universal quick-disconnect fittings can be replaced with equivalent high-grade aftermarket components, critical system parts should remain OEM. Hydraulic control valve spools, hydrostatic drive pump cartridges, and specialized track tensioner seals are engineered specifically for Ditch Witch hydraulic flow rates and thermal expansion tolerances. Substituting non-OEM parts in high-pressure hydraulic circuits can lead to internal flow cavitation, premature system wear, or immediate component failure.
Step-by-Step Guide to Understanding the Ditch Witch Sk800 Parts Diagram
Identify – Determine the target assembly on the Ditch Witch SK800, such as the hydraulic drive, track system, or engine module.
Locate – Find the corresponding section in the parts diagram to view the exploded structure and part callout numbers.
Reference – Match callout numbers to the OEM parts list to verify component part numbers and hardware specifications.
Route – Align replacement hydraulic lines, control cables, or structural pins according to the schematic layout.
Verify – Check torque specifications on fasteners and ensure proper clearances across all moving mechanical linkages.
Troubleshoot – Test machine operation under low load to verify hydraulic pressure integrity and track tension stability.
