Hayward Pool Filter Parts Diagram: 2026 Component Guide
A Hayward pool filter parts diagram illustrates the internal and external configuration of sand, cartridge, or DE systems. Key components include the top multi-port valve, clamp assembly, filter head, lateral assembly or grid structure, sight glass, drain plug, and pressure gauge operating typically between 8 to 15 PSI for normal water circulation.
📌 Key Takeaways
- Normal operating pressure gauge reading ranges between 8 to 15 PSI; readings 8-10 PSI above clean baseline indicate maintenance required.
- Tank clamp nuts require tightening until spring coils touch, ensuring housing structure seals without over-torquing.
- Always bleed tank pressure fully through manual air relief valve before loosening clamp assembly safety bolts.
- Cracked lateral fingers or torn DE grid fabric represent the most common cause of media returning to pool water.
- Replace damaged multi-port valve spider gaskets and lubricate tank O-rings with silicone lubricant annually.
Navigating a hayward pool filter parts diagram requires an understanding of hydraulic pressure boundaries, structural component layout, and precision sealing interfaces. Whether servicing a ProGrid DE, SwimClear Cartridge, or ProSeries Sand system, a technical schematic provides critical insight into internal flow dynamics and OEM replacement specifications. Misidentifying a single O-ring or failing to torque a clamp band to factory tolerances can lead to catastrophic pressure loss or structural shell failure. This technical guide breaks down Hayward filter blueprints, internal structural configurations, and diagnostic workflows for qualified service mechanics and experienced pool operators.
Hayward Pool Filter Parts Diagram: Complete Component Breakdown

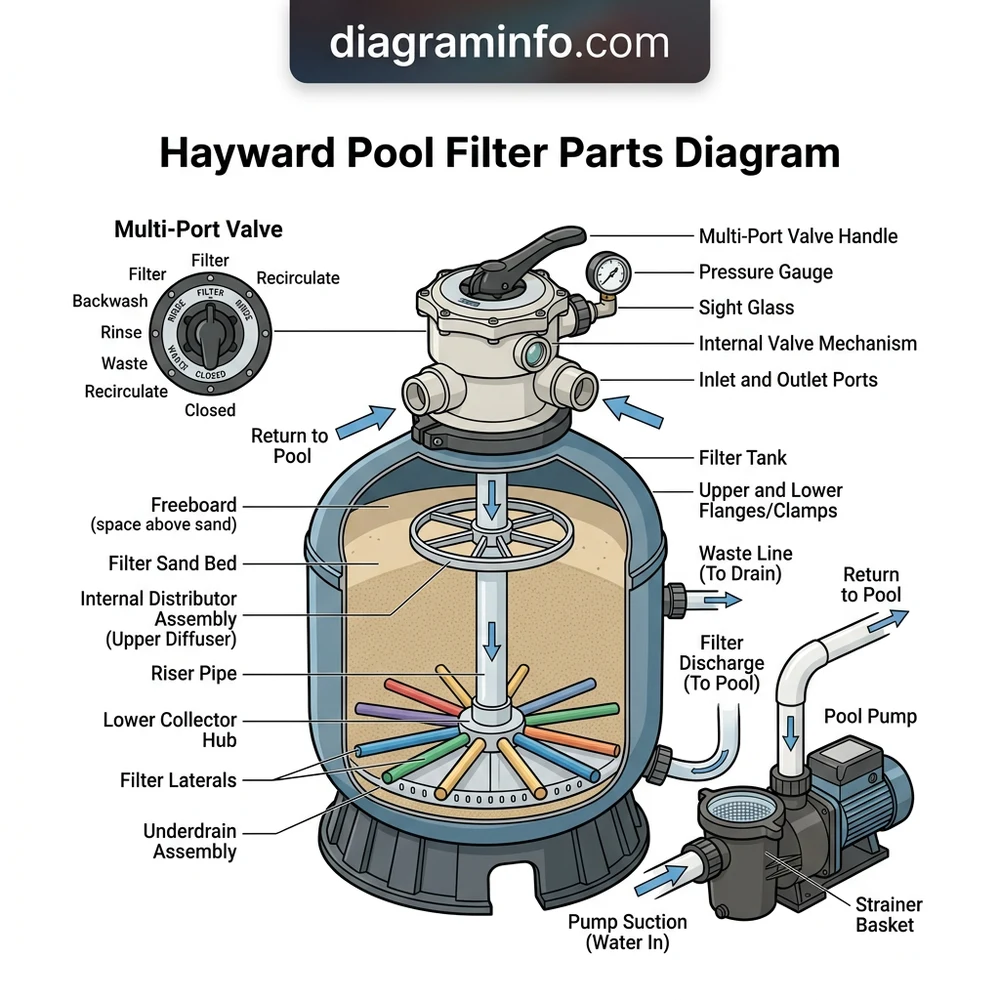

Understanding the structural overview of Hayward filtration systems requires isolating the primary high-pressure outer containment and internal hydraulic distribution sub-assemblies. The schematic below details how water enters the outer housing, passes through structural media, and exits via central internal piping.
High-Pressure Tank Shell and Clamping Mechanism
The tank enclosure consists of heavy-duty, glass-reinforced copolymer or thermoplastic resin upper and lower housings engineered to sustain continuous operational pressures up to 50 PSI. The structural midpoint junction between the upper dome and lower body relies on a specialized, high-durometer EPDM tank O-ring (e.g., DEX2422L for DE/Cartridge models or GMX600F for sand models). A segmented two-piece stainless steel or heavy-duty reinforced clamp ring secures the joint via a metric/SAE T-bolt and spring compression nut.
Internal Filtration Elements and Manifold System

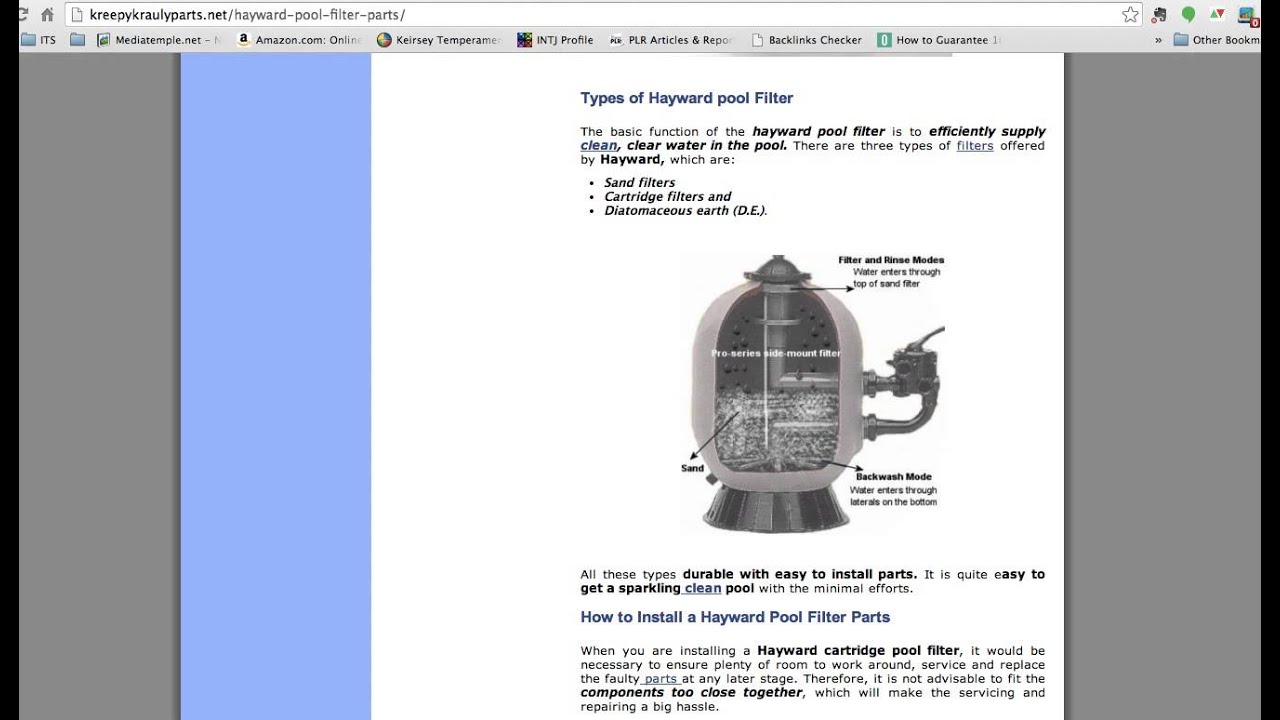

Internal configurations vary across media types shown in the primary diagram layout:
- DE Systems (ProGrid Series): Feature an eight-grid radial cluster supported by a top-positioned Noryl manifold, bottom locator hub, and a vertical internal riser pipe. A flexible vinyl air relief tube with a 100-mesh mesh strainer extends from the top manifold to exhaust air.
- Cartridge Systems (SwimClear Series): Feature single or quad-core pleated polyester cartridge elements seated over a bottom collector manifold and held in alignment by a top element locator bridge.
- Sand Systems (ProSeries): Incorporate a top-mount or side-mount multi-port valve connected to a central standpipe leading to a self-cleaning 360-degree lateral underdrain system.
Air Relief and Pressure Monitoring Controls
Positioned at the apex of the tank dome is the manual air relief valve assembly (e.g., DEX2420MAR2). This component integrates a 0-60 PSI glycerin-filled or dry pressure gauge, a high-temperature O-ring seal, and an air vent body designed to bled trapped air during pump priming operations.
Maximum Operational Working Pressure: 50 PSI (3.45 Bar). Tank Clamp Bolt Torque Spec: Tighten spring coils until touching metal-to-metal (approx. 150–180 in-lbs / 17–20 Nm). O-ring Lubrication: Use 100% pure silicone-based lubricant only; petroleum distillates degrade EPDM seals.
| Diagram Key # | Component Description | Common OEM Part Numbers | Technical Notes / Specs |
|---|---|---|---|
| 1 | Manual Air Relief Valve Assembly | DEX2420MAR2, CCX1000V | Includes gauge, O-ring, and vent body |
| 2 | Upper Tank Dome Housing | DEX2421A, DEX2400C | Glass-filled copolymer, 50 PSI rating |
| 3 | Segmented Tank Clamp Assembly | DEX2421JKIT, CCX1000J | Includes spring, washer, T-bolt, and nut |
| 4 | Main Tank Shell O-Ring | DEX2422L, GMX600F, CCX1000L | EPDM durometer rubber; replace annually |
| 5 | Top Outlet Grid Manifold | DEX2400M, CCX1000N | Noryl resin; houses internal air bleed pipe |
Navigating the Hayward Pool Filter Schematic and System Configuration
Interpreting a technical schematic requires tracing fluid mechanics from the intake plumbing through the filter structural media to the return line manifold.
Tracing Hydraulic Pathways in the Diagram
In a standard Hayward cartridge or DE blueprint layout, untreated water enters through the lower inlet bulkhead (1.5-inch or 2-inch SKT/NPT connection). Fluid fills the outer perimeter of the lower tank body, forcing water laterally inward through the filter grid mesh or cartridge polyester pleats. Suspended solids down to 2–5 microns (DE) or 10–15 microns (cartridge) are trapped on the exterior media surface. Clean water collects inside the hollow center core of each element, ascends into the top structural manifold, flows down through the central outlet pipe, and exits through the bottom discharge bulkhead.
Exploded Assembly Order and Service Sequence
When performing full system overhauls, follow this chronological assembly order as indexed on the blueprint:
- Riser Pipe and Bottom Hub Alignment: Ensure the bottom locator hub is seated over the internal discharge elbow with seal rings fully seated. For units utilizing a backwash valve layout, refer to our detailed Hayward Vari-Flo valve rebuild guide for proper port clocking.
- Grid/Cartridge Array Installation: Slide elements onto the bottom locator tabs. Install the top manifold, making sure the upper end of each grid neck inserts cleanly into the manifold sockets without pinching the internal outlet seals.
- Internal Air Bleed Routing: Fasten the flexible air relief hose through the dedicated port in the top manifold. Verify the fine mesh screen filter cap is firmly attached to prevent media pass-through. For step-by-step grid extraction steps, review the DE filter grid assembly manual.
- Belly Band Clamp Installation: Seat the main body O-ring flat in the lower housing groove. Lower the top dome straight down. Wrap the two-piece clamp ring around the tank lip, insert the T-bolt through the brass barrel, and tighten the tension spring until all coils compress against each other.
When replacing internal riser pipes or bulkhead adapters on older Hayward models (pre-2009 vs post-2009 design changes), verify thread pitch and lock-nut orientation. Older models use fine-thread NPT bulkheads, whereas modern units use union-style flanged bulkheads with external sealing nuts.
Troubleshooting Common Issues Using the Hayward Pool Filter Diagram
Component-level schematics allow technicians to systematically isolate operational failures based on mechanical symptoms and fluid dynamic bottlenecks.
Mid-Body Seam Fluid Leaks
If water drips or sprays from the main tank clamp seam, consult the middle portion of the schematic. Common causes include:
- Pinched or Swollen Main O-Ring (DEX2422L): Inspect for flat spots, stretching, or chemical degradation caused by petroleum lubricant usage. Replace the seal.
- Debris in Flange Groove: Sand or old DE powder lodged in the lower tank flange groove prevents uniform compression. Clean the groove thoroughly with a microfiber rag before installing the seal.
- Under-Torqued Clamp Bolt: Check the tension spring gap on the clamp T-bolt. If space remains between the spring coils, tighten until the coils touch solid metal-to-metal.
Media Powder or Dirt Returning to the Pool
When filter media or fine dirt bypasses the filtration barrier and enters the pool return jets, examine the upper section of the diagram for three mechanical failure points:
- Torn Grid Fabric or Cracked Cartridge Core: Even a tiny tear in a DE grid cover or a cracked internal core tube allows unfiltered media to return directly to the pool.
- Missing or Clogged Air Relief Screen: If the 100-mesh strainer on top of the air bleed tube is broken or missing, DE powder will enter the air tube during backwashing or pre-coating and pass directly into the clean return water.
- Cracked Sand Filter Lateral: For sand filters, fine sand blowback typically points to a fractured lateral arm at the bottom of the tank. For complete lateral replacement procedures, reference our sand filter lateral replacement tutorial.
Never attempt to loosen the belly band clamp bolt or remove the top dome while the pump is running or the system is under pressure. Always shut down power at the breaker and open the manual air relief valve on top of the tank until the pressure gauge reads exactly 0 PSI before servicing high-pressure components.
Frequently Asked Questions About Hayward Pool Filter Diagrams
How do I identify the exact model number on my Hayward filter schematic?
Cross-reference the physical dimensions of the outer tank shell and the label on the lower tank body with the part index on the exploded blueprint. Model numbers like DE4820 vs DE6020 or C3030 vs C4030 share identical clamp bands and valve bulkheads, but differ in vertical tank height, internal element grid length, and square footage media capacity ratings.
What is the correct torque specification for Hayward tank clamp bolts?
Hayward spring-loaded clamp assemblies must be torqued using a 7/16-inch or 1/2-inch deep socket until the coils of the heavy-duty spring press tightly together (metal-to-metal contact). This coil-bound state sets the exact factory tension specification of 150 to 180 in-lbs (12.5 to 15 ft-lbs). Do not over-torque beyond complete coil compression, as this can stretch the T-bolt threads.
Why does my Hayward DE filter diagram show a flexible tube inside the tank assembly?
The internal flexible tube is the automatic air relief line. Because air gathers at the top dome of the tank during startup, this tube captures trapped air and safely routes it through the internal manifold and down the outlet pipe. The fine mesh strainer on top prevents filter media from entering the clean water return loop.
How often should I replace the main tank shell O-ring depicted in the schematic?
The main body tank seal (part # DEX2422L, GMX600F, or CCX1000L) should be inspected every time the filter clamp is removed for routine cleaning. Replace the O-ring every 2 to 3 years, or immediately if you notice rubber flattening, swelling, cracking, or permanent chemical hardening.
Step-by-Step Guide to Understanding the Hayward Pool Filter Parts Diagram
Identify – Identify your specific Hayward pool filter model number from the tank label to select matching schematics.
Locate – Locate the exploded layout drawing to review full internal structure and media container configuration.
Reference – Reference numbered component callouts to select correct replacement gaskets, seals, or lateral assemblies.
Connect/Route – Route internal standpipes, seat cartridge grids, or position lateral folding arms per mechanical orientation.
Verify – Verify clamp band bolt tightness, re-seal air bleed fittings, and test system seal up to normal 15 PSI capacity.
Troubleshoot – Troubleshoot water leaks or sand bypass by re-verifying spider gasket placement and lateral integrity against diagram.
