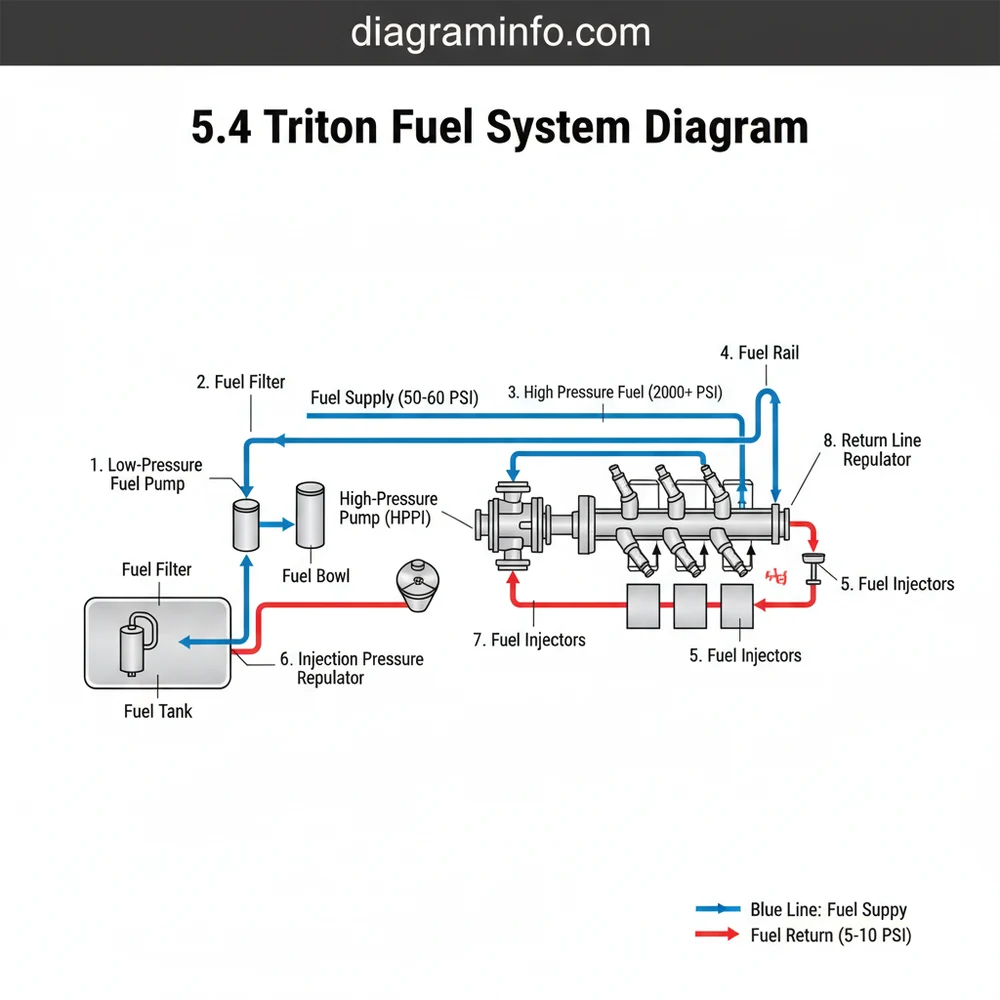

5.4 Triton Fuel System Diagram: Component & Repair Guide 2026
The 5.4 Triton fuel system typically includes a fuel pump module in the tank, a fuel filter, fuel rails, injectors, and a pressure regulator. Early models used a return-style system with a fuel return line and fuel bowl, while later versions are returnless. An injection pressure regulator monitors fuel pressure at the rail.
📌 Key Takeaways
- The high pressure fuel pump (HPFP) is not present on gasoline 5.4L Tritons; a conventional in-tank fuel pump supplies system pressure.
- Identify the presence of a fuel return line to distinguish between return-style and returnless fuel system designs in your 5.4 Triton.
- Always relieve fuel system pressure before disconnecting any lines or components to prevent fuel spray and fire hazard.
- Clogged fuel filters and failing in-tank fuel pumps are the most common causes of 5.4 Triton fuel delivery issues.
- Seek professional help for complex diagnostics involving the injection pressure regulator or complete fuel tank pump module replacement.
The Ford 5.4L Triton engine, a ubiquitous power plant in F-Series trucks, Expeditions, and E-Series vans across various model years, relies on a robust and precise fuel delivery system for optimal performance and efficiency. This article dissects the intricate engine management systems governing the 5.4 Triton’s fuel supply, providing a comprehensive “5.4 triton fuel system diagram” analysis. We will identify critical components, trace fuel flow, detail common failure points, and outline essential diagnostic and repair procedures. Understanding this system is crucial for professional technicians and experienced DIY enthusiasts to accurately diagnose and rectify fuel-related issues, ensuring the longevity and reliability of these popular vehicles.
FUEL SYSTEM COMPONENTS BREAKDOWN
The 5.4L Triton fuel system, while evolving between 2-valve and 3-valve configurations and across different model years (e.g., return-style vs. returnless systems), fundamentally delivers gasoline to the engine’s intake ports. Unlike modern direct-injection gasoline engines or diesel powerplants, the 5.4 Triton utilizes port fuel injection, meaning it does not employ a high-pressure fuel pump (HPFP) to achieve extreme injection pressures or components like a dedicated fuel bowl, primer pump, fuel cooler, or fuel heater, which are characteristic of diesel fuel systems. Instead, its design focuses on maintaining consistent, regulated pressure to the injectors.
- Fuel Tank: Stores gasoline. Equipped with an in-tank fuel pump module.
- In-Tank Electric Fuel Pump: Located within the fuel tank, this low-pressure pump (typically 30-80 PSI capable) draws fuel from the tank and sends it forward through the supply line.
- Fuel Filter: A cartridge-type filter, often located along the frame rail, ensures contaminants are removed from the fuel before it reaches sensitive components like the injectors.
- Fuel Supply Line: Carries pressurized fuel from the tank, through the filter, to the engine’s fuel rail.
- Fuel Rail: A manifold that distributes pressurized fuel evenly to all fuel injectors.
- Fuel Injectors: Electronically controlled solenoids that spray a precisely atomized fuel charge into the intake port just upstream of the intake valve.
- Fuel Pressure Regulator (FPR) / Fuel Pump Driver Module (FPDM):
- FPR (Return-Style Systems, typically pre-2004/2005): Located on the fuel rail, this mechanical diaphragm valve maintains a constant pressure differential across the injectors. Excess fuel is routed back to the tank via the fuel return line.
- FPDM (Returnless Systems, typically 2004/2005 onwards): Rather than a mechanical FPR, the FPDM electronically controls the speed of the in-tank fuel pump to maintain desired fuel pressure in the supply line, eliminating the need for a separate fuel return line. This module is often found mounted on the frame or rear axle housing.
- Fuel Return Line (Return-Style Systems Only): Carries excess fuel from the fuel pressure regulator back to the fuel tank.
- EVAP System Components: (Vapor Canister, Purge Valve, Vent Valve) While not directly part of the liquid fuel delivery, these components manage fuel vapor emissions, preventing them from escaping into the atmosphere and are integral to the broader fuel system. Further details can be found on our EVAP diagnostics page.
COMMON FAILURE POINTS & SYMPTOMS
Understanding the common failure points of the 5.4 Triton fuel system allows for more efficient diagnosis and repair. Here are some prevalent issues:
- In-Tank Fuel Pump Failure:
- Symptom: Engine cranks but won’t start, extended crank times, loss of power under load, whistling or humming noise from the fuel tank area (prior to complete failure).
- Diagnosis: Perform a fuel pressure test at the Schrader valve on the fuel rail. Low or no pressure (typically below 30-40 PSI) indicates a pump or FPDM issue. Check voltage supply and ground at the pump connector.
- Clogged Fuel Filter:
- Symptom: Reduced engine performance, hesitation during acceleration, engine stalling at high RPMs, rough idle, poor fuel economy.
- Diagnosis: Gradual onset of symptoms. A fuel pressure test will show restricted flow, often with low pressure under load. Replace the filter as a preventative maintenance item.
- Fuel Pump Driver Module (FPDM) Failure (2004+ Returnless Systems):
- Symptom: Engine cranks but won’t start, intermittent stalling, loss of power, hesitation. Corroded FPDM housing (often aluminum reacting with a steel mounting surface) is a common visual indicator.
- Diagnosis: Check for proper power and ground at the FPDM. Monitor fuel pump control module (FPCM) PID via scan tool. Inspect the FPDM housing for corrosion. Often, the FPDM is mounted directly to the frame, leading to galvanic corrosion.
- Leaking Fuel Injectors or O-Rings:
- Symptom: Rough idle, misfires (especially cold), fuel smell, decreased fuel economy, increased engine oil level (due to fuel dilution), hydro-lock in severe cases.
- Diagnosis: Listen for a hissing sound around the injectors. Perform a “wet” compression test to identify cylinders with fuel dilution. Use a scope to check for fuel spray patterns. Check for fuel trims leaning out. For more in-depth injector cleaning procedures, consult our specialized guide.
- Fuel Pressure Regulator (FPR) Malfunction (Return-Style Systems):
- Symptom: If stuck open: low fuel pressure, poor starting, weak performance. If stuck closed: excessively high fuel pressure, rich running condition, black smoke, hard starting (flooding).
- Diagnosis: Connect a fuel pressure gauge. Verify pressure matches specification (e.g., ~30-40 PSI at idle, increasing with manifold vacuum removed). Check vacuum line to FPR for leaks.
- EVAP System Leaks or Malfunctions:
- Symptom: Check Engine Light (CEL) with EVAP-related diagnostic trouble codes (e.g., P0442, P0455), fuel smell, reduced fuel economy.
- Diagnosis: Use a smoke machine to detect vacuum leaks in the EVAP system lines, canister, purge valve, or vent valve. Monitor fuel tank pressure sensor readings.
REPAIR & REPLACEMENT STEPS: FUEL PUMP MODULE (IN-TANK)
Replacing the in-tank fuel pump module on a 5.4L Triton, particularly in F-Series trucks, typically requires lowering the fuel tank. This procedure demands adherence to strict safety protocols and technical specifications. While steps may vary slightly by year and model, the core process remains consistent.
Working with fuel systems involves flammable liquids and potential for severe injury. Ensure the work area is well-ventilated, free of ignition sources, and have a fire extinguisher readily available. Always disconnect the battery and depressurize the fuel system before proceeding. Eye protection and gloves are mandatory.
- Depressurize the Fuel System:
- Locate the fuel pump fuse/relay in the power distribution box. Remove it.
- Start the engine and allow it to run until it stalls, effectively bleeding off residual fuel pressure. Crank for an additional 5 seconds to ensure complete depressurization.
- Disconnect the negative terminal of the battery.
- Prepare for Fuel Tank Lowering:
- Safely lift the vehicle on a hoist or secure it on jack stands, ensuring sufficient clearance to lower the tank.
- If equipped, remove the spare tire and heat shields that may obstruct tank access.
- Disconnect all electrical connectors and fuel lines (supply, return if applicable, and EVAP lines) from the tank-mounted components. Use appropriate fuel line disconnect tools.
💡 Technical Note
On some models, the FPDM may need to be unbolted from the frame to allow enough slack in the wiring harness during tank lowering. Ensure to inspect its condition for corrosion if it’s accessible. For proper fuel tank removal safety, ensure adequate support and proper handling of fuel lines.
- Support the fuel tank using a transmission jack or specialized fuel tank jack. Place a block of wood between the jack and the tank to distribute weight and prevent damage.
- Drain as much fuel as possible from the tank using a siphon pump to reduce weight.
- Lower the Fuel Tank:
- Carefully loosen and remove the fuel tank strap bolts. There are typically two straps.
- Slowly lower the tank, watching for any remaining electrical connections, hoses, or wiring that may still be attached. Disconnect them as the tank is lowered.
- Once lowered sufficiently, slide the tank out from under the vehicle or to a position where the top of the fuel pump module is accessible.
- Replace Fuel Pump Module:
- Clean the area around the fuel pump module access ring to prevent contaminants from entering the tank.
- Use a specialized fuel pump lock ring tool or a brass punch and hammer to carefully tap the lock ring counter-clockwise until it’s loose.
- Remove the lock ring, then carefully lift the old fuel pump module out of the tank. Be mindful of the fuel level sender float and internal fuel lines.
- Inspect the tank for debris or sludge. Clean if necessary.
- Install the new fuel pump module with a new gasket or O-ring, ensuring proper orientation of the float arm.
- Install the lock ring, tapping it clockwise with the specialized tool until securely tightened.
- Reassembly and Testing:
- Carefully raise the fuel tank back into position, reconnecting all fuel lines, electrical connectors (e.g., fuel pump power, fuel level sender, EVAP vent solenoid connector – often a single multi-pin connector, verify wire colors like Red/Black for pump power and Yellow/White for sender signal), and EVAP hoses.
- Secure the tank straps.
Component Torque Spec Typical Part # (Example) Fuel Tank Strap Bolts 30-40 lb-ft (40-54 Nm) W706850S441 Fuel Pump Lock Ring Hand-tight plus 1/4 turn, or until fully seated N/A (Tool Specific) - Reconnect the battery negative terminal.
- Reinstall the fuel pump fuse/relay.
- Cycle the ignition key to the “ON” position (without starting) several times for 2-3 seconds each to prime the fuel system. Listen for the pump running.
- Check for fuel leaks at all connections. Start the engine and re-check for leaks.
- Confirm fuel pressure at the Schrader valve if possible.
FAQ
What is the correct fuel pressure for a 5.4 Triton engine?
The correct fuel pressure for a 5.4L Triton engine depends on the year and specific fuel system design. For older, return-style systems (typically pre-2004/2005), the regulated pressure at idle is generally around 30-40 PSI. For later returnless systems controlled by a Fuel Pump Driver Module (FPDM), the pressure is typically higher and variable, ranging from 35-65 PSI, with actual pressure dynamically adjusted by the powertrain control module (PCM) based on engine demand.
Does the 5.4 Triton use a Fuel Pressure Regulator (FPR) or a Fuel Pump Driver Module (FPDM)?
This depends on the model year. Early 5.4L Triton engines (typically pre-2004/2005) utilized a traditional mechanical Fuel Pressure Regulator (FPR) located on the fuel rail, often with a vacuum line connected to the intake manifold, and a fuel return line to the tank. Later models (typically 2004/2005 onwards) transitioned to a returnless fuel system that employs a Fuel Pump Driver Module (FPDM) to electronically control the speed of the in-tank fuel pump, thereby regulating fuel pressure directly and eliminating the need for a mechanical FPR or return line.
How often should I replace the fuel filter on my 5.4 Triton?
Manufacturer specifications for fuel filter replacement on the 5.4L Triton vary by model year and specific application. Generally, Ford recommends inspection and replacement every 15,000 to 30,000 miles for older models with external fuel filters. However, many technicians and experienced owners opt for replacement closer to the 15,000-mile mark, especially if operating in dusty environments or with questionable fuel sources, to prevent performance degradation and extend the life of the fuel pump and injectors. Later models with “lifetime” in-tank filters typically do not require regular replacement unless a specific issue arises.
Can I use E85 fuel in my 5.4 Triton?
Unless your specific 5.4L Triton vehicle is explicitly designated as “Flex Fuel Capable” (often indicated by a yellow fuel cap, an E85 badge, or specific VIN codes), it is not designed to run on E85 (85% ethanol) fuel. Standard 5.4L Triton engines are calibrated for gasoline (up to E10/E15) and lack the necessary fuel system components (e.g., ethanol-resistant fuel lines, larger injectors, specific PCM calibration) to handle the higher ethanol content, which can lead to fuel system damage, poor performance, and drivability issues. Always consult your owner’s manual to confirm fuel compatibility.
For critical diagnostics, OEM service manuals often specify checking fuel pump current draw. A healthy 5.4L Triton fuel pump typically draws between 5-10 amps at nominal voltage. Deviations outside this range can indicate internal pump wear or electrical resistance issues.
Step-by-Step Guide to Understanding the 5.4 Triton Fuel System Diagram: Component & Repair Guide 2026
Identify – Locate your 5.4 Triton’s specific fuel system diagram, noting whether it’s a return or returnless design.
Locate – Pinpoint key components like the in-tank fuel pump, fuel filter, fuel rails, and injection pressure regulator on the diagram.
Reference – Use the diagram to trace all fuel lines, including the fuel return line, to understand the complete fuel flow path.
Connect/Route – When replacing parts, use the diagram to ensure correct hose routing and proper electrical connections to avoid issues.
Verify – After any repair or replacement, visually check for leaks and confirm proper fuel pressure using a gauge before starting the engine.
Troubleshoot – If problems persist, re-consult the diagram to re-check all connections, component locations, and potential sensor inputs like the injection pressure regulator.
Frequently Asked Questions
What are the main components of the 5.4 triton fuel system diagram?
The 5.4 Triton fuel system includes the in-tank fuel pump, fuel filter, fuel lines (often a fuel return line), fuel rails, and fuel injectors. A fuel pressure regulator or sensor manages pressure. Older systems might have a fuel bowl. There is no high pressure fuel pump (HPFP) on these gasoline engines.
What are symptoms of a failing 5.4 triton fuel system diagram pump?
Symptoms of a failing 5.4 Triton fuel pump include extended cranking, engine stalling, loss of power during acceleration, and a whining noise from the fuel tank. Consistent check engine lights related to fuel pressure or lean codes also indicate issues. Low fuel pressure readings confirm a pump problem.
How do I diagnose a fuel leak in 5.4 triton fuel system diagram?
Diagnosing a 5.4 Triton fuel leak involves visually inspecting all fuel lines, the fuel tank, fuel rail, and injector seals for wet spots or drips. Use a fuel pressure gauge to check for drops in pressure. A smoky fuel smell, especially after driving, is a key indicator. Always check the fuel return line for integrity.
What is the fuel pressure spec for 5.4 triton fuel system diagram?
For most 5.4 Triton engines, the target fuel pressure at the rail is typically around 30-45 psi at idle, depending on the year and specific engine calibration. It can fluctuate under load. Always consult your vehicle’s service manual for the exact specification. Ensure the injection pressure regulator is functioning correctly for accurate readings.
How long does 5.4 triton fuel system diagram fuel pump last?
A 5.4 Triton fuel pump typically lasts between 100,000 to 150,000 miles, but this can vary greatly based on maintenance and driving conditions. Regularly replacing the fuel filter and avoiding consistently running on a very low fuel tank can extend its lifespan. Quality of fuel also plays a significant role.
Can I replace the 5.4 triton fuel system diagram fuel filter myself?
Yes, replacing the 5.4 Triton fuel filter is generally a DIY task, often located on the frame rail. Ensure you relieve fuel system pressure first. Have new O-rings and appropriate tools ready. Be cautious of residual fuel and wear eye protection. Refer to a diagram for the correct fuel return line and filter orientation.
