Rinnai Gas Tankless Water Heater Diagram: 2026 Setup
A gas tankless water heater diagram details cold water inlet routing (bottom right), hot water outlet (bottom left), 3/4-inch gas line inlet, category III/IV vent pipe termination, and condensate drain assembly routing. Condensing units route acid-resistant condensate lines through a P-trap, while non-condensing units require specific clearance and dedicated vent clearances.
📌 Key Takeaways
- Gas supply lines require minimum 3/4-inch NPT piping to handle 120,000–199,000 BTU/hr demand without pressure drops.
- Condensing models require a dedicated 1/2-inch acid-resistant condensate drain assembly routed through an air gap or P-trap.
- Vent pipe routing must use Category III stainless steel or Category IV PVC/CPVC/PP depending on unit efficiency ratings.
- Common ignition failures (Error Code 11) stem from improper gas valve pressure calibration or clogged inlet water filters.
- Hard-wiring electrical power (120V AC, 15A circuit) and gas connections requires professional certification; isolation valves allow DIY descaling.
Installing and servicing high-efficiency gas tankless water heaters requires an exact understanding of hydraulic, venting, and condensate piping schematics. Reading a comprehensive gas tankless water heater diagram ensures compliance with national fuel gas codes (NFPA 54/ANSI Z223.1) and local mechanical standards. This guide analyzes essential installation schematics—including gas supply line sizing, cold water isolation loops, hot water delivery paths, and condensate neutralization routes. Whether executing a commercial retrofit or diagnosing system fault codes, understanding line-diagram layouts optimizes thermal performance, prevents flue gas recirculation, and ensures safe operation under fluctuating dynamic loads.

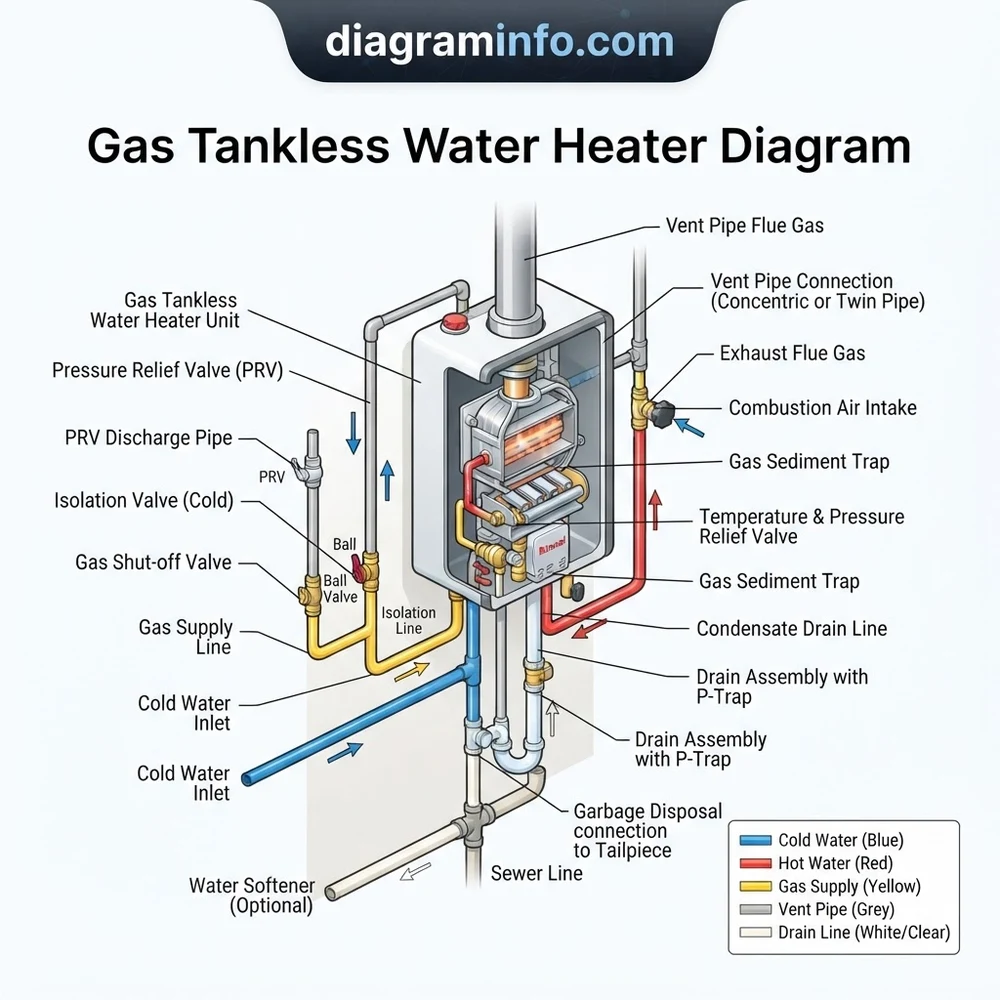

Gas Tankless Water Heater Diagram: Plumbing & Venting Components Labeled
A standard high-efficiency gas tankless water heater diagram delineates three distinct system operational loops: fuel gas supply, potable water circulation, and exhaust gas/condensate management. Accurate identification of each component is essential for maintaining minimum pressure thresholds and preventing thermal degradation of surrounding plumbing.
Recommended Best Deal Products
| Component Category | Specification / Material Standard | Operational Function |
|---|---|---|
| Gas Supply Line | 3/4″ Black Iron or CSST (Min. 5.0″ W.C. NG / 8.0″ W.C. LP) | Delivers required BTU volume to modulating burner assembly. |
| Isolation Valve Kit | 3/4″ Full-Port Ball Valves with 500 PSI burst rating | Isolates hydraulic circuit for annual scale flushing procedures. |
| Vent Pipe System | Category III Stainless Steel or Category IV Schedule 40 PVC/CPVC/PP | Safely routes flue gas products out of the building envelope. |
| Condensate Drain Assembly | 1/2″ or 3/4″ NPT to Schedule 40 PVC with Inline Neutralizer | Discharges acidic liquid condensation (pH 3.0–5.0) safely to waste drain. |
The hydraulic circuit begins at the cold water inlet valve assembly, which incorporates an inline mesh filter and dynamic flow sensor. Fluid flows into the primary copper or stainless steel heat exchanger, absorbing thermal energy generated by the gas burner manifold. The heated output routes past an internal outlet thermistor before entering the home’s distribution trunk.
In condensing tankless units, exhaust gases pass through a secondary heat exchanger, causing moisture in the combustion air to drop below its dew point. This acidic run-off empties into an internal collector before passing into the external drain assembly. To prevent sewer back-gas entering the appliance, the schematic specifies an integrated P-trap along the condensate line before it joins the building’s main soil stack.
When routing secondary discharge or relief lines through indirect waste receptors near utility sinks or a garbage disposal branch, standard plumbing practice demands an air gap fitting. Connections tied directly into residential branch drains utilize a sanitary tailpiece secured via a standard compression slip joint. If direct atmospheric venting is unavailable at the fixture connection, an Air Admittance Valve (AAV valve) is installed downstream of the trap to maintain proper siphon relief.
Most condensing gas tankless units require a dedicated 3/4-inch gas line to deliver between 160,000 and 199,000 BTU/hr. Utilizing a 1/2-inch line is only permissible under specific high-pressure gas system designs (2 PSI systems) with short run lengths according to National Fuel Gas Code tables.
Reading the Gas Tankless Water Heater Diagram for Installation Step by Step
Executing an installation from a tankless schematic requires systematic verification of supply pressures, vent lengths, and fluid routing. Follow this procedural workflow to translate the diagram into a fully compliant installation.
Recommended Best Deal Products
Step 1: Evaluate Gas Line Sizing and Dynamic Pressure
Refer to the fuel connection node on your diagram. Measure dynamic pressure under full fire conditions using a digital manometer connected to the inlet pressure port. Minimum dynamic input gas pressure must hold at 5.0 inches Water Column (W.C.) for Natural Gas or 8.0 inches W.C. for Liquid Propane. Ensure a drip leg (dirt pocket) and manual gas shut-off valve are installed within 6 feet of the unit inline before the connection port.
Step 2: Assemble the Cold/Hot Isolation Valve Loops
Locate the cold inlet and hot outlet connection points on the lower manifold schema. Install full-port service isolation valves directly onto the unit’s 3/4-inch NPT nipples. These valve sets include integrated hose-bib ports necessary for performing periodic descaling maintenance using non-toxic descaling solutions (refer to our detailed tankless unit flushing procedure guide). Install a Pressure Relief Valve (PRV) rated for 150 PSI / 1,400,000 BTU/hr on the hot water valve port.
The PRV discharge pipe must pitch downward, terminate within 6 inches of the floor or to an approved drain, and be constructed of hard copper, CPVC, or galvanized steel. PEX tubing may be used only if rated for temperature and pressure per local mechanical codes.
Step 3: Lay Out the Vent Pipe Exhaust and Intake Path
Examine the top section of the layout diagram for vent terminal specifications. Non-condensing units require Category III air-tight stainless steel venting. Condensing units typically permit Schedule 40 PVC, CPVC, or Polypropylene (PP). Calculate maximum allowable equivalent vent length by subtracting 5 feet for every 90-degree elbow and 2.5 feet for every 45-degree elbow from the manufacturer’s total allowed length (typically 60–100 equivalent feet).
Step 4: Construct the Condensate Neutralizer and Drain Loop
Connect the condensate outlet to a chemical neutralizer capsule filled with calcium carbonate media to raise the liquid pH above 5.0 prior to disposal. Route the discharge line using rigid PVC tubing through a dedicated liquid-sealed P-trap. Pitch the line downward at a minimum slope of 1/4 inch per foot toward the indirect waste receptor.
Diagnosing Venting, Drain Assembly, and Flow Failures
When an operational failure occurs, diagnostic error codes displayed on the digital interface correlate directly to specific failure modes within the plumbing and venting layout diagram. Technicians should use a systematic process to isolate physical component faults from sensor errors.
Never cap or block the condensate outlet connection. A blocked condensate drain assembly will cause acidic water to fill the secondary heat exchanger casing, submerging the igniter assembly and causing permanent burner manifold corrosion.
Vent Pipe Blockages and Differential Pressure Faults (Error Codes 11, 12, 90)
If the exhaust vent pipe experiences excessive backpressure or termination cap blockage, the unit’s internal draft proving switch (differential pressure sensor) opens, disabling the gas valve. Check intake screens for debris, verify that total equivalent vent lengths do not exceed maximum specification limits, and inspect all horizontal runs for proper 1/4″ per foot pitch back toward the appliance condensate collector.
Condensate Back-Up and Flame Rectification Failures
A dry or clogged condensate P-trap causes sensor trip-outs. If flue gas pressure forces water back into the burner chamber, flame rectification (Error Code 11 or 12) fails continuously. Verify that the trap is primed with water during initial commissioning. Ensure the downstream disposal route—whether joining a main drain line or an auxiliary line beneath a sink junction near a garbage disposal—has adequate slope and is protected against freezing conditions (consult our guide on winterizing outdoor tankless installations).
Hydraulic Restrictive Drops and Low Flow Ignition Issues
Gas tankless heaters require a Minimum Activation Flow Rate (typically 0.4 to 0.5 GPM) to trigger the paddle wheel flow sensor. Scale buildup inside the cold water inlet filter, restricted fixture aerators, or clogged heat exchanger waterways create severe pressure drops. Clean the inlet mesh filter screen annually and verify static water inlet pressure remains between 30 PSI and 80 PSI.
Gas Tankless Water Heater Schematic and Layout FAQs
Why Is a P-Trap Required on the Condensate Drain Assembly?
High-efficiency condensing units operate under positive vent pressure. An inline, water-sealed P-trap prevents exhaust flue gases from escaping into the indoor living space through the condensate line while simultaneously preventing room air from being drawn into the negative-pressure combustion housing.
Can Standard Schedule 40 PVC Be Used for the Vent Pipe?
Schedule 40 PVC is approved only for high-efficiency condensing units where exhaust gas temperatures remain below 140°F (60°C). Non-condensing units generate flue gas temperatures exceeding 300°F and require UL1738-certified Category III stainless steel venting. Always verify appliance rating labels and review the manufacturer’s gas vent piping sizing table before installing PVC.
How Does an AAV Valve Integrate Near a Tankless Condensate Line?
When condensate drainage is routed to a dedicated waste branch without direct atmospheric roof venting, an AAV valve (Air Admittance Valve) is installed downstream of the fixture trap. The one-way valve opens under negative pressure to allow proper gravity drainage without breaking the water seal inside the condensate system’s primary trap.
What Fittings Connect Auxiliary Drain Assemblies Near a Sink Branch?
When terminating auxiliary discharge piping into a secondary waste line beneath a cabinet containing a garbage disposal, connect using a dedicated branch tailpiece. Secure the connection using an approved plumbing slip joint nut with an elastomeric washer, maintaining an indirect waste air gap where mandated by local plumbing codes.
Step-by-Step Guide to Understanding the Gas Tankless Water Heater Diagram
Identify – Locate cold water inlet, hot water outlet, gas supply inlet, and electrical power connections on the unit schematic.
Locate – Position isolation valves on hot and cold lines along with dedicated drain valves and pressure relief valve port.
Reference – Consult the diagram for recommended clearance dimensions, vent pipe termination distances, and gas line sizing tables.
Connect/Route – Route Category IV concentric vent pipe through exterior wall and connect condensate line through a P-trap to drain assembly.
Verify – Check water inlet filter tailpiece, flush gas lines, inspect electrical connections, and open gas isolation valve to verify fuel pressure.
Troubleshoot – Match error code displays against diagnostic flowcharts if ignition, air flow, or temperature fluctuation occurs.
