The Huskee 22-ton log splitter parts diagram details the hydraulic system layout, including the 11 GPM two-stage pump, auto-return valve, 4-inch hydraulic cylinder, suction strainer, and 6.5 HP engine configuration. Key components connect via high-pressure hydraulic hoses to the fluid reservoir structure for controlled log splitting operation.
📌 Key Takeaways
- The 4-inch bore hydraulic cylinder paired with an 11 GPM two-stage pump delivers 22 tons of maximum splitting force at 3,000 PSI system pressure.
- The auto-return detent valve structure allows the cylinder wedge to retract automatically, disengaging at approximately 750 PSI.
- Always torque beam attachment bolts to 85 ft-lbs and hydraulic fittings to SAE specifications to ensure high-pressure system safety.
- The most common failure point is the flexible jaw coupler spider insert located between the engine shaft and hydraulic pump.
- Perform hose replacements and cylinder seal kit installs as DIY repairs; consult a professional welder for structural beam repairs.
Maintaining and servicing heavy-duty wood splitting equipment requires a precise understanding of its mechanical and fluid power architecture. The Huskee 22-ton log splitter, manufactured primarily by SpeeCo for Tractor Supply Company, relies on a high-pressure two-stage hydraulic circuit coupled to an internal combustion engine. Understanding the Huskee 22 ton log splitter parts diagram is essential when replacing worn hydraulic seals, sourcing replacement pumps, or rebuilding the control valve assembly. This comprehensive technical guide breaks down every structural component, hydraulic line schematic, torque specification, and diagnostic procedure necessary to keep your equipment operating at peak efficiency.

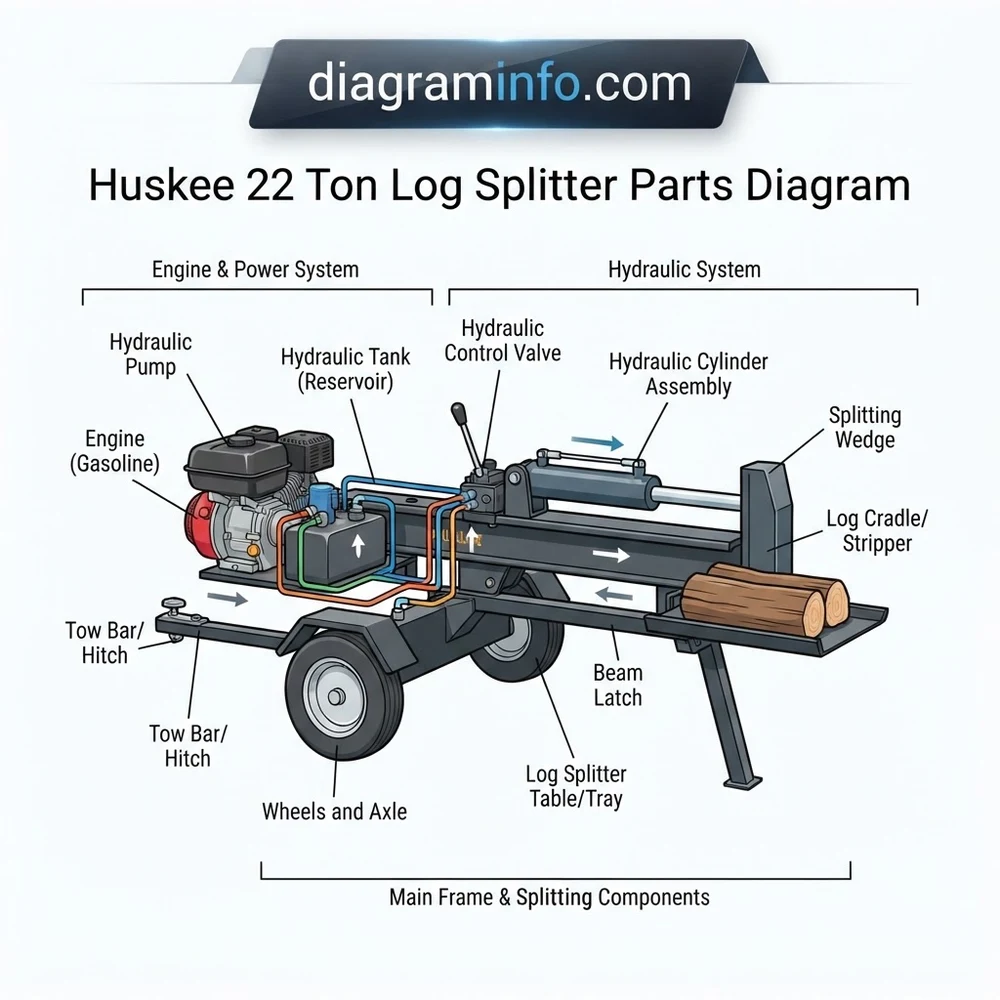

Huskee 22 Ton Log Splitter Parts Diagram: Structural & Hydraulic Overview
The operational framework of the Huskee 22-ton splitter relies on two primary mechanical systems: the hydraulic power generation and fluid control loop, and the heavy-duty structural steel frame layout. To correctly read a schematic or exploded assembly view, technicians must differentiate between static load-bearing elements and dynamic fluid power components.
Hydraulic System Configuration and Fluid Circuit Parts
The hydraulic system operates as an open-loop circuit designed to convert engine torque into controlled linear force. Fluid travels from the integrated axle reservoir through a suction strainer into a 2-stage gear pump. The pump displaces hydraulic oil through a high-pressure line directly to a four-way directional control valve equipped with an auto-return detent. When activated, the control valve directs fluid into either the cap end or rod end of the 4-inch bore hydraulic cylinder, generating up to 22 tons of splitting force at maximum operational pressure.
Key hydraulic components mapped on the blueprint include:
- 2-Stage Hydraulic Pump: 11 GPM flow rate, dual-displacement design featuring a low-pressure gear set for rapid cylinder extension and a high-pressure gear set that engages when system resistance exceeds 500 PSI.
- Directional Control Valve: Open-center valve featuring a spring-centered forward position, an adjustable relief valve set to 2,500 PSI, and a hydraulic detent return mechanism set between 750 and 1,000 PSI.
- Double-Acting Hydraulic Cylinder: 4.0-inch internal bore diameter by 24-inch stroke with a 1.75-inch ground and chrome-plated steel piston rod, dual clevis mount, and poly-glyd rod seals.
- In-Line Return Filter Assembly: Spin-on 10-micron filter element positioned on the low-pressure return line prior to re-entering the fluid reservoir.
Frame Assembly, Wedge Structure, and Engine Mounting Layout
The structural layout of the splitter is engineered for dual-position operation, allowing the heavy H-beam to tilt between horizontal and vertical configurations using a beam lock pin and trunnion hinge layout. The engine base plate is isolation-mounted on the main frame tongue to minimize harmonic vibration transferred from the engine crank to the hydraulic pump body.
| Component Name | OEM Specification / Part # | Operational Rating / Torque |
|---|---|---|
| 11 GPM Hydraulic Pump | SpeeCo / MTD # 718-0469A | 3600 RPM max, 3000 PSI max |
| 4″ Cylinder Assembly | Model # LS401504 / SpeeCo 718-0468 | 22 Tons @ 2500 PSI |
| Auto-Return Valve | SpeeCo # 718-0470 / Valve 100-301 | 2500 PSI main relief / 1/2″ NPT |
| Flexible Lovejoy Coupler | L-090/L-095 Jaw Coupling (1/2″ to 3/4″) | 18-22 ft-lbs set screw torque |
| Splitting Wedge | High-carbon cast steel wedge (SpeeCo 719-0352) | 45-55 ft-lbs mounting bolts |
According to OEM engineering documentation, the Huskee 22-ton log splitter hydraulic system requires a total oil capacity of 5.0 gallons, with a working reservoir fluid volume of 3.5 to 4.0 gallons of ISO VG 32 or ISO VG 46 anti-wear hydraulic fluid. Operating pressure is set factory-standard to 2,500 PSI (+/- 50 PSI).
How to Interpret the Huskee 22 Ton Log Splitter Blueprint and System Layout
Reading an exploded view parts diagram requires systematic tracing of both mechanical fasteners and fluid power paths. Mechanical schematics use item numbers that correlate with an exploded parts bill of materials, displaying exploded views where components are aligned along central axis lines.
Identifying High-Pressure vs. Low-Return Hose Routing
When studying the Huskee 22 ton log splitter parts diagram, trace fluid movement using line thickness and fitting specifications. High-pressure lines carry fluid under maximum load, while low-pressure return lines route oil back through the filter into the tank.
Follow this routing sequence when reviewing the hydraulic schematic:
- Suction Line: Connects the bottom port of the tank reservoir to the inlet port of the 11 GPM pump. This is a large-diameter 3/4-inch or 1-inch ID wire-reinforced suction hose secured with heavy-duty T-bolt clamps. Never restrict this line, as restriction causes pump cavitation.
- High-Pressure Delivery Line: Connects the outlet of the hydraulic pump to the inlet port (marked “IN”) of the control valve. This line utilizes 1/2-inch ID 2-wire braided SAE 100R2AT hydraulic hose rated for a minimum 3,500 PSI working pressure with crimped male NPT or JIC swivel fittings.
- Work Port Lines (A & B): Connect valve output ports to the cylinder cap end (extension port) and cylinder rod end (retraction port). These utilize 1/2-inch 100R2AT high-pressure lines.
- Return Line: Extends from the control valve outlet (marked “OUT”) through the spin-on filter housing back into the upper hydraulic reservoir. This low-pressure return system utilizes 3/4-inch 100R1AT or general low-pressure hydraulic return hose rated to 250 PSI.
During routine maintenance, consult our related guide on hydraulic pump replacement procedures to ensure correct alignment between the engine shaft and pump keyway during reassembly. Proper installation prevents premature coupler wear.
Locating OEM Part Numbers and Fastener Torque Specifications
To avoid structural failure or hydraulic leaks, hardware must be torqued to exact engineering tolerances during overhaul. Fastener dimensions on the schematic correspond to standard SAE Grade 5 or Grade 8 bolts.
| Joint / Connection Location | Fastener Specs / Thread Size | Torque Spec (Dry Threads) | Torque Spec (Lubricated) |
|---|---|---|---|
| Pump Mount to Engine Face | 5/16″-18 x 1.0″ Grade 5 | 18 – 22 ft-lbs | 13 – 16 ft-lbs |
| Beam Pivot Lock Pin Hardware | 5/8″-11 Grade 8 Nut/Bolt | 130 – 145 ft-lbs | 95 – 105 ft-lbs |
| Hydraulic Cylinder Clevis Pins | 1.0″ Hardened Steel Pin & Cotter | Free rotation (N/A) | Free rotation (N/A) |
| Hydraulic Hose NPT Fittings | 1/2″ – 14 NPT Tapered Threads | 2-3 TFFT (Turns From Finger Tight) | Use PTFE Paste / 2 TFFT |
| JIC 37° Swivel Fitting Joints | 3/4″-16 Thread (#8 JIC) | 37 – 44 ft-lbs | 30 – 35 ft-lbs |
When installing tapered pipe thread (NPT) fittings into the hydraulic control valve or aluminum pump housing, always use high-viscosity anaerobic thread sealant rather than standard white PTFE tape. Loose PTFE tape shreds can enter the fluid stream, bypass the filter, and lodge inside the internal relief valve spool, causing pressure drops.
Huskee 22 Ton Log Splitter Schematic Troubleshooting and Component Failure Fixes
Diagnosing operational faults on a 22-ton splitter requires systematically isolating mechanical defects from hydraulic circuit bypass issues. Reference your parts breakdown schematic to locate diagnostic test points along the hydraulic pressure circuit.
Diagnosing Hydraulic Cylinder Drift and Internal Seal Bypass
If the cylinder loses splitting force, extends slowly, or drifts backward under load, the primary culprit is often internal fluid bypassing the piston seal assembly inside the 4-inch cylinder cylinder bore. Over time, polyurethane U-cup seals wear or become scored by microscopic debris.
To verify internal bypass versus a failing control valve:
- Extend the cylinder piston rod completely to the end of its 24-inch stroke.
- Stop the engine and move the control valve handle back and forth several times to relieve trapped systemic pressure.
- Disconnect the return hose attached to the rod end (retraction side) of the cylinder and cap the open hose to prevent fluid spillage. Place the open cylinder port over a clean measuring bucket.
- Restart the engine and engage the control handle to extend the wedge forward against the mechanical stroke limit, holding system pressure at maximum.
- Observe the open cylinder port. If a continuous stream of hydraulic oil flows out of the cylinder port while extended under pressure, the internal piston seals are blown and bypassing fluid. If no oil leaks from the cylinder port but pressure drops, the problem lies in the control valve’s internal pressure relief mechanism.
Refer to our article detailing log splitter control valve rebuilding for step-by-step instructions on replacing degraded relief valve spring packs and internal spool O-rings.
Resolving Control Valve Detent and Pressure Relief Valve Faults
The standard SpeeCo directional valve includes an auto-return detent feature that holds the lever in the retract position until the cylinder fully retracts. When the cylinder reaches its physical mechanical stop, rising back-pressure (750-1,000 PSI) trips the internal kick-out mechanism, returning the lever to neutral.
If the handle refuses to stay in detent, or fails to kick out automatically upon full retraction, adjust the detent pressure setting on the rear cap of the control valve:
- Handle Kicks Out Before Full Retraction: The detent kick-out pressure setting is set too low, or hydraulic fluid viscosity is too high (cold fluid). Remove the rear detent cover plug on the valve body and turn the internal adjusting screw clockwise 1/4 turn to increase holding force.
- Handle Will Not Release at End of Stroke: The kick-out pressure is set higher than the pump’s bypass capacity, or the kick-out relief passage is blocked. Turn the adjusting screw counterclockwise 1/4 turn. Inspect the internal steel detent balls and sleeve for surface rust or spring degradation.
High-pressure hydraulic oil escaping under extreme pressure (2,000+ PSI) can easily penetrate human skin, causing severe hydraulic injection injuries and tissue necrosis. Never use your bare hands to check for pinhole hydraulic leaks. Always use cardboard or wood scraps held near pressurized fittings when inspecting connections.
Huskee 22 Ton Log Splitter Configuration FAQ and Maintenance
What hydraulic oil and filter specs are listed in the Huskee 22 ton blueprint?
The Huskee 22-ton log splitter uses ISO VG 32 (10W hydraulic fluid) for cold-weather operation below 32°F (0°C) or ISO VG 46 (20W hydraulic fluid) for warmer ambient temperatures. The return-line filter housing accepts standard 10-micron spin-on hydraulic filters with a 3/4″-16 UNF thread pitch, such as NAPA 1553, Baldwin BT839-10, or SpeeCo OEM filter part number 718-0241.
How do I identify the pump shaft coupling size on the Huskee 22 ton layout?
The standard 11 GPM two-stage hydraulic pump utilizes a 1/2-inch diameter straight shaft with a 1/8-inch square drive keyway. The engine side (Briggs & Stratton 6.5 HP or Kohler SH265 engine) features a 3/4-inch diameter straight crankshaft with a 3/16-inch square keyway. When replacing the Lovejoy jaw coupling insert or metal hubs, ensure you match a 1/2″ hub to a 3/4″ hub joined by an L-090 or L-095 Buna-N spider element. Ensure proper engine shaft key alignment during assembly to prevent key shearing.
Where can I find the seal kit part number for the 4-inch hydraulic cylinder?
The Huskee 22-ton splitter uses a SpeeCo 4.0-inch bore cylinder with a 1.75-inch diameter rod. The replacement seal kit OEM reference number is SpeeCo SK-40-175 (or MTD part number 718-0468-SK). This rebuild kit includes the primary polyurethane U-cup rod seal, wiper seal, outer cylinder tube static O-rings, back-up rings, and the two-piece piston seal ring assembly.
What is the correct auto-return valve detent kick-out pressure setting?
The factory detent kick-out pressure setting on the control valve is calibrated between 750 PSI and 1,000 PSI. The primary main pressure relief valve, which protects the pump and cylinder from over-pressurization during hard splitting, is set separately to 2,500 PSI. Never adjust the main relief setting above 2,500 PSI, as doing so exceeds the rated safety threshold of the structural beam end-plates and cast wedge assembly.
How do I bleed trapped air from the hydraulic system following a hose rebuild?
To purge air from the hydraulic circuit after replacing hoses or rebuilding the cylinder, fill the reservoir tank to the proper dipstick level. Start the engine and run it at low idle speed. Extend and retract the hydraulic cylinder fully 5 to 6 times without splitting wood. Operating the cylinder through its complete 24-inch stroke forces air through the low-pressure return line and out into the reservoir tank, where it dissipates from the fluid surface.
Step-by-Step Guide to Understanding the Huskee 22 Ton Log Splitter Parts Diagram
Identify – Match the model year and serial number on your Huskee frame to confirm you are using the correct parts schematic.
Locate – Find the specific component system layout on the diagram, such as the hydraulic pump drive or control valve assembly.
Reference – Cross-reference the diagram item callout number with the OEM part numbers list to order exact replacement parts.
Connect/Route – Follow the hydraulic hose routing diagram to correctly connect pressure, return, and suction lines between components.
Verify – Inspect all mounting hardware, fitting torque, and hydraulic oil levels before operating the system under pressure.
Troubleshoot – Consult the layout schematic to isolate pressure drops, tracing fluid flow from the pump through the valve to the cylinder.
