NEMA 14-50 Wiring Diagram: Mapping Guide 2026
A standard NEMA 14-50 wiring diagram uses four connections for 125/250V service: two hot wires (black and red to brass terminals for 120V each/240V combined), one neutral wire (white to silver terminal), and one ground wire (green or bare copper to U-shaped green terminal). It requires a 50-amp double-pole breaker and 6 AWG copper wire.
📌 Key Takeaways
- Requires 6 AWG copper conductors (or 4 AWG aluminum) on a dedicated 50-amp double-pole circuit breaker.
- Features four distinct terminals: Hot 1 (Black), Hot 2 (Red), Neutral (White), and Ground (Green/Bare).
- Terminal torque specs typically require 75 in-lbs for secure, melt-free wire retention.
- Connecting neutral to ground (bootlegging) at the receptacle creates a lethal shock hazard.
- Inspect aluminum wire transitions for anti-oxidant compound application and breaker compatibility.
Wiring a NEMA 14-50 receptacle requires precise line-to-line and line-to-neutral terminal connections to safely deliver continuous 50-amp power. Widely used for Level 2 Electric Vehicle Supply Equipment (EVSE), RV shore power hookups, and heavy-duty shop machinery, this four-wire split-phase configuration delivers dual 120-volt alternating current (AC) legs alongside a dedicated neutral wire and equipment ground wire. Correctly interpreting a NEMA 14-50 wiring diagram prevents severe thermal runaway, phase imbalances, and dangerous ground fault conditions. This guide provides exact pin assignments, wire gauge requirements, torque specifications, and step-by-step wiring procedures compliant with National Electrical Code (NEC) standards.
Understanding NEMA 14-50 Wiring Diagram Pin Assignment and Voltage Specifications
The NEMA 14-50 system operates on a single-phase 120/240V AC split-phase distribution layout. The connector face features four distinct blade slots positioned to prevent mis-mating with lower-amperage or different voltage configurations. When viewing the front of the receptacle with the semi-circular or U-shaped ground slot at the top, the mechanical pin assignment follows a standardized physical geometry:
- Top Pin (U-shaped): Equipment Ground Wire connection (Terminal G).
- Bottom Slot (Straight blade): Neutral Wire connection (Terminal W).
- Left Vertical Slot: Line 1 / Hot Wire 1 (Terminal X).
- Right Vertical Slot: Line 2 / Hot Wire 2 (Terminal Y).
Proper electrical diagnosis with a calibrated Digital Multimeter (DMM) requires specific voltage readings across the terminal connections. Between Terminal X (Hot 1) and Terminal Y (Hot 2), the meter must register 240 volts AC nominal (or 208V AC on commercial 120/208V three-phase systems). Testing from either Hot terminal (X or Y) to Terminal W (Neutral) must measure 120 volts AC. Similarly, testing from either Hot terminal (X or Y) to Terminal G (Ground) must register 120 volts AC. Between Terminal W (Neutral) and Terminal G (Ground), the meter should indicate 0 volts AC under normal conditions, confirming that the neutral and ground conductors are properly isolated downstream from the main service entrance panel.
Current Rating: 50 Amps continuous (40 Amps continuous load per NEC 80% derating rule)
Voltage Rating: 125/250 Volts AC
Configuration: 3-Pole, 4-Wire Grounding
NEMA Standard: ANSI/NEMA WD 6-2016
Terminal Screw Torque: 75 in-lbs (Industrial Grade) / 35-50 in-lbs (Residential Grade)
Refer to our detailed service panel load calculation standards to verify that your upstream electrical system has adequate capacity prior to running new 50-amp branch circuits.

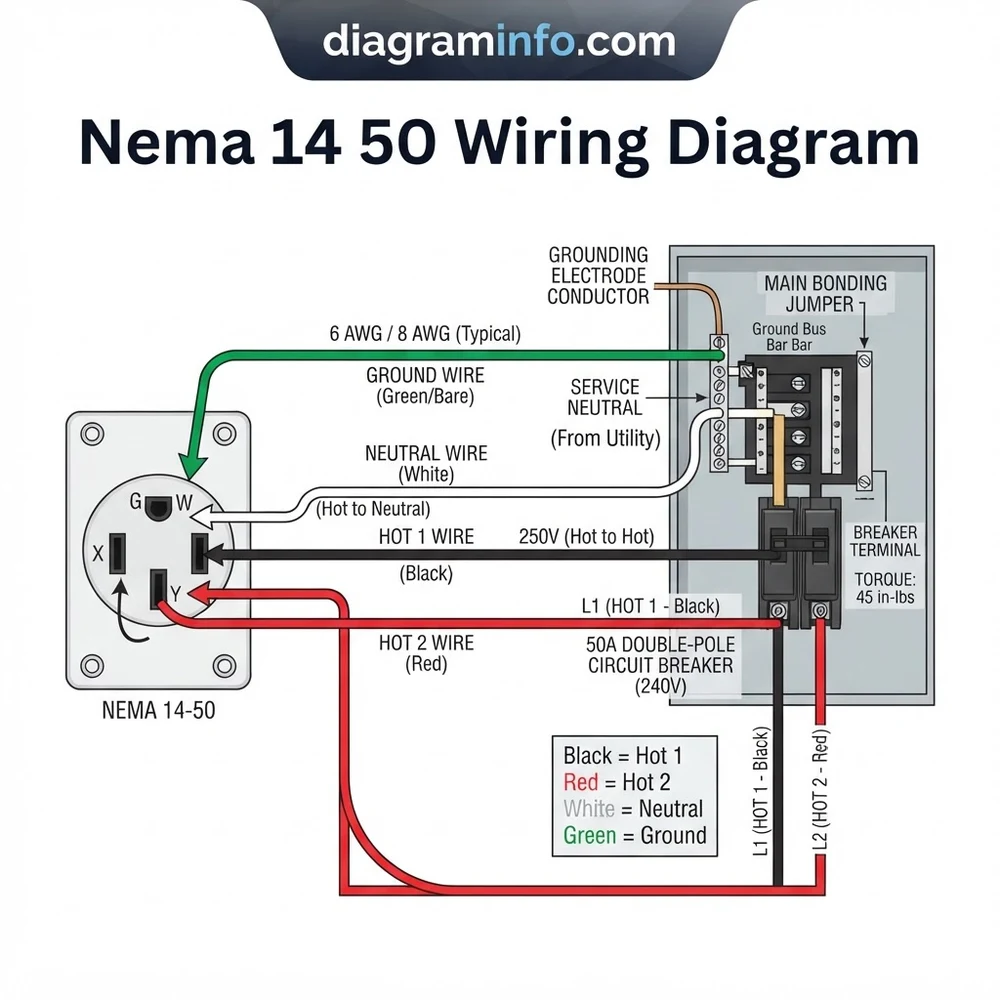

NEMA 14-50 Wire Color Code and Terminal Block Pinout
Proper identification of the wire color code is critical when connecting conductors to the receptacle terminal block. Standard non-metallic sheathed cable (such as 6/3 NM-B) or individual conductors in conduit (such as THHN/THWN-2) utilize standardized insulation colors to designate circuit roles. The terminal screws on high-grade NEMA 14-50 outlets are color-coded and stamped to correspond directly with these wire functions.
| Wire Color Code | Circuit Function | Terminal Identification | Electrical & Torque Specs |
|---|---|---|---|
| Black | Hot Wire (Line 1 / Phase A) | Terminal X (Brass Screw) | 120V to Neutral / Ground; 75 in-lbs torque |
| Red | Hot Wire (Line 2 / Phase B) | Terminal Y (Brass Screw) | 120V to Neutral / Ground; 75 in-lbs torque |
| White | Neutral Wire (Grounded Conductor) | Terminal W (Silver Screw) | 0V to Ground; 75 in-lbs torque |
| Bare Copper or Green | Ground Wire (Equipment Ground) | Terminal G (Green Screw) | Safety path; minimum 8 AWG Cu; 75 in-lbs torque |
When connecting individual THHN/THWN-2 wires inside EMT or PVC conduit, ensure the neutral wire insulation is pure white or natural gray along its entire length. Hot conductors may both be black, but utilizing black for Line 1 and red for Line 2 simplifies future circuit troubleshooting and phase balancing. Terminal blocks on heavy-duty industrial receptacles (such as Hubbell HBL9450A or Bryant 9450FR) utilize pressure-plate clamps that accommodate both solid and stranded copper wire from 10 AWG up to 4 AWG.
Step-by-Step NEMA 14-50 Wiring Diagram Assembly and Terminal Connection Guide
Executing a safe, code-compliant NEMA 14-50 outlet installation requires precise mechanical wire preparation and strict adherence to component manufacturer torque limits. Follow this structured assembly procedure:
- Isolate Power and Verify Zero Voltage: Turn off the main breaker or the dedicated double-pole 50-amp feeder breaker. Lock out/tag out the breaker panel. Test the conductors at the installation junction box using a calibrated non-contact voltage tester followed by a DMM to confirm 0.0V AC across all conductors.
- Prepare Cabinet Box and Conduit: Install a 4-inch deep square metal junction box (4-11/16 inch box recommended for conductor clearance) fitted with an appropriate cable clamp or conduit bushing. Ensure the metal enclosure is bonded to the equipment ground wire using a dedicated grounding screw (#10-32 tapped hole).
- Strip Conductor Insulation: Using precision wire strippers, remove exactly 3/4-inch (19 mm) of outer insulation from the black, red, white, and bare/green conductors. Ensure wire strands are not nicked, cut, or flattened, as damaged strands reduce conductor cross-sectional area and cause localized heating.
- Terminate Equipment Ground Wire: Insert the bare copper or green insulation ground wire into the green terminal clamp (Terminal G). Tighten the screw with a torque screwdriver calibrated to 75 in-lbs (or manufacturer specification printed on the device housing).
- Terminate Neutral Wire: Insert the white neutral conductor into the silver pressure-plate terminal block marked ‘W’. Tighten the clamp terminal firmly to 75 in-lbs. Ensure no loose wire strands extend beyond the terminal housing boundary.
- Terminate Hot Wires (Line 1 and Line 2): Insert the black conductor into Terminal X (brass screw) and the red conductor into Terminal Y (brass screw). Torque both line terminals to 75 in-lbs. Swapping Line 1 and Line 2 does not impact single-phase 240V equipment, but maintaining left/right symmetry aids system clarity.
- Receptacle Mounting and Final Panel Terminations: Carefully fold the heavy 6 AWG conductors into the back of the junction box without creating sharp kinks (minimum bend radius must equal 5x cable outer diameter). Secure the receptacle mounting yoke to the box with 2-inch stainless steel machine screws. Connect the opposing cable end to a double-pole 50A circuit breaker in the distribution panel following standard GFCI breaker wiring requirements where required by local code.
When terminating stranded 6 AWG copper wire into screw-pressure plate lugs, do not solder-tin the wire ends. Cold flow of solder under continuous mechanical pressure leads to lug loosening over time. Twisted stranded conductors must be inserted cleanly into the clamp block before applying full specified torque.
Wire Gauge Selection and Circuit Breaker Specifications for NEMA 14-50 Outlets
Selecting the correct wire gauge and insulation rating is vital for maintaining allowable conductor temperature limits under full load. NEC Table 310.16 governs wire ampacity based on thermal insulation ratings (60°C, 75°C, and 90°C columns). Understanding how insulation types dictate branch circuit sizing prevents premature conductor degradation and nuisance breaker tripping.
For a standard 50-amp branch circuit operating a NEMA 14-50 outlet, conductor selection varies based on cable construction:
- THHN / THWN-2 Copper Wires in Conduit: 6 AWG Copper rated at 75°C provides an allowable ampacity of 65 Amps, easily satisfying the 50A breaker protection requirement.
- NM-B (Romex) Sheathed Cable: Per NEC Article 334.80, NM-B cable ampacity must be evaluated using the 60°C column regardless of inner conductor insulation rating. 6 AWG NM-B copper has a 60°C ampacity rating of 55 Amps, permitting installation on a 50A double-pole breaker.
- Aluminum Conductors: If using aluminum or copper-clad aluminum wire, size up to 4 AWG XHHW-2 or 4 AWG SER cable. Terminal blocks on the outlet must be explicitly stamped ‘CU/AL’ to accept aluminum connections without suffering galvanic corrosion.
Long feeder runs introduce line impedance and voltage drop. To limit voltage drop to under 3% across the branch circuit (per NEC 210.19(A) Informational Note), adjust wire gauge based on circuit length under a full 40A continuous load:
- 0 to 80 Feet: 6 AWG Copper (THHN) or 6/3 NM-B Copper.
- 81 to 130 Feet: Upgrade to 4 AWG Copper (THHN in 1-inch conduit) or 2 AWG Aluminum.
- 131 to 200 Feet: Upgrade to 2 AWG Copper or 1/0 AWG Aluminum to preserve 240V operating potential under maximum load.
Conduit sizing must accommodate four heavy conductors without exceeding the 40% maximum conduit fill ratio (NEC Chapter 9, Table 1). When pulling four 6 AWG THHN conductors (2 Black, 1 Red, 1 White, 1 Bare/Green), use a minimum 3/4-inch EMT or PVC conduit; a 1-inch conduit is highly recommended to reduce wire pulling tension and thermal insulation abrasion.
Electric vehicle chargers operate as continuous loads (defined as maximum current flowing for 3 hours or more). NEC Article 210.20 requires branch circuit conductors and overcurrent protection devices to be sized at no less than 125% of the continuous load. A NEMA 14-50 outlet protected by a 50-amp breaker is limited to a continuous draw of 40 Amps (50A x 0.80 = 40A).
Common NEMA 14-50 Wiring Diagram Errors and Diagnostic Troubleshooting
Field failures of high-draw NEMA 14-50 receptacles typically stem from improper physical installation, misreading terminal block pinouts, or using low-grade components unsuitable for continuous thermal stress. Analyzing electrical symptoms allows fast identification of underlying wiring faults.
1. Melting Receptacle Yoke or Charred Terminals
Cause: Installing a residential-grade builder outlet ($10-$15 range) for high-duty-cycle 40A EV charging, or under-torquing terminal clamp screws.
Consequence: Low-cost residential outlets use spring-tension leaf contacts that relax over hundreds of thermal cycles. Loose mechanical joints increase electrical contact resistance, triggering thermal runaway that melts the plastic housing, welds plug prongs, or creates arc faults.
Correction: Install an industrial-grade or heavy-duty receptacle (e.g., Hubbell HBL9450A, Bryant 9450FR, or Cooper 5754N). Torque terminal block pressure screws strictly to 75 in-lbs using a calibrated torque wrench.
2. Swapped Hot and Neutral Wire Connections
Cause: Reversing the white neutral wire (Terminal W) with the red or black hot wire (Terminals X/Y).
Consequence: Placing 240V across internal 120V logic boards in connected equipment (such as RV power converters or smart EVSE chargers) instantly damages onboard electronics and trips double-pole breakers upon energization.
Correction: Verify voltage pinouts before connecting loads. Confirm exactly 120V from Terminal W (Silver) to both Line terminals (Brass) and 0V from Terminal W to Terminal G (Green).
3. Floating Neutral Condition
Cause: Unconnected, loose, or severed neutral wire at the subpanel terminal block or receptacle terminal W.
Consequence: Unbalanced 120V loads cause line-to-neutral voltages to drift wildly between 0V and 240V depending on load impedance, destroying single-phase auxiliary control circuits.
Correction: Perform a continuity test between Terminal W and the neutral bus bar while circuit is de-energized. Inspect neutral bar lug torques in the main distribution enclosure.
4. Bootleg Neutral (Jumpering Neutral to Ground)
Cause: Installing a jumper wire between Terminal W (Neutral) and Terminal G (Ground) at the outlet to bypass a missing ground wire in legacy 3-wire systems.
Consequence: Creates parallel return paths for neutral currents, energizing the metallic chassis of connected equipment or vehicles and creating a lethal shock hazard.
Correction: Never bond neutral and ground at any point downstream of the main service entrance panel. Pull a dedicated 4th ground conductor or convert the feeder to a code-compliant isolated grounding scheme per NEC Article 250.
Review our companion guide on Level 2 EVSE circuit installation rules to ensure complete compliance with local building inspector standards.
NEMA 14-50 Wiring Diagram Frequently Asked Questions
Can I wire a NEMA 14-50 receptacle without a neutral wire for EV charging?
No. While standard Level 2 EV chargers primarily utilize the two 120V hot legs (240V line-to-line) and the ground wire for charging function, the NEMA 14-50 standard mechanically and electrically dictates a complete 4-wire hookup including neutral. Leaving Terminal W unattached violates NEC Article 406.3 and invalidates the UL listing of the receptacle. If a neutral wire is absent in your supply box, install a NEMA 6-50 outlet instead (which uses a 3-wire Hot-Hot-Ground geometry).
What is the difference between a NEMA 14-50 and a NEMA 6-50 wiring diagram?
The primary structural difference is the presence of the neutral conductor. A NEMA 14-50 wiring diagram specifies four conductors: two hot wires, one neutral wire, and one ground wire (supplying 120V/240V split-phase power). A NEMA 6-50 wiring diagram specifies three conductors: two hot wires and one ground wire without a neutral conductor (supplying straight 240V single-phase power). Welder units commonly utilize NEMA 6-50, whereas RVs and dual-voltage equipment demand NEMA 14-50.
Why does my NEMA 14-50 outlet trip a GFCI circuit breaker immediately upon plug insertion?
Immediate tripping of a double-pole GFCI breaker usually indicates an unwanted connection between the neutral wire and ground wire downstream of the breaker, or a reversed neutral connection at the breaker terminal block. Ensure the load neutral wire connects directly to the GFCI breaker’s neutral terminal block lug (not the panel’s main neutral bar), and verify that neutral and ground wires do not touch anywhere inside the junction box or within the connected load device.
Can I use 8 AWG wire on a NEMA 14-50 wiring diagram if I put it on a 40A breaker?
Yes. NEC allows a NEMA 14-50 receptacle to be installed on a 40-amp branch circuit protected by a 40-amp double-pole breaker (NEC Article 210.21(B)(1) permits 50A receptacles on 40A branch circuits). When protected by a 40A breaker, 8 AWG copper THHN wire (rated at 50A in the 75°C column) is code-compliant. However, the EVSE or connected load must be set to draw no more than 32 Amps continuous (80% of the 40A rating).
What is the correct terminal torque specification for a NEMA 14-50 industrial outlet?
Most high-grade industrial NEMA 14-50 outlets (such as Hubbell HBL9450A or Bryant 9450FR) specify a terminal screw torque of 75 inch-pounds (in-lbs) for 6 AWG and 4 AWG copper conductors. Standard residential grade outlets may specify lower values between 35 and 50 in-lbs. Always consult the stamping on the back or side of the receptacle body and use a calibrated torque screwdriver to prevent thermal loosening over time.
