ADA Walk in Shower Shower Grab Bar Placement Diagram: 2026
ADA standards require horizontal shower grab bars mounted between 33 and 36 inches above the finished floor. Back walls need a minimum 36-inch bar, while side walls require a 24-inch bar near controls. Maintain 1.5 inches of wall clearance and anchor into solid blocking, positioned safely clear of surrounding drain assembly rough-ins.
📌 Key Takeaways
- Mount horizontal grab bars strictly 33 to 36 inches above the finished shower floor surface.
- Ensure all grab bars maintain a precise 1.5-inch clearance space from the finished wall.
- Anchor bars into 2×6 solid wood wall blocking rated to withstand 250 lbs of shear force.
- Position vertical entry bars starting 33 to 36 inches off the floor on the control wall.
- Keep wall anchors clear of in-wall plumbing like the vent pipe and shower riser pipes.
Installing an accessible, commercial-grade walk-in shower requires strict adherence to Americans with Disabilities Act (ADA) Standards for Accessible Design, specifically Section 609 for grab bar mounting and Section 608 for shower compartments. Mechanical contractors and commercial plumbers must coordinate structural wall reinforcement (solid blocking or metal stud backing) with subfloor rough-in plumbing, including the shower drain assembly, P-trap elevation, and proper vent pipe clearance. Miscalculating grab bar mounting heights or installing blocking over concealed supply lines or vent pipes creates costly retrofits. Utilizing a clear ada walk in shower shower grab bar placement diagram ensures structural load compliance (minimum 250 lbf shear/tension load) and proper plumbing clearances prior to backer board and tile installation.
Understanding the ADA Walk In Shower Shower Grab Bar Placement Diagram
Reading an engineering diagram for an accessible shower requires evaluating two distinct systems: structural wall support and subfloor plumbing. According to ADA Standards Section 608.3, grab bars must be installed continuously along the side and back walls of transfer and roll-in showers. Structural blocking must be positioned before drywall or tile backer boards are hung, while subfloor drainage components must align with floor slopes to prevent standing water.
ADA Section 609.4 dictates that grab bars must be mounted between 33 inches (840 mm) and 36 inches (915 mm) measured above the finished shower floor to the top of the gripping surface. Structural blocking must span the entire length of the bar to accommodate mounting flange hole patterns.
Wall Framing, Structural Backing, and ADA Grab Bar Elevations
As indicated in standard architectural layouts, horizontal grab bars require continuous structural backing across wall studs. For a standard 36-inch by 36-inch transfer shower, grab bars are required on the control wall and back wall. For a roll-in shower (minimum 60 inches wide by 30 inches deep), grab bars must cover the back wall and side walls. Framing contractors must install 2×6 or 2×8 pressure-treated lumber or 16-gauge steel backing plates centered at 34.5 inches above finished floor (AFF) to guarantee full anchorage within the 33-to-36-inch allowable range. The grab bar itself must maintain a 1.5-inch absolute clearance from the wall surface and feature an outside diameter between 1.25 and 1.5 inches.
Subfloor Plumbing: Shower Drain Assembly, P-Trap, and Venting Integration
Beneath the wall reinforcement, the drainage rough-in requires exact alignment. A standard commercial shower drain assembly consists of a 2-inch solvent-weld PVC flange attached to a 2-inch Schedule 40 PVC tailpiece. This drops vertically into a 2-inch P-trap beneath the subfloor. Proper venting requires running a vent pipe within 5 feet of the trap weir (for 2-inch pipe under IPC standards). In retrofit applications where running a vertical vent stack through upper levels is impossible, an Air Admittance Valve (AAV valve) may be installed inside a dedicated wall access panel located above the flood rim level. Ensure the AAV valve is positioned far enough from structural framing so grab bar lag screws do not puncture the valve body or secondary vent lines.
| System Component | Technical / ADA Specification | Fastener / Material Specification |
|---|---|---|
| Horizontal Grab Bar | 33″–36″ AFF to top of bar; 1.5″ wall clearance | 1.25″–1.5″ OD Stainless Steel (304 grade) |
| Vertical Entry Grab Bar | 33″ AFF lower end; extends to 60″ AFF (control wall) | 18-gauge 304 Stainless Steel with concealed flanges |
| Structural Wall Backing | 2×6 / 2×8 wood blocking centered at 34.5″ AFF | #10 x 3-1/2″ Structural Wood Screws (250 lbf capacity) |
| Shower Drain Assembly | 2-inch outlet; flush curb-less pan slope (1/4″ per ft) | Schedule 40 PVC with clamping ring & weep holes |
| Subfloor Trap & Vent | 2-inch P-trap; trap arm max length 5 ft to vent pipe | Solvent-welded PVC; optional accessible AAV valve |

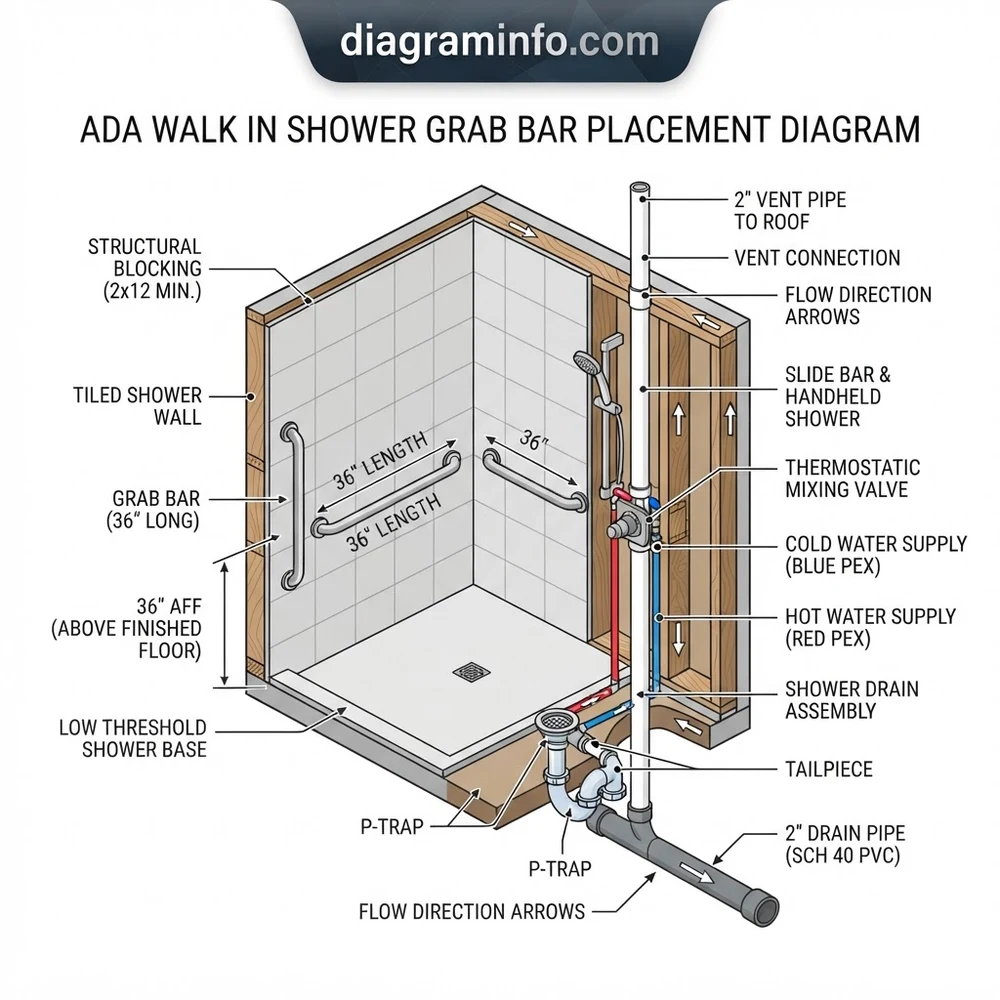

Installing Blocking and Drainage per the Walk In Shower Grab Bar Placement Diagram
Executing an accessible shower installation requires coordinating carpentry and mechanical rough-ins before closing walls or pouring curb-less pan mortars. Refer to our comprehensive commercial bathroom plumbing code guide for local variations on drain sizing. For comparative drainage concepts used in other residential zones, see our garbage disposal and tailpiece plumbing diagrams.
Rough-In Framing and Structural Reinforcement Installation
Begin by mapping out stud bays using your layout diagram. Measure from the finished subfloor surface—accounting for cement board, tile thinset, and finished tile thickness (typically 1/2 inch to 3/4 inch total build-up). Cut 2×6 or 2×8 lumber to fit flush between stud bays. Secure each blocking segment with four #10 structural screws driven through the studs at each end. If using 16-gauge steel backing plates on metal framing, secure them using heavy-duty self-drilling TEK screws. Ensure the front edge of the backing plate sits flush with the stud face so drywall or cement backer board lays perfectly flat.
ADA Grab Bar Load Spec: Per ADAAG 609.8, grab bars and mounting assemblies must withstand a single point load of 250 lbs (1112 N) applied in downward, outward, and shear directions without structural deflection or detachment.
Executing Subfloor Plumbing Connections and Vent Alignment
Install the 2-inch PVC shower drain assembly into the pre-cut subfloor opening. Connect the vertical PVC tailpiece beneath the floor deck to the 2-inch P-trap inlet using NSF-certified PVC primer and solvent cement. Maintain a uniform downward slope of 1/4 inch per foot on the horizontal trap arm connecting to the main soil stack. If wet-venting or retrofitting in multi-family facilities (similar to guidelines detailed in our wet-vent drainage systems guide), ensure the vent pipe branches upward vertically before traveling horizontally to avoid trap siphoning. Temporary fitting alignment can be checked using temporary slip joint connections before final solvent welding.
Do NOT run water supply lines or electrical conduit horizontally directly behind grab bar backing zones. Fastening 3-inch lag bolts into wall blocking creates a severe risk of puncturing hidden lines if clear depth isn’t verified.
Mounting Grab Bars and Final Wall Sealing Specs
After waterproofing membrane, backer board, and tile are completely installed, locate pre-marked blocking points. Drill pilot holes through ceramic or porcelain tile using a diamond core drill bit to prevent tile cracking. Fill pilot holes with high-grade 100% silicone sealant to maintain the vapor barrier. Fasten grab bar mounting flanges directly into the internal wood blocking using 1/4-inch x 3-inch 304 stainless steel lag screws. Torque fasteners down until the flange base sits flush against tile face, then snap decorative flange covers into position.
Addressing Rough-In Errors and Ada Walk In Shower Grab Bar Structural Defects
Failures during inspections generally stem from incorrect mounting elevations, inadequate backer support, or mechanical conflicts beneath the floor pan. Correcting these issues late in construction requires invasive tear-outs.
Resolving Off-Center Stud Alignment and Anchor Shearing
When framing layouts do not align with specified grab bar flange locations, relying solely on standard plastic wall anchors or sheetrock screws violates structural codes. If a wall is already tiled and blocking was omitted, mechanical contractors must install solid-bridging toggle anchors engineered specifically for ADA applications (such as WingIts or hollow-wall snap toggles rated for 300+ lbs in tile/cement board). If anchor screws shear during installation into dense hardwood blocking, step up pilot hole diameter from 1/8 inch to 5/32 inch and lubricate screw threads with paraffin wax prior to driving.
Correcting Drainage Slope, Trap Seal Failure, and Vent Pipe Obstructions
Sluggish drainage or sewer gas odors in roll-in showers often indicate trap seal failure or venting issues. If the P-trap is set unlevel, water won’t seal the trap weir, letting gas bypass into the shower room. Verify that the trap weir maintains a minimum 2-inch water seal depth. If an AAV valve is used in lieu of a standard vent pipe, inspect the internal diaphragm for debris sticking. In barrier-free showers, ensure the 2-inch PVC drain assembly clamping ring weep holes are clear of mortar or tile thinset; clogged weep holes back up water beneath tiles, deteriorating lower wall studs and backing over time.
Frequently Asked Questions About ADA Shower Grab Bar and Plumbing Diagrams
What is the exact height requirement on an ada walk in shower shower grab bar placement diagram?
ADA Standards Section 609.4 mandates that horizontal grab bar gripping surfaces must be mounted between 33 inches (840 mm) minimum and 36 inches (915 mm) maximum above the finished shower floor surface. For vertical grab bars at the shower entrance, lower ends must start at 33 inches AFF and extend vertically up to 60 inches AFF.
Can an Air Admittance Valve (AAV valve) be installed behind a shower wall containing grab bar backing?
Yes, provided the AAV valve remains accessible through a code-compliant louvered access panel for air intake and maintenance. It must be installed vertically at least 4 inches above the shower drain’s flood-rim level and positioned at least 2 inches clear of any 2×6 structural blocking or lag screws used for grab bar mounting.
What size PVC pipe and P-trap are required for a compliant walk-in shower drain assembly?
International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) require a minimum 2-inch nominal Schedule 40 PVC pipe and a matching 2-inch P-trap for individual shower stalls. This sizing accommodates higher peak flow rates from multi-head handicap shower valves and prevents overflow in curb-less pan designs.
What structural fasteners meet the ADA 250-pound load capacity for shower grab bars?
When mounting into 2×6 solid wood blocking, 1/4-inch diameter by 3-inch long 304 stainless steel lag bolts are the standard specification. If attaching to metal studs reinforced with 16-gauge steel backing plates, #14 gauge stainless steel sheet metal screws or grade 5 machine bolts are required to handle specified shear and tensile loads.
How far must a grab bar extend from the wall corner in a transfer shower?
On the back wall of a transfer shower, grab bars must extend to within 6 inches maximum of the adjacent side walls. For roll-in showers without seats, the horizontal grab bar must span continuously across the entire back wall, coming within 6 inches maximum of both corner intersections.
Step-by-Step Guide to Understanding the Ada Walk In Shower Shower Grab Bar Placement Diagram
Identify – Mark the finished floor baseline and locate internal wall framing or backing studs using a electronic scanner.
Locate – Measure 33 to 36 inches vertically from the shower pan floor to establish the horizontal centerline for side and back bars.
Reference – Cross-reference the diagram for required minimum bar lengths: 36 inches for the back wall and 24 inches for the control wall.
Connect/Route – Drill pilot holes through tile using a carbide bit, avoiding internal vent pipe and water lines, then mount heavy-duty wall flanges into solid backing.
Verify – Check that bars are level, maintain 1.5 inches of wall clearance, seal flanges with 100% silicone, and apply a 250 lb downward pull test.
Troubleshoot – If anchors feel loose or miss backing, install heavy-duty toggle-style hollow wall anchors designed specifically for grab bar retrofits.
