L6-30R Wiring Diagram: Easy Setup Guide
An L6-30R wiring diagram illustrates the connection of two hot wire lines and a ground wire to a 30-amp, 250-volt NEMA receptacle. Connect the green ground wire to the green screw and the two hot wires to the brass terminals. Unlike 120V circuits, this specific high-voltage setup lacks a neutral wire.
📌 Key Takeaways
- Provides a secure 250V connection for heavy-duty machinery and industrial equipment
- The NEMA L6-30R twist-lock receptacle is the primary component for locking power
- Always turn off the breaker and use a multimeter to verify zero voltage before work
- Ensure terminals are torqued correctly to prevent heat buildup and arcing during use
- Use this diagram when installing outlets for server racks, heaters, or large shop tools
If you are installing heavy-duty machinery, industrial power tools, or server room equipment, understanding a proper l6-30r wiring diagram is the first step toward a safe and functional electrical setup. The NEMA L6-30R is a locking receptacle designed for 250-volt applications, providing a secure connection that prevents accidental unplugging in high-vibration environments. This guide is designed to demystify the wiring process, showing you exactly where each wire goes, how to identify your terminals, and which safety standards must be met. By the end of this article, you will have a professional-grade understanding of the L6-30R configuration, ensuring your high-voltage projects are handled with precision and care.
Comprehensive L6-30R Wiring Diagram Overview
The NEMA L6-30R is a “locking” (L), 250-volt (6), 30-amp (30), receptacle (R). Unlike standard household outlets, the L6-30R does not utilize a neutral wire. Instead, it relies on two hot wires and one ground wire to deliver high-amperage power. The l6-30r wiring diagram visually represents a circular face with three distinct slots. One of these slots features a prominent “hook” or “L” shape, which is reserved exclusively for the ground connection. This mechanical design ensures that the plug can only be inserted in one orientation and stays locked in place once twisted.
When looking at the back of the receptacle, you will find three terminal screws. In most high-quality industrial components, these are color-coded to prevent installation errors. The two brass-colored screws are intended for the “hot” legs of the circuit, while the green-colored screw is for the equipment grounding conductor. Because this is a 250V single-phase device, both “hot” wires carry 125 volts relative to the ground, combining to provide the full 250V required by the load.
_
/ \
| (G) | <-- Ground Slot (Green Screw) | |_| | (The "Hooked" Slot) | | (Y) | / \ | (X) Hot Slot ->| | | |<- Hot Slot (Brass) | \_/ | (Brass) \_/ [ REAR TERMINAL LAYOUT ] Green Screw (G) -> Ground Wire
Brass Screw (X) -> Hot Wire 1 (Black)
Brass Screw (Y) -> Hot Wire 2 (Red)

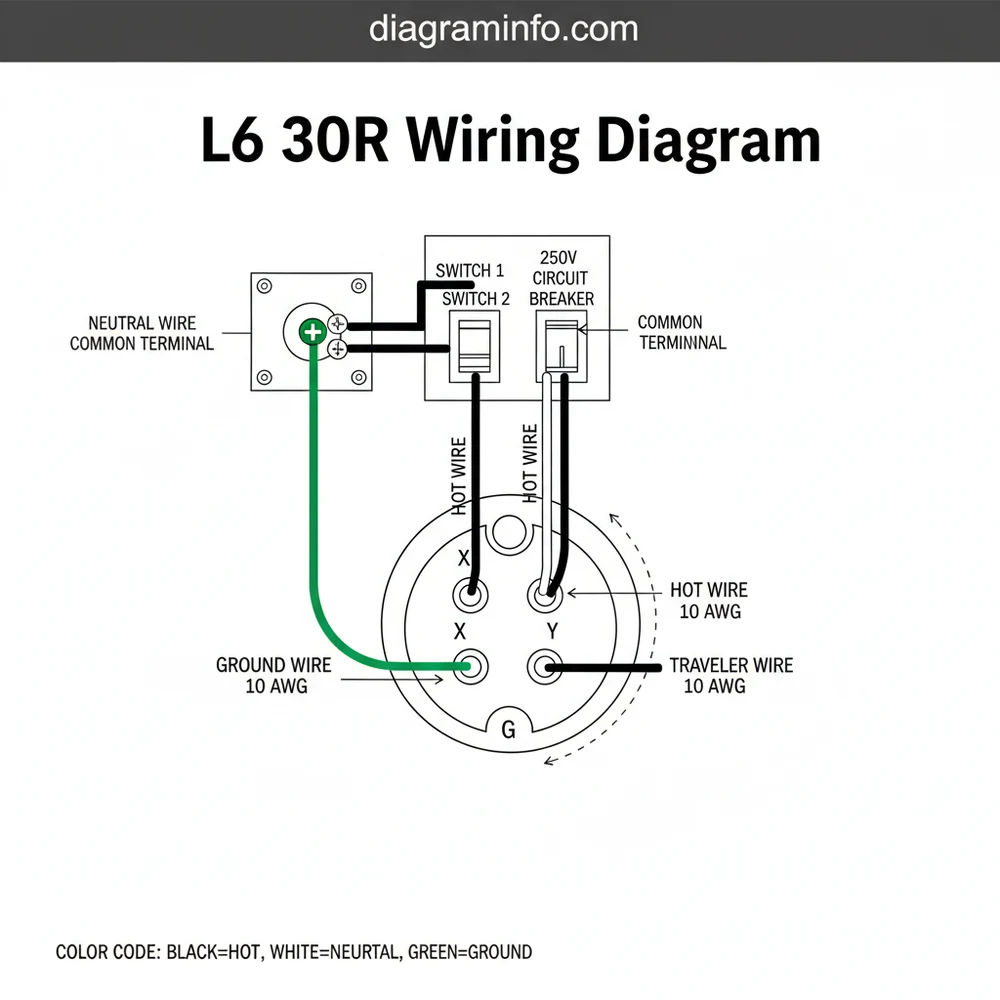

DIAGRAM 1.1: Physical layout and terminal mapping for a standard NEMA L6-30R locking outlet.
The internal components of the receptacle are built to withstand 30 amps of continuous current. This necessitates the use of heavy-duty copper contacts. Variations in manufacturing might place the terminals in slightly different positions, but the labeling (G, X, Y) remains a universal standard across all brands like Hubbell, Leviton, and Eaton.
The L6-30R provides 250 volts. This voltage level can be lethal if handled improperly. Always turn off the power at the main circuit breaker and verify the absence of voltage with a non-contact voltage tester before touching any wires.
Understanding Terminals and Wire Colors
To successfully execute an l6-30r wiring diagram, you must be able to identify each terminal by its markings rather than just its position. The terminology used in industrial wiring can sometimes be confusing for those used to standard residential 120V circuits.
- ✓ Ground Terminal (G): This is always indicated by a green-colored screw. It connects to the bare copper or green-insulated ground wire. Its primary job is to provide a safe path for electricity in the event of a short circuit.
- ✓ X Terminal (Hot): This is a brass screw. It receives one of the two 125V lines. Traditionally, the black wire is connected here.
- ✓ Y Terminal (Hot): This is the second brass screw. It receives the second 125V line. Traditionally, the red wire is connected here.
- ✓ Neutral Note: There is NO neutral wire or silver screw on a standard L6-30R. If your cable has a white wire, it is typically not used or must be capped off, unless you are using a different NEMA standard like the L14-30R.
In some specialized control circuits, people often search for a traveler wire or a common terminal. It is important to note that these terms apply to 3-way lighting switches, not power receptacles. In an L6-30R context, you are strictly dealing with two hots and a ground. If your wiring diagram mentions a “common,” ensure you are not accidentally looking at a switch diagram.
For a 30-amp circuit, you must use 10 AWG (American Wire Gauge) copper conductors. Using a thinner wire, such as 12 AWG, can lead to overheating and potential fires because the wire cannot handle the 30-amp load safely over long distances.
Step-by-Step Installation Guide
Following an l6-30r wiring diagram requires a methodical approach. Below are the steps to ensure a secure, code-compliant installation.
1. Prepare Your Tools and Materials
Before starting, gather a set of insulated screwdrivers (both Phillips and Flathead), wire strippers rated for 10-gauge wire, a voltage tester, and the NEMA L6-30R receptacle. Ensure your wire is 10/2 with ground (which contains a black, red, and green/bare wire).
2. Power Down and Verify
Switch off the double-pole 30A breaker in your electrical panel. Use a multimeter or non-contact voltage tester at the box location to confirm that no electricity is flowing. Never assume a circuit is dead just because the breaker is off.
3. Strip the Wires
Carefully strip approximately 3/4 inch of insulation from the ends of the black, red, and green wires. Ensure you do not nick the copper conductors, as this creates a weak point that can heat up under heavy electrical loads.
4. Connect the Ground Wire
Locate the green screw on the receptacle. This is the most important connection for safety. Loop the green or bare copper ground wire around the screw in a clockwise direction and tighten it firmly. Many industrial outlets use “back-wire” clamps; if yours has these, insert the straight wire into the hole and tighten the screw to clamp it.
5. Connect the Hot Wires
Take the black hot wire and connect it to the brass screw marked ‘X’. Then, take the red hot wire and connect it to the other brass screw marked ‘Y’. In a 250V system, it does not technically matter which hot goes to X and which goes to Y, as both are carrying the same voltage phase-to-phase, but following a consistent pattern is best practice.
6. Inspect the Connections
Give each wire a firm tug to ensure it is seated properly. There should be no stray copper strands protruding from the terminals, as these could cause a short circuit against the metal electrical box.
7. Mount the Receptacle
Carefully fold the heavy 10-gauge wires into the back of the junction box. Because 10 AWG is stiff, this may require some effort. Screw the receptacle into the box, ensuring it is level and flush with the wall surface.
8. Final Testing
Attach the faceplate. Turn the breaker back on. Use a multimeter to test the voltage. You should read approximately 240-250V between the X and Y slots, and approximately 120-125V between either hot slot and the ground slot.
Industrial receptacles often list a specific torque value (usually in pound-inches) on the packaging. Using a torque screwdriver to hit these specs ensures the connection won’t loosen over time due to thermal expansion and contraction.
Common Issues & Troubleshooting
Even with a clear l6-30r wiring diagram, issues can arise during or after installation. Here are the most frequent problems and how to resolve them:
Low Voltage Readings
If you are measuring 120V instead of 250V between the two hot terminals, you likely have both hot wires connected to the same phase in your breaker panel. A 250V circuit requires a double-pole breaker that straddles two separate 120V bus bars. If you used two single breakers on the same phase, the potential difference between them will be zero.
Tripping Breakers
If the breaker trips immediately upon being turned on, there is a short circuit. This usually happens if the ground wire is touching one of the brass screw terminals or if a stray strand of wire is bridging the gap between terminals. Inspect the wiring inside the box for any signs of contact.
Heat at the Receptacle
If the outlet feels hot to the touch while equipment is running, the connections are likely loose. Loose connections create resistance, which generates heat. Re-tighten all terminals and ensure you are using the correct 10-gauge wire for the 30-amp load.
The Plug Won’t Stay In
If the plug falls out, you may have installed a standard L6-30R but are using a non-locking plug, or you are not “twisting” the plug after insertion. Remember, the “L” stands for locking—insert the plug and rotate it clockwise to lock it into the slots.
Safety Standards and Best Practices
When working with high-voltage voltage, following best practices is not just about functionality; it is about fire prevention and life safety.
- ✓ Use Copper Only: Most L6-30R receptacles are rated for copper wire only. Avoid using aluminum wire unless the device is specifically marked “CO/ALR.”
- ✓ Box Fill Capacity: 10 AWG wire takes up more volume (2.5 cubic inches per conductor) than standard house wire. Ensure your junction box is deep enough to accommodate the wires and the large body of the locking receptacle without crushing the insulation.
- ✓ Strain Relief: If you are wiring an L6-30R onto a cord (a connector) rather than a wall outlet, ensure the cord grip is tightened securely around the outer jacket of the cable, not the individual colored wires.
- ✓ Proper Labeling: Always label the circuit at the breaker panel as “Workshop L6-30” or “Server Rack” so others know exactly what that high-voltage line feeds.
One final recommendation is to choose high-quality components. While generic receptacles may be cheaper, industrial-grade versions from reputable manufacturers offer better heat dissipation and more robust locking mechanisms. This is especially important for equipment that runs 24/7, such as air compressors or data center hardware.
Conclusion
Successfully utilizing an l6-30r wiring diagram allows you to safely harness 250V power for your most demanding applications. By focusing on correct terminal identification—connecting the hot wire leads to the brass screw terminals and the ground wire to the green screw—you eliminate the most common sources of electrical failure. Remember that the L6-30R does not utilize a neutral wire, and using the correct 10-gauge wire is non-negotiable for a 30-amp circuit. Whether you are setting up a new workshop or upgrading an industrial facility, following these structured steps and safety protocols ensures a reliable connection that will serve your power needs for years to come. If at any point the wiring configuration becomes unclear or you are uncomfortable working inside a live panel, always consult with a licensed professional electrician to ensure your installation meets all local and national electrical codes.
Frequently Asked Questions
Where is the L6-30R receptacle located?
The L6-30R receptacle is typically located in industrial environments, data centers for server racks, or home workshops. It is often wall-mounted or installed in pendant drops to provide dedicated 250V power to stationary machinery that requires a secure, twist-lock connection to prevent accidental unplugging during high-vibration operations.
What does an L6-30R wiring diagram show?
The diagram displays the specific terminal configuration for a NEMA L6-30R receptacle. It clarifies that while a traveler wire or common terminal is used in switching, this outlet focuses on a grounded 250V supply. It guides you in connecting the hot wire leads to the appropriate brass terminals effectively.
How many connections does an L6-30R have?
The L6-30R utilizes three connections consisting of two 120V hot wire lines and a dedicated ground wire. Unlike standard 120V outlets, this high-voltage configuration does not require a neutral wire. Each connection is secured to a specific terminal within the twist-lock housing to ensure a reliable 250V circuit.
What are the symptoms of a bad L6-30R?
A faulty L6-30R may show signs of arcing, scorched plastic around the terminals, or a loose locking mechanism. If the hot wire connections become loose at the common terminal point, you might experience intermittent power delivery, excessive heat, or the connected machine failing to start despite the breaker being on.
Can I install this myself?
You can install an L6-30R yourself if you have basic electrical knowledge and follow the diagram closely. However, because it involves 250V high-amperage power, you must ensure the ground wire is properly bonded and the breaker is off. If you are unsure about wire gauges, consult a professional.
What tools do I need for this task?
To complete this installation, you will need a set of wire strippers, a Phillips and flat-head screwdriver, and a multimeter. A torque screwdriver is recommended to ensure the hot wire leads are tightened to the manufacturer’s specifications on the terminal screws to prevent dangerous electrical resistance.
