A data center power distribution diagram outlines the path from the medium-voltage utility grid (13.8kV) through the Automatic Transfer Switch (ATS), generator backup, Uninterruptible Power Supply (UPS), and Power Distribution Unit (PDU) down to 415V/208V floor RPPs and 120V/208V intelligent rack PDUs supplying server power supplies.
📌 Key Takeaways
- Enterprise systems transform high-voltage 13.8kV utility feeds down to 415V/240V three-phase or 208V/120V rack-level distribution.
- Color-coded dual-feed configuration (A and B side feeds) ensures N+1 or 2N redundant path identification across all rack PDUs.
- Torque busway connections to manufacturer specs (typically 50-70 lb-ft) to prevent high-resistance thermal hot spots.
- Static switch transfer failures and phase current imbalances represent the primary causes of downstream breaker trips.
- High-voltage switchgear and transformer maintenance require certified NFPA 70E technicians; rack PDU balancing can be handled internally.
Navigating a complex data center power distribution diagram requires an acute understanding of medium-to-low voltage electrical engineering, system redundancy, and switchgear control logic. From high-voltage utility grid feeds down to server rack Power Distribution Units (rPDUs), a comprehensive electrical single-line diagram (SLD) maps out the critical path for power conditioning, delivery, and circuit protection. Designed for facility engineers, electrical technicians, and data center managers, this technical guide breaks down every component, structural configuration, and tracing methodology. Master these schematics to optimize thermal loads, maintain uptime, and execute rapid fault isolation in mission-critical environments.

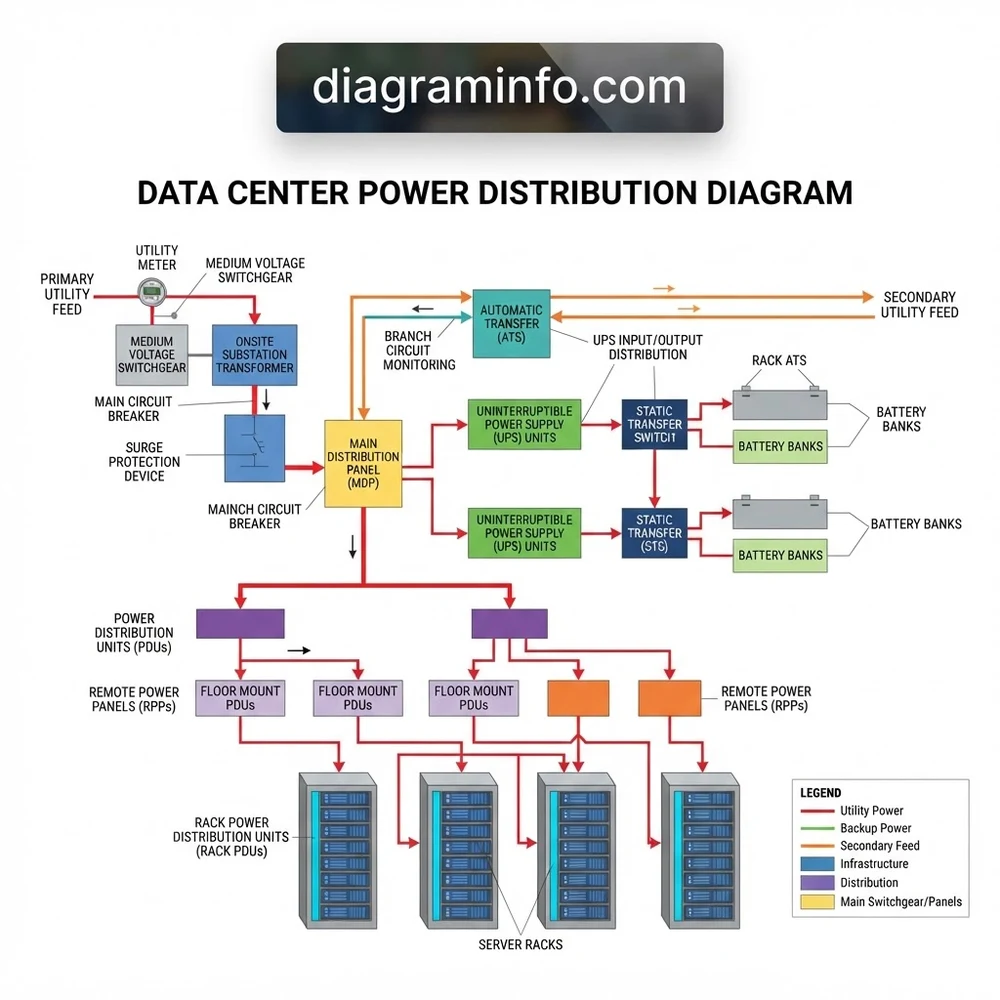

Key Electrical Components in a Data Center Power Distribution Diagram Layout
To analyze a data center power distribution diagram accurately, engineers must identify six foundational stages within the electrical topology. The path originates at the high-voltage utility service entrance, typically delivering 13.8 kV to 34.5 kV three-phase AC power. This primary feed interfaces with outdoor switchyards or medium-voltage indoor switchgear equipped with vacuum circuit breakers (VCBs) and digital protective relays conforming to ANSI device standards (e.g., ANSI 50/51 overcurrent protection and ANSI 87 differential protection).
Downstream step-down transformers drop incoming voltages to 480V AC (3-phase, 3-wire or 4-wire Wye configurations). This low-voltage feed routes directly into an Automatic Transfer Switch (ATS) or Paralleling Switchgear. During grid disruptions, control logic commands backup diesel or natural gas generators to start, synchronizing voltage, phase angle, and frequency before transferring the facility load. To explore auxiliary generation setups in detail, refer to our comprehensive guide on diesel generator paralleling controls and switchgear logic.
The 480V switchboard output feeds double-conversion Uninterruptible Power Supply (UPS) systems. Operating in online mode, the UPS rectifies raw AC into DC to float-charge flywheel or lithium-ion battery banks, while continuously driving an IGBT inverter to regenerate clean, regulated 480V 3-phase AC power. Downstream floor Power Distribution Units (PDUs) or Remote Power Panels (RPPs) house step-down K-factor isolation transformers, stepping voltage down to 208V/120V 3-phase service to feed overhead track busways or flexible whip cables terminating at server rack PDUs.
| Distribution Stage | Typical Nominal Voltage / Specification | Primary Circuit Component & Protection |
|---|---|---|
| Utility Entrance | 13.8 kV – 34.5 kV AC (3-Phase) | Medium-Voltage Vacuum Circuit Breakers, ANSI 50/51 Relays |
| Secondary Substation | 480V AC (3-Phase, 3W / 4W Wye) | Cast-Resin / Dry-Type Transformer, Main Air Circuit Breaker (ACB) |
| Backup Power & Conditioning | 480V AC (3-Phase Clean AC) | Double-Conversion Online UPS, ATS, Paralleling Switchgear |
| Floor Distribution | 208V/120V AC (3-Phase, 4W Wye) | Floor PDU / RPP with K-13 Transformer, Molded Case Breakers (MCCB) |
| Rack Cabinet Level | 208V Single-Phase / 3-Phase (16A – 60A) | Smart Intelligent rPDU, Hydraulic-Magnetic Circuit Breakers |
Floor PDU isolation transformers are generally rated between 75 kVA and 300 kVA. They must feature a K-factor rating of K-13 or K-20 to safely absorb non-linear harmonic currents generated by switch-mode power supplies (SMPS) without overheating windings.
How to Read and Interpret a Data Center Power Distribution Diagram Schematic
Reading an enterprise single-line power diagram requires a disciplined, top-to-bottom tracing methodology following the point of common coupling (PCC) down to the IT load. Technicians must understand standard IEEE standard electrical symbols, interlocking switch configurations, and conductor specifications to interpret these blueprints accurately.
Follow this systematic four-step technique to trace power pathways and evaluate system status:
- Step 1: Map Primary Utility Inputs and Transfer Switches: Identify incoming utility feeders at the top left or top right of the schematic. Locate the tie-breakers, main lugs, and Automatic Transfer Switch (ATS) locations. Check breaker continuous frame sizes (e.g., 4000A) and short-circuit interrupting ratings (e.g., 65 kAIC or 100 kAIC) to ensure system protection alignment.
- Step 2: Analyze Topology Redundancy Architecture: Determine whether the system structure represents an N+1, 2N, or 2N+1 system topology. In a true 2N system, trace two independent, concurrent feeds (A-Side and B-Side) running completely parallel through separate UPS modules, distribution boards, and overhead busways to dual-corded servers. Learn more about structural redundancy variations in our article on Tier III vs. Tier IV data center electrical configurations.
- Step 3: Follow Conditioned UPS and Bypass Circuits: Trace normal power flow through the rectifier and inverter stages of the UPS module. Locate static bypass switches (SBS) and maintenance bypass breaker (MBB) interlocks. Verify key-interlock safety systems (such as Kirk Key interlocks) that prevent accidental paralleling of unsynchronized sources during maintenance operations.
- Step 4: Decode Downstream RPP and Busway Circuits: Trace distribution busways or conduit runs leading to Remote Power Panels. Identify conductor sizes on the diagram, such as parallel runs of 500 kcmil THHN/THWN copper wire or overhead aluminum track busway configurations rated for 250A to 800A continuous operation.
When reading three-phase circuit schedules on floor PDUs, remember that 208V line-to-line output is derived from a 208V/120V Wye secondary transformer connection. Single-phase server power supplies connected across Lines A-B, B-C, or C-A deliver 208V AC, reducing conductor current draw compared to 120V line-to-neutral feeds.
Troubleshooting System Faults Using the Data Center Power Blueprint
When an alarm trips or a localized outage occurs, technicians rely on the electrical schematic as a primary diagnostic tool. Resolving electrical faults requires comparing schematic ratings against real-time measurements from Power Quality Analyzers (PQAs) and thermal imaging equipment.
The primary issue in enterprise data centers is severe phase current imbalance and high Total Harmonic Distortion (THD). Modern switch-mode server power supplies create 3rd, 9th, and 15th triplen harmonics that accumulate on the neutral conductor. By referencing the floor PDU circuit breaker schedule, locate the affected sub-panel and clamp a true-RMS meter on phase legs A, B, and C as well as the neutral line. According to OEM operational standards, phase leg currents should remain within 10% of each other, and neutral current should not exceed 50% of full-load phase ampacity under normal operating conditions.
A second critical failure mode involves unexpected Ground Fault Protection (GFP) tripping on main switchboards. Using the system blueprint, trace the zero-sequence ground-fault CT placement across parallel feeds. Neutral-to-ground bonds must exist only at the main service entrance or at the secondary output of isolated PDU transformers. Multiple neutral-ground bonds downstream create parallel return paths, tripping sensitive GFP relays prematurely or blinding them to actual faults.
Before performing insulation resistance testing (Megger) on feeder conduits shown in the diagram, disconnect all sensitive electronic equipment, UPS bypass modules, and intelligent rPDUs. Applying 1000V DC test voltages will permanently damage solid-state components and surge protective devices (SPDs).
Frequently Asked Questions About Data Center Power Distribution Systems
How does a 2N power distribution architecture differ from N+1 in a schematic blueprint?
An N+1 architecture incorporates one additional component (e.g., 4 UPS modules for a 3-module load requirement) feeding a shared bus structure. A 2N system features two completely independent, mirrored power distribution paths (Path A and Path B) from separate utility transformers and UPS units down to the dual-power-supply server rack, ensuring zero single points of failure during concurrent maintenance.
What electrical symbols represent an Automatic Transfer Switch (ATS) vs. a Static Transfer Switch (STS)?
In single-line diagrams, an ATS is represented by a dual-throw switch symbol driven by a motor operator, showing open/closed mechanical contacts. An STS is symbolized by anti-parallel silicon-controlled rectifiers (SCRs) or solid-state thyristor pairs, indicating high-speed electronic switching capable of transferring critical loads within 4 to 8 milliseconds without disrupting server power supplies.
What conductor color codes apply to 480V three-phase data center infrastructure feeds?
Under the National Electrical Code (NEC) standard practice in North America, 480V/277V three-phase feeds use Brown (Phase A), Orange (Phase B), Yellow (Phase C), Gray (Neutral), and Green or Bare Copper (Equipment Ground). For 208V/120V downstream branch circuits, the industry standard shifts to Black (Phase A), Red (Phase B), Blue (Phase C), and White (Neutral).
What role do Remote Power Panels (RPPs) play in server room distribution layouts?
RPPs are high-density branch circuit panels without an internal transformer. Fed by a high-capacity 208V feeder circuit from a master PDU, an RPP houses multiple 42-pole or 84-pole panelboards equipped with molded case circuit breakers. They allow easy, localized expansion of rack power connections without adding space-consuming transformers to the raised floor area.
How do K-factor transformers handle harmonic distortion in data center electrical configurations?
Standard transformers overheat when subjected to non-linear harmonic currents due to elevated stray load losses and eddy current heating. K-factor transformers (such as K-13 rated units) feature double-sized neutral conductors, customized electrostatic shielding between primary and secondary windings, and specialized core geometries engineered to safely dissipate excessive heat caused by server power supply harmonics.
Step-by-Step Guide to Understanding the Data Center Power Distribution Diagram
Identify – Locate primary utility input feeds and emergency generator sources on the main single-line layout.
Locate – Position downstream UPS modules, static transfer switches, and primary transformer step-down nodes.
Reference – Match circuit breaker schedules and cable tray routing with actual floor remote power panels (RPPs).
Connect/Route – Route dual-path overhead busway drop cords to redundant rack-level PDUs according to system balance specs.
Verify – Measure line-to-line voltages and verify phase balance across three-phase conductors using a True-RMS meter.
Troubleshoot – Trace low-voltage or tripped circuit indicators back through sub-panels to the nearest upstream transfer device.
