A toilet tank diagram illustrates the fill valve on the left connected to the supply line, and the central flush valve with its flapper or tower assembly. The overflow tube prevents flooding by routing excess water into the bowl, while the tank lever actuates the flapper chain to set water levels.
📌 Key Takeaways
- Fill valve refilling rates are adjusted via the top screw to set tank water level 1/2 inch below the overflow pipe.
- The flapper or flush valve seal is the primary failure point causing continuous tank draining into the bowl.
- Ensure standard 3/8-inch compression supply lines are hand-tightened plus 1/4 turn to prevent cracking plastic shanks.
- Understanding how the tank connects downstream to the tailpiece, drain assembly, and vent pipe prevents siphonage.
- Replace internal rubber seals every 3-5 years; consult a plumber if water supply valves leak or fail to isolate.
Mastering the mechanical operation of gravity-fed water closets requires a precise understanding of fluid mechanics, hydrostatic head pressure, and mechanical linkage assemblies. The modern water closet tank functions as an automated fluid reservoir that meters, stores, and rapidly discharges water to drive siphonic evacuation through the bowl’s internal trapway. Understanding the individual components detailed in a schematic allows facility maintenance technicians, commercial plumbers, and advanced DIYers to efficiently diagnose hydraulic imbalances, seal failures, and pressure irregularities. This technical guide breaks down the internal geometry of the tank, detailing how water supply pressure, fill valve dynamics, and discharge linkages interface with the broader facility waste lines, including downstream drain assembly configurations and roof venting systems.
Understanding the Complete Parts Of A Toilet Tank Diagram
A standard residential or light-commercial gravity-flush toilet tank houses two primary hydraulic systems: the fluid inlet system (controlled by the fill valve) and the fluid discharge system (controlled by the flush valve). These assemblies work in tandem with mechanical linkages to execute an automated fill-and-flush cycle based on differential pressure and buoyancy principles.
Recommended Best Deal Products
Fill Valve Assembly and Fluid Height Regulators
The fill valve (often referred to as a Ballcock or anti-siphon fill valve) controls the replenishment of water into the tank after a flush cycle. Modern systems utilize pilot-diaphragm fill valves constructed from high-impact Schedule 40 PVC or acetyl resin polymers. Water enters through the bottom threaded shank—the valve tailpiece—which penetrates the base of the porcelain tank. A floating cup or buoyant ball attached to an adjustable arm monitors fluid height. As water rises during the refill cycle, the float moves upward until the mechanical leverage depresses a small pin within the valve head. This action closes the pilot orifice, equalizing pressure across the internal diaphragm and instantly halting incoming flow at the targeted water line. Integral anti-siphon vacuum breakers prevent back-siphoning of tank water into the municipal potable supply, maintaining compliance with ASME A112.19.2/CSA B45.1 standards.
Flush Valve Body, Flapper Seal, and Overflow Tube
Located at the center base of the tank, the flush valve assembly provides a high-flow opening (typically 2-inch or 3-inch diameter) into the toilet bowl. The assembly consists of a rigid PVC or ABS body, a soft elastomeric or chloramine-resistant EPDM rubber flapper seal, and a hollow vertical overflow tube. During resting state, hydrostatic head pressure created by the 1.28 to 1.6 gallons of stored tank water forces the flapper downward against the valve seat, establishing a watertight seal. The overflow tube serves a dual protective role: it prevents catastrophic tank overflow by routing excess fluid directly into the bowl if the fill valve fails open, and it accepts refill fluid from the fill valve’s small flexible refill tube to restore the trap seal within the bowl during the fill cycle.
Tank Actuator Lever, Lift Chain, and Tank-to-Bowl Hardware
The manual initiation of the flush cycle relies on a simple mechanical advantage system. The exterior tank lever is coupled to an internal trip lever arm made of brass, stainless steel, or reinforced polymer. A stainless steel lift chain links the trip arm to the flapper hinge. When the lever is depressed, the chain pulls the flapper upward past its neutral buoyancy point, allowing water pressure from beneath to lift the flapper completely off the valve seat. At the tank floor, two or three solid brass or stainless steel tank bolts fitted with conical rubber washers secure the upper reservoir to the bowl deck, sandwiching a thick sponge gasket (spud washer) that seals the main discharge passage.
| Component Name | Material Construction | Primary Function | Operating Specification / Torque |
|---|---|---|---|
| Fill Valve Shank / Tailpiece | Engineered Polymer / Brass | Fluid inlet port & shutoff interface | Hand-tight + 1/4 turn (approx. 25-35 in-lbs) |
| Flapper Valve Seal | Chloramine-Resistant EPDM | Primary fluid retention seal | Resists 20-80 PSI static pressure |
| Flush Valve Seat | Schedule 40 PVC / ABS | High-volume discharge orifice | 2-inch or 3-inch nominal diameter |
| Tank-to-Bowl Fasteners | Solid Brass / 304 Stainless | Structural clamping & leak prevention | 15-20 in-lbs (compression fitted) |
| Refill Tube | Vinyl / Silicone Tubing | Bowl trap priming fluid transfer | 1.5 to 2.5 GPM bypass flow rate |
How to Read the Parts Of A Toilet Tank Diagram for Maintenance

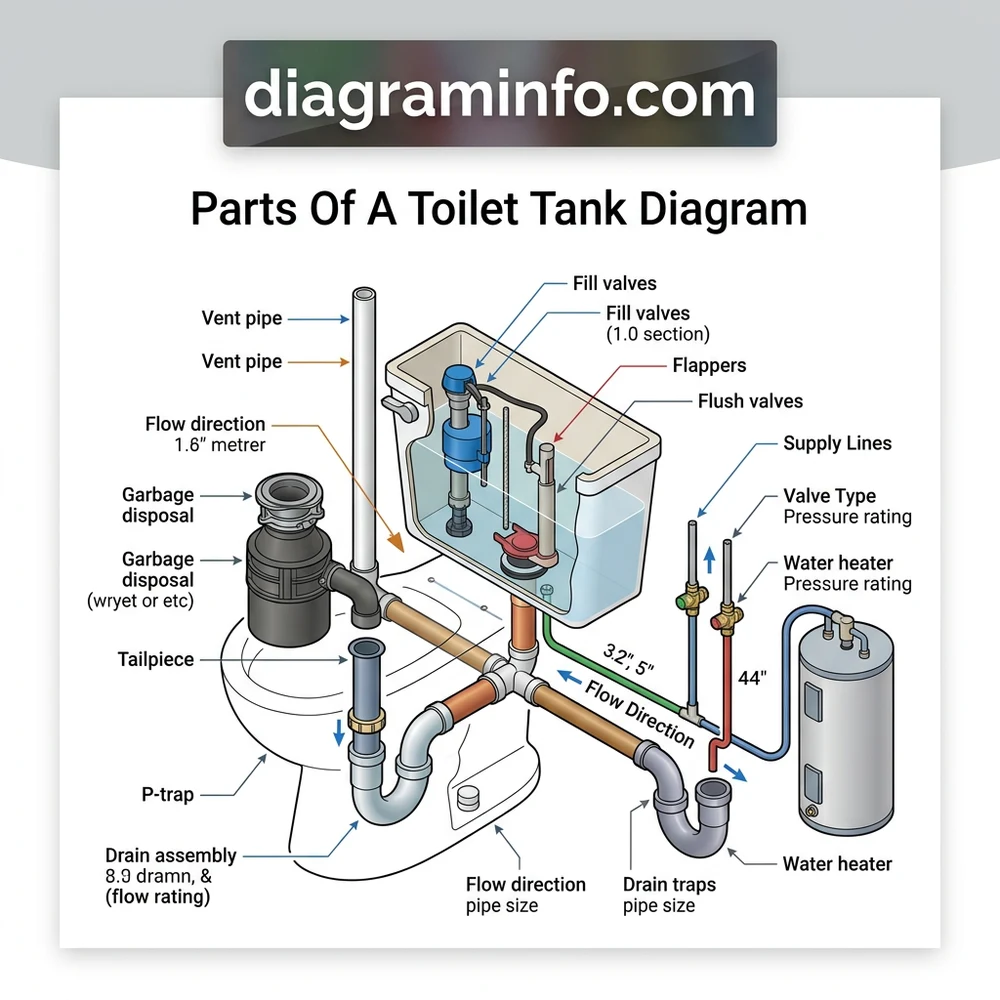

When analyzing a technical schematic of a toilet tank assembly, maintenance technicians must read the drawing not merely as a collection of static parts, but as a dynamic pressure and mechanical system integrated into the building’s broader mechanical system, including the DWV (Drain, Waste, Vent) plumbing infrastructure.
Mapping Fluid Dynamics and Mechanical Actuation Paths
Reading the schematic begins at the incoming supply stop. Trace the water line upward through the flexible metal or braided polymer supply connector into the fill valve tailpiece shank. As noted in the diagram, pressurized water moves vertically through the valve stem until it reaches the upper cap assembly. During the fill cycle, two distinct fluid streams are generated: the main downward flow into the tank body and a secondary diverted flow through the flexible refill tube into the overflow pipe.
Mechanical force transmission is depicted along the lever-chain-flapper axis. When reading this vector on the diagram, note the rotational arc of the trip lever. The lift chain must maintain a precise amount of slack—typically 1/2 inch of lateral play—to ensure that the flapper seats flush against the flush valve rim without binding when the lever returns to its neutral horizontal resting position.
Recommended Best Deal Products
Understanding the distinction between fixture-specific mechanics and broader facility waste systems is critical. While sinks, basins, and commercial fixtures rely on external P-trap configurations, slip joint nuts, and localized tailpiece drop pipes to manage waste drainage, a toilet utilizes an integral vitreous china siphonic trapway built directly into the bowl casting. However, both systems depend on atmospheric balance provided by a main roof vent pipe or a localized AAV valve branch to maintain hydraulic pull without blowing out secondary trap seals. For more details on fixture drain branches, reference our under-sink plumbing layout schematic.
Inspecting Slip Joint Connections and Rubber Tank Bolts
The lower section of the diagram highlights critical sealing surfaces where water pressure meets physical tank penetrations. The fill valve shank projects through a hole in the tank floor and is secured by an external locknut. A specialized tapered rubber shank washer fits inside the tank to isolate the fluid column from the mounting aperture. Inspecting this area requires understanding compression mechanics: over-tightening the outer locknut deforms the rubber washer, creating micro-gaps that leak down the water line.
Similarly, the tank-to-bowl interface relies on uniform linear force applied across two or three mounting bolts. The schematic illustrates the sandwich construction: bolt head inside the tank, followed by a rubber washer, metal washer, tank floor, lower nut, bowl deck, washer, and final locknut. This dual-nut configuration isolates tank clamping force from bowl securing force, preventing stress fractures in the vitreous china chassis.
Verifying Vent Pipe and Air Admittance Valve (AAV) Integration
Although the tank mechanism operates via gravity, its ability to flush efficiently depends entirely on downstream pneumatic conditions within the waste stack. As shown in complete plumbing layout diagrams, the bowl discharge connects directly to a 3-inch or 4-inch closet flange and soil pipe. When the flush valve dumps water rapidly into the bowl, the rapidly accelerating mass creates a strong siphonic draw through the internal trapway.
For this siphonic action to pull cleanly without surging or gurgling, negative air pressure behind the water column must be continuously relieved by a dedicated plumbing vent pipe penetrating the roofline. In installations where retrofitting a roof vent is structurally prohibitive, an Air Admittance Valve (AAV valve) may be installed on the branch waste line downstream of the fixture. The AAV valve uses a sensitive pressure membrane that opens under negative pressure to admit room air into the drain assembly, preventing vacuum lock while remaining closed against sewer gas release.
Static supply line pressure operating tolerance: 20 PSI minimum to 80 PSI maximum. Optimal tank fill rate: 3.0 to 5.0 GPM at 45 PSI dynamic working pressure. Water surface level must be calibrated precisely to 1/2 inch below the top lip of the overflow tube.
Diagnosing System Failures With the Parts Of A Toilet Tank Diagram
System failures within a toilet tank manifest as continuous running water, inadequate flush momentum, or external liquid leaks. By using the component diagram to isolate variables, technicians can execute targeted mechanical corrections without replacing functioning sub-assemblies.
Resolving Phantom Flushing and Flapper Valve Degradation
“Phantom flushing”—the periodic, uninitiated opening of the fill valve for a few seconds—indicates a continuous, slow leak from the tank into the bowl. Referring to the discharge assembly on your diagram, this condition is almost exclusively caused by a compromised flapper seal or a degraded flush valve seat.
- Inspect Flapper Material Integrity: Municipal water treatment chemicals (chloramines) degrade synthetic rubber over time, causing blistering, hardening, or warping along the sealing lip. Replace damaged flapper components with chloramine-resistant EPDM units.
- Check Chain Tension: If the lift chain is adjusted too tightly, it prevents the flapper from seating flat against the flush valve ring, causing a perpetual fluid trickling effect. Re-hang the chain clip to allow 1/2 inch of slack.
- Examine Flush Valve Rim: Mineral deposits or scale buildup on the rigid PVC seat surface interrupt the fluid seal. Scour the mating ring with a non-abrasive pad to restore a smooth sealing face.
Correcting Fill Valve Overfill and Overflow Tube Spillover
If water continuously streams over the lip of the vertical overflow tube and into the bowl, the fill valve is failing to shut off at its prescribed fill line. Diagnostic steps include:
- Float Height Adjustment: Rotate the mechanical adjustment screw on the float arm clockwise to lower the float cup shut-off trigger point below the top of the overflow pipe.
- Pilot Valve Debris Flush: Shut off main water supply, snap off the upper fill valve lever cap, and inspect the internal rubber diaphragm seal. Grit or pipe scale trapped inside the diaphragm pilot chamber prevents full valve closure. Flush the cap assembly under clear water and reinstall.
- Diaphragm Rupture: If the rubber diaphragm membrane displays tears or cracking under flex testing, replace the internal seal cartridge or install a complete replacement pilot-diaphragm fill valve.
Eliminating Water Leaks Around the Tailpiece and Tank Base
External fluid leaks at the base of the tank require immediate remediation to prevent subfloor degradation and structural damage. When diagnosing external fluid tracks, cross-reference the leak point with the sealing washers on the diagram:
Do not apply chemical thread sealants, PTFE paste, or pipe dope to plastic slip joint threads or fill valve shank threads. Solvents inside these compounds can chemically embrittle Schedule 40 PVC, ABS, and acetal polymers, leading to catastrophic thread shear and heavy fluid leakage. Use only hand-tight clamping force backed by clean elastomeric gaskets.
Leaks originating directly beneath the fill valve shank stem indicate a failure of the inner rubber shank washer. The outer plastic locknut should be backed off, the inner washer cleared of scale or replaced, and the assembly retightened by hand plus 1/4 turn with channel locks. If fluid leaks from the center spud washer during a flush cycle, the tank must be unbolted from the bowl to replace the degraded foam rubber tank-to-bowl gasket. Always replace both tank bolt rubber washers simultaneously to maintain equal torque distribution across the ceramic deck.
In facilities where multiple fixtures share common wet walls, diagnostic procedures must differentiate between tank leaks and downstream waste line backing. In mixed-use utility setups containing branch lines for a garbage disposal, laundry basin, or secondary waste drain assembly, a failure in the main vent pipe stack can generate positive pressure pulses that blow water out of the toilet bowl during heavy drainage cycles elsewhere in the facility. Consult our commercial drain tile diagram guide to trace main facility waste lines.
Parts Of A Toilet Tank Diagram Technical FAQ
How does toilet tank fluid dynamics differ from a standard P-trap drain assembly?
A toilet tank operates as a controlled, high-volume energy storage vessel that converts potential hydraulic head pressure into kinetic fluid velocity during a flush. In contrast, a standard sink P-trap or continuous waste drain assembly relies on passive, continuous fluid flow driven by fixture supply outlets. While a P-trap holds a static water seal to block sewer gases at an exposed waste arm using slip joint nuts, a toilet incorporates its trapway directly inside the porcelain bowl architecture, utilizing the rapid dump of tank volume to initiate a self-sustaining siphonic action through the internal bowl passages.
Can an Air Admittance Valve (AAV valve) replace a traditional roof vent pipe for a toilet installation?
In most plumbing codes (including IPC and UPC), an Air Admittance Valve (AAV valve) can be used to vent toilet branch lines, provided the valve is sized correctly to handle the high DFU (Drain Fixture Unit) discharge rate of water closets (typically 3 to 4 DFUs per fixture). The AAV valve must be installed vertically at least 4 inches above the horizontal branch drain and located in an accessible area that permits air entry, such as a wall cavity fitted with a louvered panel. However, at least one main stack vent pipe penetrating the roof must remain active in the facility plumbing architecture to relieve positive system pressures.
What torque specifications apply to tank-to-bowl bolts and slip joint connections?
Porcelain ceramic is extremely brittle under uneven tensile loads. Tank-to-bowl mounting bolts fitted with rubber sealing washers should be tightened evenly in alternating increments to approximately 15 to 20 inch-pounds (1.7 to 2.2 Nm). Plastic fill valve shank locknuts and supply line slip joint nuts require hand-tightening until snug, followed by a maximum of 1/4 turn with smooth-jaw plumbing pliers (approx. 25-35 inch-pounds). Never use pipe wrenches or high-torque impact tools on plastic or ceramic plumbing hardware.
Why is proper chain slack critical between the flush lever and flapper?
Chain slack directly dictates the mechanical timing and sealing integrity of the flush valve. If the lift chain is set with zero slack, normal thermal expansion, micro-vibrations, or light contact with the lever will prevent the flapper from fully contacting the valve seat ring, causing continuous phantom flushing. Conversely, if excess slack exceeds 1 inch, depressing the exterior handle will fail to lift the flapper past its vertical buoyancy threshold, resulting in an incomplete, short flush volume that starves the siphonic trapway.
How does improper fill tube positioning affect downstream trap sealing?
The small rubber refill tube running from the fill valve cap to the vertical overflow tube routes essential bypass water back into the toilet bowl during the tank refill phase. If this tube is disconnected, kinked, or allowed to dump directly into the open tank space rather than down the interior of the overflow pipe, the toilet bowl will not achieve its designed water seal depth prior to the next flush. A reduced water seal level compromises the initial siphonic pull of the next flush cycle and can allow sewer gases to bubble past the under-filled trapway. For broader system troubleshooting, see our backflow preventer troubleshooting manual.
Step-by-Step Guide to Understanding the Parts Of A Toilet Tank Diagram
Identify – Turn off the shutoff valve underneath the toilet and flush to drain the water completely.
Locate – Position the parts of a toilet tank diagram to match internal components with pictured items.
Reference – Unclip the refill tube and disconnect the lift chain from the tank lever arm.
Connect/Route – Install the replacement fill valve, seating the shank washer flush against the bottom inner hole.
Verify – Turn on the water supply, check all external gaskets for leaks, and verify water level stops 1/2 inch below overflow.
Troubleshoot – Adjust the float adjustment screw if water continuously drains down the overflow tube into the waste line.
