Toyota Highlander Body Parts Diagram: Component Breakdown 2026
The 2026 Toyota Highlander body parts diagram maps structural panels alongside the Body Control Module (BCM) network topology. It details bumper clips, door shells, fender aprons, and the Central Gateway module controlling CAN subnets and diagnostic IP address routing. Wiring harnesses use twisted pairs to link body sensors directly to the main bus.
📌 Key Takeaways
- Illustrates structural panels, crash crossmembers, clips, and mounting bracket torque specs (9.5 Nm for fender bolts).
- Integrates Central Gateway (CGW) network topology connecting chassis CAN subnets and Ethernet lines.
- Highlights diagnostic IP address assignments and subnet nodes for telematics and body domain controllers.
- Identifies common failure points like broken plastic push-pins, damaged ground eyelets, and gateway communication drops.
- Differentiates simple DIY panel replacement from complex module programming requiring OEM software.
Modern Toyota Highlander models (specifically the XU50 2014–2019 and XU70 2020–present platforms) utilize an intricate multiplex wiring network that interfaces exterior body panels, structural assemblies, illumination circuits, and advanced driver assistance systems (ADAS). Fully understanding a Toyota Highlander body parts diagram requires evaluating physical sheet metal and composite component locations alongside the vehicle’s underlying electronic network topology. The main Body Control Module (BCM) operates as a central node, interfacing across high-speed Controller Area Network (CAN) bus lines, Local Interconnect Network (LIN) subnets, and Automotive Ethernet. This technical guide provides a detailed system analysis, schematic reading protocols, node signal specifications, and systematic troubleshooting workflows for master technicians and experienced automotive rebuilders.
Decoding the Toyota Highlander Body Parts Diagram and Network Topology

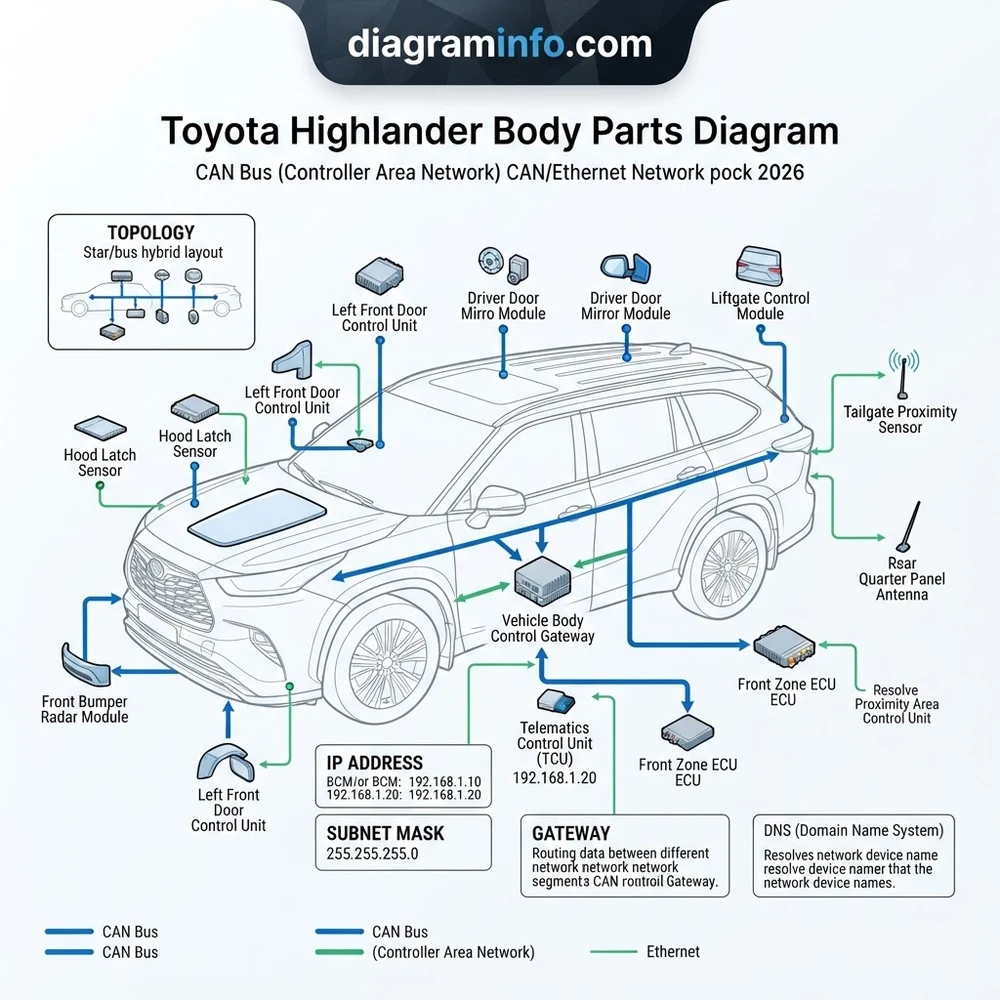

When analyzing a complete Toyota Highlander body parts diagram, components are grouped not only by physical position—such as front clip, doors, quarter panels, and rear hatch—but also by their electrical communication hierarchy. The architecture relies on a centralized gateway hub that manages data translation between various body controllers, safety sensor nodes, and human-machine interface (HMI) switches.
Recommended Best Deal Products
Central Gateway ECU and Body Control Module Architecture
At the core of the Highlander body system sits the Central Gateway ECU (CGW), integrated into or mounted directly adjacent to the Body Control Module (BCM/Main Body ECU) beneath the driver-side instrument panel. According to OEM technical specifications, this gateway bridges primary CAN communication lines running at 500 kbps with low-speed LIN subnets (19.2 kbps) and DoIP (Diagnostics over IP) Automotive Ethernet lines (100 Mbps/1 Gbps). The gateway acts as a firewall and packet router, ensuring control commands from the driver door master switch or center console reach distant nodes like the power liftgate control unit without creating bus contention.
Front Bumper Assembly and Radar Sensor Subnet Nodes
The front bumper diagram region incorporates structural reinforcement beams, energy absorbers, lower fascia grilles, and critical sensor hardware. Integrated into the front valence are ultra-sonic parking sonar sensors and the millimeter-wave radar unit mounted behind the front Toyota emblem. These body network components link back to the gateway via a dedicated ADAS subnet. Wiring harnesses routed through the engine bay utilize shielded twisted-pair conductors—typically Pink (CAN-High) and Light Blue (CAN-Low)—to prevent electromagnetic interference from the alternator and ignition coils from corrupting radar telemetry.
Door Panels, Window Switch, and Smart Key Access Points
Each door assembly on the Highlander functions as an isolated modular subnet node. Outer door handles contain embedded Smart Key Low-Frequency (LF) access point antennas operating at 134.2 kHz, alongside capacitive touch sensors for keyless locking and unlocking. The driver-side door skin encloses the Door Control Module and the master window switch. This switch assembly processes driver inputs locally and transmits digitized command packets across the body LIN subnet to sub-controllers located inside the passenger door and rear door structures, eliminating the weight and bulk of multi-wire power leads running through door jamb boot connectors.
How to Read the Toyota Highlander Body Parts Diagram for Repairs
Reading a modern Toyota Highlander body parts diagram requires a dual-perspective approach: mapping physical panel mount points, fasteners, and ground locations, while simultaneously decoding wiring pinouts, socket bridge designations, and network bus addresses. Following a structured diagnostic strategy prevents component damage and pin de-housing errors during collision repair or harness rebuilding.
Identifying Bus Line Voltages and Node IP Addresses
To verify if a structural body part or smart module is receiving proper communication signals, technicians must read the diagnostic schematic to identify node protocol designations. Legacy CAN bus subnets operate on differential signaling, where CAN-High idles at 2.5V and rises to 3.5V during dominant bit transmission, while CAN-Low drops from 2.5V to 1.5V. In contrast, LIN bus lines operating single-wire door mirror switches and interior lighting subnets switch between a 12V battery recessive state and a 0V dominant state.
For newer XU70 Highlander models equipped with Ethernet-based front camera systems and telematics modules, the diagram assigns standard DoIP transport protocols. In these systems, network devices automatically request an internal link-local IP address range (169.254.x.x) using standard DHCP auto-configuration mechanisms, managed by the telematics gateway. Referencing a Toyota CAN bus diagnostic protocol manual allows you to map internal network addresses directly to physical harness connectors.
Tracing Harnesses Across Door and Frame Switch Assemblies
When tracing physical body wiring from the engine compartment through the firewall to the rear bumper, follow the harness alphanumeric junction labels on the diagram. Connectors designated with “E” reside in the engine bay, “A” inside the instrument panel, “J” at junction blocks, and “b” or “d” within body and door cavities. For instance, connector GR1 bridges the main floor harness to the rear bumper blind-spot monitoring (BSM) radar nodes. Always match diagram pin numbers against connector housing notch keyways before probing terminals.
Verifying Subnet Signal Routing Through Gateway Modules
If an entire body section loses functionality—such as simultaneous failure of the rear tailgate latch, rear license plate illumination, and rear park assist sonar—the issue rarely lies in individual end-point components. By reading the network topology map, you can trace all affected nodes back to a shared body subnet or common junction connector. Check for open circuits at the intermediate junction block or verify whether the gateway module has logged a subnet communication timeout DTC (Diagnostic Trouble Code).
When testing Toyota Highlander body subnets with an oscilloscope, always connect the reference ground lead directly to a designated chassis ground point (such as Ground Point EC or EB on the inner apron) rather than a module signal ground pin to avoid ground loop offset errors.
Troubleshooting Toyota Highlander Body Parts Diagram Wiring and Network Faults
Body electronics failure modes typically present as intermittent module dropouts, non-responsive power features, or system-wide communication loss. Fault isolation requires a combination of physical visual inspection, digital multimeter (DMM) measurements, and diagnostic scan tool analysis across the body network topology.
Diagnosing CAN Bus Termination Resistance and Voltage Drops
The primary Body CAN network uses two 120-ohm termination resistors connected in parallel across the CAN-High and CAN-Low lines, resulting in an overall circuit equivalent resistance of 60 ohms when measured across pins 6 and 14 of the OBD-II Data Link Connector (DLC3) with the vehicle ignition off and battery disconnected.
- Reading of 60 Ohms: Both termination resistors intact; bus physical layer is intact.
- Reading of 120 Ohms: One termination resistor circuit is open, indicating a severed wire in the body harness or an unplugged module node (e.g., disconnected rear radar module after bumper removal).
- Reading of 0 to 30 Ohms: Short circuit between CAN-High and CAN-Low, or a damaged transceiver chip inside a door control unit or gateway switch.
- Reading of Infinite (OL) Ohms: Complete open circuit on both main bus lines near the DLC3 connector or central gateway.
When diagnosing low-voltage problems at body components like high-draw power window motors or tailgate actuators, conduct a voltage drop test under load. Connect the positive DMM lead to the positive battery terminal and the negative lead to the power supply terminal at the component harness connector. A voltage drop exceeding 0.5V indicates high resistance caused by corroded harness pins or damaged wire strands within the door boot flex zone.
Resolving Smart Key Access Point Antenna Faults
If the keyless entry system fails to recognize the smart key FOB near a specific door, consult the body network diagram to locate the dedicated LF access point antenna for that handle zone. Check for resistance across the antenna coil terminals; factory specification calls for 2.0 to 3.5 ohms. If antenna resistance is normal, verify signal voltage from the Smart Key ECU during key proximity testing using an oscilloscope set to AC voltage to capture the 134.2 kHz pulse wave. Additional alignment criteria can be cross-referenced in our OEM body panel alignment and component repair guide.
Do not probe yellow wire corrugated looms or yellow-colored connectors found near body pillars and curtain areas. These circuits belong to the Supplemental Restraint System (SRS) airbag deployable devices. Probing these lines with a multimeter can inadvertently trigger pyrotechnic inflators.
Toyota Highlander Body Electronics Topology and Wiring Specifications
Refer to the official specification tables and module torque figures below when inspecting, probing, or reinstalling electronic body components and structural harness mounting points on 2014–2024 Toyota Highlander models.
| Module / Body Node | Network Subnet | OEM Wire Colors | Operating Voltage / Resistance |
|---|---|---|---|
| Main Body Control Module (BCM) | Main CAN / Central Gateway | Pink (CAN-H) / Lt Blue (CAN-L) | 11.0V – 14.4V Nominal |
| Driver Master Window Switch Node | Body LIN Subnet 1 | White/Black (GND) / Violet (LIN) | 0V – 12.0V Pulse Wave |
| Smart Key LF Access Point (Door) | Multiplex Direct Line | Green (ANT+) / Yellow (ANT-) | 2.0 Ω – 3.5 Ω Coil Resistance |
| Blind Spot Radar (Rear Bumper) | ADAS CAN Subnet | Black (CAN-H) / White (CAN-L) | 2.5V Recessive Offset |
| DoIP Forward Vision Camera Node | Automotive Ethernet | Green/Blue Twisted Pair | 100 Mbps Differential / Auto-IP |
Major Body Grounding Bolts (Ground Bolts EA, EB, and GE to A-Pillar / Frame): Torque to 13 N·m (133 kgf·cm, 10 ft-lbf). Bumper radar sensor mounting bracket screws: Torque to 5.4 N·m (55 kgf·cm, 48 in-lbf). Always strip paint from replacement body panels around grounding eyelets to guarantee a low-resistance path (<0.1 Ω) to negative battery terminal ground.
Toyota Highlander Body Network Diagnostic Frequently Asked Questions
How do I locate the central gateway on a Toyota Highlander body parts diagram?
On the electrical section of a Toyota Highlander body parts diagram, the Central Gateway ECU is typically listed under the “Power Distribution & Circuit Network” sub-category. Physically, it is positioned directly behind the driver-side lower instrument panel cover, integrated into or mounted adjacent to the main fuse box (Junction Block No. 1). The gateway can be identified on wiring schematics by looking for the junction point where the high-speed engine CAN bus lines, body LIN subnets, and diagnostic OBD-II DLC3 connector lines converge.
What switch testing procedure applies to door harness diagnostics on the Highlander?
To test a suspected master window switch or door lock switch assembly, isolate the door wiring harness at the pillar boot connector (Connector d1 or b2 on the diagram). Using a multimeter set to resistance mode, probe the terminal pins corresponding to the switch contact points shown on the wiring schematic. Depressing the switch should show continuity (less than 0.5 ohms) across designated ground and signal return pins. If the physical switch tests normal but fails to operate the window or lock motor, check the signal LIN wire for a 0-12V square-wave switching pattern using an oscilloscope or logic probe while operating the switch under power.
How are IP address assignments handled in DoIP Highlander body modules?
In modern 2020+ Toyota Highlander models utilizing Diagnostics over IP (DoIP) for high-bandwidth ADAS cameras and telematics nodes, network addressing operates on the ISO 13400 standard. When a factory diagnostic scan tool or DoIP interface connects to the vehicle’s Ethernet portal, the gateway uses an embedded address management mechanism similar to DHCP to assign link-local IP addresses in the 169.254.0.0/16 subnet range. This allows high-speed programming and sensor calibration data transfer without requiring manual static network configuration or DNS resolution protocols.
Why does a bad access point antenna disable the smart key trunk release?
The Toyota Smart Key system relies on localized low-frequency (LF) access point antennas positioned in the front exterior door handles, rear cabin, and inside the rear bumper cover to establish spatial zone detection. When you approach the tailgate with the smart key fob, the Smart Key ECU energizes the rear bumper LF access point antenna. If this antenna coil suffers an open circuit or physical connector corrosion, the ECU cannot establish key proximity validation. As a safety protocol, the BCM denies the unlatch signal sent to the electronic rear liftgate release switch, disabling trunk access.
What torque specs apply when reassembling body network grounding points?
Proper grounding is critical for avoiding ghost communication DTCs across multiplex body subnets. Main chassis and body panel ground bolts (such as Ground Bolts EA, EB, and GE attached to the frame aprons and inner structural pillars) must be torqued to 13 N·m (10 ft-lbf). Smaller module shield ground screws and antenna mounting bracket ground points should be torqued to 5.4 N·m (48 in-lbf). Always clean ecoat, primer, or corrosion off replacement panel mating surfaces using a wire wheel before installing grounding eyelet hardware to maintain network grounding integrity under 0.1 ohms.
Step-by-Step Guide to Understanding the Toyota Highlander Body Parts Diagram
Identify – Locate the target body section or module in the diagram directory.
Locate – Find physical mounting points, fastener code references, and harness routing channels on the vehicle.
Reference – Cross-check fastener torque values and network gateway subnet paths shown in the schematic key.
Connect/Route – Install replacement body panels or clips, carefully routing sensor harnesses along original factory paths.
Verify – Measure panel gaps for 3.5mm alignment uniformities and test all integrated electrical accessories.
Troubleshoot – Inspect gateway ground continuity or perform CAN bus scan if body control fault codes persist.
