John Deere Gator 4×2 Parts Diagram: 2026 Repair Guide
The John Deere Gator 4×2 parts diagram illustrates the primary chassis structure, Kawasaki FE290D or FE350D engine layout, belt-driven CVT clutch system, and rear transaxle drive configuration. It details OEM part numbers, fastener torque specs (e.g., drive clutch bolt to 40 lb-ft), and exploded views for precise assembly and component identification.
📌 Key Takeaways
- CVT drive clutch securing bolt requires a precise torque specification of 40 lb-ft (54 Nm).
- Diagram identifies engine serial number breaks separating FE290D and FE350D sub-assemblies.
- Exploded view layouts allow accurate selection of OEM drive belts, brake shoes, and bushings.
- Primary failure point is belt wear, signaled by belt slop exceeding the 0.5-inch deflection limit.
- Basic servicing is DIY-friendly, but internal transaxle overhauls require specialized pullers and press tools.
Maintaining and repairing utility vehicles requires precise reference documentation, particularly when executing major overhauls or sourcing OEM replacements. The John Deere Gator 4×2 parts diagram serves as an essential technical blueprint, detailing the exact layout, structural assemblies, and fastener configurations across production years. Whether servicing early-generation Kawasaki FE290D single-cylinder engines or later TS series transaxles, referencing a verified exploded view guarantees proper component sequencing. This guide provides an in-depth breakdown of the 4×2 structural layout, electrical schematics, torque specifications, and diagnostic applications for field mechanics and experienced utility equipment technicians.

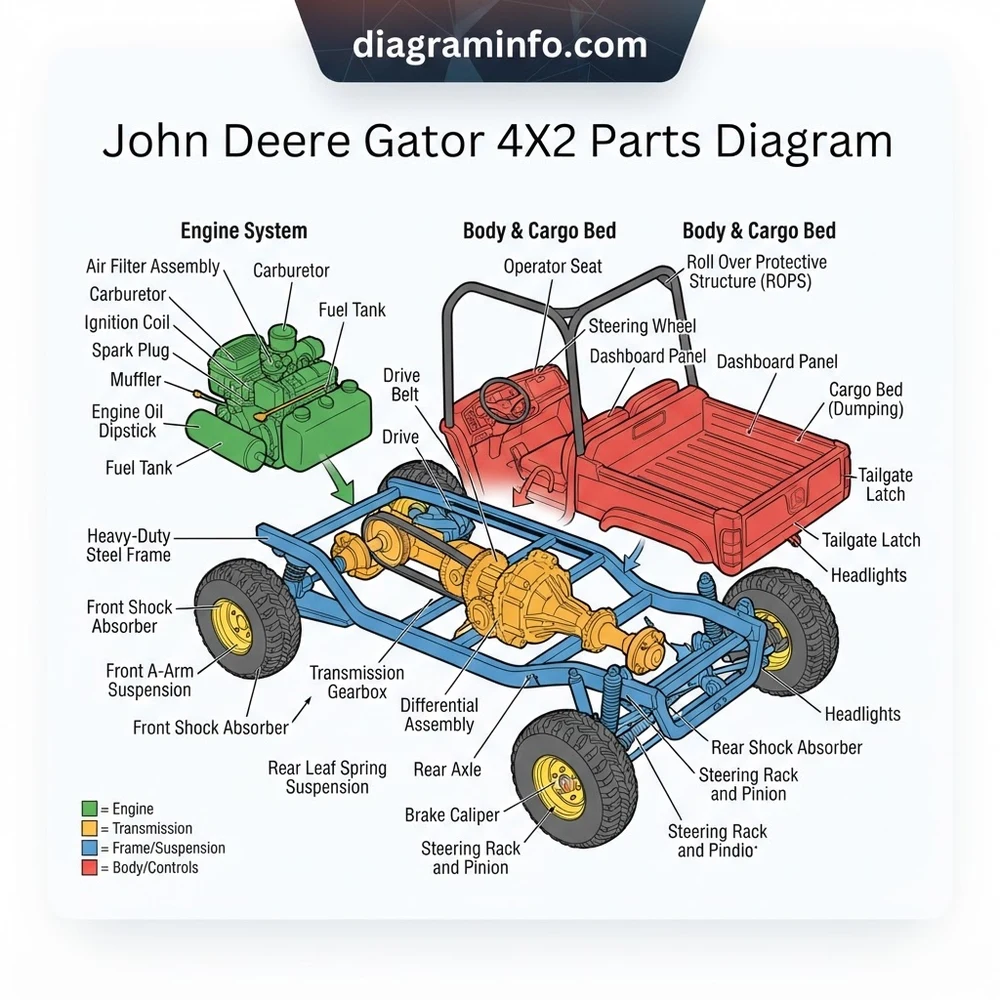

John Deere Gator 4×2 Parts Diagram: Key Systems & Layout
Understanding the overall structural design of the John Deere Gator 4×2 relies on breaking the machine down into distinct mechanical and electrical sub-assemblies. The standard 4×2 chassis utilizes a heavy-duty welded steel channel frame designed to integrate the front beam axle, mid-mounted powertrain, and rear drive transaxle seamlessly.
Recommended Best Deal Products
Engine and Continuously Variable Transmission (CVT) System
The powertrain layout positions the single-cylinder Kawasaki engine (FE290D 9.5 HP or FE350D 11.5 HP) or Briggs & Stratton engine longitudinally within the central bay. Attached directly to the engine crankshaft is the primary drive clutch sheave. As shown in the system schematic, the primary clutch operates via centrifugal weights that react to engine RPM, compressing the belt against the driven secondary clutch mounted on the transaxle input shaft. Maintaining correct center-to-center distance between these two clutches (typically 10.25 inches) is critical for proper belt tension and seamless shift ratios.
Transaxle and Frame Structure Layout
The rear transaxle functions as a combined multi-speed gearbox, directional reverse gear, and differential unit. Internal component diagrams illustrate a helical gear reduction set combined with a manually engaged mechanical differential lock. Power is distributed to the rear drive wheels through heavy-duty axle shafts supported by sealed outer bearings. The rear frame structure utilizes a rigid leaf spring suspension array rated for heavy payload support, anchored via rubber-isolated shackles to dampen frame twist under load.
Electrical Schematic and Wire Harness Configuration
The 12-volt continuous ground electrical circuit is routed along the main frame rails inside protective split-loom conduit. Key component nodes depicted on the electrical layout include the battery box, ignition switch, starter solenoid, neutral safety switch, and flywheel charging stator. Wire identification relies on solid color coding: purple tracks the starter solenoid pull-in circuit, red/white supplies fused switched 12V power, blue controls lighting, and solid black maintains system ground integrity.
| System Assembly | OEM Component / Part Number | Torque / Operating Specification |
|---|---|---|
| Primary Drive Clutch | AM140985 / AM138487 | 55 lb-ft (75 Nm) Retaining Bolt |
| Secondary Driven Clutch | AM138486 | 45 lb-ft (61 Nm) Input Shaft Nut |
| Drive Belt | M174026 / M127523 | 1.19 in (30.2 mm) Min Width Limit |
| Rear Wheel Lug Nuts | M123090 | 65 lb-ft (88 Nm) Cross-Pattern |
| Starter Solenoid Relay | AM138068 | 12V DC / 30A Switched Contact |
Reading the John Deere Gator 4×2 Schematic and Blueprint
Interpreting a technical schematic requires a systematic approach to reading exploded parts diagrams, identifying key number indices, and understanding hardware callouts. Manufacturer technical drawings separate mechanical systems into logical assemblies to help mechanics isolate individual service items efficiently.
Navigating Exploded Views and Index Callout Numbers
In a standard exploded view layout, every distinct physical part is detached along invisible assembly axes (centerlines) showing its installation order. Each component links to an index callout number. This number corresponds directly to the parts list table below the blueprint, which details:
- Item Number: The reference tag matching the diagram callout line.
- OEM Part Number: The exact original equipment manufacturer part identifier required for ordering.
- Description: Standard technical name, including thread pitch, inner diameter (ID), or outer diameter (OD) specifications for standard hardware.
- Quantity: Total number of that specific fastener or component utilized within that specific sub-assembly.
Recommended Best Deal Products
When reviewing transaxle exploded views, pay close attention to internal thrust washers and needle bearings. Their position relative to snap rings determines input shaft end-play. Consult our detailed transaxle rebuild guide for exact shim stack tolerances.
Decoding Serial Number Breakpoints and Model Year Revisions
John Deere produced the standard Gator 4×2 across multiple production eras, leading to subtle running engineering changes. Serial numbers (PIN tags) are typically located on the frame structure near the rear hitch receiver or inside the battery compartment. Diagrams frequently list hardware changes marked by serial number breakpoints (e.g., -W00000 for models built before a change, and W00001- for models built after). Cross-referencing these breakpoints avoids ordering incorrect clutch weights, brake shoes, or steering rack components.
Cross-Referencing Electrical Schematics with Physical Harnesses
Electrical diagrams present systems topologically rather than spatially. Wire lines connect terminal points across switches, relays, and sensors regardless of physical length. To map a schematic to the vehicle, trace from the power source (12V battery (+) terminal) through the inline 30-amp main fuse, following wire color identifiers to the key switch terminal B. From terminal S, follow the purple wire directly to the neutral start switch located on the transaxle shift linkage frame bracket before terminating at the starter solenoid coil input.
According to OEM service manual specs, ignition coil air gap on Kawasaki FE290D/FE350D engines must be set to 0.012 in (0.30 mm) using a feeler gauge across the flywheel magnet poles. Review additional specs in our Kawasaki FE290D technical specs resource.
Using the John Deere Gator 4×2 Parts Diagram for Diagnostics
Beyond sourcing replacement components, technical schematics provide indispensable diagnostic flow paths when troubleshooting mechanical failure, driveline noise, or electrical short circuits.
Diagnosing CVT Drive Belt Slippage and Clutch Alignment
When experiencing poor acceleration or severe belt slippage under load, cross-reference the CVT clutch assembly diagram. Check for missing or damaged glide buttons (cam wear pads) inside the driven clutch assembly. If these buttons wear beyond tolerance, the secondary clutch sheaves bind on the fixed shaft, preventing proper spring compression. Verify offset alignment between primary and secondary sheaves using a straightedge; dynamic offset must align within 0.060 in (1.5 mm). Misalignment causes accelerated belt edge-wear and thermal breakdown.
Do not run the engine with the CVT safety shield removed during dynamic clutch troubleshooting. Centrifugal force can eject failing clutch weight pins or damaged belt segments at extremely high velocities.
Tracing Electrical No-Start Conditions and Ground Faults
If the engine fails to crank when turning the key, use the system electrical layout to isolate the failure point using a digital multimeter (DMM):
- Check for 12.6V DC at the main starter battery terminal connection.
- Turn key to “START” and check for 12V at the purple trigger wire on the starter solenoid.
- If 12V is absent at the solenoid, check voltage passing through the transaxle neutral switch. The switch contacts must show under 0.5 ohms resistance when the shift lever is fully in neutral.
- Verify the engine block ground strap link. A high-resistance ground circuit (greater than 0.2V voltage drop across the ground leg) prevents the starter motor from drawing full cranking current.
Resolving Transaxle Mechanical Binding and Shifter Slop
Hard shifting or gear popping on a 4×2 Gator usually stems from worn shift control linkage joints rather than internal transaxle gear failure. Consult the shift control diagram to inspect the clevis pins, rod end ball joints, and bellcrank bushings. Excessive wear in these small linkage components causes incomplete engagement of the internal shift fork slider, leading to rounded gear dog teeth over time. Refer to our general UTV preventative maintenance index for complete linkage adjustment procedures.
John Deere Gator 4×2 Parts Diagram Frequently Asked Questions
How do I locate the exact engine serial number on a 4×2 Gator?
On Kawasaki single-cylinder engines (FE290D and FE350D), the serial number sticker and stamped metal code are located on the crankcase fan housing shroud near the oil dipstick tube. On Briggs & Stratton powered units, the engine code, model, and type numbers are stamped directly into the metal valve cover or above the starter motor housing face.
What are the torque specifications for the primary CVT clutch bolt?
The main primary clutch retaining bolt requires a torque spec of 55 lb-ft (75 Nm). Ensure the crankshaft snout threads are completely clean and dry before installation. Always inspect the split lock washer or cone washer indicated on the clutch diagram, replacing it if flattened to maintain correct clamp load.
Are parts interchangeable between the standard Gator 4×2 and the Gator TS 4×2?
While many body panels, front suspension arms, and wheels are fully interchangeable, critical driveline components are not. The Gator TS uses an updated transaxle casing design, different axle shaft splines, and a modified drive belt part number (M174026) compared to early traditional 4×2 models (which often utilize belt M127523). Always cross-reference parts diagrams matching your specific serial number prefix.
What causes ignition spark loss according to the electrical schematic?
The ignition system relies on a self-exciting magneto circuit. Loss of spark usually stems from either a grounded kill-circuit wire (black/white wire shorting to frame ground), a failed engine oil pressure switch grounding the ignition module, or excessive air gap between the ignition coil pick-up legs and the flywheel magnet ring.
How does the differential lock mechanism appear on the transaxle blueprint?
On the internal transaxle breakdown, the differential lock appears as a sliding dog engagement sleeve mounted on the intermediate axle shaft. Actuated by an external cable connected to a foot pedal or hand lever, this sleeve slides across splines to mechanically lock both rear axle shafts together, eliminating differential pin rotation and providing equal 2-wheel traction.
Step-by-Step Guide to Understanding the John Deere Gator 4X2 Parts Diagram
Identify – Locate your vehicle identification number (VIN) to select the correct serial-range diagram.
Locate – Isolate the target subsystem layout, such as the CVT clutch or rear transaxle configuration.
Reference – Match the numbered callout items on the exploded diagram to the OEM part number table.
Connect/Route – Install replacement components following indicated torque limits and cable routing paths.
Verify – Check operational clearances, belt deflection (approx. 0.5 inches), and fastener torque settings.
Troubleshoot – Consult component alignment notes if binding, slipping, or noise persists after installation.
