The Stihl 011 AVT parts diagram illustrates the chainsaw’s top-handle layout, detailing the 36cc engine structure, Walbro WT-29 or Tillotson HU-7B carburetor routing, ignition module, and anti-vibration rubber buffer mounts. It highlights critical assemblies including the oil pump drive gear, centrifugal clutch setup, and dual-line fuel system configuration.
📌 Key Takeaways
- Ignition coil air gap must be set strictly between 0.2 mm and 0.3 mm off the flywheel magnet.
- Anti-vibration (AV) rubber mounts stabilize the handle frame and isolate engine chatter.
- Cylinder bolt torque spec requires 8 to 10 Nm to prevent stripping the aluminum crankcase.
- Hardened impulse lines and torn AV buffers represent the most frequent failure points on this model.
- Basic hose and buffer swaps are straightforward DIY tasks, but crankcase splitting requires professional tools.
Properly navigating the Stihl 011 AVT parts diagram is essential for service technicians and small engine mechanics performing complete overhauls, routine maintenance, or diagnostic tear-downs on this classic top-handle chainsaw. Produced as part of Stihl’s 1120-series family, the 011 AVT features a distinct structural layout incorporating a reed-valve intake configuration, an integrated anti-vibration buffer framework, and a compact cast-aluminum crankcase. Utilizing an accurate schematic blueprint ensures precise component identification, correct ordering of OEM replacement parts, and proper torque sequencing during reassembly, preventing catastrophic air leaks or mechanical binding.
Mastering the Stihl 011 AVT Parts Diagram Component Breakdown

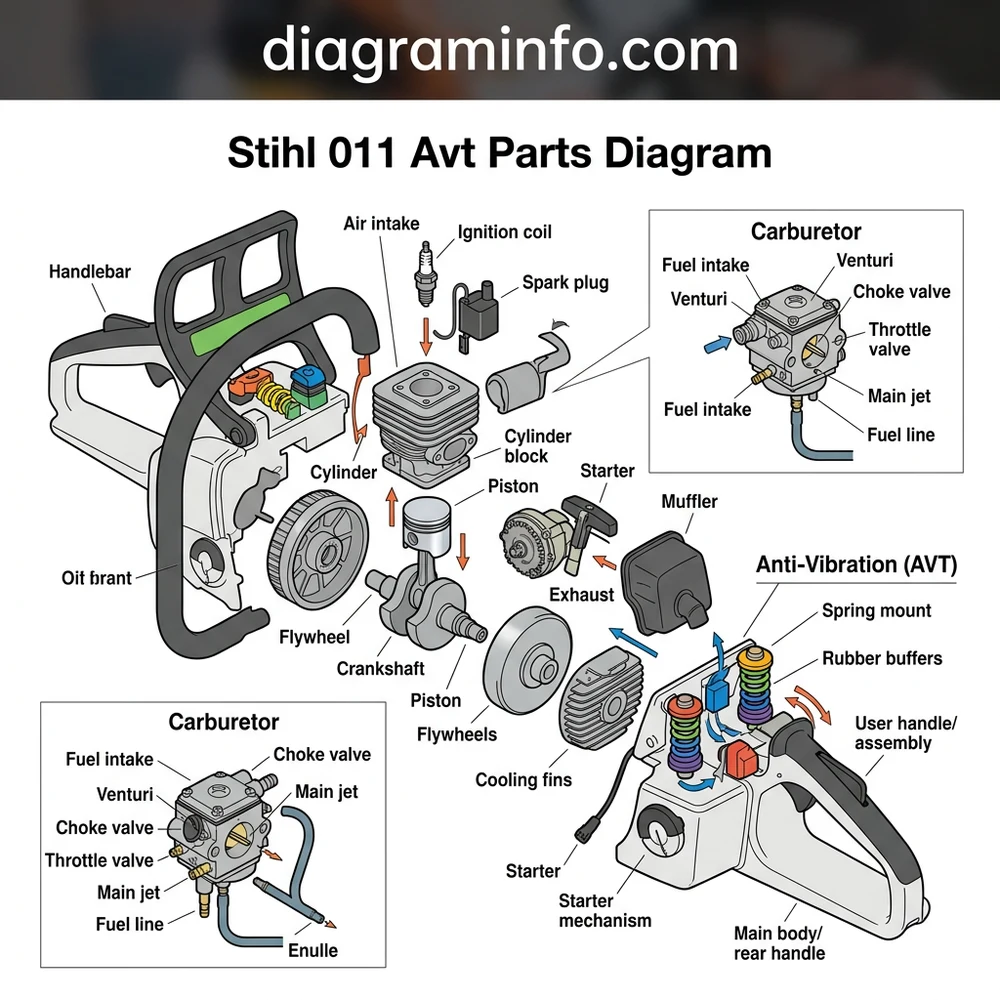

The Stihl 011 AVT chainsaw relies on a modular layout grouped into primary functional sub-assemblies. When reviewing the master schematic, components are grouped by mechanical system: the engine powerhead, the fuel/intake structure, the ignition module, the automatic oiling mechanism, and the anti-vibration (AV) handle frame. Understanding how these systems interface on the factory schematic is critical before attempting service.
The powerhead module relies on a horizontal split crankcase system (OEM Prefix 1120). Unlike modern vertically split 2-stroke engines, the 011 AVT utilizes a bottom pan/crankcase cover that sandwiches the crankshaft bearings and seals against the upper cylinder housing. The piston diameter measures 40 mm for the 41 cc displacement engine. The intake tract does not feed directly into a standard cylinder port; instead, it utilizes a reed valve block mounted to the side of the crankcase, controlling the vacuum-driven fuel-air charge enter-phase.
Factory assembly values require strict adherence to maintain crankcase vacuum (pressurization testing up to 0.5 bar) and prevent threaded fastener failure in aluminum castings.
| Component Group | OEM Part Series | Factory Specification / Thread | Torque / Clearance Standard |
|---|---|---|---|
| Crankcase Pan Fasteners | 9022 341 0960 (M5x20) | Pan-head Torx T27 | 8.5 Nm to 9.5 Nm (75 in-lbs) |
| Flywheel Assembly Nut | 9400 021 0900 | M8x1 Right-Hand Thread | 28.0 Nm (20.6 ft-lbs) |
| Clutch Carrier / Spider | 1120 160 2000 | M8x1 LEFT-HAND Thread | 30.0 Nm (22.1 ft-lbs) |
| Ignition Module Air Gap | 2204 400 1300 / Bosch | Armature to Flywheel Magnet | 0.20 mm – 0.30 mm (0.008 – 0.012 in) |
| Crankshaft Radial Ball Bearings | 9503 003 0310 | DIN 625 – 6201 C3 | Press-fit / Thermal expansion set |
The anti-vibration system structure uses three distinct annular rubber buffer elements (OEM part series 1120 790 9600) to isolate the engine housing from the top-handle frame. The schematic illustrates how the top handle connects via an upper buffer stud, while the lower tank housing attaches through two base mounts. Inspecting this section of the diagram before tear-down prevents damage to age-brittled rubber isolators during engine removal.
For detail on adjacent model lines, consult our Stihl 010 AV parts diagram reference guide to compare reed-valve manifold variations across early 1120-series chainsaw production years.
Navigating the Stihl 011 AVT Schematic Layout for Engine Teardown and Rebuilds
Reading the exploded view layout of a Stihl 011 AVT schematic requires following logical indexing lines that establish correct assembly relationships between concentric parts, gaskets, and housing shells. Follow this structured approach when utilizing the schematic during a engine rebuild or seal replacement project.
Step 1: Isolate the Handle Frame and Anti-Vibration Assembly
Begin by referencing the outer handle and shroud exploded view section. Unthread the three AV buffer retention bolts. Note on the diagram that the throttle linkage rod (1120 182 0900) must be unclipped from the carburetor trigger arm before completely separating the engine module from the fuel tank handle housing. Pulling the housing without disconnecting this link will bend the throttle wire configuration.
Step 2: Uncouple the Fuel System and Reed Valve Module
Locate the intake section of the blueprint. The carburetor (typically a Walbro WT-29 or Tillotson HU-58) is mounted to an intermediate flange (1120 121 1600). Behind this flange lies the reed valve body (1120 121 3200) and the reed pedal steel leaf assembly. Refer to the alignment pins in the schematic to ensure the reed block gasket is indexed correctly; installing this gasket upside down blocks the crankcase impulse hole, preventing the carburetor’s internal fuel pump diaphragm from functioning.
Step 3: Remove the Flywheel, Clutch, and Oil Pump Assemblies
Examine the drive side and ignition side schematics. Lock the piston using a soft plastic rope stop inserted through the spark plug hole. On the right side, remove the clutch spider by turning it clockwise (left-hand thread indicator noted by the arrow mark on the carrier hub). Behind the clutch sits the oil pump drive gear and the diaphragm-driven automatic bar oiler assembly (1120 640 3200). On the left side, remove the M8 flywheel nut and use a specialized Stihl puller tool to unseat the flywheel from its keyless tapered crankshaft stub.
Step 4: Splitting the Crankcase Pan
Follow the engine exploded view down to the lower crankcase pan fasteners. Remove the four M5 Torx screws securing the pan to the main cylinder casting. Tap the lower casting gently with a dead-blow mallet to break the liquid gasket seal (Dirko or equivalent OEM sealant). Reference the schematic for placement of the two crankshaft oil seals (9640 003 1190 on drive side; 9640 003 1180 on flywheel side). These seals feature unequal outer diameters and must be seated to exact axial depths relative to the crankcase shoulder.
The Stihl 011 AVT crankcase does not use a stamped paper crankcase gasket. Reassembly requires a continuous 1.5 mm bead of high-temperature anaerobic sealant (OEM specification Dirko HT or ThreeBond 1184). Ensure all mating surfaces are cleaned with solvent to eliminate oil residue prior to applying sealant and torquing the lower pan bolts.
Troubleshooting Common Failures Using the Stihl 011 AVT Parts Diagram
System failures on vintage chainsaws are frequently caused by secondary air leaks, failed impulse lines, or improper grounding within the kill-switch circuit. The Stihl 011 AVT parts diagram functions as an effective diagnostic flowchart by helping technicians trace air, fuel, vacuum, and electrical paths through the tool.
Always perform a vacuum and pressure test (-0.5 bar / +0.5 bar) after reassembling the crankcase and intake boot. Operating a two-stroke engine with unmetered air leaks caused by damaged oil seals or incorrectly torqued reed valve block gaskets will result in a lean-run condition, rapid overheating, and piston seizure.
| Symptom | Diagram Sub-System | Probable Mechanical Cause | Corrective Diagnostic Action |
|---|---|---|---|
| Engine runs lean / high idle erratic | Crankcase & Seals Assembly | Hardened radial crank seals or cracked impulse hose | Replace seals (9640 003 1190) and check impulse passage seating on schematic |
| Fuel starvation / no pump action | Intake & Reed Valve Group | Chipped reed petal or reversed reed gasket | Inspect reed petal gap (<0.1 mm allowed); verify impulse port orientation on gasket |
| Bar oiling system inactive | Automatic Oil Pump Mechanism | Worn oiler diaphragm or clogged pickup screen | Disassemble oiler body (1120 640 3200); replace internal diaphragm kit and flush passage |
| Intermittent or total loss of spark | Ignition Module & Wiring | Pinched ground wire or incorrect air gap setting | Trace black wire harness to ground contact; reset armature air gap to 0.25 mm using gauge |
When diagnosing low engine compression or poor idle stability, reference our detailed small engine carburetor rebuild guide for pressure testing carb internal needle seats. Additionally, if the handle mounts show structural tearing, inspect our dedicated review of chainsaw anti-vibration mount replacement procedures to safely renew aged rubber isolator components.
Tracing the Ignition and Grounding Circuit Configuration
The electronic ignition system on the Stihl 011 AVT relies on a single solid-state module (Bosch or SEM production variants). As detailed on the wiring schematic insert, a single short-circuit wire (black, 0.75 mm² insulation) extends from the primary coil terminal to the slide-style kill switch inside the rear handle casing. If the wire insulation rubs against the metal cylinder fins, it creates an unwanted ground path, cutting spark continuously. Conversely, if corrosion builds up on the ground terminal screw attached to the crankcase, the engine will fail to shut off when the switch is set to the “STOP” position.
Evaluating the Reed Valve Assembly Configuration
Unlike standard port-piston engines, the 011 AVT relies on a stainless steel reed valve leaf attached to a synthetic block. When inspecting the parts diagram, note part item number sequence for the reed stop plate, the reed petal, and the base gasket. If the reed leaf shows any light passing between its edge and the mounting block during a visual inspection, or if the leaf shows micro-fractures, it must be replaced. A damaged reed valve prevents pre-compression in the crankcase, causing fuel back-spit into the air filter housing and severe starting difficulty.
Stihl 011 AVT Parts Diagram Frequently Asked Questions
What is the difference between Stihl 011 AV, 011 AVT, and 011 AVE model schematics?
The letter designations indicate specific equipment options built onto the core 1120 platform. “AV” denotes the basic Anti-Vibration system setup. The “T” in 011 AVT signifies the top-handle frame configuration designed specifically for arborist and tree-care applications, placing the throttle control housing directly over the top of the powerhead module. The “E” designation indicates electronic ignition (Electronic). While engine internals like the piston, crankshaft, and bearings are identical across all 011 variants, the parts diagram for the 011 AVT shows unique top-handle housing castings, a modified throttle rod linkage, and distinct air filter shroud profiles compared to standard rear-handle models.
Where is the reed valve located on the Stihl 011 AVT parts diagram?
On the Stihl 011 AVT schematic layout, the reed valve assembly is situated between the carburetor mounting flange and the side intake port of the crankcase. Look under the “Intake System / Carburetor” section of the diagram. It consists of an aluminum or composite valve housing (1120 121 3200), a thin stainless-steel reed leaf, a curved stopper plate, and a securing screw. It acts as a one-way check valve, allowing the air-fuel mixture to be drawn into the crankcase on the piston’s upward stroke while sealing off the intake port during the downward stroke to compress the charge.
How do I identify the correct carburetor kit on the Stihl 011 AVT schematic?
Stihl manufactured the 011 AVT using two primary carburetor supplier models across its production lifetime: the Walbro WT-29 series and the Tillotson HU-58 series. First, clean the flat mounting surface of your physical carburetor body to read the stamped manufacturer logo and model number. Match these markings to the appropriate schematic sub-block. Ordering parts solely by chainsaw model number can result in incorrect rebuild kits; always verify whether your diagram reference calls out Walbro K10-WT / D10-WT diaphragm kits or Tillotson RK-14HU / DG-1HU overhaul components.
Are Stihl 011 AVT parts interchangeable with the Stihl 009 and 010 models?
Yes, many major structural and mechanical components are interchangeable across the entire Stihl 1120 family (comprising the 009, 010, 011, and 012). The crankcase halves, crankshaft, ignition module, starter recoil assembly, clutch drum, oil pump, and anti-vibration rubber buffers share identical OEM part numbers across these models. However, cylinder and piston assemblies vary based on engine displacement (the 009 is 37 cc with a 36 mm piston, whereas the 011 is 41 cc with a 40 mm piston). Rear-handle components also differ from top-handle (“T”) components on the 011 AVT schematic.
What torque specifications should be used when reassembling the crankcase and cylinder?
When reassembling the horizontal split crankcase on a Stihl 011 AVT, torque the four M5 crankcase pan screws evenly in a cross pattern to 8.5 Nm – 9.5 Nm (75 – 84 in-lbs). The M8 flywheel retention nut requires a torque value of 28.0 Nm (20.6 ft-lbs). Keep in mind that the clutch carrier spider features left-hand threads and must be torqued counter-clockwise to 30.0 Nm (22.1 ft-lbs). Always clean aluminum threads with brake cleaner and apply a medium-strength thread-locking compound to non-blind threaded fasteners to prevent backing out under high engine vibration.
Step-by-Step Guide to Understanding the Stihl 011 Avt Parts Diagram
Identify – Locate your specific Stihl 011 AVT model subgroup in the parts diagram schematic.
Locate – Find the target assembly system, such as the fuel delivery, ignition layout, or AV mounts.
Reference – Cross-check component callout numbers against the manufacturer part numbers for accuracy.
Route – Align replacement hoses, linkages, or electrical leads according to the exploded layout pathways.
Verify – Check gap clearances and torque fasteners like cylinder bolts (8-10 Nm) to specification.
Troubleshoot – Test operation and re-inspect component alignment if vacuum leaks or excessive vibrations persist.
