John Deere Sickle Mower Parts Diagram: 2026 Component Guide

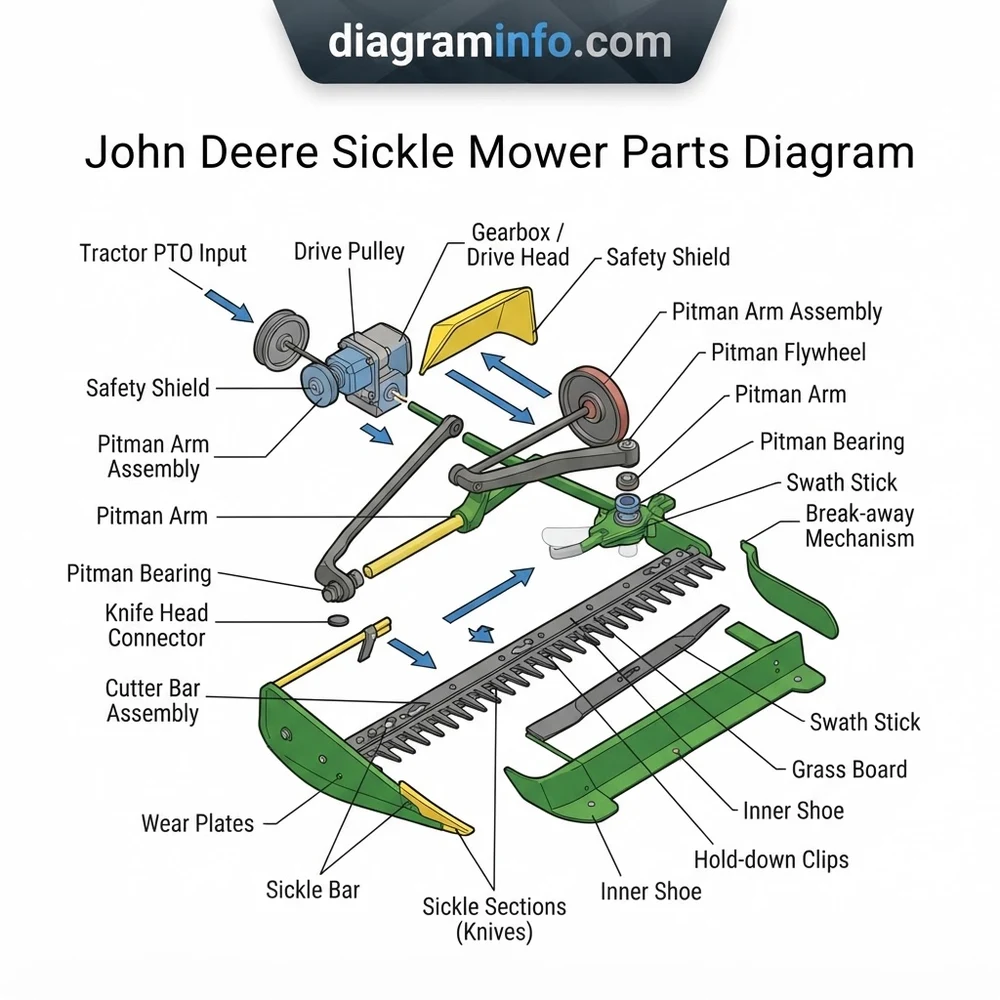

The John Deere sickle mower parts diagram illustrates the entire cutting deck structure, mapping the PTO drive shaft, wobble box gear assembly, pitman arm linkage, guard plates, and sectioned knife back. Key wear components like hold-down clips require a 1/16-inch clearance, while knife section rivets must be torqued securely for precise alignment.
📌 Key Takeaways
- Hold-down clip clearance must be set between 0.015 and 0.030 inches to allow smooth knife bar movement without excessive play.
- Critical component identification relies on matching specific sub-assemblies like the pitman stick drive or wobble box housing.
- Torque pitman drive mounting bolts to 45–50 lb-ft and exercise caution around spring-tensioned cutter bar lift mechanisms.
- The primary failure point is worn ledger plates and dull knife sections, which cause ragged forage shearing and system drag.
- DIY section and guard replacements are straightforward, but internal wobble box bearing overhauls typically require a shop press.
Maintaining and servicing John Deere rear-mounted and pull-type sickle mowers—such as the legacy 350, 39, 38, and 450 models—requires a clear understanding of their mechanical assembly and layout. A comprehensive john deere sickle mower parts diagram provides the technical blueprint required to identify part callouts, verify component orientation, and set OEM specifications. Whether you are replacing worn ledger plates, re-aligning the cutterbar knife register, or rebuilding a wobble box drive unit, reading the parts schematic accurately prevents premature wear and structural failure. This article provides a technical overview of the complete cutterbar configuration, drive system layout, and component replacement procedures for John Deere cutting equipment.
Deciphering the John Deere Sickle Mower Parts Diagram Structure
The structural layout of a John Deere sickle mower is organized into three primary subsytems: the primary frame and drive connection, the cutterbar drive mechanism (pitman arm or wobble box), and the cutterbar knife assembly. Understanding how these mechanical groups interconnect on the exploded view schematic allows you to diagnose wear points and maintain proper cutting geometry.
According to John Deere OEM field service manuals, the knife section must center exactly inside the guard slot at the outer limits of both forward and reverse strokes. Clearances between the hold-down clip and the knife section must be maintained between 0.010 in (0.25 mm) and 0.030 in (0.76 mm) using slotted shim packs.
Cutterbar Assembly and Guard Alignment Layout
The cutterbar forms the foundational backbone of the cutting system. On the schematic, the main steel bar holds the guard bolts, ledger plates, hold-down clips, and wear plates in sequential order. Guards feature hardened ledger plates that act as the stationary shear blade against which the moving knife sections cut. Wear plates mounted along the rear flange of the cutterbar support the back edge of the knife bar, absorbing rearward thrust caused by heavy crop engagement. Over-tightening hold-down clips causes binding, while excessive clearance allows the knife sections to lift, leading to tearing rather than clean shearing of crop stems.
Pitman Drive and Wobble Box Configuration
John Deere sickle mowers utilize either a traditional wooden or composite pitman stick drive (e.g., Model 39) or an enclosed, oil-bath wobble box drive (e.g., Models 350 and 450). The blueprint layout for pitman models illustrates a eccentric flywheel coupled to a pitman rod, converting rotational motion from the tractor PTO into linear reciprocal motion. In contrast, wobble box schematics depict an internal swashplate shaft arrangement supported by tapered roller bearings. The wobble box converts rotational shaft input into a smooth 3-inch horizontal stroke, minimizing structural stress and frame vibration across the cutterbar.
Inner and Outer Shoe Assemblies
The inner and outer shoes act as the depth guides and structural anchors for the cutterbar. The inner shoe connects the cutterbar to the main lift frame, housing the primary hinge pins that allow vertical float during field operation. The outer shoe includes an adjustable runner blade and grass board assembly, which clears a clean path in the cut crop to prevent bunching on subsequent passes. On the standard diagram, these components show specific wear sleeve locations and tension spring hookup points that regulate ground contact pressure.
How to Read the John Deere Sickle Mower Parts Diagram Schematic
Interpreting a technical schematic accurately requires correlating item callout numbers on the line drawing with the corresponding OEM part description and hardware specification lists. Following a structured procedure eliminates assembly errors during field overhauls and maintenance operations.
When working on complex drive mechanisms, refer to our detailed wobble box overhaul guide to cross-check shaft endplay and bearing preload specifications before reassembling your unit.
Always relieve tension on the main counterbalance float springs before removing hinge pins or inner shoe hardware. High spring tension can snap components back suddenly, causing severe pinch injuries or equipment damage.
Tracing Part Reference Numbers to OEM Callouts
Begin by locating the main assembly view on the diagram. Key components are flagged with numerical callouts (e.g., 1, 2, 3) pointing directly to explode-view hardware. Locate the corresponding item number in the parts list table to verify part numbers, hardware thread sizes, and required quantities per machine. Pay close attention to index notes indicates left-hand (LH) versus right-hand (RH) section guards, as installing incorrect directional guards disrupts knife alignment.
Mapping Mechanical Linkages to Torque Specifications
High-vibration equipment like sickle mowers relies on precise fastener torque values. Fasteners securing guards to the cutterbar require Grade 5 or Grade 8 carriage bolts specified by manufacturer guidelines. When assembling guard bolts through the cutterbar, tighten 7/16-inch Grade 5 bolts to 45–55 lb-ft (61–75 Nm) and 1/2-inch Grade 8 structural bolts to 85–95 lb-ft (115–128 Nm). Improperly torqued guard bolts loosen quickly under cyclical cutting load, causing guard misalignment and section breakage.
Verifying Serial Number Breaks and Production Year Changes
John Deere made design updates throughout the production runs of models like the 350 and 450 mowers. For example, early-production models utilized smooth knife sections with top-serrated options added in later design revisions. Inspect the title block or margin notes on your john deere sickle mower parts diagram for serial number breaks (e.g., “Serial No. -120000” vs. “Serial No. 120001-“). Ensure replacement knife heads, pitman straps, and drive box seals match your specific machine serial number break.
Troubleshooting Mechanical Failures via the System Layout Diagram
Using the system schematic during troubleshooting allows field technicians to isolate root causes of component failure rather than simply replacing damaged parts. By analyzing mechanical relationships, you can eliminate structural binding, severe vibration, and ragged field cutting patterns.
To compensate for rearward force during cutting, the outer shoe must lead the inner shoe by approximately 1/4 inch per foot of cutterbar length. On a 7-foot cutterbar, the outer shoe tip should sit 1.75 to 2.0 inches ahead of the inner shoe when the mower is stationary on level ground.
Excessive Cutterbar Vibration and Section Lead Misalignment
Severe horizontal vibration is commonly caused by improper cutterbar lead or unbalance in the knife assembly. If the cutterbar lacks forward lead, rearward crop drag flexes the knife back against the wear plates, causing binding at the drive head. Review the structural linkage on your cutterbar maintenance guide to adjust the eccentric bushing or push-rod linkage located on the inner frame breakaway latch. Correct lead eliminates binding and reduces fatigue stress on the wobble box output shaft.
Pitman Stick Splitting and Wobble Box Bearing Failure
Frequent breakage of wooden pitman arms indicates mechanical interference along the knife drive stroke or loose pitman box clamps. On pitman-driven models, ensure the pitman wrist pin bearing operates smoothly without lateral endplay. For wobble box units, excessive heat generation indicates failure of the internal tapered roller bearings or insufficient ISO VG 220 gear oil levels. If output arm seals leak, dirt enters the gear housing, rapidly destroying internal needle bearings. Replace worn output seals immediately according to the parts schematic breakdown.
Uneven Cutting and Ragged Stubble Patterns
Ragged cutting performance typically stems from incorrect knife section registration, dull ledger plates, or bent section guards. Check registration by turning the drive flywheel or input pulley manually to complete one full stroke. At the extreme ends of the stroke, the center of each knife section must align precisely with the center of each guard ledger plate. If sections stop short of center, adjust the length of the pitman arm or wobble box drive rod according to the adjustment thread callouts on the parts layout diagram.
John Deere Sickle Mower Parts Diagram Component Reference Chart
The reference chart below outlines core cutting and drive system components, original hardware standards, recommended torque settings, and technical alignment requirements across popular John Deere sickle bar models.
| Component Description | John Deere Part # / Variant | Functional Alignment Spec | Torque / Hardware Spec |
|---|---|---|---|
| Standard Section Guard | E48227 / E15885 | Ledger surfaces flush across bar; align within 0.015″ | 45–55 lb-ft (7/16″ Gr. 5 Carriage) |
| Knife Hold-Down Clip | E15881 / H62024 | 0.010″–0.030″ gap above knife section | 45–55 lb-ft (Shims set clearance) |
| Cutterbar Wear Plate | E15882 / E48228 | Lip flush with rear edge of knife back strip | 35–40 lb-ft (3/8″ Gr. 5 Plow Bolt) |
| Knife Head Assembly | AE24337 / AE35301 | Zero twist or axial play on ball drive connection | 65–75 lb-ft (Drive ball clamping bolts) |
| Wobble Box Housing Assembly | AE37482 (350/450 Series) | 3-inch fixed reciprocal stroke output | Fill to plug with SAE 80W-90 / ISO VG 220 |
| Pitman Arm Shaft/Wood Bar | W21124 / W21125 | Parallel to cutterbar angle during entire arc | Tighten end straps until snug, do not crush wood |
Before performing seasonal service or replacing internal gears, review our companion PTO driveline components schematic to inspect universal joints, slip clutches, and primary input drive shafts for excess rotational slop.
John Deere Sickle Mower Parts Diagram Questions Answered
How do I identify the correct cutterbar section stroke length on my diagram?
Standard John Deere sickle mowers feature a 3-inch cutting stroke that matches the 3-inch center-to-center spacing of the section guards. On the drive mechanism schematic, the stroke length is determined by the offset distance of the crankpin on pitman models or the internal swashplate angle inside wobble box models. You can verify proper stroke length on the machine by taking a manual measurement from the knife head drive pin at the inner limit and outer limit of one full revolution.
Where can I locate the serial number break details on older John Deere mowers?
Serial number identification plates on rear-mounted John Deere sickle mowers are typically stamped on a metal tag riveted to the main tractor mounting frame or inner shoe lift housing. When referencing a parts diagram, look at the margin callouts adjacent to major assemblies like the drive box, knife back, or lift linkage. The diagram will indicate applicability using notations such as “Used up to Serial Number 150000” or “Used Serial Number 150001 and Up.”
What is the correct ledger plate tolerance according to John Deere schematics?
For efficient shear cutting, the top surface of all guard ledger plates must form a flat plane across the entire length of the cutterbar. Clearance between individual ledger plates and the knife sections should not exceed 0.015 to 0.020 inches. If individual guards sit higher or lower than adjacent guards, use a pipe or guard alignment wrench to gently bend the guard lip up or down until uniform height across the cutterbar assembly is restored.
How do the wobble box drive components differ between 350 and 450 models?
While both the John Deere 350 (3-point hitch mounted) and 450 (trail-type) mowers utilize a similar enclosed wobble box architecture, the external mounting brackets and input driveline shielding configurations vary. The 350 relies on a rigid hitch framework with a short primary PTO shaft, whereas the 450 uses an extended drawbar pole assembly with intermediate support bearings for the PTO drive shaft. The internal gears, shafts, and wobble bearings inside the housing remain interchangeable across equivalent serial-number series.
Why are my guard hold-down clips wearing prematurely on the underside?
Premature wear on the underside of hold-down clips occurs when wear plates behind the knife back strip become excessively thin or worn out. As wear plates erode, force from cutting heavy forage pushes the entire knife assembly backward, tilting the rear lip up and forcing the forward edge of the knife section tightly against the bottom of the hold-down clip. Inspect wear plates during regular maintenance; replace them when their front contact ledge wears down by more than 1/16 inch.
Step-by-Step Guide to Understanding the John Deere Sickle Mower Parts Diagram
Identify – Identify the specific John Deere sickle mower model number on the frame tag to select the matching diagram configuration.
Locate – Locate the target system section on the schematic, such as the cutter bar layout, pitman drive, or lift linkages.
Reference – Reference the callout numbers to verify component stacking order, including wear plates, shims, and ledger plates.
Install – Install replacement parts along the knife structure, securing sections with correct rivets and torque values.
Verify – Verify clearance settings using feeler gauges and manually rotate the drive pulley to test section movement.
Troubleshoot – Troubleshoot binding or uneven cuts by re-checking guard alignment and clip tolerance against the schematic.
