A Holley 4 barrel carburetor diagram outlines the layout of primary and secondary float bowls, metering blocks, power valves, and vacuum ports. Maintain fuel pressure at 5-7 PSI, set initial idle mixture screws 1.5 turns out, and apply a torque spec of 25-30 in-lbs on bowl screws to prevent vacuum leaks.
📌 Key Takeaways
- Maintain fuel pressure strictly between 5.0 and 7.0 PSI to prevent overpowering the float needle valve.
- Float bowl and metering block bolts require a torque spec of 25-30 in-lbs applied in a cross pattern to prevent leaks.
- Initial idle mixture adjustment should start at 1.5 turns out from fully seated on both primary needle valves.
- In engine retrofits, properly bypassing legacy sensors prevents an illuminated check engine light or ECU error.
- Unmetered air leaks at the base plate gasket are the leading cause of lean misfires and unstable idling.
The Holley 4-barrel carburetor remains one of the most versatile and durable modular fuel delivery systems ever engineered for high-performance automotive engines. Whether servicing a classic Model 4150 double-pumper or a vacuum-secondary Model 4160, understanding the precise layout of fuel circuits, air bleeds, emulsion tubes, and metering blocks is essential for achieving optimal air-fuel ratios. Utilizing a detailed holley 4 barrel carburetor diagram allows mechanics and technical engine builders to trace fuel paths from the float bowls through the main metering jets directly down into the venturi boosters under varying intake manifold vacuum loads.

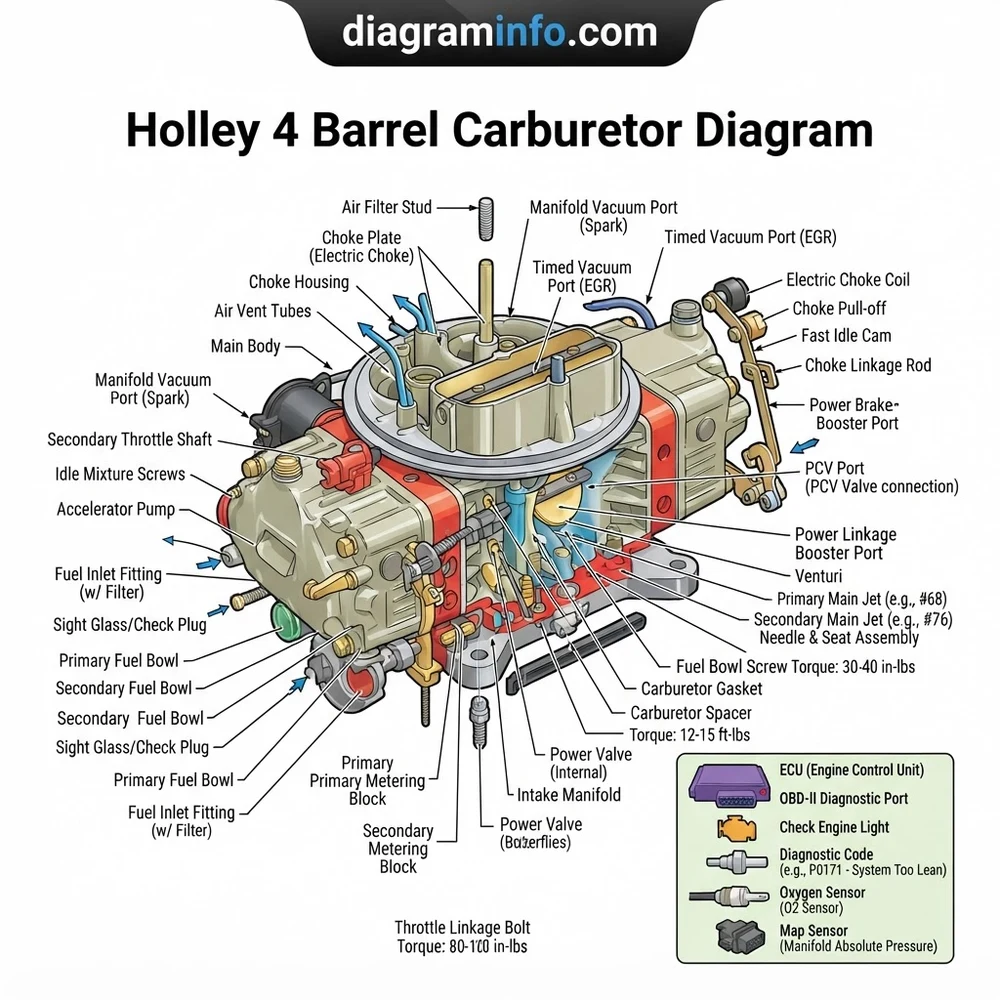

Holley 4 Barrel Carburetor Diagram: Complete Component Breakdown
Analyzing a standard modular 4-barrel schematic reveals a three-piece cast aluminum or zinc structure: the fuel bowls, the metering blocks (or metering plates), and the main body attached to the throttle base plate. Each section serves a distinct role in maintaining precise fuel metering across idle, off-idle transition, main metering, and high-load enrichment circuits.
Recommended Best Deal Products
• Fuel Bowl Screw Torque Spec: 25–30 in-lbs (tighten in a cross pattern)
• Carburetor Mounting Nut Torque Spec: 60–80 in-lbs (5–6 ft-lbs)
• Throttle Body to Main Body Screw Torque Spec: 45–50 in-lbs
• Fuel Inlet Pressure Spec: 5.5 to 7.0 PSI (maximum 7.5 PSI)
• Baseline Float Level: Bottom edge of sight plug hole when engine is level
Primary and Secondary Fuel Bowls and Metering Blocks
The front (primary) and rear (secondary) fuel bowls act as constant-head fuel reservoirs. Fuel enters through a 0.110-inch needle and seat assembly controlled by a center-hung or side-hung brass or nitrophyl float. Inside the metering block, primary main jets calibrate fuel flow under normal cruising conditions. The power valve assembly, threaded into the back of the primary metering block, provides additional fuel enrichment under heavy acceleration when manifold vacuum drops below a calibrated rating (typically 6.5 inches of Hg).
Throttle Body Assembly, Main Body, and Venturi Boosters
The main body contains the primary and secondary venturis, air bleeds, and down-leg or anniversary boosters. The throttle body, mounted to the underside with a thick insulating gasket, houses the primary and secondary throttle shafts, throttle plates, and idle transfer slots. Maintaining exact shaft alignment prevents vacuum leaks and throttle plate binding during full-throttle actuation.
| Component Name | Standard Factory Spec / Size | Primary Mechanical Function |
|---|---|---|
| Main Metering Jets | #64 to #72 (Model Dependent) | Restricts fuel volume flowing to main boosters during steady cruising. |
| Power Valve | 6.5 in-Hg (Standard Opening) | Enriches fuel mixture when manifold vacuum drops under heavy engine load. |
| Accelerator Pump Discharge Nozzle | 0.028 to 0.035 in. Nozzle Size | Injects immediate fuel shot to eliminate off-idle hesitation upon tip-in. |
| Needle & Seat Assembly | 0.110 in. Viton-Tipped Valve | Regulates fuel flow from pump into float bowl based on float position. |
Understanding Fuel Circuits in the Holley 4 Barrel Carburetor Diagram
A comprehensive holley 4 barrel carburetor diagram illustrates five interconnected operational circuits. Each circuit relies on pressure differentials created by atmospheric pressure pushing air down through the venturis toward the lower pressure created inside the intake manifold plenum.
Idle and Transfer Slot Calibration Specs
At engine idle, throttle plates are nearly closed, exposing the idle discharge port located below the throttle plate to high manifold vacuum. Idle fuel flows from the bowl through the main jet, into the idle well, passes the idle feed restrictor (IFR), mixes with air from the idle air bleed, and discharges past the idle mixture needle. As the throttle opens slightly, the transfer slot is exposed to vacuum, smoothly transitioning fuel delivery before velocity is high enough to pull fuel through the main boosters. For optimal performance with custom intake manifolds, refer to our guide on intake manifold plenum volume matching.
Recommended Best Deal Products
Main Metering System, Jetting, and Vacuum Secondary Actuation
Once air velocity through the venturi reaches sufficient speed, vacuum at the booster nozzle drops low enough to draw fuel from the main metering well. Fuel passes through the main jets, mixes with air drawn through the high-speed air bleeds, and exits the booster nozzles into the air stream as a finely atomized mist. On vacuum secondary models (such as the Holley 1850 or 3310), a vacuum housing references pressure inside the primary venturi to open the secondary throttle plates automatically under high air demand without causing engine bog.
To properly select a power valve, measure engine vacuum at idle in gear (for automatic transmissions) or neutral (for manual transmissions) using a vacuum gauge. Divide the idle vacuum reading in half. If your engine produces 13 inches of Hg at idle, select a 6.5 power valve. If idle vacuum is 10 inches of Hg due to an aggressive camshaft, install a 4.5 or 5.0 power valve to prevent premature power valve opening and idle flooding.
Holley 4 Barrel Carburetor Diagram Troubleshooting: Symptoms and Causes
Diagnosing fuel delivery problems requires referencing the internal schematic to correlate engine performance symptoms with specific internal passage failures or mechanical defects.
Engine Stalling, Off-Idle Hesitation, and Fuel Flooding
Off-idle hesitation or “stumble” occurs when the throttle plates open, but fuel delivery lags behind air airflow. Consulting the schematic points directly to the accelerator pump circuit: a misadjusted pump diaphragm arm clearance (which should be set to 0.015 inches at wide-open throttle), a clogged discharge nozzle orifice, or a missing umbrella check valve inside the fuel bowl. Fuel overflowing out of the bowl vent tubes indicates dirt caught in the needle and seat, a punctured float, or fuel inlet pressure exceeding 7.5 PSI, which overcomes the needle valve spring pressure.
Never run a mechanical or electric fuel pump supplying over 7.0 PSI directly to a Holley carburetor without an external pressure regulator. Excessive fuel pressure will unseat the needle and seat assemblies, causing severe fuel overflow, crankcase fuel dilution, fire risk, and rapid destruction of internal engine bearings due to diluted oil pressure.
Effects of Engine Timing Chain Wear and Low Oil Pressure on Tuning
Carburetor diagnosis cannot be conducted in isolation from mechanical engine health. Worn mechanical components significantly alter manifold vacuum signals:
- Timing Chain Stretch: Excessive slack in a timing chain retards camshaft timing relative to the crankshaft. This reduces intake manifold vacuum at idle, causing stable vacuum signals to fluctuate and rendering the idle circuit impossible to calibrate correctly according to standard schematic pathways. Always check your ignition timing advance curve prior to making jetting adjustments; review our technical article on ignition distributor advance curve setup.
- Intake Manifold Vacuum Leaks: Leaking intake gaskets or degraded PCV valves lean out the idle air-fuel ratio, forcing technicians to incorrectly over-enrich the idle mixture screws.
- Electric Fuel Pump Safety Interlocks: When utilizing electric fuel pumps to supply a Holley carburetor, an oil pressure safety switch must be integrated into the pump relay control circuit. If engine oil pressure drops below 5 PSI due to mechanical failure, the switch opens, removing power from the fuel pump to prevent potential fire and catastrophic engine damage.
Diagnostic Steps for Holley 4 Barrel Systems vs ECU and OBD-II Setup
Modern diagnostic methods combine vacuum testing with wideband oxygen sensor telemetry to analyze carburetor performance under real-world driving conditions, bridging the gap between mechanical tuning and electronic monitoring systems.
Follow this systematic procedure to isolate fuel circuit failures using a vacuum gauge and wideband air-fuel ratio (AFR) monitor:
- Step 1: Check Baseline Static Specs: Verify that line pressure is locked between 5.5 and 6.5 PSI using an inline fuel pressure gauge. Check float sight plugs to confirm fuel resides at the bottom thread of the sight hole.
- Step 2: Inspect Idle & Vacuum Settings: Attach a vacuum gauge to a manifold vacuum port (below throttle plates). Adjust four-corner idle mixture screws evenly until peak intake vacuum is achieved. Idle AFR on street engines should rest between 13.2:1 and 13.8:1.
- Step 3: Test Accelerator Pump Cam & Clearance: With the engine off, open throttle to 100% WOT. Insert a feeler gauge between the pump arm adjustment screw and the pump lever; verify a minimum torque spec clearance of 0.015 inches to prevent pump diaphragm binding.
- Step 4: Test Main Circuit & Power Valve Timing: Cruise vehicle at 55 MPH under light load. A wideband AFR reading above 15.0:1 indicates lean main jetting (increase main jet size by 2 numbers). Accelerate hard to drop vacuum below the power valve threshold; AFR should instantly drop to 12.2:1–12.8:1 enrichment.
Resolving Engine Light and Diagnostic Code Issues During EFI Swaps
When swapping a vintage engine equipped with a Holley 4-barrel carburetor over to an electronic throttle-body fuel injection system (such as a Holley Sniper EFI or Terminator system) or retrofitting a modern engine management ECU onto a classic chassis, mechanics often encounter vehicle diagnostic issues. Older vehicle chassis integrated with modern transmission controllers or retrofitted factory control modules can trigger a check engine light if sensor signals are missing.
If an aftermarket ECU or transmission control unit illuminates a check engine light, connect an OBD-II scanner to read the active diagnostic code. Typical codes during carburetor-to-EFI conversions include missing manifold absolute pressure (MAP) signals, oxygen sensor heater circuit failures, or missing engine coolant temperature (ECT) sensor inputs. Proper sensor plumbing—such as ensuring continuous engine coolant flow past the ECT sensor and securing vacuum lines—eliminates these diagnostic fault codes completely. For high-volume fuel system configurations, consult our comprehensive documentation on bypass fuel pressure regulator installation.
Holley 4 Barrel Carburetor Diagram Frequently Asked Questions
How do you adjust float levels on a Holley 4-barrel carburetor?
To adjust the float level, loosen the lock screw on top of the fuel bowl sight area, then turn the hex adjusting nut clockwise to lower the float level or counterclockwise to raise it. With the vehicle parked on a level surface and the engine idling, adjust the nut until fuel barely trickles out of the lower edge of the sight plug hole when removed. Retighten the locking screw to the proper torque spec once set.
What size main jets should be installed for baseline sea-level tuning?
Baseline main jet size depends on carburetor CFM rating and engine displacement. For a standard Holley 600 CFM Model 1850, factory jetting typically begins at #66 primary main jets. For a 750 CFM Model 4150 double-pumper, standard primary jetting usually starts around #70 to #72, with secondary jetting sized 6 to 8 numbers larger when no power valve is installed in the secondary metering block.
How does engine coolant flow affect electric choke operation?
While an electric choke uses an internal bimetallic heating element powered by a 12-volt ignition source, the overall warm-up rate of the engine depends on engine coolant flow through the intake manifold crossover path. Insufficient coolant flow or missing thermostats keep the engine oil and intake plenum cold longer, causing an improperly adjusted choke cap to pull off too quickly relative to actual engine temperature, resulting in cold-engine hesitation.
What fastener torque spec is required for mounting a Holley carburetor?
The four mounting nuts securing the carburetor throttle body to the intake manifold studs must be torqued evenly in a crisscross pattern to 60–80 inch-lbs (approximately 5 to 6.5 foot-lbs). Overtightening these nuts will distort or crack the cast aluminum/zinc throttle body base plate, binding the throttle shafts and causing permanent vacuum leaks across the base gasket.
Can a Holley 4-barrel carb trigger an OBD-II check engine light on converted engines?
Standard mechanical Holley carburetors contain no electronic sensors or diagnostic outputs, so they cannot
Step-by-Step Guide to Understanding the Holley 4 Barrel Carburetor Diagram
Identify – Examine the primary fuel bowl, secondary float chamber, and main body sections on the diagram.
Locate – Find all manifold and timed vacuum ports on the carburetor base plate and body.
Reference – Match internal components like the power valve, main jets, and transfer slots to schematic callouts.
Connect/Route – Route vacuum lines to distributor advance and PCV valve according to diagram paths.
Verify – Set float height through sight glass and apply 25-30 in-lbs torque spec to all bowl screws.
Troubleshoot – Adjust idle mixture screws evenly if engine displays hesitation or stores a diagnostic code.
