Ryobi Pressure Washer Parts Diagram: 2026 Repair Guide
The Ryobi pressure washer parts diagram maps the internal pump structure, unloader valve assembly, axial cam drive, and hose manifolds. Key components like thermal relief valves (rated at 145°F), water inlet screens, and high-pressure seals are arrayed sequentially along the pump manifold to simplify component replacement and leak identification.
📌 Key Takeaways
- Axial cam pressure washer pumps operate between 1600-3300 PSI with thermal relief valves releasing heat at 145°F.
- Critical pump manifold layout sequence: water inlet filter screen -> plunger seals -> check valves -> unloader valve -> pressure outlet.
- Torque pump casing bolts to 10-12 ft-lbs in a crisscross pattern to prevent warped housing covers.
- Worn high-pressure water seals and stuck unloader valves are the most common failure points causing low pressure.
- Replace external seals, spray guns, and unloader valves as DIY tasks; seek professional service for cracked aluminum pump manifolds.
Understanding a ryobi pressure washer parts diagram is essential for diagnosing hydraulic loss, reassembling pump manifolds, and sourcing exact OEM components. Whether servicing a compact electric unit or a heavy-duty gas-powered model, an exploded view schematic provides the precise structural layout necessary to tear down and rebuild high-pressure water systems. This guide breaks down the engineering configuration of Ryobi pressure washers, mapping out pump assemblies, motor interfaces, unloader mechanisms, and fluid delivery routing for professional technicians and experienced equipment operators.

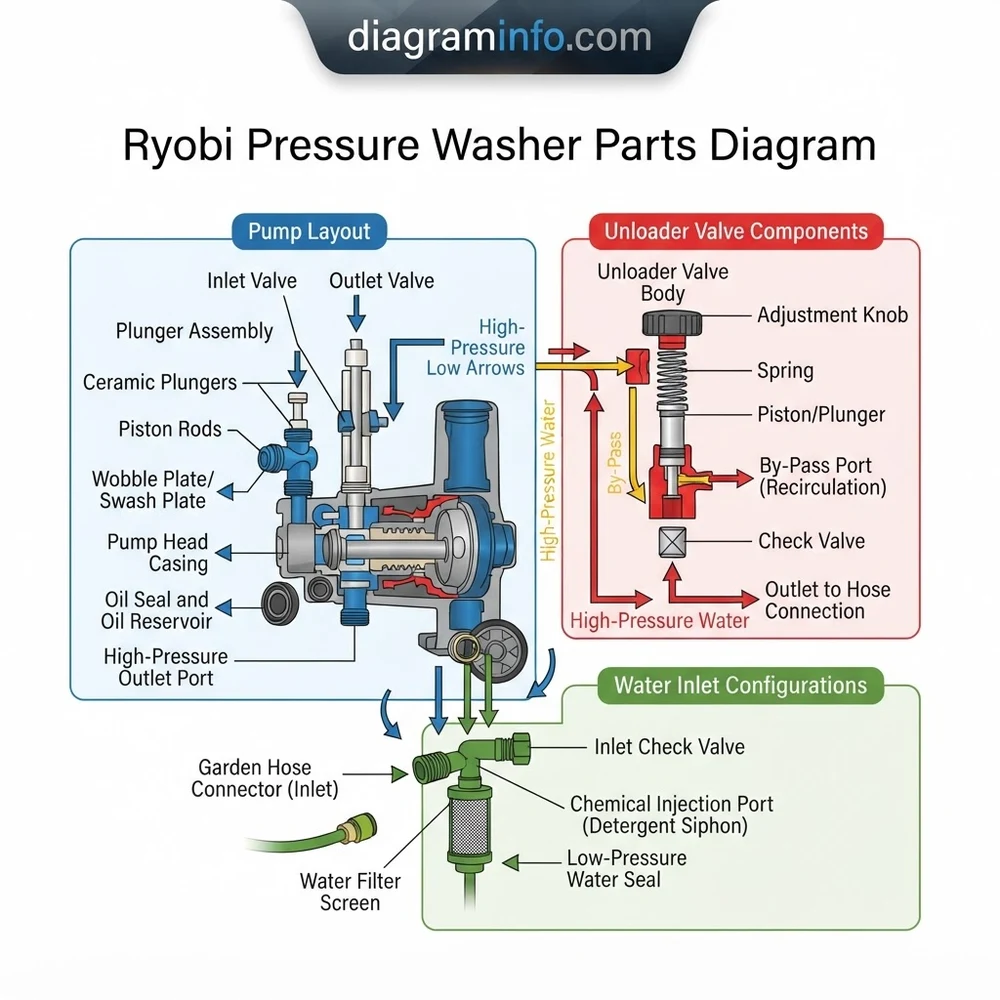

Ryobi Pressure Washer Parts Diagram: Critical System Components
Every Ryobi pressure washer relies on an integrated mechanical and hydraulic configuration designed to convert rotational shaft power into high-pressure fluid dynamics. The OEM schematic separates the equipment into key functional sub-assemblies. Locating parts on a structural layout requires identifying how mechanical energy transfers from the engine or electric motor to the pump manifold.
1. Axial Cam and Triplex Pump Assembly
The core of the hydraulic system resides within the pump assembly. On residential electric models (such as the RY141900 or RY142300 series), Ryobi utilizes an axial cam pump configuration featuring three wobble-plate driven stainless steel pistons. Commercial-grade gas units (such as the RY803000 series) typically feature heavy-duty triplex plunger pumps or direct-drive aluminum axial pumps. Key sub-components identified on the parts schematic include:
- Piston Plungers & Springs: Reciprocate within high-pressure seals to draw and compress fluid. Typical spring tension holds plungers against the swashplate.
- High-Pressure Seal & Low-Pressure V-Ring Packings: Prevent water backflow into the crankcase and contain working pressures ranging from 1,800 PSI to 3,300 PSI.
- Check Valve Assemblies (Inlet/Outlet): Six spring-loaded poppet valves (3 suction, 3 discharge) that control one-way fluid direction through the manifold.
- Unloader Valve Assembly: Diverts water back to the pump inlet (bypass mode) when the spray gun trigger is released, preventing motor stall or system over-pressurization.
- Thermal Relief Valve: Releases superheated water (above 140°F / 60°C) to atmosphere when the unit runs in bypass mode for extended periods.
2. Drive Engine and Motor Interface
The mechanical drive system varies based on power delivery. On gas models powered by Honda (GCV160/GCV190) or Ryobi 212cc engines, the pump mounts directly to a vertical or horizontal 7/8-inch or 3/4-inch keyed drive shaft using a 4-bolt SAE flange pattern. Electric models integrate an induction or universal motor with a internal thermal overload switch, connected via a reduction gearbox or direct swashplate hub. Torque specifications for engine-to-pump mounting bolts are strictly set between 7 to 9 ft-lbs (9.5 to 12 Nm).
When replacing pump assemblies on gas-driven Ryobi units, ensure the drive keyway (square key) is fully seated in the shaft keyseat. Operating without the shaft key installed will cause immediate shaft slippage and destroy the pump drive hub assembly.
3. Fluid Manifold and Chemical Injection Circuit
The brass or aluminum pump manifold houses the high-pressure outlet fitting, detergent venturi injector, and unloader adjustment port. The chemical injector operates on Bernoulli’s principle, creating a low-pressure siphon when a wide-orifice soap nozzle is attached to the spray wand. Understanding this section of the blueprint prevents incorrect assembly of the internal spring-and-ball check valve responsible for siphoning cleaning solutions.
| Component Name | OEM Part Reference Range | Functional Pressure / Torque Spec | Primary Service Failure |
|---|---|---|---|
| Axial Pump Head Assembly | 308653052 / 308653093 | 1,800 – 3,300 PSI / 12 ft-lbs | Freeze damage, cracked manifold body |
| Unloader Valve Kit | 308418003 / 310924001 | 14 – 16 ft-lbs (housing torque) | Stuck bypass pin, loss of working pressure |
| Water Seal Kit (Packings) | 120982001 / 961780001 | N/A (Tolerance fit) | Water leaking from pump weep holes |
| Thermal Relief Valve | 308418007 / 678169002 | Triggers at 140°F – 145°F (60°C) | Continuous water discharge during bypass |
| Chemical Injector Repair Kit | 308418004 / 561501001 | Low-pressure siphon (under 250 PSI) | Corroded steel ball valve, chemical restriction |
Navigating the Ryobi Pressure Washer Schematic and Assembly Layout
Reading a technical breakdown schematic requires understanding standardized manufacturing symbols, line conventions, and part grouping indicators. OEM blueprints break down complete equipment into indexed item numbers corresponding to a Master Parts List (MPL).
1. Deciphering Item Numbers and Fastener Callouts
In a standard layout diagram, solid leader lines point to specific individual hardware items, such as M6 x 1.0 x 25mm socket head cap screws or Nitrile (NBR) O-rings. Key numerical callouts identify specific torque-sensitive fasteners. For instance, pump head retaining bolts must be tightened in a cross-pattern sequence to specific values (typically 108–132 in-lbs) to avoid distorting the internal plunger cylinder bores.
2. Mapping O-Ring, Seal, and Gasket Sequences
One of the most common errors during pump teardown is incorrect ordering of high-pressure seals, brass anti-extrusion rings, and low-pressure water seals. A detailed schematic illustrates the exact orientation of lip seals. The V-groove side of high-pressure U-cups must always face the high-pressure water chamber to allow fluid pressure to expand the seal lips against the piston wall.
High-pressure hydraulic components pose extreme danger if assembled incorrectly. Never re-use damaged O-rings or deformed brass retainers shown on the parts breakdown. High-pressure fluid leaks can cause skin injection injuries at working pressures above 1,500 PSI.
3. Distinguishing Assemblies from Sub-Assembly Repair Kits
On Ryobi technical diagrams, dashed perimeter lines enclose groups of parts that are sold exclusively as complete sub-assemblies. For instance, individual check valve poppets are rarely sold separately; they are grouped within a Valve Kit enclosure. Refer to your model’s OEM manual or an electric pressure washer wiring overview if working on motor control boxes, or check our triplex pump overhaul guide for deeper valve seating tolerances.
Ryobi Pressure Washer Structural Blueprint & Maintenance Specifications
Proper service requires aligning structural teardown practices with factory maintenance parameters. Gas and electric variants demand different service schedules and fluid capacities.
| Equipment Class | Hydraulic Oil / Lube Spec | Fastener Torque Spec | Maintenance Schedule |
|---|---|---|---|
| Ryobi Electric (1600-2300 PSI) | Sealed Axial Grease / Synthetic Gear Lube | Pump Bolts: 8.5 ft-lbs (11.5 Nm) | Inspect intake filter every 25 operating hours |
| Ryobi Gas (2800-3300 PSI Axial) | Non-Detergent SAE 15W-40 or SAE 30 Pump Oil | Flange Bolts: 9 ft-lbs (12 Nm) | Change pump oil after first 50 hours, then annually |
| Ryobi Gas (3400+ PSI Triplex) | ISO 68 / SAE 30 Non-Detergent Oil | Manifold Bolts: 18 ft-lbs (24.4 Nm) | Change pump oil every 100 operating hours |
When executing maintenance based on the schematic breakdown, ensure pump crankcases on oil-bath models are filled precisely to the center dot of the sight glass (or top of the dipstick notch). Overfilling creates excessive crankcase pressure, destroying the rear oil seals located behind the ceramic pistons.
Diagnosing Failures Using the Ryobi Pressure Washer Parts Diagram
A technical diagram serves as an indispensable troubleshooting map when system performance degrades. By correlating physical symptoms with specific schematic nodes, technicians can rapidly isolate mechanical and hydraulic root causes.
1. System Pressure Loss and Water Pulsation
If output pressure drops precipitously while the engine or motor runs at full RPM, locate the high-pressure check valves on the pump manifold diagram. Pulsation in the trigger spray gun typically indicates one of the six check valves is fouled or stuck open by debris.
- Step 1: Remove the six valve caps identified on the manifold exploded view.
- Step 2: Extract the check valve assemblies using needle-nose pliers.
- Step 3: Inspect plastic poppets, stainless steel springs, and rubber O-rings for sand particles or heat deformation. Replace using an OEM Valve Kit if springs show fatigue.
2. Water Leakage at the Pump Manifold Weep Holes
Refer to the piston sleeve section of the parts layout. Below the pump head, small weep holes allow water to discharge when high-pressure packings fail. If water drips continuously from these ports during operation, the low-pressure and high-pressure seal packings are compromised. Continued operation allows water to breach the oil seals, turning the crankcase oil into a milky emulsion and destroying shaft bearings.
Proper unloader valve setting: Stock Ryobi unloaders are pre-set at the factory. If replacing the unloader pin or bypass spring shown on the schematic, adjust the pressure lock nut so the bypass pressure spike does not exceed 10% above max working pressure when the spray gun trigger is released.
3. Chemical Siphon System Failure
If soap fails to draw into the system during low-pressure tip deployment, consult the chemical injector fitting callout on the brass manifold exit port. The internal assembly contains a tiny 7/32-inch stainless steel ball valve and a light-tension spring. Chemical residue frequently calcifies inside this chamber, locking the ball against its seat. Disassemble the barb fitting, clean the ball cavity with solvent, and confirm the spring compresses freely. Check our high-pressure nozzle orifice sizing chart to verify that your soap tip creates sufficient pressure differential to trigger siphon mode.
Ryobi Pressure Washer Parts Diagram Frequently Asked Questions
How do I locate the exact model number on my Ryobi unit to match the parts diagram?
The model number is printed on a silver or black data label located on the main frame tube, baseplate, or motor housing. For electric pressure washers, it typically begins with “RY14” (e.g., RY141900, RY142300). For gas-powered units, it usually starts with “RY80” (e.g., RY802900, RY803000). Always match the complete model number, including manufacturing revision letters (such as Rev A, B, or C), as pump vendors and internal valve schematics frequently change across production years.
Are Ryobi electric and gas pressure washer pump assemblies interchangeable?
No. Electric and gas models use completely different motor interfaces, drive shaft diameters, and operating RPMs. Electric units typically operate on direct-drive universal motors or 3,450 RPM induction motors with custom swashplate configurations. Gas units use 7/8-inch or 3/4-inch keyed hollow shafts designed for standard 3,600 RPM small engines. Furthermore, flow rates (GPM) and working pressure ratings differ significantly, making mechanical pump cross-mounting unsafe and ineffective.
What do the dotted lines and enclosed boxes signify in a Ryobi parts schematic?
In Ryobi technical service literature, dotted or dashed outline boxes group individual components into pre-assembled service kits (such as Unloader Repair Kits, Valve Assemblies, or Water Seal Kits). Individual sub-components within those boxes may not carry separate service part numbers, meaning the entire kit must be purchased if a single internal O-ring or spring fails.
Why does my Ryobi pump manifold leak from the bottom vent holes in the diagram?
The vent holes (or weep holes) located beneath the pump manifold on the diagram are designed into the casing to signal high-pressure packing failure. When the internal rubber V-packings wear down due to dry running, thermal exposure, or silt abrasion, high-pressure water bypasses the piston seal. The weep hole allows this fluid to dump externally rather than forcing its way past the crankcase oil seal into the lubrication chamber.
Can individual internal pump seals be replaced, or must the entire pump assembly be swapped?
On higher-end gas units equipped with standard triplex pumps or serviceable axial pumps, individual seal packings, check valves, and unloader cartridges can be replaced using OEM rebuild kits. However, on budget electric units (e.g., 1,600–1,900 PSI models), the pump manifold is often friction-welded or crimped at the factory, making full pump head replacement (e.g., Part #308653052) or complete machine replacement more cost-effective than micro-component overhaul.
Step-by-Step Guide to Understanding the Ryobi Pressure Washer Parts Diagram
Identify – Note your specific Ryobi model number on the frame label before consulting the diagram layout.
Locate – Find the target system on the diagram, such as the pump manifold or detergent injection assembly.
Reference – Match callout numbers on the exploded schematic with part numbers in the component list.
Connect/Route – Route high-pressure hoses, electrical switches, and chemical lines according to structural alignment.
Verify – Torque manifold bolts to 10-12 ft-lbs and check seal seats to ensure leak-free operation.
Troubleshoot – Compare pressure output against factory specs if cavitation or low pressure persists after reassembly.
