Honda Civic AC Hose Diagram: Routing Guide (2026)

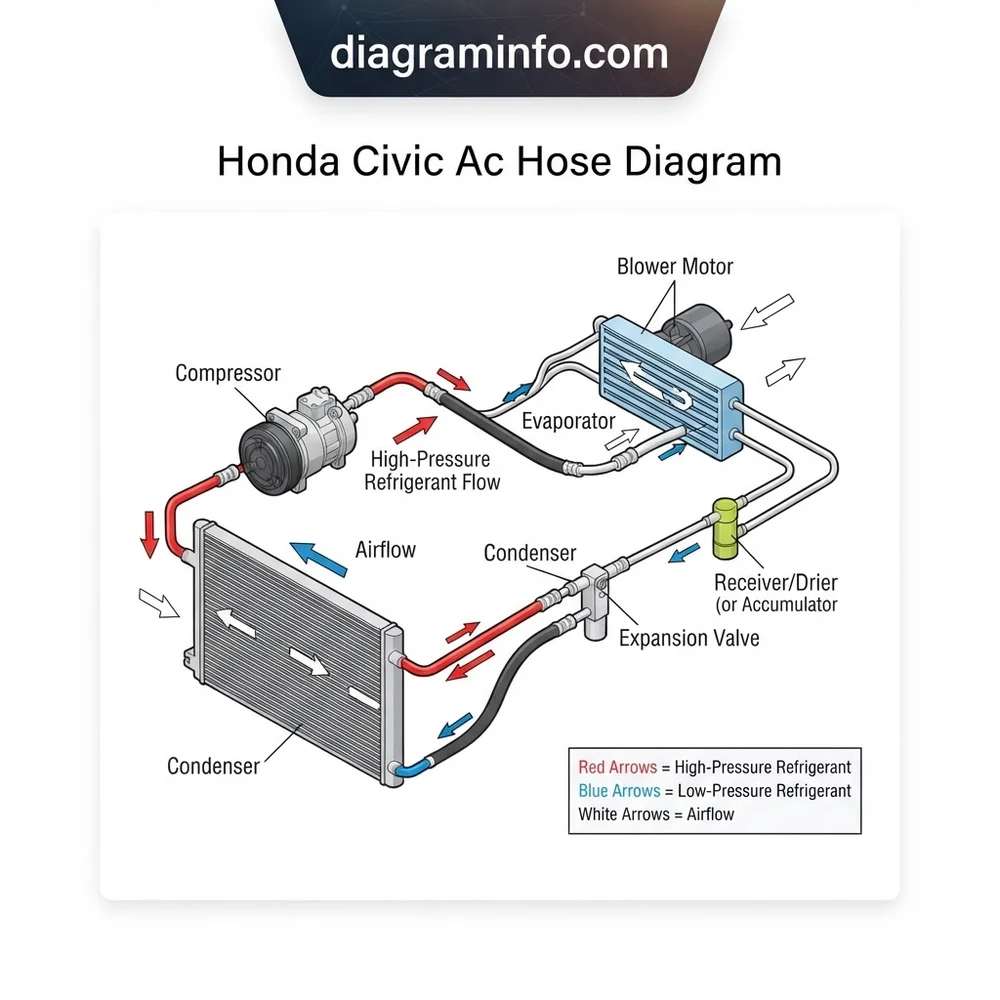

The Honda Civic AC hose diagram illustrates two primary refrigerant lines: the larger low-pressure suction hose running from the evaporator to the compressor, and the smaller high-pressure discharge/liquid hose connecting the compressor to the condenser and expansion valve. Service ports (H and L) are integrated directly onto these aluminum/rubber assemblies for R-1234yf or R-134a charging.
📌 Key Takeaways
- High-pressure lines operate between 150-250 PSI, while low-pressure lines run at 25-45 PSI during normal operation.
- The thicker suction line carries cold low-pressure refrigerant gas; the thinner discharge line routes hot high-pressure liquid.
- Always evacuate R-1234yf or R-134a refrigerant using an EPA-certified recovery machine before disconnecting hose fittings.
- O-ring degradation at hose couplings and rubber-to-aluminum crimp joints are the most common source of HVAC leaks.
- DIY replacement of physical hose assemblies is manageable, but refrigerant evacuation and recharge require professional equipment.
Navigating the climate control system on a modern vehicle requires a detailed understanding of fluid dynamics, pressure differentials, and structural line routing. The honda civic ac hose diagram serves as the definitive schematic for tracing high-pressure liquid and low-pressure vapor circuits between the engine compartment and interior cabin components. Whether performing routine maintenance, replacing a deteriorated barrier hose, or diagnosing an intermittent thermal expansion valve (TXV) fault, understanding the precise layout of the compressor, condenser, evaporator core, and interconnecting aluminum lines is essential for maintaining systemic integrity and cooling efficiency.
Honda Civic AC Hose Diagram Component Breakdown
The Honda Civic air conditioning architecture operates as a closed-loop hermetic system divided into high-pressure and low-pressure sides. According to OEM technical documentation, maintaining precise component positioning and line clearance is crucial to prevent kinetic vibration wear against adjacent engine mounts and chassis rails.
Recommended Best Deal Products
High-Pressure Discharge Line and Condenser Assembly
The high-pressure circuit begins at the AC compressor outlet port located on the lower front passenger side of the engine block. The discharge hose routes from the compressor manifold upward to the top inlet flange of the aluminum sub-cool condenser heat exchanger. Manufactured from multi-layer synthetic EPDM rubber reinforced with braided nylon barrier walls, this flexible line absorbs engine torque fluctuations while carrying high-temperature, high-pressure superheated gaseous refrigerant. The condenser itself acts as a primary heat exchanger, cooling gas into a high-pressure liquid state before passing it toward the receiver-drier assembly.
Low-Pressure Suction Line and Evaporator Core Interface
The suction line forms the largest diameter flexible conduit in the system, returning cold, low-pressure vapor from the interior evaporator core back to the compressor inlet flange. Originating at the firewall fitting, this line routes along the upper frame rail, incorporating an integrated Schrader valve low-side service port (marked with a blue dust cap). Because it carries cold vapor, insulation wrap or molded sleeve shields are frequently applied near radiant exhaust heat sources to prevent thermal parasitic losses before the refrigerant reaches the compressor intake.
Liquid Line and Thermal Expansion Valve (TXV) Dynamics
Extending from the condenser outlet to the firewall block fitting, the liquid line is a solid, small-diameter aluminum pipe designed to carry dense liquid refrigerant. Installed inline is the high-side service port (marked with a red cap) alongside the refrigerant pressure transducer sensor. The line terminates at the block-style Thermal Expansion Valve (TXV), which atomizes high-pressure liquid into a low-pressure spray as it enters the evaporator core inside the dashboard HVAC air handler module.
• Compressor Flange Bolts: 18 lb-ft (24 N·m)
• High/Low Pressure Hose Fitting Bolts (M6): 7.2 lb-ft (9.8 N·m)
• Liquid/Suction Line Brackets: 7.2 lb-ft (9.8 N·m)
• Refrigerant Type: R-1234yf (2016+) / R-134a (2006-2015)
• PAG Oil Type: ND-OIL 12 (R-1234yf) or SP-10 (R-134a)
• Total System Charge: 14.8 oz ± 0.35 oz (420g ± 10g)
Internal Cabin HVAC Integration: Air Handler, Blower Motor, and Return Duct
Behind the dashboard, the evaporator coil sits enclosed within the main plastic air handler housing. Cold air distribution relies on the variable-speed blower motor pushing cabin air across the finned surface of the evaporator heat exchanger. Cabin return duct pathways pull warm ambient air back into the system through the fresh/recirculation door flap, continuously cycling thermal energy out of the interior space. Correct routing of external drain tubes from this housing ensures condensate exits the chassis without backing up into carpet insulation.
Recommended Best Deal Products
| Line Component | Inner Outer Diameter | Pressure Rating | Sealing Mechanism |
|---|---|---|---|
| High-Side Discharge Hose | 1/2″ (13mm) ID / 3/4″ OD | High (Up to 450 PSI) | HNBR Green O-Ring (8mm) |
| Low-Side Suction Hose | 5/8″ (16mm) ID / 7/8″ OD | Low (15 – 60 PSI) | HNBR Green O-Ring (15mm) |
| Liquid Line (Condenser to TXV) | 5/16″ (8mm) Solid Alum. | High (Up to 450 PSI) | Captive Flange O-Ring (6mm) |
How to Trace Refrigerant Lines Using the Honda Civic AC Hose Diagram
When executing a diagnostic trace or complete component overhaul, mechanical technicians must systematically follow the physical schematic from the mechanical driver on the engine block through the firewall interface. Using a physical or digital reference visual helps isolate structural line fatigue and pinhole leaks before evacuating system charge.
Mapping the High-Side Circuit from Compressor to Condenser Heat Exchanger
Begin tracing at the lower compressor body attached to the engine block. The high-pressure discharge line rises upward along the passenger side frame rail. Identify the flexible rubber section positioned between the rigid compressor fitting and the upper condenser inlet manifold. OEM specifications mandate checking this flexible section for signs of hydraulic weeping, outer jacket blistering, or mechanical chafing against the engine accessory belt shield. For detailed electrical control mapping of the compressor clutch, consult our Honda Civic AC Clutch Relay Diagram page.
Navigating the Low-Side Circuit from Evaporator to Compressor Inlet
From the firewall, locate the large-diameter suction tube. Step back visually along its route as it curves past the engine strut tower toward the lower rear quadrant of the AC compressor. Verify that plastic retaining clips hold the aluminum tubing securely off the firewall structural seam. Loss of these mounting clips causes vibration resonance, leading to fretting corrosion and micro-fractures along the aluminum wall structure.
Never attempt to force service couplers onto incorrect fittings. The low-pressure service port on Honda Civics utilizes a 13mm quick-connect fitting on the large suction hose, while the high-pressure port features a 16mm fitting located on the thinner liquid line near the condenser manifold assembly.
Isolating Thermal Expansion Valve Connections and Pressure Transducers
Follow the thin liquid line toward the firewall junction block. Mounted directly onto this line block is the 3-pin AC pressure transducer switch. Technical measurements using a multimeter should show a 5-volt reference signal from the PCM, a ground line, and a variable signal output line (typically 0.5V to 4.5V corresponding to system static and dynamic pressure). The block fitting penetrates the firewall, mounting directly against the TXV block using two studs secured with 10mm nuts, sealing the cabin air handler loop from engine bay gases.
Diagnosing Compressor, Condenser, and Line Failures
A systematic methodology must be applied when diagnosing cooling performance degradation on Honda Civic models. High ambient cabin temperatures combined with poor register air output point toward either fluid mass loss, mechanical air handler blockage, or refrigeration cycle imbalance.
Identifying Refrigerant Leaks via UV Dye and Pressure Drops
Refrigerant loss remains the primary cause of AC system failure in 8th, 9th, 10th, and 11th generation Civics. Factory-installed fluorescent UV dye circulates within the PAG lubricant oil matrix. Inspecting all hose crimps, service port Schrader cores, and condenser core faces with a 395nm ultraviolet lamp reveals bright yellow-green glowing residues at leak points.
Ventilation or direct atmospheric discharge of R-134a or R-1234yf refrigerant is illegal under federal law. Always use an SAE-certified recovery station to evacuate system charge down to 29.9 inHg vacuum before loosening flange bolts or removing hose fittings.
Addressing Mechanical Hose Degradation and Fitting Corrosion
Rubber barrier hoses deteriorate over time due to heat cycling and engine movement. Internal hose lining breakdown leads to black rubber debris clogging the fine orifices of the thermal expansion valve. If a hose exhibits soft spots, severe outer checking, or weeping around crimped collar fittings, full assembly replacement is necessary. Always install fresh Highly Hydrogenated Nitrile Rubber (HNBR) O-rings lubricated with clean, matching PAG oil during reassembly to ensure a gas-tight seal.
Evaluating Blower Motor Airflow and Heat Exchanger Thermal Load
If operating manifold pressures indicate correct high-side (150–225 PSI) and low-side (30–40 PSI) dynamic readings but cabin outlet temperatures remain high, inspect the air distribution side. A clogged cabin air filter, dead squirrel-cage blower motor, or broken blend door actuator prevents proper heat transfer across the evaporator core. Debris building up on the return duct screen restricts volumetric air delivery across the heat exchanger fins, causing low-side pressure to drop artificially low and freezing the evaporator core solid.
Honda Civic AC Hose Diagram FAQs and Technical Specs
What are the specific OEM torque specifications for Honda Civic AC hose connections?
According to Honda factory service manuals, single-bolt M6 flange connections securing liquid and suction line blocks to the firewall, compressor, and condenser require precisely 7.2 lb-ft (9.8 N·m) of torque. Over-tightening these fasteners deforms the aluminum flange, causing the captive HNBR O-ring to distort and leak. Thread studs securing the TXV expansion valve assembly inside the engine bay call for 7.2 lb-ft (9.8 N·m) as well, while compressor mounting bracket-to-engine block bolts demand 18 lb-ft (24 N·m).
How do R-134a and R-1234yf AC hose routing diagrams differ across Honda Civic generations?
While the fundamental mechanical layout (compressor to condenser to TXV to evaporator) remains structurally similar across generations, line sizing and service fitting threads differ significantly:
- 8th & 9th Generation (2006–2015): Utilize R-134a refrigerant system architecture. Hoses use standard Acme thread charge ports and traditional barrier rubber compounds rated for PAG SP-10 oil.
- 10th & 11th Generation (2016+): Transitioned to low-GWP R-1234yf refrigerant. Hoses feature internal barrier layers resistant to ND-OIL 12 synthetic lubricants and incorporate distinct, non-interchangeable quick-connect service ports to prevent cross-contamination. Hose mounting brackets on 1.5L Turbo models are uniquely routed around intercooler piping. If you are experiencing electrical faults alongside hose replacement, review our Honda Civic AC Wiring Diagram guide for sensor pinouts.
What role do the air handler, return duct, and blower motor play in maintaining cabin heat exchanger efficiency?
The interior HVAC housing operates as a balanced thermal circuit. The blower motor draws warm air from the passenger cabin through the return duct assembly, forcing it across the cold fin array of the evaporator heat exchanger. As heat transfers from the air into the boiling liquid refrigerant inside the evaporator, cabin temperatures drop. If the return duct path is blocked or the blower motor resistor fails, air velocity drops. This lack of thermal load prevents refrigerant from boiling off fully, leading to liquid slugging that can hydraulically destroy the AC compressor downstream.
How can you differentiate between high-pressure discharge hose and low-pressure suction hose leaks?
High-pressure discharge line leaks usually manifest with prominent aerosol oil spraying across adjacent engine components because the line operates under 150 to 350+ PSI during system operation. Low-pressure suction hose leaks (operating between 25 and 45 PSI) typically exhibit slow seepage, gathering road grime around hose crimp collars or service ports without wide-area spraying. Using a digital electronic halogen leak detector calibrated to 0.10 oz/year sensitivity pinpoint leaks along either circuit quickly.
Why is replacing O-rings mandatory during a Honda Civic AC hose replacement?
AC system O-rings are composed of specialized HNBR elastomer engineered to deform slightly within shaped line grooves, creating a hermetic seal under intense pressure variations. Once compressed under original torque specs and exposed to heat cycles, these seals lose elastic memory (taking a permanent set). Reusing old O-rings almost universally results in micro-leaks. Always apply a thin coating of clean OEM PAG oil to brand-new, factory-specified green or purple HNBR seals during reassembly to prevent tearing them against aluminum line chamfers.
What diagnostic steps should be taken if the AC compressor cycles rapidly after replacing a line?
Rapid clutch cycling (engaging and disengaging every few seconds) typically points to an incorrect refrigerant charge mass or a tripped pressure transducer switch. Connect an AC manifold gauge set to evaluate dynamic pressures. If low-side pressure drops rapidly below 20 PSI upon compressor clutch engagement, the system is low on refrigerant mass or suffers from an inline liquid line restriction (such as a plugged receiver-drier or stuck TXV valve). If pressures spike instantly over 350 PSI on the high side, check for an overcharged state, air contamination from improper vacuum evacuation, or a failed condenser cooling fan motor. For fan circuit troubleshooting steps, consult our comprehensive Honda Civic Cooling Fan Wiring Diagram documentation.
Step-by-Step Guide to Understanding the Honda Civic Ac Hose Diagram
Identify – Locate the high-pressure and low-pressure refrigerant lines in the engine bay using the diagram.
Locate – Find the mounting brackets, service ports, and connections at the compressor, condenser, and evaporator firewall seals.
Reference – Check torque specifications and correct green HNBR O-ring sizes indicated in the routing diagram manual.
Connect/Route – Carefully thread replacement hoses along the factory pathway, ensuring proper clearance from hot manifold components.
Torque – Tighten mounting bolts to 7.2 lb-ft (10 Nm) for flange connections to avoid crushing aluminum seal seats.
Verify – Pull a deep vacuum for 30 minutes to check for pressure decay before recharging with specified refrigerant weight.
