12V Air Horn Train Horn Wiring Diagram Without Relay: 2026 Setup
Wiring a direct 12V air horn without a relay requires a heavy-duty momentary switch rated for at least 20–30 amps. Connect the positive battery terminal to an inline 30A fuse, run the hot wire to the switch input, connect the switch output to the compressor positive terminal, and secure the ground wire to clean chassis metal.
📌 Key Takeaways
- Requires a heavy-duty momentary switch rated for 20-30 amps to handle high direct compressor current without melting.
- Always install an inline 20A-30A fuse within 12 inches of the positive 12V power source to prevent electrical fires.
- Use 12-gauge or 10-gauge primary wire for the hot wire and ground wire connections to prevent voltage drop.
- Bypassing the relay risks burning out standard OEM horn buttons, which are typically rated for less than 5 amps.
- Consult a professional auto electrician if integrating with modern CAN-bus steering wheel horn controls.
Bypassing an automotive relay when wiring a 12V pneumatic train horn or air horn solenoid requires routing the full operating amperage of the solenoid valve directly through the actuation switch. Standard factory vehicle horns use low-current control circuits where the steering wheel button triggers an electromagnetic relay, which in turn switches the high-current load. When implementing an direct air horn train horn wiring diagram without relay layout, you must select heavy-duty mechanical components, appropriate wire gauge thickness, and explicit circuit protection to prevent switch contact welding, excessive line voltage drop, and electrical harness failure.
Recommended Best Deal Products
Direct-wiring a pneumatic air horn solenoid without an intermediary relay forces the full current draw (15 to 30 Amps transient inrush) through the horn button. Standard OEM horn switches rated below 15A DC will arc, weld shut, or overheat. Always use a dedicated momentary push-button switch rated for at least 20A continuous DC operation at 12V DC.
Air Horn Train Horn Wiring Diagram Without Relay Electrical Fundamentals
To eliminate the 4-pin or 5-pin SPST relay from an air horn installation, the electrical pathway transforms from a dual-circuit control system (low-current signal wire and high-current load wire) to a singular series circuit. In this configuration, the battery positive terminal supplies raw DC voltage directly to an inline circuit breaker or fuse block, which feeds the input pole of a high-amperage momentary switch. The switched output terminal then routes the energizing current straight to the positive lead of the electric air valve solenoid.
When the operator depresses the switch, the circuit closes, energizing the internal coil of the pneumatic valve solenoid. This magnetic field pulls the internal plunger off its seat, releasing stored compressed air from the pressure tank directly into the horn acoustic bell chambers. Because a solenoid coil exhibits high inductive kickback upon circuit opening, eliminating the relay means your control switch must absorb both the initial electrical inrush current and the inductive flyback voltage spike when released.
Understanding this dynamic requires selecting wire conductors with insufficient electrical resistance. Utilizing an under-sized conductor causes an unacceptable voltage drop across the circuit length. If terminal voltage at the pneumatic solenoid falls below 10.5V DC, the magnetic coil force will fail to overcome the internal air tank pressure (typically 110 to 150 PSI), causing the horn to misfire or produce a weak sound profile.
High-pressure solenoid valves (150+ PSI rated) require a minimum operational voltage of 11.8V DC at the solenoid terminals under load. Wire gauge selection must be calculated based on total circuit loop length (power leg + ground leg) to maintain line loss under 3%.
Direct Switch Wire Color Code and Terminal Block Pin Assignment
Standardizing your installation with OEM-style wire color coding ensures efficient troubleshooting and proper phase orientation during maintenance. When bypassing a relay and feeding power through an auxiliary distribution block or terminal block, precise pin assignment is mandatory to avoid accidental direct-to-ground short circuits.
| Wire Function | Typical Color Code | Recommended Gauge | Pin / Terminal Assignment | Voltage / Notes |
|---|---|---|---|---|
| Main Hot Wire (Supply) | Red / Solid | 10 AWG or 12 AWG | Battery (+) to Terminal Block Pin 1 | 12V DC Constant via 20A Inline Fuse |
| Switched Hot Wire | Blue or Red/White | 12 AWG | Switch Out to Solenoid Positive (+) | 12V DC Pulsed (Switched Line) |
| Solenoid Ground Wire | Black or Brown | 12 AWG | Solenoid Negative (-) to Chassis | 0V DC Return Path (Clean Metal) |
| Switch Ground (Illuminated) | Black / Thin Stripe | 16 AWG | Switch Pin 3 / Earth Terminal | Only required for LED backlit switches |
| Neutral Wire (AC Air Compressor) | White | N/A (DC Systems) | Not used in 12V DC vehicle installs | DC circuits use chassis ground return |
When utilizing a heavy-duty screw terminal block to organize under-dash wiring, map Pin 1 as the fused power input from the battery. Pin 2 connects directly to the incoming pole of your high-amperage switch, while Pin 3 acts as the intermediate terminal for the switched feed running out through the firewall to the train horn solenoid valve. Refer to manufacturer specifications for pneumatic solenoid valve specifications to verify if the solenoid coils are polarity-sensitive; most 12V DC two-wire solenoids utilize non-polar coils where either wire can serve as the positive input or ground return.
How to Complete the Air Horn Train Horn Wiring Diagram Without Relay
Executing a direct-wired air horn installation requires careful routing, mechanical strain relief, and robust terminal crimping. Follow this sequential assembly process to build a reliable circuit capable of sustaining continuous high-current bursts without voltage degradation.
Step 1: Disconnect Power and Prepare Battery Connections
Before mounting components or running conductors, isolate the vehicle’s electrical system by disconnecting the negative battery cable terminal clamp. Select an unswitched positive power terminal on the 12V DC battery bus bar or direct battery terminal post. Crimp a heat-shrinkable 10-12 AWG ring terminal onto a length of red copper stranded hot wire. Mount an inline ATO/ATC fuse holder housing a 20-Amp blade fuse within 12 inches of the battery post. Do not insert the fuse into the holder until all wiring steps are fully completed.
Step 2: Mount the Heavy-Duty Control Switch and Terminal Block
Mount a heavy-duty momentary push-button switch (rated for minimum 20A DC continuous load) inside the cab within easy reach of the operator. If using an intermediate terminal block under the dashboard, secure the block to a solid surface using insulated mounting hardware. Route the red hot wire from the battery fuse holder through a rubber grommet in the engine firewall, terminating it onto Pole 1 of your switch or Terminal 1 of the terminal block.
Step 3: Route the Switched Feed Line to the Solenoid Valve
Connect a 12 AWG blue or red switched hot wire to the output pole (Pole 2) of the momentary switch. Run this conductor through the firewall routing loom down to the mounting location of the train horn air valve solenoid. Strip 1/4 inch of insulation from the wire end and crimp a fully insulated female spade terminal or weatherproof butt connector, attaching it to one of the two leads exiting the air horn solenoid.
Step 4: Establish the Solenoid Ground Wire Connection
Take a length of 12 AWG black ground wire and crimp a matching terminal connector to attach it to the remaining lead of the pneumatic air valve solenoid. Locate an existing chassis ground bolt or drill a dedicated grounding point on the vehicle frame near the horn assembly. Scrape away all paint, rust, and protective undercoating down to bare, shining metal. Terminate the black wire with a heavy-duty ring terminal, coat the metal interface with dielectric grease to stop oxidation, and bolt the ring terminal tightly to the frame.
Step 5: Verify Circuit Continuity and Final Line Test
Reattach the vehicle’s negative battery cable clamp. Insert the 20A fuse into the inline fuse holder. Using a digital multimeter set to DC Volts, place the positive probe on the solenoid positive terminal and the negative probe on bare frame metal. Have an assistant depress the horn button. The multimeter must read full system charging voltage (typically 12.6V to 13.8V DC). A reading lower than 11.5V indicates excessive wire resistance or a poor chassis ground.
For installations where high air tank pressures (175+ PSI) cause high resistance against the solenoid valve seat, consider installing an inline flyback suppression diode (1N5408) across the solenoid positive and ground terminals. This absorbs the voltage inductive surge when the switch opens, preventing internal arcing inside your dashboard switch mechanism.
Electrical Specs: Voltage Drop, Conductor Gauge, and Fuse Ratings
Because an direct air horn train horn wiring diagram without relay routes full operating load directly through the steering wheel area or dashboard console, proper electrical sizing is mandatory. Standard automotive hookup wire (18 AWG or 16 AWG) is unsuitable for non-relayed horn solenoids over extended harness runs.
When electricity flows through a copper conductor, native resistance converts a fraction of that electrical energy into thermal energy. The voltage drop ($\Delta V$) across a circuit leg can be calculated using Ohm’s Law:
$$\Delta V = I \times R$$
Where $I$ is the peak operating current of the solenoid coil and $R$ is the total loop resistance of the conductor length.
10 AWG Copper Conductor: Resistance of approximately $0.000999\ \Omega/\text{ft}$. At a 20A load over a 20-foot total loop length, the voltage drop is under $0.4\text{V}$ DC (less than 3% total system drop).
12 AWG Copper Conductor: Resistance of approximately $0.001588\ \Omega/\text{ft}$. At a 20A load over a 20-foot total loop length, the voltage drop is approximately $0.63\text{V}$ DC (acceptable for standard 120-150 PSI systems).
16 AWG Copper Conductor: Resistance of approximately $0.004016\ \Omega/\text{ft}$. At a 20A load over a 20-foot total loop length, the voltage drop exceeds $1.6\text{V}$ DC. This severe drop degrades solenoid coil pull-in force by up to 25%, frequently leading to failure under high air tank pressure conditions.
When integrating secondary onboard air components alongside the horn system, refer to documentation regarding 12V compressor power relay systems. While horn solenoids can function without a relay when paired with a heavy-duty switch, high-draw electric air compressors (drawing 30A to 45A continuous DC)
must always utilize a heavy-duty power relay or continuous-duty solenoid contactor.For comprehensive switch selection specs, cross-reference amperage ratings with heavy-duty momentary push button switches to verify inductive load ratings rather than resistive-only ratings.
Direct Wiring Troubleshooting: Hot Wire Failure and Ground Voltage Drop
Elimination of the power relay introduces distinct failure modes that primarily affect control switches, inline fusing, and localized ground connections.
Problem 1: Control Switch Contacts Arc and Weld Closed
Symptom: The train horn triggers upon button press but continues sounding continuously after releasing the horn switch.Root Cause: High inductive surge current from the direct solenoid valve has welded the internal metal contacts of the momentary switch together. This occurs when using standard toggle or horn switches rated below 15A DC.
Corrective Action: Immediately disconnect the inline fuse to stop the horn. Replace the damaged switch with a industrial-grade momentary switch rated for 20A or 30A DC at 12V. Install a flyback suppression diode across the solenoid terminal leads to absorb residual coil collapse voltage.
Problem 2: Solenoid Clicks Rapidly or Hums Without Releasing Air
Symptom: Pressing the horn switch results in a metallic clicking or buzzing sound from the solenoid, but no compressed air flows into the horns.
Root Cause: Extreme voltage drop along the power supply leg, or a high-resistance ground path. Alternatively, air tank pressure exceeds the solenoid’s Maximum Operating Pressure Differential (MOPD) threshold under reduced voltage conditions.
Corrective Action: Measure source voltage directly across the solenoid terminal leads while depressing the switch. If voltage drops below 11.0V DC, inspect the ground wire attachment point. Scrape chassis surface to bare steel, re-terminate ground lugs using 12 AWG or 10 AWG wire, and verify that the hot wire is at least 12 AWG thick.
Problem 3: Blown Inline Power Fuse Upon Actuation
Symptom: The inline 20A fuse immediately blows the instant the horn push-button is depressed.
Root Cause: A short-circuit to ground along the switched hot line wire, or internal breakdown of the solenoid coil windings resulting in direct frame shorting.
Corrective Action: Inspect the length of the 12 AWG blue/red hot wire passing through the engine firewall for chafing or pinched insulation. Set a multimeter to resistance mode ($\Omega$) and check resistance between the solenoid positive input pin and the outer valve body. A reading of near $0\ \Omega$ confirms an internal short circuit inside the solenoid coil, requiring solenoid replacement.
Air Horn Train Horn Wiring Diagram Without Relay Frequently Asked Questions
Why do traditional train horn installations recommend a relay if it can be wired without one?
Automotive relays isolate high-current load circuits (15A to 30A) away from vehicle passenger cabins, allowing light-gauge wire (18 AWG) and low-current steering wheel contacts (3A to 5A) to safely control heavy electrical equipment. Eliminating the relay requires running thick 12 AWG or 10 AWG hot wire directly into the dash, which mandates using heavy-duty industrial switches capable of continuously breaking high inductive loads without overheating or contact arcing.
Can I wire a non-relayed train horn solenoid directly into my factory steering wheel horn button?
No. Factory steering wheel horn buttons are engineered to switch low-current ground signals (often under 3 to 5 Amps) to trigger an OEM relay inside the central junction box. Running full solenoid power (15A to 20A continuous) directly through factory steering wheel clock springs and horn contacts will melt internal ribbon wiring, destroy the clock spring module, or cause under-dash harness fires.
What size wire and fuse should be used for a direct air horn solenoid wiring setup?
Use 12 AWG stranded copper wire for overall circuit runs under 15 feet. For runs exceeding 15 feet from battery to switch to horn, step up to 10 AWG copper conductor wire. Protect the circuit using a dedicated 20-Amp ATO/ATC blade fuse or manual-reset thermal circuit breaker placed within 12 inches of the positive battery terminal.
Is a neutral wire used in a 12V DC vehicle train horn wiring diagram?
No. The term “neutral wire” applies exclusively to Alternating Current (AC) electrical systems, such as residential or industrial building wiring. 12V DC automotive circuits utilize a positive “hot wire” supplying current from the battery and a negative “ground wire” returning current to the battery via the vehicle’s metallic chassis or frame structure.
How do I know if my train horn solenoid valve coil is polarity-sensitive?
Most two-wire 12V DC air horn solenoids feature non-polarized coils, meaning either terminal lead can be attached to the positive switched hot line, while the remaining lead attaches to chassis ground. However, if the solenoid features an integrated LED indicator, internal flyback diode, or a three-prong DIN connector, pin assignments are fixed: Terminal 1 is designated for positive 12V DC input, Terminal 2 for ground return, and Terminal 3 (or central spade) for frame earth shielding.
Step-by-Step Guide to Understanding the Air Horn Train Horn Wiring Diagram Without Relay
Identify – Disconnect the negative battery terminal and identify the compressor direct power requirements.
Locate – Select a clean, unpainted metal chassis surface to establish a low-resistance ground wire terminal.

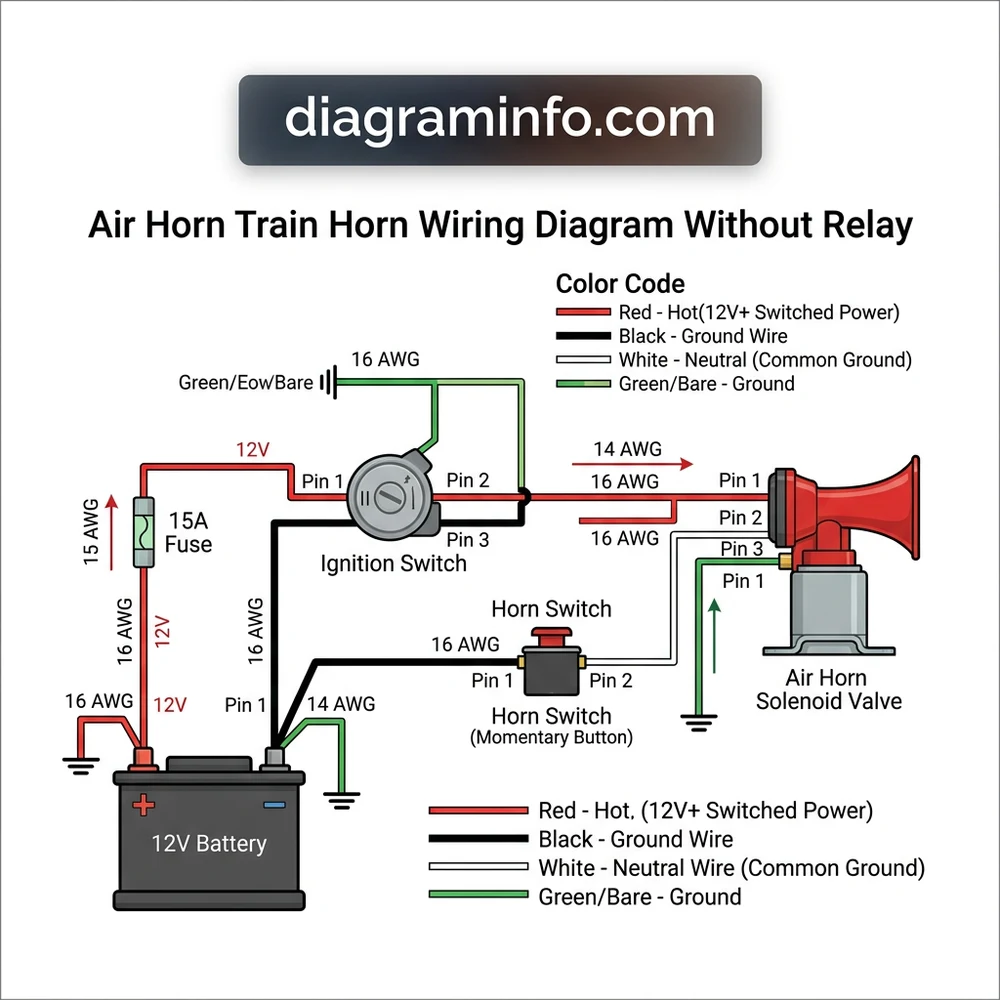

Reference – Check the air horn train horn wiring diagram without relay for correct pin assignment and switch terminal placement.
Connect/Route – Route 10-gauge hot wire from the battery through a 30A inline fuse to a heavy-duty switch, then to the compressor.
Verify – Reconnect the battery ground wire and test circuit voltage using a multimeter to confirm proper current delivery.
Troubleshoot – Inspect wire color code continuity, check fuse condition, and verify terminal connections if the horn fails to sound.
