Stihl BR 600 Parts Diagram: Component Breakdown (2026)
The Stihl BR 600 parts diagram illustrates the 4-Mix engine structure, detailing the valve train, crankcase assembly, Zama C1Q carburetor layout, and blower housing system. It maps exact component placement, OEM reference numbers, and fastener configurations, allowing precise disassembly, valve lash adjustments, and replacement of wear items like fuel lines.
📌 Key Takeaways
- The 4-Mix engine requires valve clearance adjustment set precisely to 0.10 mm (0.004 in) using a standard feeler gauge.
- Primary failure points on the BR 600 system include stiffened carburetor diaphragms and clogged spark arrestor screens.
- Flywheel nut installation requires torque tightened to 28 Nm (20.7 ft-lbs) to prevent crankshaft shearing.
- Engine layout diagrams map critical vacuum line routing essential for proper fuel pump pulse operation.
- DIY repair is suitable for maintenance items like air filters and spark plugs, but valve seat recutting requires professional service.
Servicing commercial backpack blowers requires strict adherence to manufacturer engineering tolerances, particularly when working on hybrid engine platforms. The STIHL BR 600 utilizes a 4-MIX engine architecture that combines four-stroke valve lubrication mechanisms with two-stroke fuel-oil mix charge delivery. Utilizing an accurate Stihl BR 600 parts diagram allows commercial service technicians and small engine mechanics to identify structural sub-assemblies, trace mechanical linkage layouts, and locate precise original equipment manufacturer (OEM) part numbers. This technical reference manual details the complete schematic overview, component breakdown, fastener torque specifications, and diagnostic procedures required for accurate equipment overhaul.
Stihl BR 600 Parts Diagram: Complete System and Component Layout

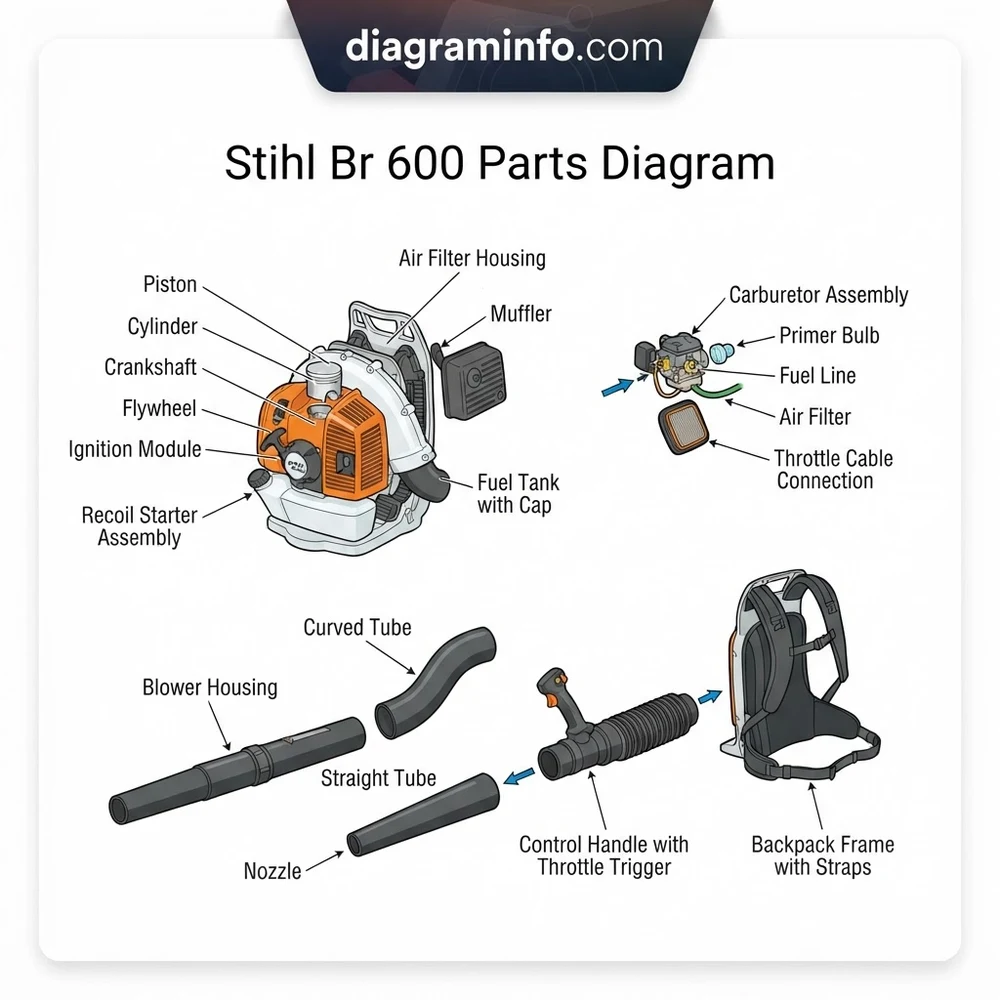

The STIHL BR 600 powerhead and air delivery assembly consist of five primary structural modules. Understanding the spatial relationship and indexing of these internal components on the schematic overview prevents improper reassembly and mechanical failure during operation. Manufacturer technical specifications indicate that components must be replaced using precise OEM part numbers to maintain balanced crankcase pressure and ignition timing.
Recommended Best Deal Products
Displacement: 64.8 cc (3.95 cu. in.) | Cylinder Bore: 50 mm | Stroke: 33 mm | Idle Speed: 2,500 RPM | Governed Max Speed: 7,200 RPM | Cylinder Base Bolt Torque: 11.5 Nm (8.5 ft-lbs) | Crankcase Pan Bolt Torque: 9.5 Nm (7.0 ft-lbs) | Flywheel Nut Torque: 33.0 Nm (24.3 ft-lbs).
1. Engine Short Block and 4-MIX Valve System
Unlike standard two-stroke engines, the BR 600 power cylinder incorporates pushrods, rocker arms, intake valves, and exhaust valves driven by a internal timing gear. The cylinder assembly (OEM 4282 020 1211) integrates a hard-chromed bore with dedicated valve guides. The camshaft gear alignment mark must align directly with the cast notch on the crankcase during assembly to ensure correct valve timing. Valve clearance for both intake and exhaust valves must be set to 0.10 mm (0.004 in) when the engine is cold.
2. Fuel Delivery and Induction Configuration
The fuel structure incorporates a high-density polyethylene tank (OEM 4282 350 0405), dual fuel lines, a tank vent, and a Zama C1Q-series diaphragm carburetor (typically C1Q-S183 or C1Q-S209 depending on production year). Fuel is drawn through an weighted pickup body (OEM 0000 350 3502) and delivered through the rotary valve carburetor. An insulating flange separates the metallic carburetor body from the cylinder to prevent fuel vaporization and vapor lock conditions.
3. Air Impeller and Blower Housing Assembly
The air flow system utilizes a dynamic plastic impeller wheel (OEM 4282 700 3400) mounted directly to the tapered crankshaft extension. The impeller is enclosed within a two-piece high-impact housing structure held together by perimeter self-tapping screws (Torx T27). The inner housing connects to a multi-stage vibration damping system using three distinct rubber buffer mounts and two steel recoil springs that isolate the engine harness from the backpack frame.
4. Ignition Module and Electrical Harness
The solid-state ignition module (OEM 4282 400 1305) is mounted externally on the flywheel side of the crankcase. Air gap spacing between the module poles and the flywheel magnet must be adjusted to precisely 0.3 mm (0.012 in). Electrical wiring routes through a protective loom down the control handle arm, integrating the stop switch circuit with the throttle trigger assembly.
| Assembly Reference | OEM Part Number | Component Description | Technical Spec / Fastener Spec |
|---|---|---|---|
| Cylinder Kit | 4282 020 1211 | Cylinder & Piston Assembly (50mm) | M5x20 Fasteners (11.5 Nm) |
| Cam Gear | 4282 030 1803 | Internal Timing Camshaft Wheel | Timed to Crankshaft Mark |
| Carburetor | 4282 120 0606 | Zama C1Q-S183 All-Position Carb | Diaphragm-operated rotary valve |
| Ignition Module | 4282 400 1305 | Solid State Ignition Coil | Air gap: 0.3 mm (0.012 in) |
| Spark Plug | 0000 400 7000 | NGK CMR6H Resistor Plug | Gap: 0.5 mm (0.020 in) |
| Impeller Fan | 4282 700 3400 | High-Velocity Blower Wheel | M10x1.0 LH Thread Nut (33 Nm) |
How to Read the Stihl BR 600 Schematic Blueprint for Service
Reading an exploded view diagram accurately prevents structural misalignment and ensures proper orientation during equipment reassembly. The Stihl BR 600 parts diagram utilizes indexed item numbers keyed to standardized STIHL part number formats (xxxx xxx xxxx). Following a systematic indexing procedure allows technicians to identify hardware, sub-assemblies, and rebuild kits efficiently.
Part callouts enclosed in dashed boxes on the schematic represent pre-assembled repair kits. Ordering the parent kit part number includes all child items enclosed within the border. Solid arrows indicate assembly insertion direction, while numerical callouts in parentheses specify quantity per unit.
1. Locating Module Sub-Assemblies on the Layout Diagram
To navigate the exploded diagram, first isolate the major repair area: Crankcase/Cylinder, Starter/Flywheel, Carburetor/Air Filter, or Blower Housing/Harness. Each layout blueprint displays components in their exact spatial sequence relative to the central engine block. When disassembling the intake system, refer to our comprehensive Stihl carburetor tuning and rebuild guide to ensure proper gasket layering order between the intake manifold, spacer, and carburetor body.
2. Cross-Referencing Explosive Views with OEM Part Numbers
Once the component callout number is identified on the diagram matrix, cross-reference it with the numerical master list below the image. Verify model year variations, as STIHL implemented updates to the engine pan sealing surface and valve rocker arms on units produced after specific serial numbers. Early model BR 600 units used a single-piece pushrod guide plate, whereas updated configurations utilize integrated rocker arm pivot posts cast directly into the cylinder head.
3. Verifying Fastener Torque and Gasket Orientation
Schematics use standardized graphical symbols to indicate thread-locking compounds, grease lubrication points, and mandatory gasket replacements. Always note the physical direction of asymmetrical seals on the blueprint. For example, the crankshaft oil seals (OEM 9640 003 1600) feature a raised sealing lip that must face inward toward the crankcase cavity to hold crankcase vacuum during the intake stroke.
Troubleshooting Stihl BR 600 Engine and Air Assembly Configurations
Diagnosing performance anomalies on the STIHL BR 600 requires correlating operational symptoms with specific physical components listed on the schematic. Because the 4-MIX engine relies on valve actuation and sealed crankcase pressure pulses to drive the carburetor fuel pump, failure in either the mechanical or pneumatic sub-systems will impede performance.
Failure to set valve lash correctly on the BR 600 can lead to valve-to-piston contact, resulting in bent valve stems, damaged pushrods, or cracked cylinder heads. Always bring the piston to Top Dead Center (TDC) on the compression stroke before setting valve clearance.
1. Diagnosing Low Compression and Valve Train Misalignment
If the engine demonstrates loss of pull-rope resistance or fails to start, low compression is the primary suspect. According to OEM specifications, normal warm compression should measure between 110 PSI and 135 PSI. Perform the following checks using the schematic as a reference:
- Rocker Arm and Pushrod Inspection: Remove the valve cover (OEM 4282 025 1100) and verify that both pushrods are properly seated in the tappet sockets and rocker arm cups.
- Valve Clearance Adjustment: Set the flywheel magnet past the ignition module to TDC. Insert a 0.10 mm feeler gauge between the valve stem end and the rocker arm adjusting screw. Tighten the locknut to 9.0 Nm (6.6 ft-lbs).
- Cam Gear Timing Verification: If clearance is correct but compression remains low, remove the starter assembly and cam gear cover. Verify the alignment dot on the cam gear meshes directly with the timing mark on the crankcase casting when the piston is at TDC. Refer to our ignition system diagnostic reference for timing wheel verification procedures.
2. Resolving Air Leaks in the Intake and Crankcase Structure
An erratic idle or lean high-speed engine condition usually indicates an unwanted air intrusion into the sealed engine block. Use a pressure/vacuum tester connected through the spark plug port to test seal integrity. The system must hold 0.5 bar (7.25 PSI) of pressure and vacuum for at least 20 seconds.
If pressure drops, inspect the structural points highlighted in the engine cross-section diagram: the cylinder-to-crankcase pan bonded joint (which requires STIHL Dirko HT sealant or equivalent flange sealant), the twin radial crankshaft oil seals, and the rubber intake manifold boot (OEM 4282 141 2200). Cracks in the flexible intake boot common on high-hour units allow unmetered air into the combustion chamber, leading to engine overheating.
3. Fixing Airflow Loss in the Impeller Housing Assembly
When engine RPM reaches the normal operating range (7,200 RPM) but blowing force is diminished, the failure resides in the air delivery module configuration. Inspect the fan wheel keyway for shear damage, ensure the housing wear plate is intact, and verify that the flexible elbow bellows (OEM 4282 705 2101) is securely clamped without split seams. If necessary, check our fuel line routing guide if fuel supply restriction prevents the engine from reaching full governing speed under load.
Stihl BR 600 Parts Diagram Frequently Asked Technical Questions
What is the exact valve clearance specification for the Stihl BR 600 4-MIX engine diagram?
The valve clearance specification for both the intake and exhaust valves on the STIHL BR 600 engine is 0.10 mm (0.004 in). This clearance must be measured and set when the engine is completely cold. Position the engine at Top Dead Center (TDC) on the compression stroke before loosening the rocker arm locknuts and setting the adjusting screws with a feeler gauge.
Where is the fuel tank vent located on the Stihl BR 600 parts layout?
The fuel tank vent (OEM 0000 350 5800) is mounted directly into the top wall of the molded fuel tank, located adjacent to the main fuel line grommet assembly. On the parts schematic, it is indexed under the Fuel System module. A clogged tank vent creates a vacuum inside the fuel tank during extended operation, causing the engine to starve for fuel and die after several minutes of operation.
How do I identify early vs. late model carburetor variations in the BR 600 schematic?
Early model BR 600 blowers utilize the Zama C1Q-S183 carburetor, which features manually adjustable High (H) and Low (L) mixture screws requiring a special spline service tool. Late model units use the Zama C1Q-S209 or C1Q-S210 series carburetors equipped with fixed jet caps or restricted limiter caps to comply with EPA emissions standards. Review the stamped model number on the flat mounting surface of the carburetor body before ordering diaphragm repair kits (OEM 1129 007 1062 vs OEM 4282 007 1001).
What are the correct torque specs for the cylinder and crankcase fasteners?
According to OEM assembly manuals, the four M5x20 cylinder base fasteners must be torqued in a cross-pattern sequence to 11.5 Nm (8.5 ft-lbs). The lower engine pan bolts securing the crankcase half require 9.5 Nm (7.0 ft-lbs). The flywheel retaining nut requires a higher torque spec of 33.0 Nm (24.3 ft-lbs) to ensure the keyway and tapered shaft remain seated under dynamic impeller loads.
Why does my BR 600 parts diagram show two different starter recoil assemblies?
STIHL produced the BR 600 with two distinct starter variations: the standard rewind starter assembly and the ElastoStart system. The standard starter uses a rigid starter grip handle and traditional pawl engagement wheel (OEM 4282 190 0300). The ElastoStart configuration integrates an internal shock-absorbing elastomer spring inside the handle sleeve (OEM 1128 190 3400) to cushion pull-rope recoil resistance caused by high compression peaks in the 4-MIX cylinder. Components between these two starter designs are not interchangeable.
Step-by-Step Guide to Understanding the Stihl Br 600 Parts Diagram
Identify – Select the relevant diagram section, such as the engine, carburetor, or tube housing configuration.
Locate – Find the specific component callout number on the exploded system layout.
Reference – Match the item callout to the OEM parts key to confirm exact part numbers and hardware sizes.
Connect/Route – Route fuel lines, throttle cables, and wiring harnesses along designated diagram channels.
Verify – Check valve lash clearance (0.10 mm) and bolt torque specifications against manufacturer guidelines.
Troubleshoot – Inspect seals, diaphragms, and gaskets if vacuum leaks or poor performance persist after reassembly.
