InSinkErator Garbage Disposal Parts Diagram: 2026 Repair
An InSinkErator garbage disposal parts diagram details the mounting assembly (sink flange, snap ring, and Quick Lock mount), upper grinding chamber, motor assembly, lower housing with overload reset switch, and 1.5-inch discharge tube connecting to the discharge tailpiece, P-trap, and standard vented drain line.
📌 Key Takeaways
- Quick Lock mounting assembly fits standard 3.5-inch sink openings using plumber’s putty.
- Discharge tube connects standard 1.5-inch tailpiece directly into the water-sealed P-trap.
- Red thermal overload reset switch is located at the bottom center of the motor housing.
- Worn sink flange gaskets and loose tailpiece slip-nuts cause most under-sink plumbing leaks.
- Jammed impellers require a 1/4-inch hex wrench in the bottom socket before motor disassembly.
Understanding an InSinkErator unit requires reviewing an accurate schematic layout. Whether installing a commercial-grade Evolution Excel or servicing a standard Badger 5 unit, navigating the mounting mechanism, discharge routing, and drain lines demands exact mechanical alignment. Standard plumbing configurations connect the motor-driven grind chamber directly to a 1-1/2 inch discharge tailpiece, running through slip joints into a P-trap assembly before exhausting into the main waste stack. This technical guide references structural schematics to isolate hardware failure points, maintain hydraulic seal integrity, and optimize waste flow dynamics.
Insinkerator Garbage Disposal Parts Diagram: Structural Component Breakdown

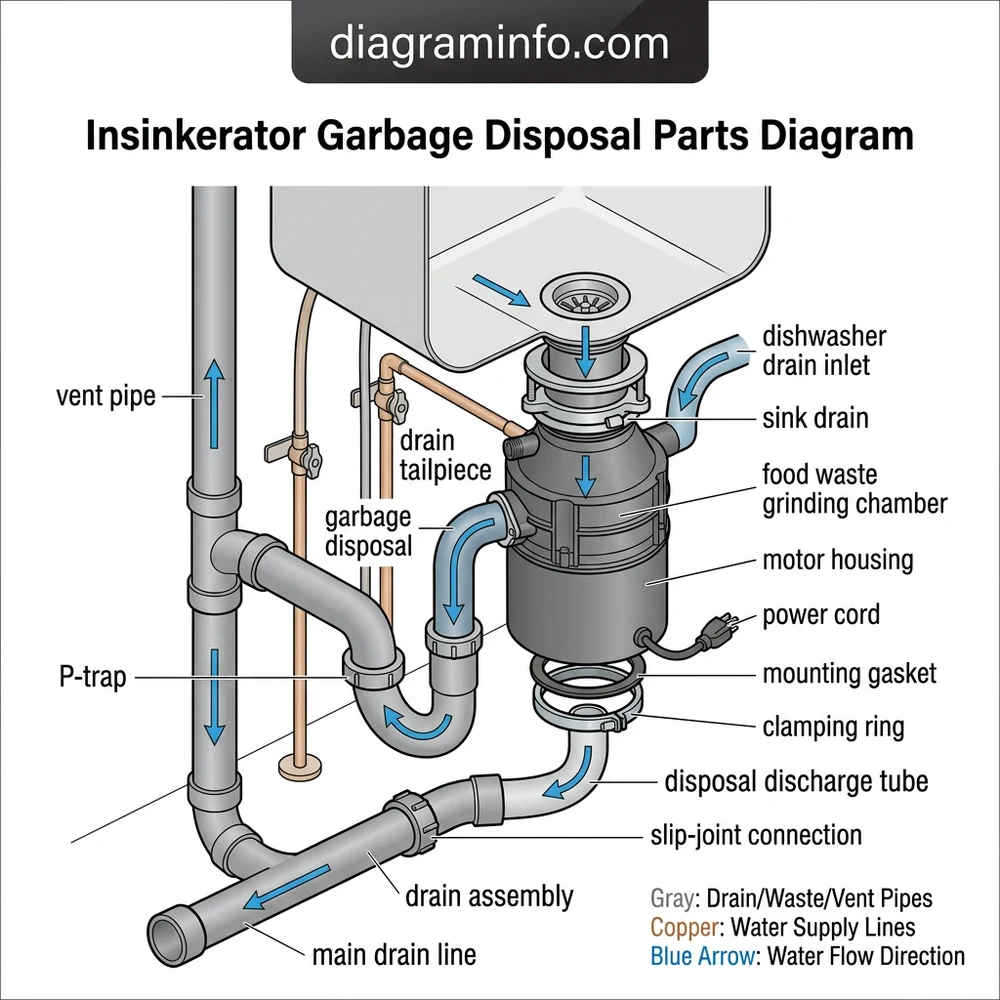

An InSinkErator garbage disposal plumbing schematic integrates two distinct hardware systems: the upper mechanical grind unit and the lower discharge hydraulics. At the top, the standard Quick Lock sink mount secures the unit using three mounting lugs, a stainless steel sink flange, and a resilient rubber splash guard (quiet collar). Inside the main housing, a high-torque 120V induction motor drives the shredder ring and dual 360-degree swivel impellers.
The fluid exhaust path relies on a precise drain assembly. The lateral discharge elbow fastens to the housing via a two-bolt metal flange clamp fitted with a profiled rubber gasket. This elbow transitions into a vertical or directional tailpiece, connecting to the lower under-sink plumbing network via polypropylene or Schedule 40 PVC piping. Analyzing under-sink plumbing diagram schematics helps locate key transition points across various under-sink configurations.
| Part Name | OEM Specification / Material | Operational Function |
|---|---|---|
| Sink Flange & Quiet Collar | 304 Stainless Steel / EPDM Rubber | Seals sink basin opening, supports unit weight, and dampens acoustic vibration. |
| Grind Chamber & Impellers | Stamped Stainless Steel / Cast Lug Impellers | Liquefies organic waste via centrifugal force against the stationary shredder ring. |
| Discharge Tailpiece | 1-1/2″ OD Polypropylene or Schedule 40 PVC | Directs pulverized slurry from the grind chamber into the waste drain assembly. |
| P-Trap Assembly | 1-1/2″ Schedule 40 PVC or Tubular Plastic | Maintains a liquid water seal (2–4″ depth) to prevent sewer gas backflow. |
| Air Admittance Valve (AAV valve) | ABS/PVC Body with Silicone Diaphragm | Admits air during discharge to equalize pressure when unvented stack access is absent. |
Reading the InSinkErator Drain Assembly and P-Trap Schematic
Interpreting a disposal mechanical drawing requires understanding how physical mounting hardware interacts with field-installed waste lines. Proper routing prevents standing water, line clogging, and sewer gas migration.
Deciphering the Quick Lock Mounting Hardware
The mounting diagram details an upper rubber gasket, backup ring, snap ring, and three-bolt mounting flange assembly. The sink flange seats into the sink opening from above. From below, the rubber gasket and backup ring slide over the flange shaft. Mechanics must snap the steel retaining ring into the flange shaft’s machined groove. Tighten the three hex mounting bolts evenly to exert uniform pressure on the sink basin flange.
Interfacing the Discharge Tailpiece and Dishwasher Port
As detailed in the plumbing diagram, the discharge tube mounts directly over an elastomeric seal ring. If integrating an automatic dishwasher, locate the 3/4-inch upper side port inlet. Manufacturer specs dictate that the interior plastic knock-out plug must be fully purged using a punch and hammer prior to hose installation. Secure the dishwasher flex line with a worm-drive hose clamp. Check our detailed guide on dishwasher drain pipe installation routing for proper high-loop geometry.
Routing Plumbing Through Slip Joints to the Vent Pipe and AAV Valve
From the discharge tailpiece exit, waste fluid flows into the P-trap via a threaded slip joint nut and rubber bevel washer. Maintain a continuous downstream slope of 1/4 inch per foot. Where physical venting directly into a structural roof vent pipe is constrained by local building codes, install an inline Air Admittance Valve (AAV valve) downstream of the trap weir at a minimum height of 4 inches above the horizontal drain branch.
– Mounting Bolt Torque: 30–40 in-lbs
– Minimum Drain Slope: 1/4 inch horizontal drop per linear foot
– P-Trap Water Seal Depth: 2–4 inches (50–100 mm)
– Standard Discharge Pipe Diameter: 1-1/2 inches (DN 40)
– Dishwasher Hose Clamp Torque: 12–15 in-lbs
Resolving Common Insinkerator Garbage Disposal Parts Diagram Faults
System leaks and hydraulic back-ups usually stem from incorrect gasket seat alignment, improper slip joint compression, or structural venting restrictions. Refer to the structural schematic to isolate failure points during diagnostic procedures.
Always disconnect the 120V electrical supply or trip the dedicated branch breaker prior to inserting manual clearance tools or servicing the internal grind assembly.
Correcting Discharge Flange and Slip Joint Leaks
A leak at the lateral discharge exit usually indicates a compromised rubber flange gasket or uneven torque on the two-bolt metal clamp. Tighten the clamp bolts evenly to 18-20 in-lbs to equalize gasket compression. If fluid leaks from a lower slip joint connection, verify that the bevel washer is installed with its tapered edge facing toward the receiving pipe throat before tightening the slip nut hand-tight plus 1/4 turn.
Clearing Flywheel Stalls and Hydraulic Airlocks
When the unit hums without rotating, the grind plate is mechanically jammed by debris wedged between the swivel impellers and shredder ring. Insert a 1/4-inch hex wrench into the center bottom motor shaft socket and manually rotate the assembly back and forth 360 degrees to clear the bind. If water drains slowly despite a clear grind chamber, check for negative pressure airlocks caused by an unvented branch pipe or a seized AAV valve diaphragm.
Do not use pipe dope or PTFE tape on plastic slip joint compression washers. Compression seals rely on elastomeric deformation; chemical thread sealants degrade plastic slip nuts and disrupt mechanical tolerances.
InSinkErator Garbage Disposal Parts Diagram Technical FAQs
What are the standard plumbing dimensions indicated on an InSinkErator schematic?
Most InSinkErator residential models feature a 1-1/2 inch female threaded or clamp-on discharge outlet. The standard center-line distance from the sink basin bottom to the center of the lateral discharge pipe ranges from 6 to 7.5 inches depending on whether it is a Badger or Evolution series unit.
How does an Air Admittance Valve (AAV valve) integrate into the disposal drain lines?
An AAV valve mounts vertically on the branch drain line downstream of the P-trap weir. When fluid discharges through the P-trap, the negative hydraulic pressure lifts the internal AAV diaphragm, drawing air into the waste line to eliminate vacuum siphoning without releasing sewer gases into the cabinet space.
Can PVC Schedule 40 solvent weld pipes replace tubular slip joint assemblies?
Yes. While tubular polypropylene with slip joints offers adjustment flexibility, rigid Schedule 40 PVC pipe bonded with solvent cement provides a permanent, leak-proof installation. Transition from the disposal discharge flange using a 1-1/2 inch male adapter connected directly to hard PVC lines.
What causes water to back up into the dishwasher hose connected to the disposal?
Water backup occurs if the knockout plug inside the disposal port was only partially knocked out or if the dishwasher drain line lacks a high loop or air gap valve. Ensure the dishwasher line loops at least 20 inches above the cabinet floor before connecting to the disposal inlet port.
How do you replace an InSinkErator sink flange without removing the entire mounting assembly?
To replace the flange, support the weight of the disposal housing from below, disengage the lower mounting ring by rotating it counterclockwise, pull the snap ring off the flange barrel, and slide the old flange upward through the sink opening. Install the replacement flange with fresh plumbers putty or the provided EPDM gasket.
Step-by-Step Guide to Understanding the Insinkerator Garbage Disposal Parts Diagram
Identify – Turn off circuit breaker power and disconnect the unit under the sink.
Locate – Reference the diagram to locate the Quick Lock sink flange assembly and P-trap connection.
Reference – Inspect the rubber splash guard, drain assembly, and mounting gasket for visible wear or leaks.
Connect/Route – Route the 1.5-inch discharge tailpiece securely into the P-trap slip-nut connector.
Verify – Reconnect electrical power and run cold water to check all plumbing joints for leaks.
Troubleshoot – Press the red reset button underneath or insert a 1/4-inch hex wrench if the motor hums.
