GE Ice Maker Parts Diagram: 2026 Component Guide
The GE ice maker assembly connects a 120V drive motor, mold heater (185W), dual water inlet valve, and shutoff arm to the main control board via a 4-pin or 6-pin harness. The diagram details the electrical configuration, thermostat sensor layout, and physical mounting structure inside the freezer compartment.
📌 Key Takeaways
- Mold heater resistance should measure approximately 72 ohms on standard 120V GE ice maker modules.
- The feeler arm optical sensor or mechanical microswitch controls shutoff when the ice bin reaches capacity.
- Always disconnect 120V main power and shut off water supply before servicing internal harness connections.
- The most frequent failure point is a shorted water inlet valve solenoid or jammed ice ejector arm.
- Replacing the modular assembly is straightforward DIY, while main control board diagnostics may require a technician.
GE refrigerator ice maker assemblies rely on precise electromechanical and electronic integration to manage water metering, freezing cycles, and mechanical ice harvesting. Deciphering a GE ice maker parts diagram is essential for diagnosing mechanical jams, electrical open circuits, and hydraulic metering failures across standard top-mount, side-by-side, and French-door refrigeration platforms. Whether servicing classic mechanical modular units (such as the WR30X10093 series) or modern electronic ice production systems, understanding the functional assembly scheme prevents misdiagnosis, eliminates improper component replacement, and ensures strict compliance with factory electrical specifications.
GE Ice Maker Parts Diagram: Complete Component Breakdown

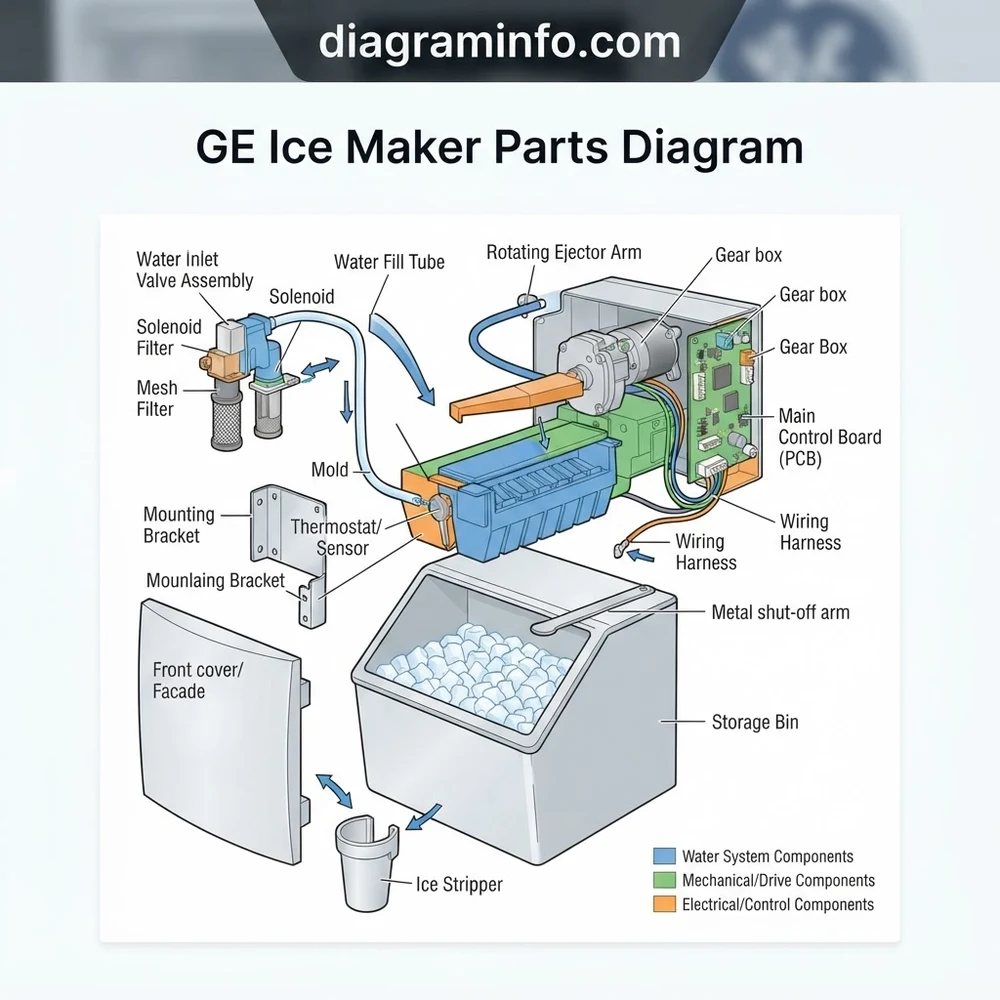

The structural framework of a standard GE ice maker system integrates mechanical drive components, thermal sensors, and fluid controls. Referencing the general exploded view schematic, the system relies on distinct functional modules to complete each 90-to-120-minute production cycle.
Recommended Best Deal Products
- Ice Maker Module Assembly (OEM WR30X10093 / WR30X30972): Serves as the central command housing. It encloses the synchronized drive motor, timing gear train, home/fill microswitches, and internal printed circuit board (PCB) or contact disc assembly.
- Die-Cast Aluminum Mold Body: Holds water during the freezing phase. Constructed from high-thermal-conductivity aluminum with a non-stick coating to prevent ice adhesion.
- Integrated Mold Heater: A calrod-style resistive heating element press-fit along the bottom perimeter of the aluminum mold. Rated at approximately 165 Watts, it briefly energizes during the harvest phase to flash-melt the ice boundary.
- Ejector Blade Sweep Assembly: A direct-driven stainless steel or reinforced plastic shaft with finger sweeps designed to rotate 360 degrees, lifting freed ice cubes out of the mold pockets.
- Stripper Arm Assembly: Positioned adjacent to the ejector path, this stationary plastic comb prevents harvested ice cubes from cycling back into the mold cavity.
- Shut-Off Arm / Bail Arm Mechanism: A spring-loaded wire arm that mechanically trips an internal microswitch when the ice bin reaches maximum capacity, breaking the cycle contact circuit.
- Water Inlet Solenoid Valve (OEM WR57X10032): A dual-port electro-hydraulic valve located at the lower rear chassis. Controlled via 120V AC signal pulses to meter precise water volume into the fill tube.
- Thermal Cut-Off (TCO) Fuse Assembly: An inline safety device designed to open permanently if mold heater temperatures exceed 160°F (71°C).
| Component | OEM Part Reference | Electrical Spec / Resistance |
|---|---|---|
| Drive Motor Assembly | WR60X10004 / Internal | 120V AC, 60Hz, 8.8k–9.5k Ω |
| Mold Calrod Heater | Integrated Mold Base | 120V AC, 165W, 72–89 Ω |
| Water Inlet Solenoid (Primary) | WR57X10032 | 120V AC, 180mA, 1.2k–1.5k Ω |
| Mold Thermistor (Electronic) | WR55X10942 | 16.3k Ω @ 0°F (-18°C) / NTC |
| Thermal Cut-Off Fuse (TCO) | In-line Harness | 120V / 10A (Opens at 160°F) |
How to Read the GE Ice Maker Wiring Schematic and Layout Blueprint
Interpreting a GE ice maker wiring schematic requires matching physical wiring harness connections to their corresponding electrical symbols on the unit blueprint. Proper navigation prevents short circuits and ensures accurate voltage tracing during active harvesting cycles.
Start by analyzing the harness connector pin layout, typically located at the side or rear of the ice maker housing. Most modern GE modular units utilize a 4-pin or 6-pin inline connector configuration:
- Locate L1 Power and Neutral Inputs: Line voltage (L1) is supplied via the main line wire (typically Black or Orange) to pin position 1 or L on the housing connector. Neutral (White) connects across pin position 4 or N. Always verify 115V–120V AC across these pins using a digital multimeter before assessing secondary components.
- Trace the Control Thermostat / Thermistor Loop: On mechanical models, a bimetal thermostat wired in series with L1 closes when mold temperature drops below 15°F (-9°C). On electronic models, trace the 2-pin harness lead extending to the thermistor. Cross-reference thermistor resistance values against standard NTC thermistor curves; at freezer temperatures, expect high resistance (16.3k Ω at 0°F). For broader diagnostic context on control signals, review our guide on refrigerator control board diagnostics.
- Analyze the Solenoid Fill Circuit Path: Locate the output lead (typically Brown wire) originating from the internal holding switch terminal ‘W’. When the drive gear rotates to the ~300-degree mark, the internal switch contacts bridge L1 to terminal ‘W’, sending a 120V AC pulse down to the water inlet valve for 5 to 7 seconds.
- Verify Ground Integrity: Locate the Green/Yellow earth ground conductor anchored directly to the aluminum mold base. Continuity to the chassis frame must measure less than 0.5 Ω.
When testing electronic models equipped with a diagnostic force-harvest jumper (test points L and T on the front module cover), shorting these points for 3 seconds bypasses the thermistor temperature delay, instantly energizing the drive motor for diagnostic trace verification.
Fill Tube Heater Resistance: On models featuring an integrated fill tube heater, measure resistance across the dedicated harness leads. Standard nominal rating is 100 to 140 Ω (yielding approximately 10 Watts of continuous anti-sweat heating power at 120V AC).
Diagnosing System Failures with the GE Ice Maker Parts Diagram
Diagnosing operational faults requires isolating mechanical blockages from electrical component failures using the schematic line paths.
1. Motor Stalls / Mechanical Jamming: If the ejector arm stalls against ice cubes, the mold heater circuit is the primary suspect. Consult the schematic and measure resistance between the heater lead terminal and neutral. An open circuit (>1 MΩ) indicates a blown calrod element or a open inline Thermal Cut-Off (TCO) fuse. If the mold heater fails to heat, the ice boundary remains bonded to the aluminum cavity, blocking ejector movement.
2. No Water Fill / Empty Ice Mold: Trace the Brown wire path from the ice maker harness down to the primary water valve. Disconnect the solenoid spade connectors and measure coil resistance. A reading of 0 Ω (short) or infinite Ω (open) requires valve replacement. If valve coil resistance reads within the 1.2k–1.5k Ω tolerance, check water line pressure; hydraulic pressure must maintain a minimum of 20 PSI to force open the internal diaphragm switch. Additional hydraulic layout details can be cross-referenced in our reference manual on side-by-side refrigerator water valves.
3. Overfilling and Ice Slab Formation: If water overflows the mold cavity into the storage bin, the internal fill microswitch contacts inside the control module may be welded shut. Alternatively, debris within the water valve seating washer can prevent mechanical closure. Disconnect power during a fill cycle; if water continues to flow, replace the mechanical water valve body immediately.
High-Voltage Hazard: The ice maker module operates on standard 120V AC line voltage. Always disconnect main power to the refrigerator before inserting test probes, replacing modular harnesses, or performing component resistance checks across raw terminals.
Frequently Asked Questions About GE Ice Maker Component Configurations
How do I test the mold heater circuit using the GE ice maker parts diagram harness pinouts?
Disconnect the main 4-pin or 6-pin wiring harness from the ice maker housing. Set your digital multimeter to the Resistance (Ohms) setting. Identify the heater wire line pin (refer to the model schematic, usually terminal H or pin 2) and place one probe on that terminal and the second probe on the Neutral pin (N). A functioning calrod mold heater will display between 72 Ω and 89 Ω. An infinite reading (OL) indicates a failed heater element or a blown inline thermal fuse requiring replacement.
What are the standard wire color codes on GE ice maker power harnesses?
While wire colors may vary slightly across specific production years, standard GE factory pinouts follow a defined convention: Black or Orange represents 120V AC Line L1 power; White represents Neutral; Green or Green/Yellow represents Earth Ground; Brown represents the 120V AC switched output signal to the water inlet valve; and Blue or Yellow carries low-voltage control communication to the main electronic board or thermistor loop.
Can individual components like microswitches or ejector blades be serviced separately?
On legacy mechanical modular units (e.g., WR30X10093), individual sub-assemblies such as the shut-off arm spring, drive gear, and fill microswitches were individually replaceable. However, modern factory specifications mandate replacing the complete ice maker module assembly (OEM WR30X30972 or equivalent) when internal contact switches, gear teeth, or mold coatings fail, as sub-components are no longer calibrated independently by the manufacturer.
Why does the GE ice maker schematic show both AC line voltage and low-voltage DC signals?
Modern electronic GE ice maker systems utilize high-voltage 120V AC power to drive heavy electrical loads (the drive gear motor and high-wattage mold heater element) while leveraging low-voltage DC signals (typically 5V DC or 12V DC) for thermistor temperature feedback and optical ice level sensors. These low-voltage control signals interact directly with main system microprocessors to optimize harvesting frequency based on freezer usage dynamics. For broader system context, view our guide covering defrost system wiring schematics.
Step-by-Step Guide to Understanding the Ge Ice Maker Parts Diagram
Identify – Locate your specific GE ice maker model number and electrical schematic.
Locate – Find the mold module, water inlet valve, and wiring harness on the layout.
Reference – Map the 4-pin or 6-pin connector wire colors to check voltage inputs.
Connect – Align the replacement ice module structure and insert the wire harness plug fully.
Verify – Check thermal fuse continuity and mold heater resistance using a multimeter.
Troubleshoot – Test the fill valve solenoid voltage if water fails to enter the ice mold.
